Product Introduction

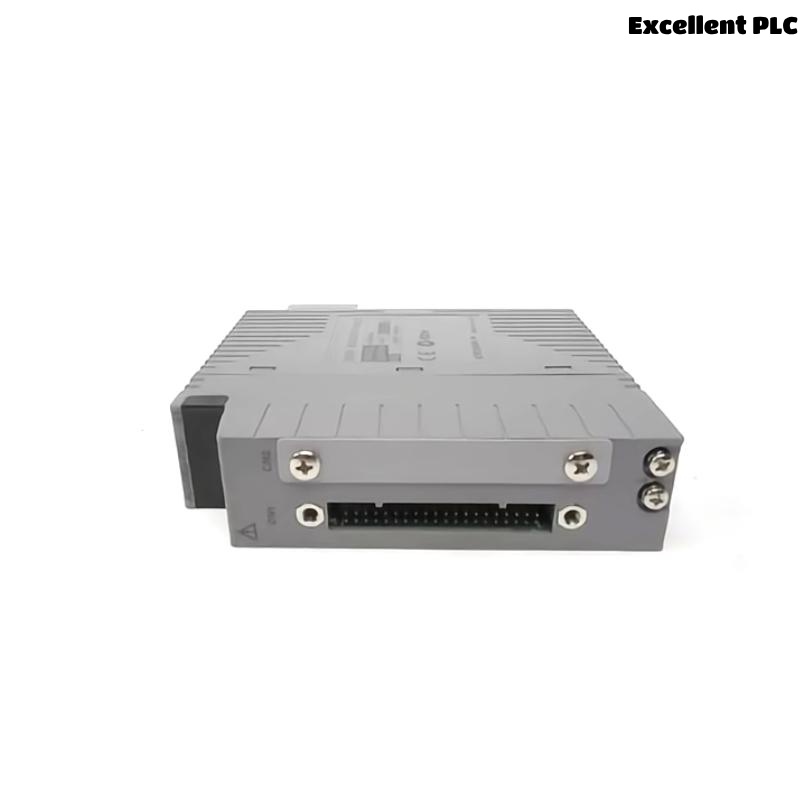

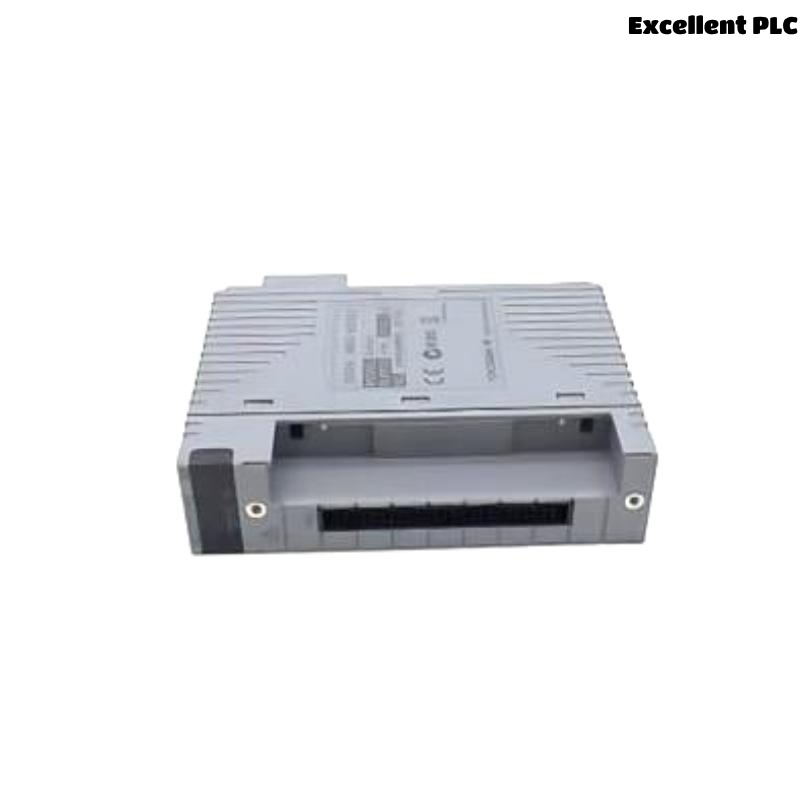

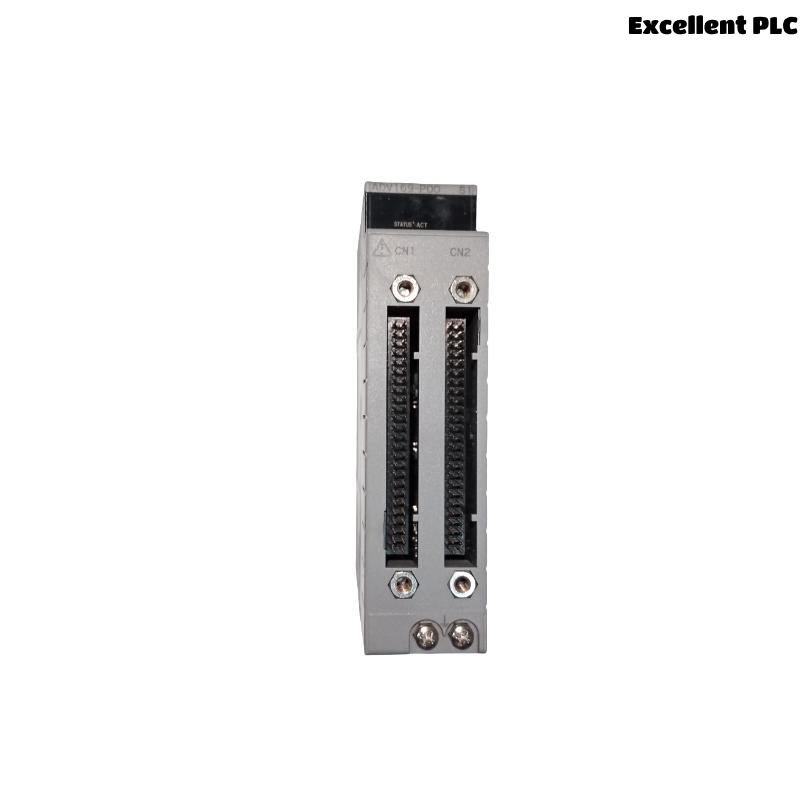

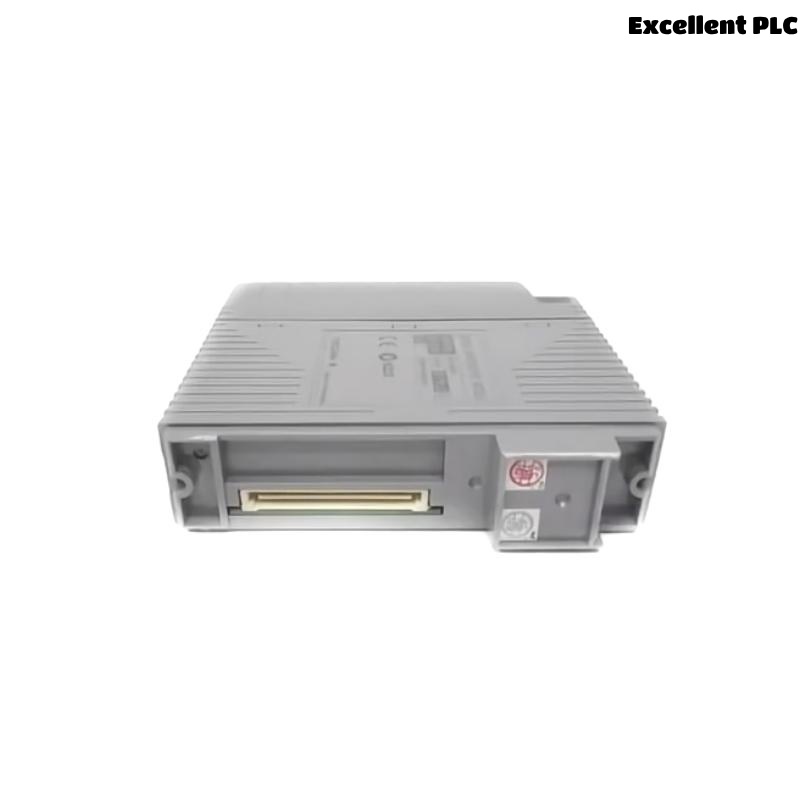

The Yokogawa ADV569-P01 Digital I/O Module is a highly reliable and efficient digital input/output module designed for use in Yokogawa’s advanced Distributed Control Systems (DCS). This module integrates multiple digital input and output channels into a single compact unit, offering a streamlined solution for managing discrete signals within complex industrial automation environments.
The ADV569-P01 is part of the well-established ADV500 series, known for durability and precision. It supports real-time data processing and quick response, which are critical for control and monitoring in industries such as chemical processing, power generation, oil and gas, and manufacturing. The module’s robust design ensures stable performance in harsh environments, providing operators with reliable signal acquisition and control.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | ADV569-P01 |
| Series | ADV500 Series |
| Input Channels | 8 Digital Inputs |
| Output Channels | 8 Digital Outputs |
| Input Voltage | 24 V DC nominal |
| Output Voltage | 24 V DC nominal |
| Output Current | 0.5 A per channel |
| Response Time | ≤10 ms |
| Power Consumption | Approx. 4 W |
| Operating Temperature | -20°C to +60°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions (L x W x H) | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw Terminal |
| Protection Rating | IP20 |
| Certifications | CE, UL, RoHS compliant |
Applications
The ADV569-P01 Digital I/O Module is widely used in industrial sectors that require reliable digital signal monitoring and control. Key applications include:
-
Chemical and Petrochemical Plants: Control and monitoring of valves, pumps, and alarms to maintain safety and efficiency.
-
Power Plants: Interface with turbines, generators, and safety shutdown systems to ensure stable power output.
-
Oil and Gas: Used in pipeline monitoring, emergency shutdown systems, and process control automation.
-
Manufacturing and Factory Automation: Controls conveyors, robotic arms, and machine statuses in automated production lines.
-
Water and Wastewater Treatment: Manages pumps, valves, and alarms critical for water purification and distribution.
-
Building Management Systems: Controls lighting, HVAC, and security devices through digital signaling.
Advantages
-
Compact Integration
Combines both digital inputs and outputs in one module, reducing panel space and wiring complexity. -
High Reliability
Designed for continuous operation in industrial environments with wide temperature and humidity tolerance. -
Fast Response Time
Less than 10 milliseconds response time allows rapid signal processing essential for real-time control. -
Flexible and Scalable
Compatible with Yokogawa’s ADV500 system, allowing easy scalability and system expansion. -
Ease of Installation
DIN rail mounting and screw terminals facilitate quick installation and secure wiring. -
Energy Efficient
Low power consumption minimizes heat generation and operating costs. -
Comprehensive Compliance
Meets international safety and environmental standards (CE, UL, RoHS). -
Robust Communication
Seamlessly integrates with Yokogawa control systems for reliable data transfer. -
Versatility
Suitable for a wide range of industrial automation tasks, from basic ON/OFF control to complex safety systems. -
Durability
Long operational life with minimal maintenance requirements.
Frequently Asked Questions (FAQ)
-
What is the total number of input and output channels on the ADV569-P01?
The module features 8 digital inputs and 8 digital outputs. -
What voltage levels does the module operate on?
Nominal operating voltage is 24 V DC for both inputs and outputs. -
How much current can each output channel handle?
Each output channel can carry up to 0.5 A. -
What is the operating temperature range for the module?
The module operates between -20°C and +60°C. -
How is the module mounted in control panels?
It uses standard DIN rail mounting. -
What is the response time of this I/O module?
Response time is less than or equal to 10 milliseconds. -
Can the ADV569-P01 be used in hazardous locations?
It is designed for industrial use but does not have intrinsic safety certification for hazardous areas. -
What type of wiring connectors does the module use?
Screw terminal connectors are employed for wiring. -
Is this module compatible with all Yokogawa DCS systems?
It is compatible with most Yokogawa DCS systems supporting ADV500 series modules. -
What are the physical dimensions and weight of the module?
The dimensions are 130 x 127.2 x 32.8 mm, and it weighs 0.3 kg.
Related Models (Same Series or Similar)
| Model | Description | I/O Channels | Power Consumption | Mounting Type |
|---|---|---|---|---|
| ADV569-P00 | Digital I/O Module | 8 Inputs / 8 Outputs | Approx. 4 W | DIN Rail |
| ADV569-P10 | Extended Digital I/O Module | 16 Inputs / 16 Outputs | Approx. 6 W | DIN Rail |
| ADV561-P50 | Digital Output Module | 16 Outputs | Approx. 3 W | DIN Rail |
| ADV551-P50 | Digital Output Module | 8 Outputs | Approx. 2.5 W | DIN Rail |
| ADV570-P50 | High-Density Digital Output | 32 Outputs | Approx. 5 W | DIN Rail |
| ADV540-P50 | Analog Output Module | 8 Analog Outputs | Approx. 3 W | DIN Rail |
