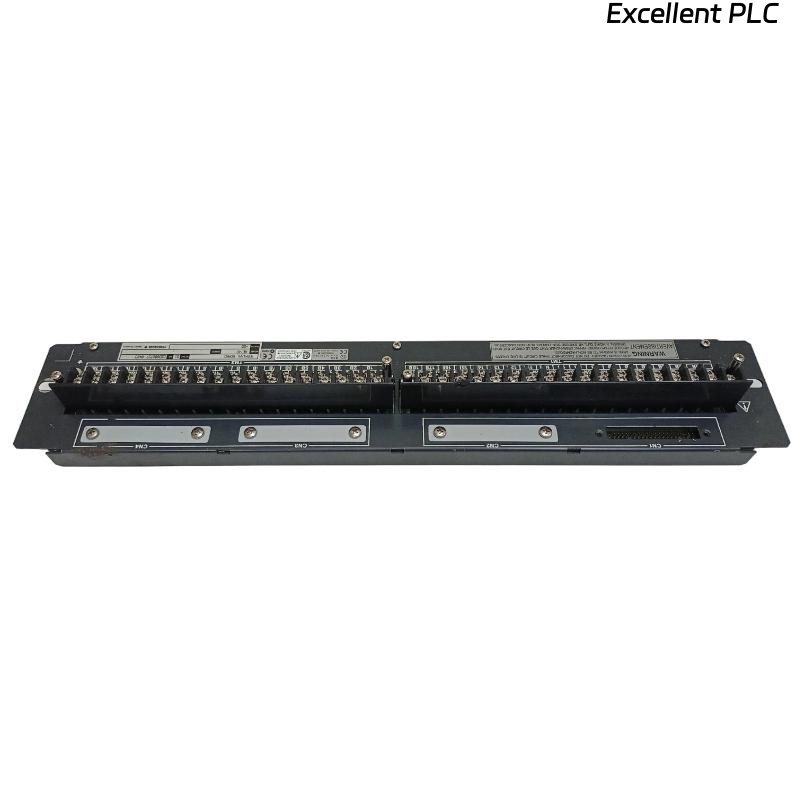

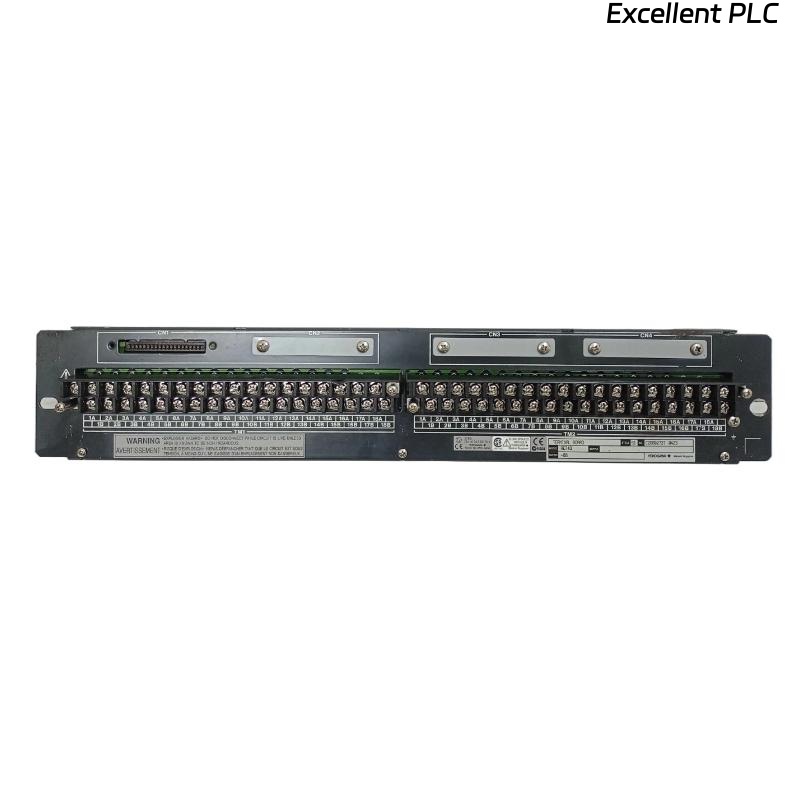

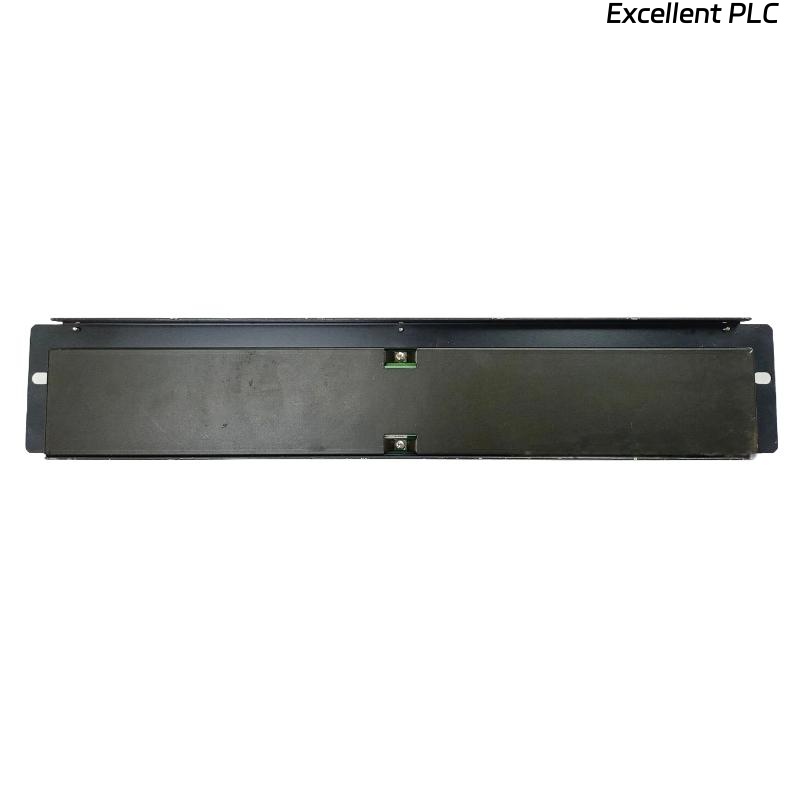

Yokogawa AET4D-06 Terminal Board

Manufacturer:Yokogawa

Product Number:AET4D-06

Product Type:Terminal Board

Origin:Japan

Dimensions:482.6 x 88.1 x 85 mm

Weight:1.8 kg

Views:10

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24


  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China
Click to rate this post!
[Total: 0 Average: 0]

Yokogawa AET4D-06 Terminal Board

Product Introduction

The Yokogawa AET4D-06 Terminal Board is a precision-engineered electrical interface designed for industrial automation and process control systems. It provides a secure and reliable platform for connecting multiple signal lines, facilitating accurate communication between field devices and control systems.

Designed for robust industrial performance, the AET4D-06 ensures stable signal transmission in environments prone to electrical noise, vibration, and temperature fluctuations. It is commonly used with Yokogawa DCS (Distributed Control Systems) and control panels, offering a dependable connection point for analog and digital I/O signals.

Its modular design simplifies installation and maintenance, making it ideal for plants that require organized wiring, safe interconnection, and consistent signal integrity.


Technical Specifications

Parameter Description
Model Yokogawa AET4D-06
Type Terminal Board
Function Signal distribution and connection for control systems
Input/Output Supports multiple analog and digital channels
Voltage Rating 250 V AC/DC maximum
Current Rating 5 A per terminal
Insulation Resistance ≥ 100 MΩ at 500 V DC
Dielectric Strength 2 kV AC for 1 minute
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C
Mounting Type DIN rail or panel mountable
Dimensions 482.6 x 88.1 x 85 mm
Weight 1.8 kg
Material Flame-retardant plastic housing with metal contacts
Connection Type Screw terminals with secure clamping
Compliance Standards CE, UL recognized, RoHS

Product Applications

The AET4D-06 Terminal Board is widely used in industrial, process, and automation systems:

  • Distributed Control Systems (DCS): Connects multiple sensors and actuators to the control network.

  • Process Automation: Provides organized wiring for analog and digital signals in chemical, energy, and petrochemical plants.

  • Control Panels: Simplifies installation and wiring of complex instrumentation.

  • Remote Monitoring Systems: Interfaces field devices with data acquisition and monitoring units.

  • Manufacturing Automation: Connects actuators, sensors, and controllers in production lines.

  • Utility Systems: Distributes signals for control, monitoring, and protection circuits.

The terminal board ensures stable, accurate, and safe signal connections, reducing downtime and improving system reliability.


Product Advantages

  • Reliable Signal Integrity: Maintains consistent performance in electrically noisy environments.

  • Modular and Compact: Easy installation in control panels or racks without occupying excessive space.

  • Secure Connections: Screw terminals ensure strong and stable electrical contact.

  • Multi-Signal Compatibility: Handles both analog and digital signals simultaneously.

  • High Voltage and Current Handling: Rated up to 250 V AC/DC and 5 A per terminal.

  • Durable Construction: Flame-retardant plastic with high-quality metal contacts.

  • Flexible Mounting: Can be mounted on DIN rails or panels.

  • Industrial Standards Compliance: CE, UL, and RoHS certified.

  • Organized Wiring: Reduces risk of connection errors and improves maintenance efficiency.

  • Ease of Integration: Compatible with Yokogawa DCS and other control systems.
