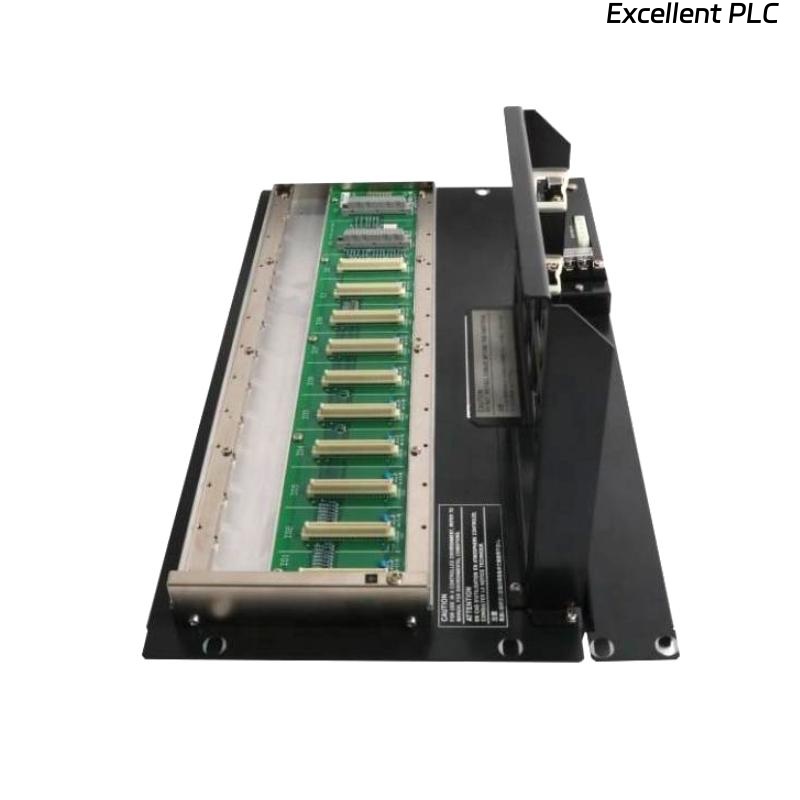

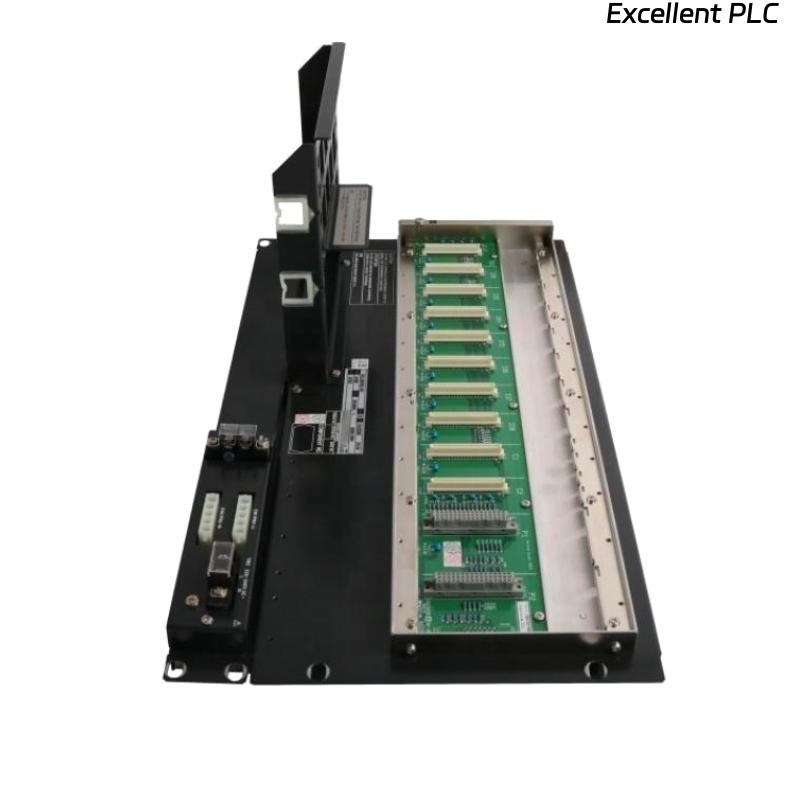

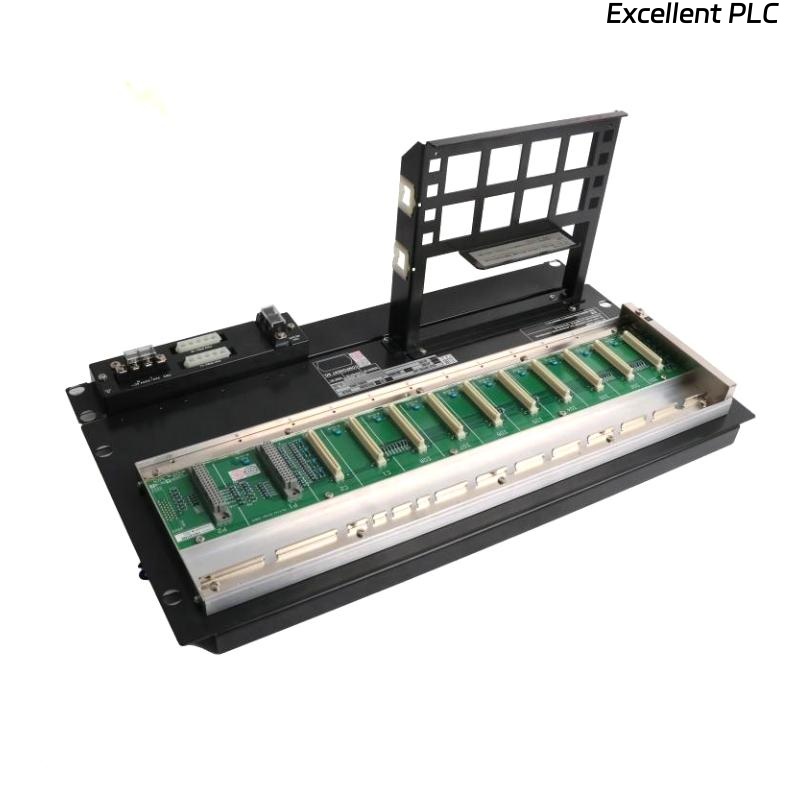

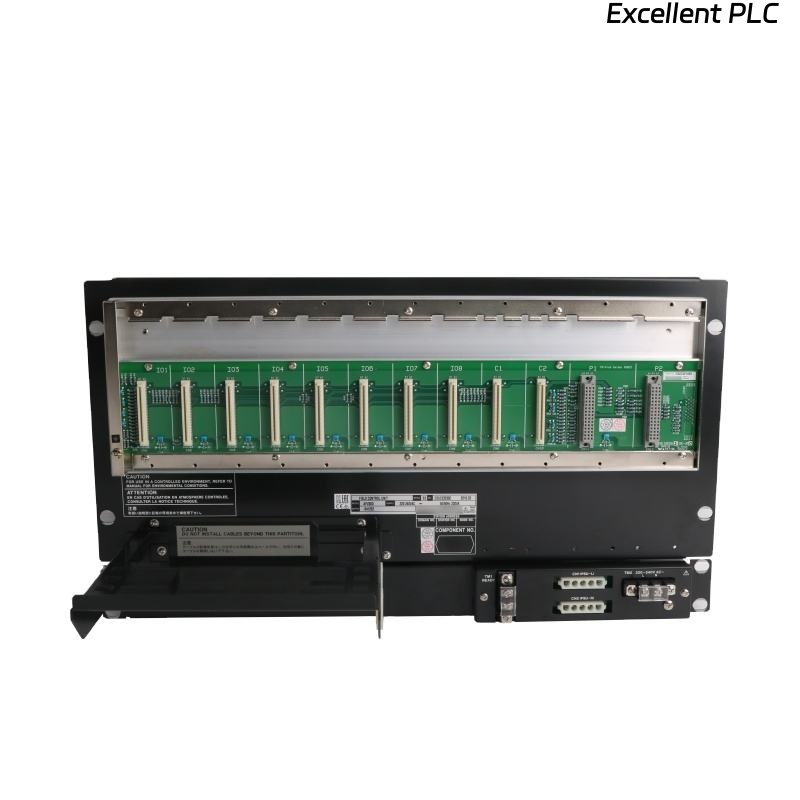

Yokogawa AFV30D-S41152 Duplexed Field Control Unit

Product Introduction

The Yokogawa AFV30D-S41152 Duplexed Field Control Unit (FCU) is a high-performance, redundant control module designed for use in CENTUM VP Distributed Control Systems. As part of Yokogawa’s advanced field control architecture, this model is engineered to ensure continuous process operation, high fault tolerance, and seamless system integration.

The duplexed design allows two CPUs to operate simultaneously in a redundant configuration, meaning if one CPU fails, the other takes over instantly without any process interruption. This makes the AFV30D-S41152 an indispensable solution for mission-critical industries such as oil & gas, petrochemicals, power generation, and large-scale manufacturing.

The unit is built to deliver deterministic real-time control, reliable networking through Vnet/IP, and support for large-scale I/O expansions. By providing long-term stability and system compatibility, it ensures that plant operators can achieve the highest levels of safety, efficiency, and availability.

Product Parameters

Product Applications

• Oil & Gas Processing – Critical in exploration, refining, and LNG production requiring uninterrupted operation.

• Petrochemicals – Provides deterministic process control for continuous and batch operations.

• Power Plants – Maintains safe and stable operation across nuclear, thermal, and renewable energy plants.

• Pharmaceuticals – Ensures precision in batch production and regulatory compliance.

• Water & Wastewater Treatment – Reliable control of desalination, purification, and distribution systems.

• Heavy Industries – Supports stable automation in steel, mining, and chemical manufacturing environments.

Product Advantages

1. Full Duplex Redundancy – CPU, power supply, and network redundancy for continuous operation.

2. Seamless Failover – Automatic switchover ensures no process disturbance during CPU faults.

3. Scalable Architecture – Easily handles large-scale applications with flexible I/O expansion.

4. High-Speed Networking – Uses Vnet/IP for deterministic and reliable communications.

5. Deterministic Control Cycles – Supports cycle times from 10 ms to 250 ms for critical processes.

6. Safety Certified – Complies with SIL2 safety standards when deployed in certified safety systems.

7. Hot-Swap Capabilities – Enables online replacement of modules without downtime.

8. Energy-Efficient Operation – Optimized design minimizes power consumption.

9. Proven Global Reliability – Widely trusted in mission-critical industries worldwide.

10. Long-Term Support – Yokogawa ensures lifecycle support and backward compatibility.

FAQ

1. What is the control cycle range supported by the AFV30D-S41152?
   It supports selectable cycles from 10 ms up to 250 ms.

2. Which communication standard is used by this unit?
   It communicates via Yokogawa’s high-speed Vnet/IP protocol.

3. Can the AFV30D-S41152 operate in full duplex redundancy?
   Yes, it supports duplex redundancy for CPU, power supply, and network modules.

4. How many I/O points can be managed in this configuration?
   Up to 1,500 I/O points can be supported, depending on system setup.

5. Does the unit support hot-swappable module replacement?
   Yes, modules can be replaced online without shutting down the system.

6. What type of safety certification is available?
   It supports SIL2 certification when integrated into certified safety environments.

7. How does the FCU manage CPU failure?
   Automatic switchover occurs seamlessly to the standby CPU without process interruption.

8. Is it backward-compatible with earlier CENTUM systems?
   Yes, it maintains backward compatibility and supports integration with legacy CENTUM VP components.

9. What is the communication speed of Vnet/IP?
   The protocol operates at 1 Gbps deterministic high-speed networking.

10. Can this FCU handle hybrid process control (batch + continuous)?
    Yes, it is designed for both continuous and batch process control applications.
