Product Introduction

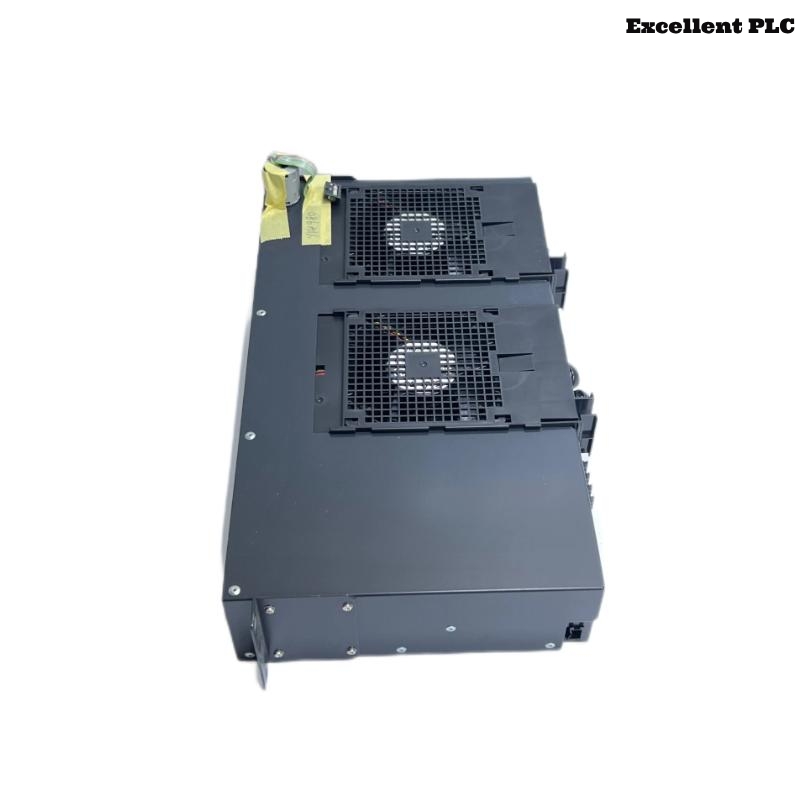

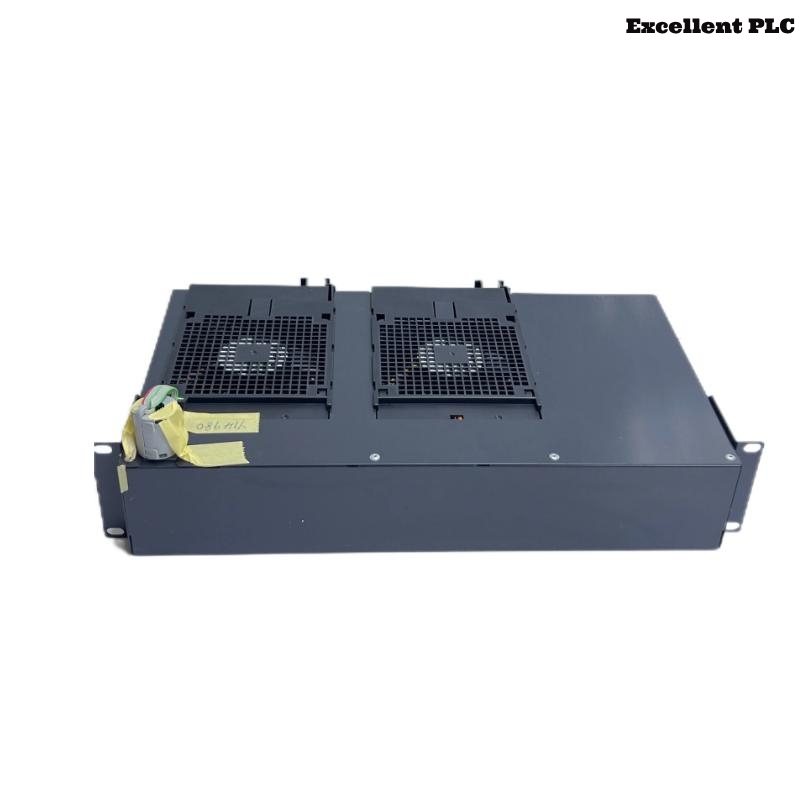

The Yokogawa AIP602 Door Fan Unit is an industrial-grade cooling solution designed to regulate airflow and maintain optimal temperature conditions within control cabinets and enclosures. Engineered for use in demanding environments, the AIP602 ensures the reliable operation of sensitive electronic equipment by preventing overheating and promoting efficient heat dissipation.
Product Specifications
| Parameter | Specification |
| Model Number | AIP602 |
| Manufacturer | Yokogawa Electric Corporation |
| Product Type | Door Fan Unit |
| Country of Origin | Japan |
| Dimensions (H x W x D) | 160 x 120 x 35 mm |
| Weight | 3 kg |
| Power Supply | Standard AC power |
| Operating Temperature | -20°C to 70°C |
| Airflow Rate | 28.3 CFM (typical) |
| Fan Speed | 3,000 RPM (typical) |
| Noise Level | Maximum 50 dB(A) |
| Protection Rating | IP54 |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Dielectric Strength | 1,500 VAC for 1 minute |
| Mounting | Designed for door or panel installation |
| Warranty | 12 months |
Product Applications
The AIP602 Door Fan Unit is utilized across various industrial sectors to provide reliable cooling and ventilation for control systems. Typical applications include:
-
Data Centers: Maintaining optimal temperatures for servers and networking equipment.
-
Manufacturing Facilities: Cooling control panels and electrical enclosures to ensure uninterrupted production processes.
-
Cleanrooms: Regulating airflow to maintain contamination-free environments.
-
Chemical Processing Plants: Preventing overheating of control systems in hazardous environments.
-
Power Generation Facilities: Ensuring stable operation of control units in power plants.
-
Pharmaceutical Manufacturing: Providing ventilation for control systems in temperature-sensitive environments.
Product Advantages
-
Efficient Cooling Performance: Delivers consistent airflow to dissipate heat effectively, ensuring the longevity and reliability of electronic components.
-
Compact and Lightweight Design: Facilitates easy installation without occupying excessive space.
-
High Reliability: Constructed with high-quality materials to withstand harsh industrial conditions.
-
Low Noise Operation: Operates quietly, contributing to a conducive working environment.
-
Energy Efficiency: Consumes minimal power while providing effective cooling, reducing operational costs.
-
Versatile Compatibility: Suitable for various control cabinet configurations and applications.
Frequently Asked Questions (FAQs)
1. What is the primary function of the AIP602 Door Fan Unit?
The AIP602 provides cooling and ventilation for control systems, preventing overheating and ensuring reliable operation.
2. Which systems are compatible with the AIP602 Door Fan Unit?
It is compatible with various control cabinets and enclosures in industrial settings.
3. What are the dimensions and weight of the AIP602 Door Fan Unit?
The unit measures 160 mm in height, 120 mm in width, and 35 mm in depth, with a weight of 3 kg.
4. How is the AIP602 Door Fan Unit mounted?
It is designed for door or panel installation within control cabinets.
5. What power supply does the AIP602 Door Fan Unit require?
It operates on standard AC power.
6. What is the operating temperature range for the AIP602 Door Fan Unit?
The unit operates effectively within a temperature range of -20°C to 70°C.
7. What is the airflow rate of the AIP602 Door Fan Unit?
It delivers an airflow rate of 28.3 CFM (typical).
8. What is the noise level of the AIP602 Door Fan Unit during operation?
The unit operates with a maximum noise level of 50 dB(A).
9. What is the protection rating of the AIP602 Door Fan Unit?
It has an IP54 protection rating, indicating protection against dust and water splashes.
10. What is the warranty period for the AIP602 Door Fan Unit?
We provide one year warranty.
Related Models (Same Series or Function Family)
| Model Number | Description |
| AIP601 | Door Fan Unit designed for cooling control systems in industrial environments. |
| AIP603 | Enhanced Door Fan Unit with improved airflow and noise reduction features. |
| AIP604 | High-capacity Door Fan Unit for larger control panels. |
| AIP605 | Compact Door Fan Unit suitable for confined spaces within control systems. |
| AIP606 | Energy-efficient Door Fan Unit with variable speed control. |
| DFAN | Cooling Fan Unit designed for Yokogawa CENTUM control systems. |
