Product Introduction

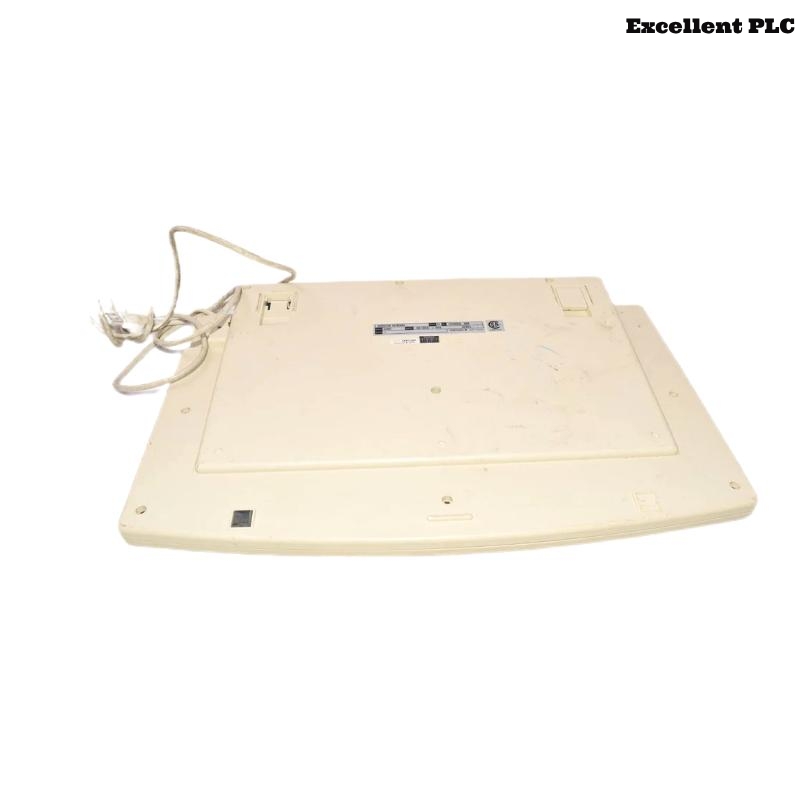

The Yokogawa AIP826 Operation Keyboard is a specialized input device designed for use with Yokogawa’s Human Interface Stations (HIS) within the CENTUM series Distributed Control Systems (DCS). Engineered for industrial environments, the AIP826 offers a robust and user-friendly interface for operators to interact with control systems efficiently. Its ergonomic design, combined with durable construction, ensures reliable performance in demanding applications.
Product Specifications
| Parameter | Specification |
| Model Number | AIP826 |
| Manufacturer | Yokogawa Electric Corporation |
| Product Type | Operation Keyboard |
| Dimensions (W x D x H) | 440 x 284 x 52 mm |
| Weight | 2.5 kg |
| Power Supply | 100-120 V AC / 220-240 V AC, 50/60 Hz |
| Power Consumption | 20 VA |
| Interface Connector | USB A type |
| Cable Connection | USB port |
| Keyboard Type | Dust- and drip-proof flat keyboard |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 20% to 80% RH (non-condensing) |
| Color | Frosty White (Munsell No. 2.5Y8.4/1.2) |
| Country of Origin | Japan |
Product Applications
The AIP826 Operation Keyboard is utilized across various industrial sectors to provide reliable input and control capabilities. Typical applications include:
-
Process Control Systems: Facilitating operator interaction with DCS in industries such as oil & gas, chemical, and power generation.
-
Manufacturing Facilities: Enabling control and monitoring of automated production lines.
-
Pharmaceutical Industry: Assisting in the management of complex processes with stringent regulatory requirements.
-
Water Treatment Plants: Providing operators with control over treatment processes and equipment.
-
Energy Sector: Supporting the operation of control systems in power plants and substations.
-
Transportation Systems: Integrating with control systems for monitoring and managing transportation infrastructure.
Product Advantages
-
Robust Construction: Designed to withstand harsh industrial environments, ensuring longevity and reliability.
-
Ergonomic Design: Offers a comfortable and intuitive interface for operators, reducing fatigue during extended use.
-
Easy Integration: USB connectivity allows for straightforward integration with existing HIS setups.
-
Dust and Drip Protection: The flat keyboard design provides resistance against dust and liquid ingress, enhancing durability.
-
Consistent Performance: Maintains reliable operation across a wide range of temperatures and humidity levels.
-
Aesthetic Appeal: The frosty white finish complements modern control room environments.
Frequently Asked Questions (FAQs)
1. What is the primary function of the AIP826 Operation Keyboard?
The AIP826 serves as an input device for operators to interact with Yokogawa’s Human Interface Stations within DCS environments.
2. Which systems are compatible with the AIP826 Operation Keyboard?
It is compatible with Yokogawa’s CENTUM series Distributed Control Systems, including CENTUM CS and CENTUM VP.
3. What are the dimensions and weight of the AIP826 Operation Keyboard?
The keyboard measures 440 x 284 x 52 mm, weighing 2.5 kg.
4. How is the AIP826 Operation Keyboard connected to the system?
It connects via a USB A-type interface, allowing for easy integration with HIS.
5. What is the operating temperature range for the AIP826 Operation Keyboard?
The keyboard operates effectively within a temperature range of 5°C to 40°C.
6. What is the power supply requirement for the AIP826 Operation Keyboard?
It requires a power supply of either 100-120 V AC or 220-240 V AC at 50/60 Hz.
7. Is the AIP826 Operation Keyboard resistant to dust and liquids?
Yes, its flat keyboard design offers protection against dust and dripping liquids.
8. What is the color of the AIP826 Operation Keyboard?
It features a frosty white finish, corresponding to Munsell No. 2.5Y8.4/1.2.
9. Can the AIP826 Operation Keyboard be used in high-humidity environments?
Yes, it operates reliably in environments with humidity levels ranging from 20% to 80% RH (non-condensing).
10. Where is the AIP826 Operation Keyboard manufactured?
It is manufactured in Japan by Yokogawa Electric Corporation.
Related Models (Same Series or Function Family)
| Model Number | Description |
| AIP827-1 | USB Operation Keyboard designed for HIS with dust- and drip-proof features. |
| AIP827-2 | Enhanced version of AIP827-1 with CE and C-Tick certifications. |
| AIP830-101 | Operation Keyboard for single-loop operation with USB interface. |
| AIP830-111 | Advanced Operation Keyboard featuring mode selection switch. |
| AIP831-101 | Operation Keyboard supporting eight-loop simultaneous control. |
| AIP832 | Compact Operation Keyboard designed for space-constrained environments. |
