Product Introduction

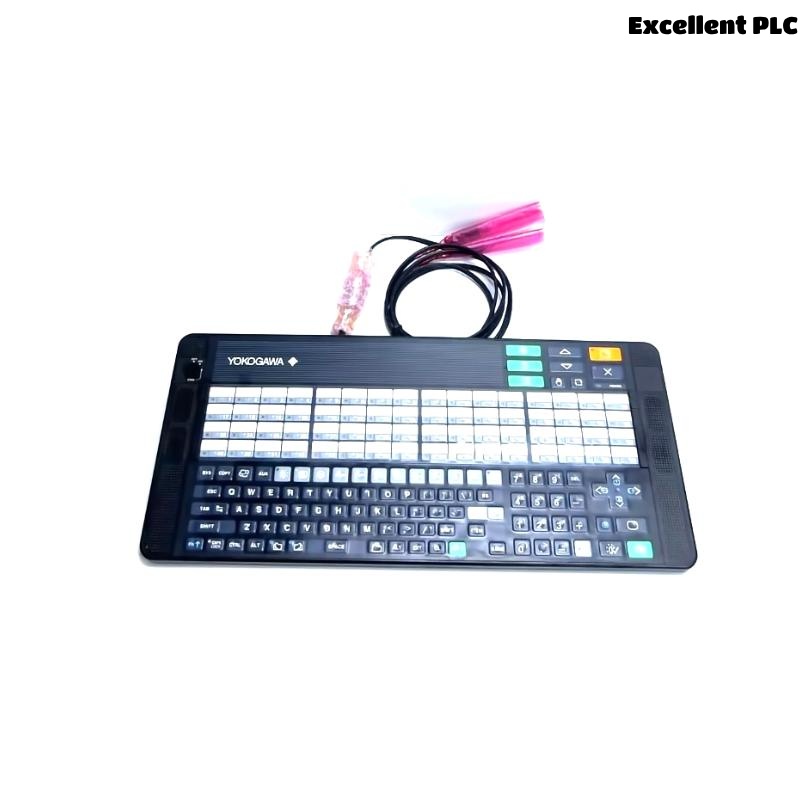

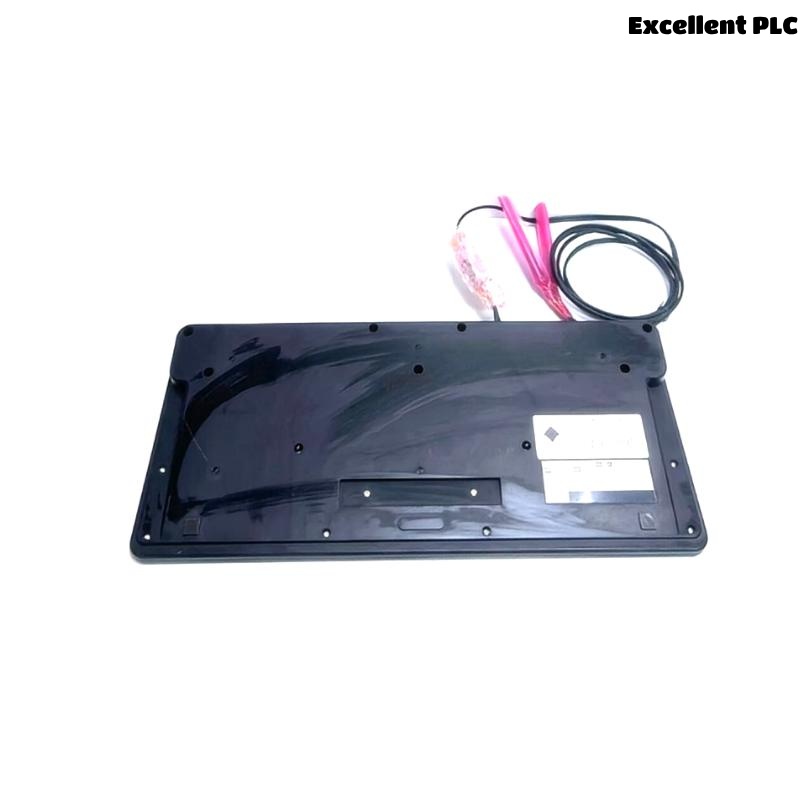

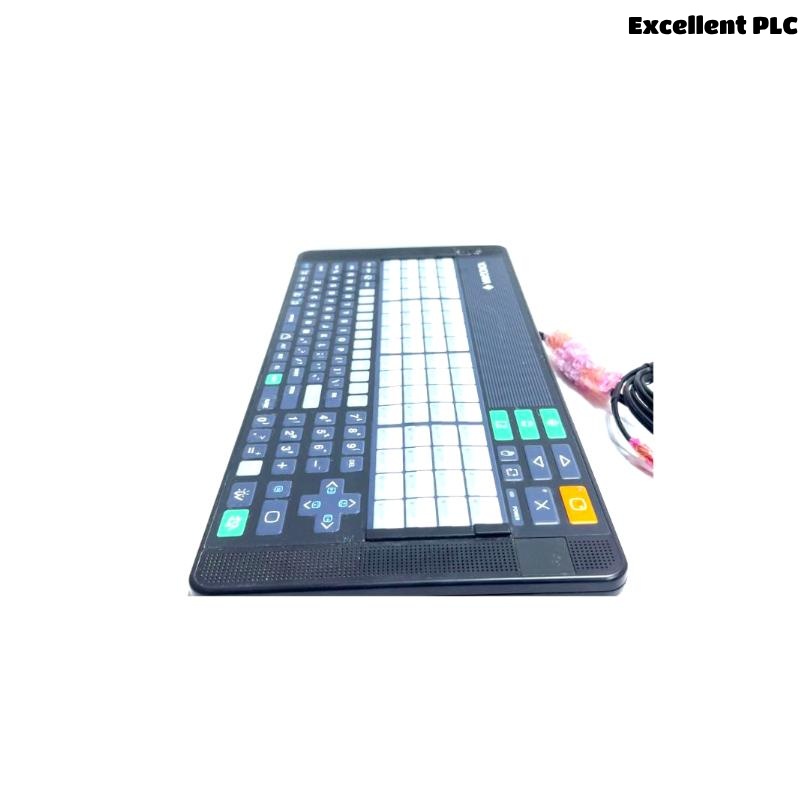

The Yokogawa AIP830-101 Operation Keyboard is a specialized human-machine interface (HMI) peripheral designed for single-user operations in industrial environments. This keyboard is part of Yokogawa’s integrated control and safety system solutions and is tailored for seamless interaction with operator stations, such as those in the CENTUM VP series.
With a user-centric design, tactile keys, and intuitive layout, the AIP830-101 allows operators to execute commands swiftly and accurately, supporting critical control operations and reducing operator error. Its build quality and interface are optimized for round-the-clock operation in demanding control room environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | AIP830-101 |
| Product Name | Operation Keyboard for Single User |
| Manufacturer | Yokogawa Electric Corporation |
| Keyboard Type | Industrial Operation Keyboard |
| Compatibility | CENTUM VP, AIP interface series |
| Connection Interface | PS/2 or USB (depending on system version) |
| Number of Keys | Approx. 104 keys (including function keys) |
| Key Lifespan | Over 20 million keystrokes per key |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | 20% to 90% RH (non-condensing) |
| Power Supply | 5V DC (supplied via host interface) |
| Dimensions (W x H x D) | 500 x 225 x 50 mm |
| Weight | 2.5 kg |
| Mounting Method | Desktop or console mount |
| Certifications | CE, RoHS compliant |
| Color | Industrial Grey |
| Key Material | High-durability ABS |
| Cable Length | 1.8 meters (standard) |
Product Applications
The Yokogawa AIP830-101 is designed for use in a wide range of process automation and industrial control applications. Typical environments include:
-
Distributed Control Systems (DCS) in oil and gas plants
-
Power generation facilities
-
Water treatment plants
-
Petrochemical refineries
-
Pharmaceutical manufacturing lines
-
Food and beverage processing control rooms
-
Steel and metal processing plants
Its durable construction and compatibility with Yokogawa HMI systems make it suitable for mission-critical operations where reliable input interfaces are essential for operational safety and efficiency.
Product Advantages
-
Optimized for Operator Efficiency: Intuitive layout with dedicated function keys enhances usability during complex process control.
-
High Durability: Designed for long-term use in continuous operation environments, with robust keys and industrial-grade housing.
-
Seamless Integration: Fully compatible with Yokogawa’s CENTUM VP and AIP interfaces, reducing configuration time and effort.
-
Compact and Ergonomic Design: Small footprint allows for integration into tight control room setups without sacrificing comfort.
-
Reliability in Harsh Conditions: Built to operate under varying temperatures and humidity levels without performance degradation.
-
Plug-and-Play Connectivity: Quick installation with minimal setup required, supporting both USB and legacy PS/2 connections.
-
Low Maintenance: Key materials and construction minimize wear and tear, reducing the need for frequent replacements.
-
Certified Compliance: Meets industrial standards for electromagnetic compatibility and safety.
Frequently Asked Questions (FAQ)
-
What systems is the AIP830-101 keyboard compatible with?
It is primarily designed for use with Yokogawa’s CENTUM VP systems and other AIP operator interfaces. -
Is the keyboard suitable for 24/7 operation?
Yes, it is engineered for continuous use in industrial environments with high durability. -
Can it be used with non-Yokogawa systems?
It may function as a standard keyboard via USB or PS/2 but is optimized for Yokogawa DCS interfaces. -
Is the cable detachable or fixed?
The AIP830-101 typically includes a fixed cable with a standard length of 1.8 meters. -
What kind of maintenance does it require?
It requires minimal maintenance, mostly cleaning and periodic inspection of keys. -
Does it support function key customization?
Yes, many function keys are programmable via Yokogawa’s interface software. -
Can it be used in outdoor environments?
It is not recommended for outdoor use unless installed in a protected console or enclosure. -
What kind of warranty is provided?
We provide one year warranty. -
How is it mounted or positioned in the control room?
It can be used on desktops or integrated into operator consoles. -
Does the AIP830-101 include any backlighting?
This model does not come with backlit keys; however, it is designed for well-lit control room environments.
Related or Similar Models from the Same Series
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| AIP830-102 | Dual Operation Keyboard for Multi-user | 420 × 50 × 220 | 2.0 kg |
| AIP850-101 | Touchpad Integrated Operation Keyboard | 450 × 55 × 210 | 2.1 kg |
| AIP810-101 | Compact Operation Keyboard with Fewer Keys | 380 × 45 × 190 | 1.5 kg |
| AIP840-101 | Operation Keyboard with Joystick Function | 460 × 60 × 230 | 2.3 kg |
| AIP830-101R | Ruggedized Version for Harsh Environments | 420 × 55 × 200 | 2.2 kg |
| AIP830-100 | Legacy Model with Serial Interface | 420 × 50 × 200 | 1.8 kg |
