Product Introduction

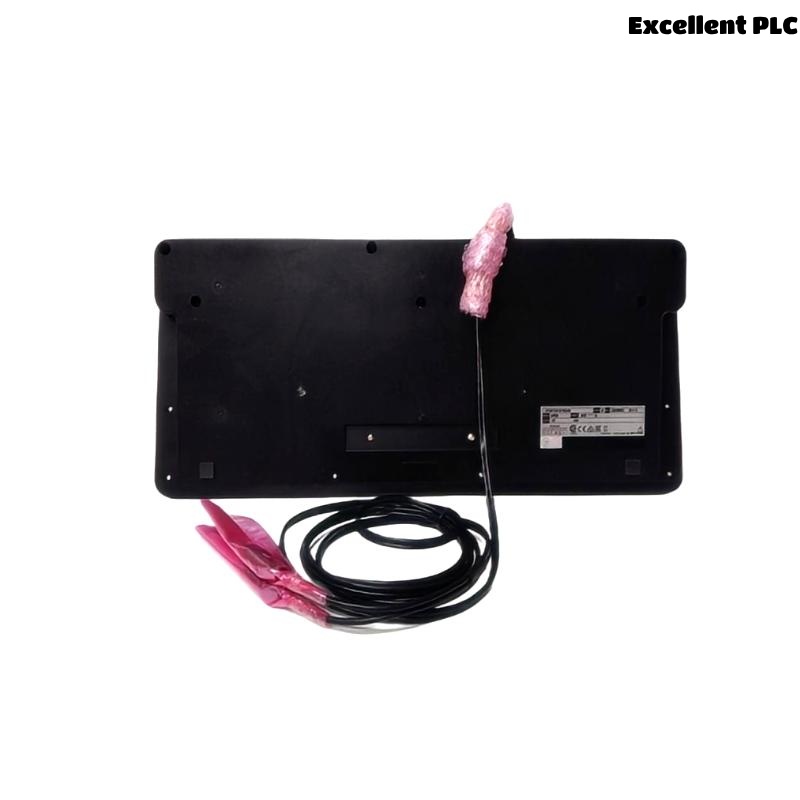

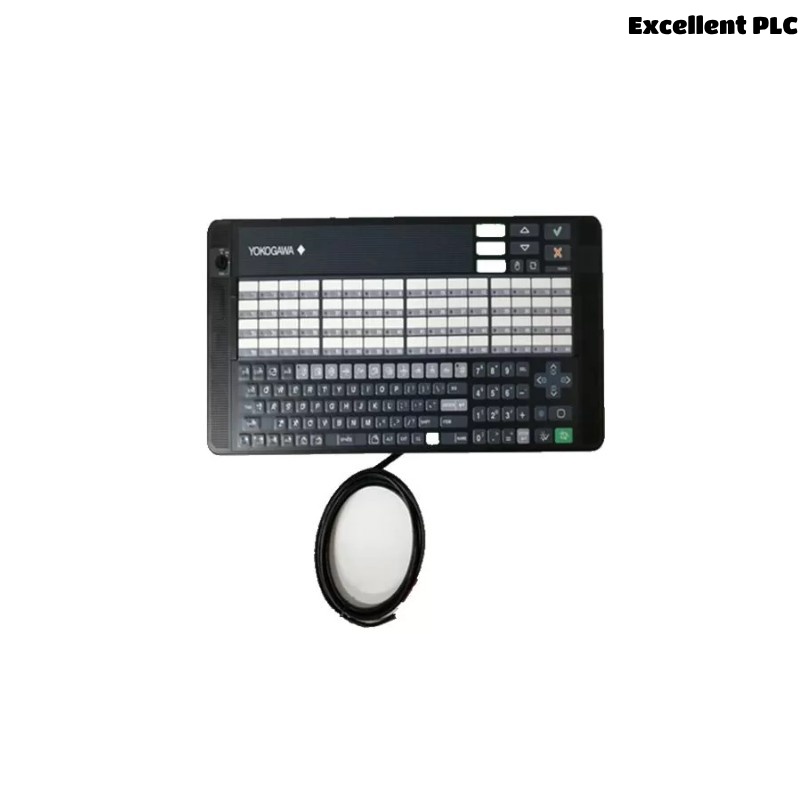

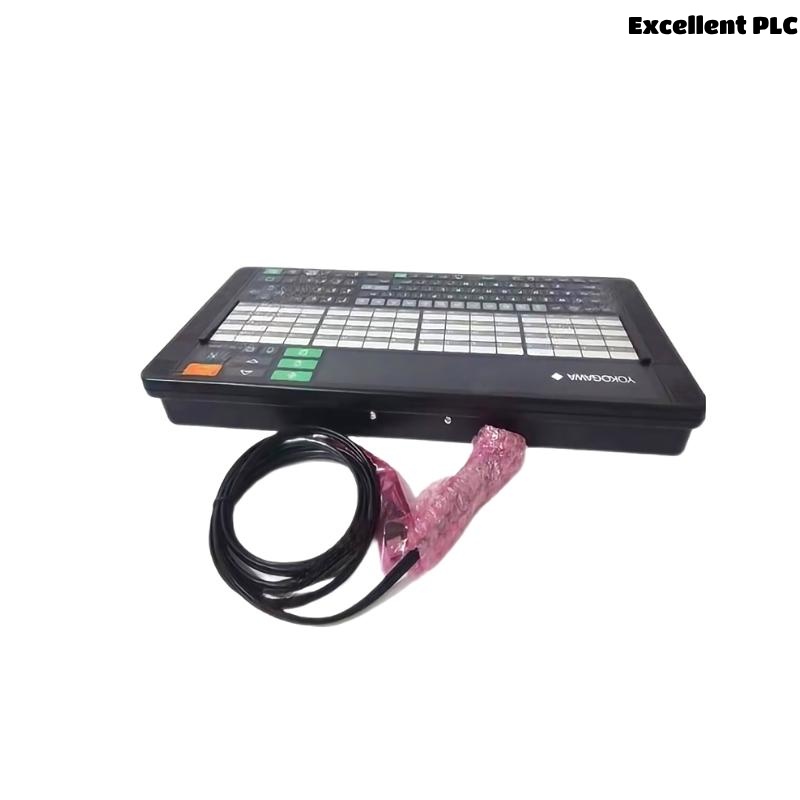

The Yokogawa AIP830-111 Operation Keyboard is a precision-engineered industrial keyboard developed specifically for operator interface panels within Yokogawa’s advanced control systems. Positioned as a single-user operation keyboard, this model plays a critical role in streamlining control actions within Distributed Control Systems (DCS) and Human-Machine Interface (HMI) environments.
Engineered with a robust build and a thoughtful layout, the AIP830-111 is designed to handle continuous operational demands in industries that rely on precision, safety, and real-time responsiveness. Its seamless compatibility with Yokogawa’s CENTUM VP platform ensures an intuitive operator experience with minimal learning curve, reducing operational errors and boosting efficiency.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | AIP830-111 |
| Product Name | Operation Keyboard for Single User |
| Manufacturer | Yokogawa Electric Corporation |
| Keyboard Type | Industrial Operation Keyboard |
| System Compatibility | CENTUM VP, AIP Series Interfaces |
| Interface Type | USB 2.0 or PS/2 (model-dependent) |
| Number of Keys | 104 standard keys + dedicated function keys |
| Function Key Support | Yes (custom programmable for operations) |
| Key Stroke Life | ≥ 20 million presses per key |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity Range | 20% to 90% RH (non-condensing) |
| Power Supply | 5V DC from host interface |
| Mounting Style | Tabletop / Console Embedded |
| Dimensions (W × H × D) | 500 x 225 x 50 mm |
| Weight | 2.5 kg |
| Color | Industrial Gray |
| Housing Material | Reinforced ABS plastic |
| Cable Length | 1.8 meters (standard) |
| Certifications | CE, RoHS, Industrial EMC Standards |
Product Applications
The AIP830-111 serves as a frontline input device in high-reliability industrial environments, especially in operations where seamless communication between human operators and process control systems is vital. Common applications include:
-
Petrochemical Processing Facilities
-
Power Generation and Distribution Stations
-
Offshore and Onshore Oil & Gas Plants
-
Pharmaceutical and Chemical Manufacturing
-
Water and Wastewater Treatment Plants
-
Steel and Metal Smelting Operations
-
Pulp and Paper Industry Control Rooms
By supporting real-time operator inputs, this keyboard enhances human-machine collaboration in both centralized and decentralized control scenarios.
Product Advantages
-
Full Compatibility with Yokogawa Systems
Direct integration with CENTUM VP and other Yokogawa HMI stations without extra configuration ensures smooth deployment. -
Long Lifecycle Design
Built for extended use with high-quality keys rated for millions of cycles, reducing the need for frequent replacements. -
Industrial-Grade Build
Durable materials and sealed structure help it withstand industrial contaminants, temperature fluctuations, and extended operation. -
Optimized Ergonomics
The keyboard’s layout and key feel are designed to reduce operator fatigue during prolonged use in 24/7 control rooms. -
Function Key Programmability
Supports customized function keys for rapid command execution, helping to improve operator responsiveness. -
Low Maintenance Requirements
Thanks to its rugged construction and high-quality components, minimal upkeep is required, translating to reduced downtime. -
Flexible Mounting Options
Suitable for desktop use or integrated mounting into custom operator panels or consoles. -
Reliable Data Entry
Highly responsive keys ensure that operator input is accurately and immediately registered in critical control processes.
Frequently Asked Questions (FAQ)
-
Is the AIP830-111 compatible with older Yokogawa systems?
Yes, it is compatible with CENTUM VP and can support integration with selected legacy systems using appropriate interfacing. -
Can this keyboard be used outside the control room?
It is designed for indoor industrial use. Outdoor use is not recommended unless housed in a protected enclosure. -
Does it support multi-language keyboard layouts?
The default version is English layout, but alternate layouts may be available upon request depending on region. -
What kind of maintenance does this keyboard require?
Routine dust removal and occasional key cleaning are typically sufficient. No internal servicing is usually needed. -
Are the function keys user-programmable?
Yes, when used with supported Yokogawa systems, function keys can be mapped to operator-defined commands. -
Is this a mechanical or membrane keyboard?
It features high-durability membrane key switches designed for industrial responsiveness and longevity. -
Can this be used with non-Yokogawa HMIs?
While technically possible via USB or PS/2, optimal performance and functionality are achieved with Yokogawa systems. -
Does it come with software or drivers?
No external drivers are usually required; it is plug-and-play with supported Yokogawa environments. -
What certifications does it meet?
CE-compliant, RoHS certified, and designed to meet industrial EMC performance standards. -
Can the keyboard be cleaned with alcohol-based solutions?
Yes, non-abrasive alcohol wipes can be used for surface cleaning. Avoid soaking or spraying directly onto the keys.
Related or Similar Models from the Same Series
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| AIP830-101 | Basic single-user operation keyboard | 420 × 50 × 200 | 1.8 kg |
| AIP830-102 | Dual-user operation keyboard | 430 × 50 × 220 | 2.0 kg |
| AIP830-112 | Single-user keyboard with enhanced shielding | 425 × 55 × 210 | 2.1 kg |
| AIP850-101 | Operation keyboard with integrated touchpad | 450 × 55 × 220 | 2.2 kg |
| AIP810-101 | Compact keyboard for restricted spaces | 380 × 45 × 190 | 1.5 kg |
| AIP840-101 | Operation keyboard with built-in joystick | 460 × 60 × 230 | 2.3 kg |
