Product Introduction

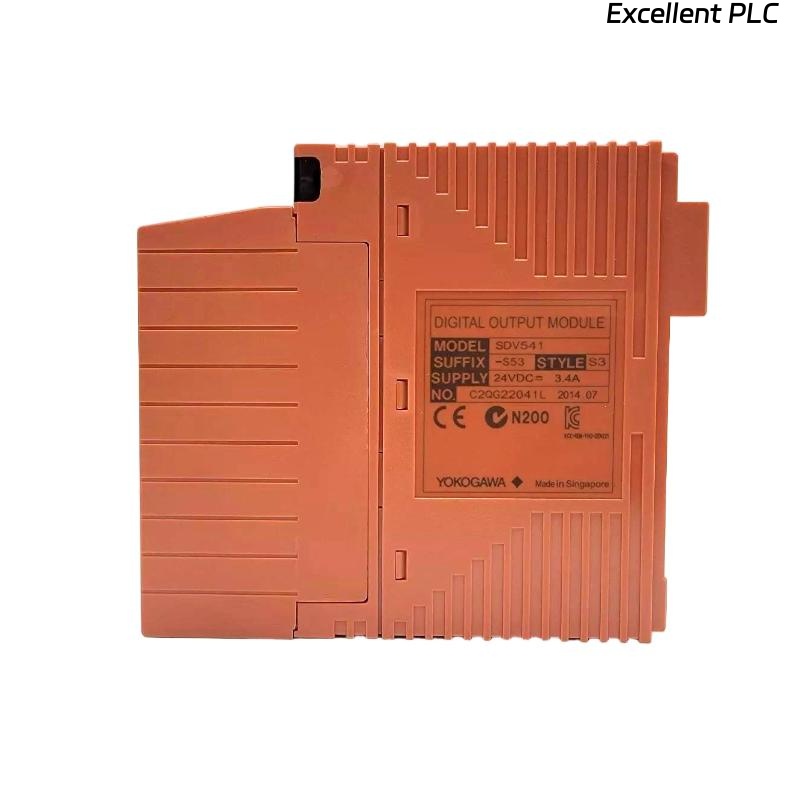

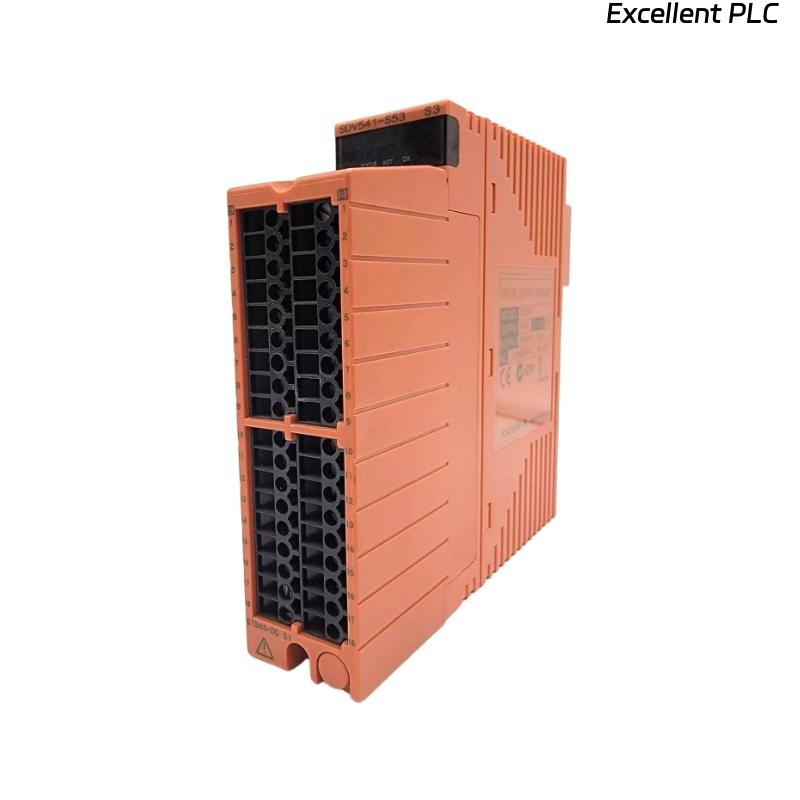

The Yokogawa AKB331-M015/SDV541 is a high-performance digital output module integrated with a signal cable. This module is designed to provide reliable and accurate digital output control for various industrial automation applications. The AKB331-M015 is part of Yokogawa’s renowned automation systems, offering excellent integration capabilities with their control systems, enabling smooth communication between field devices and controllers.

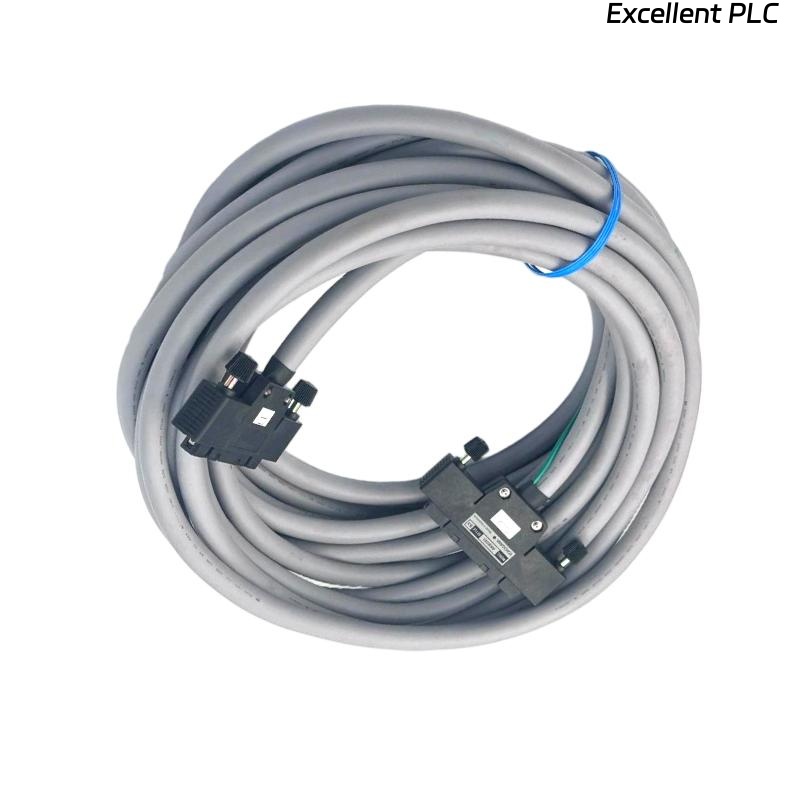

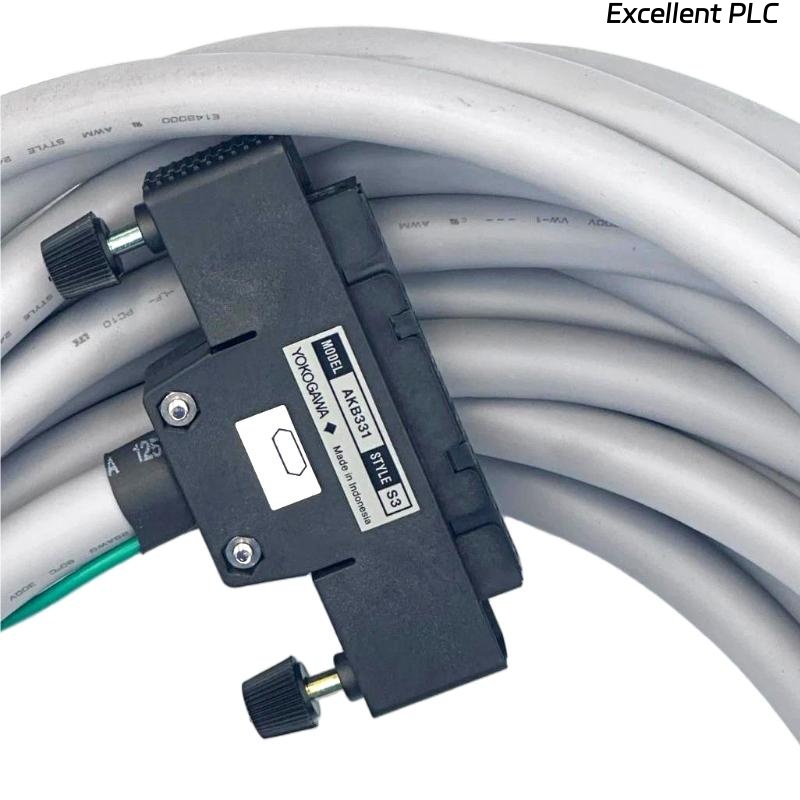

The AKB331-M015/SDV541 module is engineered to meet the requirements of industrial environments, offering a seamless connection for various outputs, such as alarms, switches, or control signals. The SDV541 signal cable provides a robust and reliable connection between the module and external devices, ensuring minimal signal loss and high communication integrity.
This combination of a digital output module and a signal cable offers a flexible solution for industrial automation, providing exceptional performance and durability in the most demanding conditions. It is widely used in applications such as control systems, automation platforms, and remote monitoring systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Cable Length | 15 m |
| Weight | 3 kg |
| Module Type | Digital Output Module |
| Signal Cable Type | SDV541 |
| Output Type | Digital, On/Off |
| Voltage Rating | 24 VDC |
| Mounting Type | DIN Rail Mount |
| Signal Integrity | High |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +60°C |
| Output Control | On/Off, High/Low |
Product Applications
The Yokogawa AKB331-M015/SDV541 Digital Output Module + Signal Cable is used in a variety of industrial control applications that require precise digital output signals for control, alarms, or monitoring purposes. Key applications include:
-
Industrial Automation Systems: The digital output module is used for controlling field devices, such as actuators, solenoids, and valves, ensuring that the system functions correctly and reliably.
-
Control Systems: It integrates seamlessly with control systems in various industries, enabling the precise execution of control commands based on system input.
-
Process Control: The module helps in managing critical processes by providing digital output signals to external devices such as emergency stop buttons or alarms.
-
SCADA Systems: The module interfaces with SCADA systems to allow remote monitoring and control of industrial processes, sending output signals to external devices as part of an automated control loop.
-
Remote Monitoring and Diagnostics: It is used for controlling remote monitoring systems, sending output signals to activate alarms or triggers based on specific conditions detected by sensors.
-
Energy Management Systems: The module is used in energy management systems to control power consumption devices or send status signals to indicate system performance.
Product Advantages
-
High Signal Integrity: The SDV541 signal cable ensures high-quality signal transmission, minimizing signal degradation and ensuring reliable communication between the module and external devices.
-
Easy Integration: The AKB331-M015/SDV541 module is compatible with various Yokogawa control and automation systems, enabling smooth integration into existing infrastructure.
-
Durable Design: The robust design of the module and signal cable makes it ideal for use in harsh industrial environments, providing long-lasting performance.
-
Flexible Output Control: The module allows for precise on/off control of external devices, offering flexibility in application for alarms, switches, and other control devices.
-
Compact and Space-Saving: The compact size of the module allows it to be easily mounted on a DIN rail, saving valuable space in control panels and cabinets.
-
Wide Operating Temperature Range: The module and cable operate in a wide temperature range of -10°C to +60°C, making it suitable for diverse industrial applications and environments.
FAQ
1. What is the length of the signal cable provided with the AKB331-M015/SDV541 module?
The signal cable length is 15 meters, providing flexibility in installation and connectivity for various setups.
2. What is the weight of the AKB331-M015/SDV541 module?
The total weight of the module and cable combination is 3 kg, making it easy to handle and install in industrial settings.
3. What type of output does the AKB331-M015 module provide?
The module provides a digital output, typically for on/off or high/low signal control to external devices.
4. What voltage is required for the AKB331-M015/SDV541 module to function?
The module requires a 24 VDC power supply for proper operation.
5. What is the protection rating of the AKB331-M015/SDV541 module?
The module has an IP20 protection rating, indicating that it is protected against solid objects larger than 12 mm but is not suitable for use in wet or extremely dusty environments.
6. How is the AKB331-M015/SDV541 module mounted?
The module is designed for DIN rail mounting, making it easy to install in control panels or cabinets.
7. What is the temperature range for the AKB331-M015/SDV541 module?
The module operates within a temperature range of -10°C to +60°C, suitable for most industrial applications.
8. What type of cable is included with the AKB331-M015 module?
The module comes with the SDV541 signal cable, designed to provide reliable signal transmission for industrial applications.
9. Can the AKB331-M015 module be used in remote monitoring systems?
Yes, it is commonly used in remote monitoring systems, providing control signals for alarms or system triggers.
10. Can the AKB331-M015/SDV541 module be integrated with SCADA systems?
Yes, the module is fully compatible with SCADA systems, providing digital output signals for control or monitoring in automated systems.
Recommended Models in the Same Series/Related Models
| Model Number | Description |
|---|---|
| AKB331-M010/SDV540 | Digital Output Module with 10m Cable |
| AKB331-M020/SDV542 | Digital Output Module with 20m Cable |
| AKB331-M030/SDV543 | Digital Output Module with 30m Cable |
| AKB331-M015/SDV544 | Digital Output Module with Extended Features |
| AKB331-M015/SDV545 | Digital Output Module with High-Temperature Cable |
| AKB331-M025/SDV546 | Digital Output Module with 25m Cable |
