Product Introduction

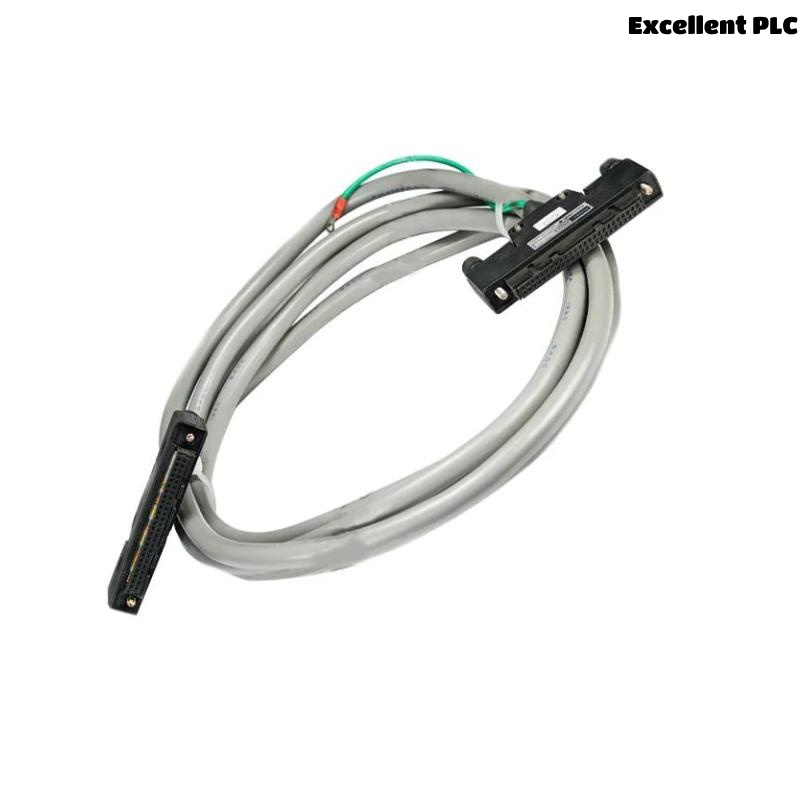

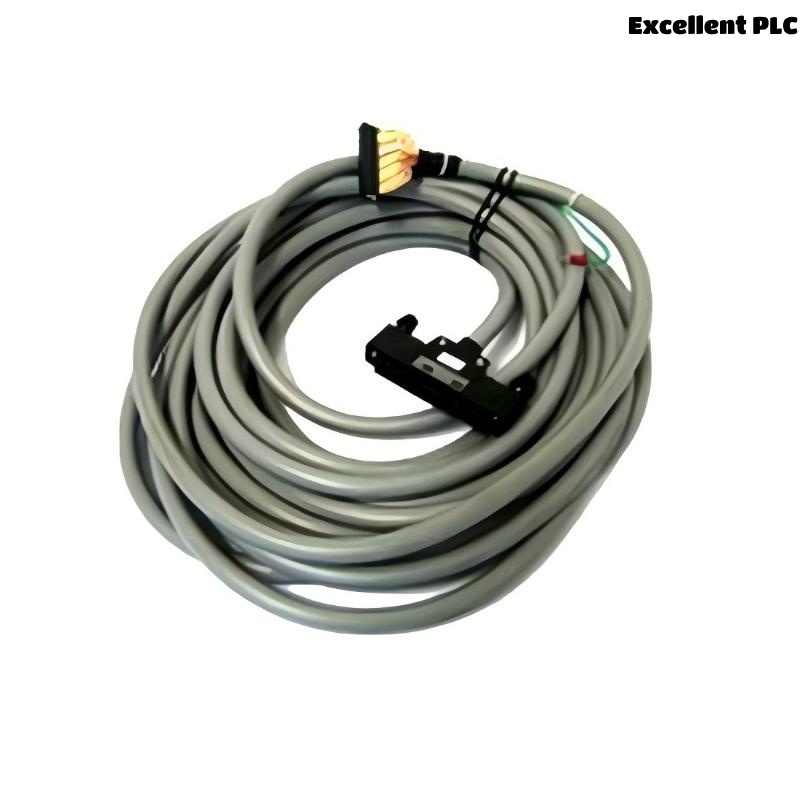

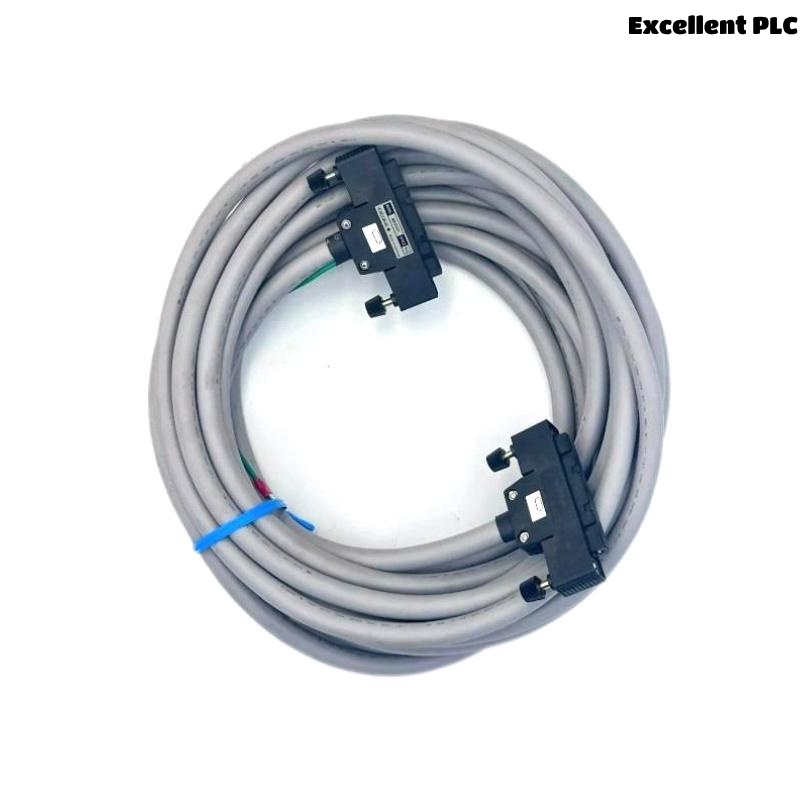

The Yokogawa AKB331-M015 Signal Cable is a high-quality, durable cable specifically designed to facilitate reliable signal transmission within Yokogawa’s control and instrumentation systems. Engineered to maintain signal integrity over long distances and under challenging industrial conditions, this cable is essential for ensuring accurate and stable communication between field devices and control units.
Manufactured with premium materials and strict quality control, the AKB331-M015 offers exceptional resistance to electrical noise, mechanical wear, and environmental stressors. This makes it a preferred choice for process industries such as power generation, petrochemicals, refining, and automation sectors where precision and reliability are non-negotiable.
Product Specifications
Parameter | Specification |
---|---|
Model Number | AKB331-M015 |
Cable Type | Signal cable for instrumentation and control |
Conductor Material | Stranded copper |
Conductor Size | 0.5 mm² (AWG 20) |
Number of Cores | 2 cores |
Insulation Material | PVC (Polyvinyl Chloride) |
Outer Sheath Material | PVC |
Nominal Voltage | 300 V |
Temperature Range | -20°C to 75°C (-4°F to 167°F) |
Minimum Bending Radius | 10 x cable diameter |
Shielding | Aluminum foil shield with drain wire |
Capacitance | Approx. 120 pF/m |
Resistance | Approx. 36.3 Ω/km |
Cable Length | 15 meters |
Cable Diameter | 6.5 mm |
Weight | 0.7 kg |
Standards Compliance | UL, RoHS, IEC standards |
Product Applications
The AKB331-M015 signal cable is extensively utilized in numerous industrial environments where dependable signal transmission is crucial. Common applications include:
-
Process Control Systems: Connecting sensors, transmitters, and controllers in plants to ensure accurate data flow.
-
Power Generation: Linking control devices for turbine monitoring and protective relay communications.
-
Petrochemical Industry: Used in hazardous areas for signal transmission from field instruments to control systems.
-
Manufacturing Automation: Facilitates communication between machinery and control units for precise automation.
-
Water and Wastewater Treatment Plants: Reliable cable for sensors monitoring flow, level, and pressure.
-
Building Automation: Signal transmission for HVAC controls, security systems, and energy management.
Product Advantages
-
High Signal Integrity: Shielding reduces electromagnetic interference (EMI), ensuring accurate and noise-free signal transmission.
-
Durable Construction: Robust materials resist abrasion, chemicals, and environmental factors, extending cable lifespan.
-
Flexible and Easy to Install: The cable’s flexibility allows for straightforward routing even in tight spaces.
-
Wide Operating Temperature Range: Suitable for both indoor and outdoor use in diverse climate conditions.
-
Custom Length Availability: Tailored lengths minimize waste and installation costs.
-
Compliance with International Standards: Guarantees quality, safety, and reliability.
-
Resistance to Moisture and Chemicals: PVC sheath protects against humidity and common industrial chemicals.
-
Consistent Performance: Manufactured to maintain electrical characteristics across the cable length.
-
Low Capacitance and Resistance: Supports sensitive instrumentation with minimal signal loss.
-
Trusted Brand Support: Yokogawa’s technical support ensures smooth integration and troubleshooting.
Frequently Asked Questions (FAQ)
-
What is the primary use of the AKB331-M015 cable?
It is used for transmitting control and instrumentation signals in industrial systems. -
What type of shielding does the cable have?
It features an aluminum foil shield with a drain wire to minimize electromagnetic interference. -
Can the cable be used outdoors?
Yes, the cable is rated for outdoor use within the specified temperature range and environmental conditions. -
What is the maximum operating temperature?
The cable can operate safely up to 75°C (167°F). -
Is the cable suitable for hazardous areas?
It is designed for use in standard industrial environments; for hazardous areas, consult Yokogawa for compliance and suitable options. -
What is the minimum bending radius during installation?
The minimum bending radius is 10 times the cable diameter to avoid damage. -
How long is this cable?
Cable lengths 15 meters. -
How resistant is the cable to chemical exposure?
The PVC sheath provides resistance to many industrial chemicals, enhancing durability. -
What standards does this cable comply with?
It complies with UL, RoHS, and IEC standards. -
Is the cable compatible with Yokogawa’s instrumentation products?
Yes, it is specifically designed to integrate seamlessly with Yokogawa’s control and measurement devices.
Related Models (Same Series or Similar Use)
Model Number | Description |
---|---|
AKB331-M010 | Signal cable, 1 core, 0.5 mm² |
AKB331-M020 | Signal cable, 2 cores, 0.75 mm² |
AKB331-M030 | Signal cable, 3 cores, 0.5 mm² |
AKB332-M015 | Signal cable with enhanced shielding |
AKB333-M015 | High-temperature signal cable |
AKB331-M040 | Signal cable, 4 cores, 0.5 mm² |
