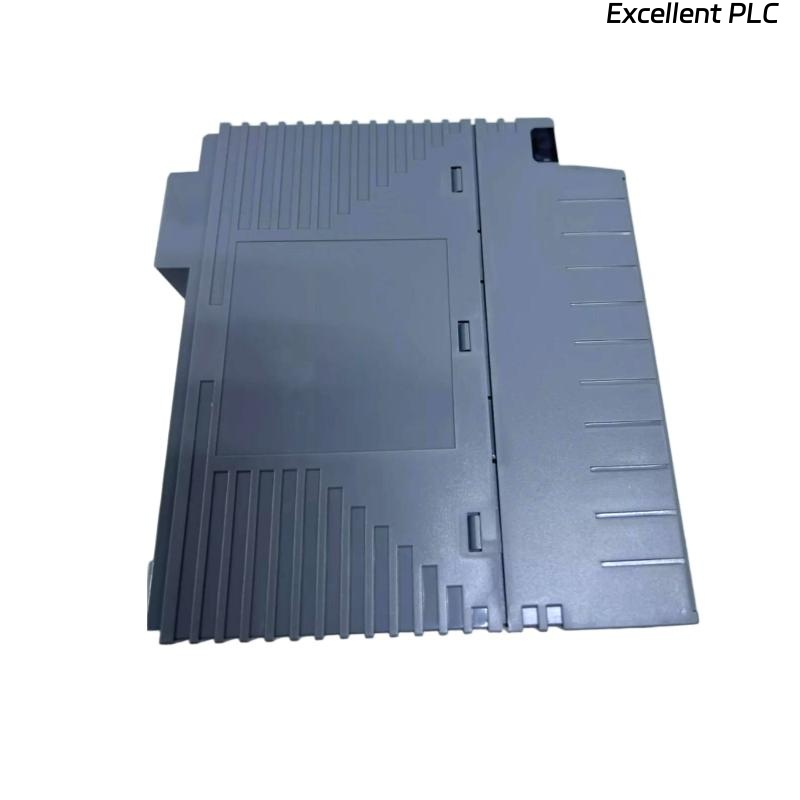

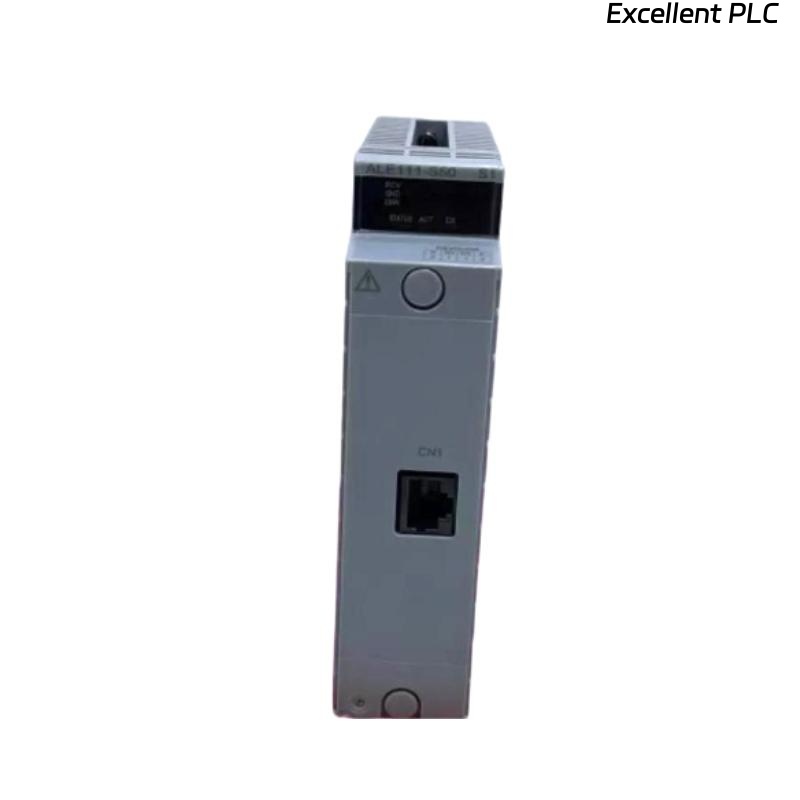

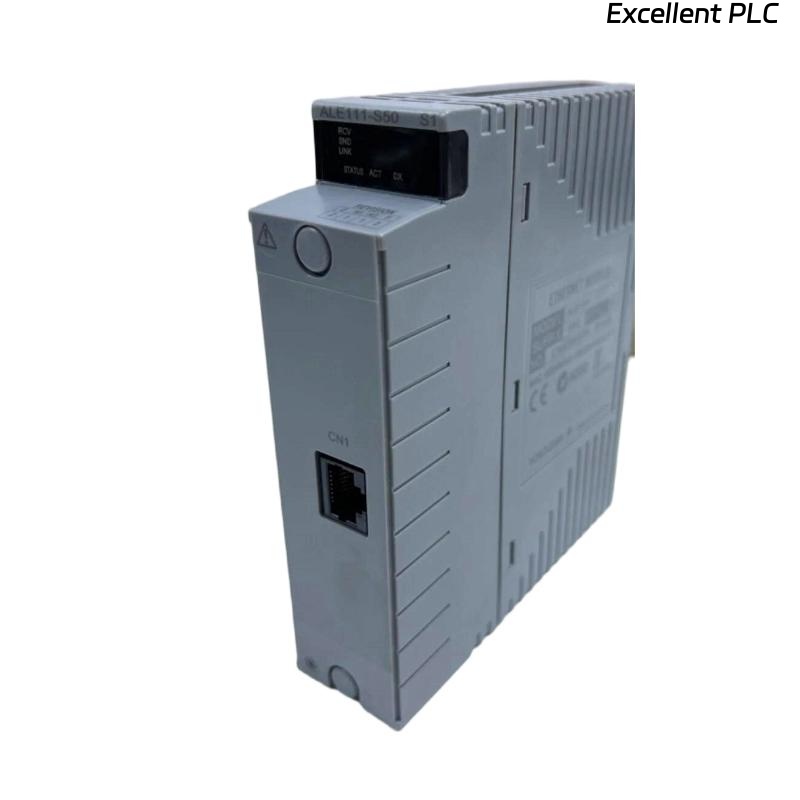

Yokogawa ALE111-50 Ethernet Communication Module

Product Introduction

The Yokogawa ALE111-50 is a high-performance Ethernet communication module designed to enhance industrial network connectivity. It facilitates seamless communication between various automation systems by utilizing Ethernet as a backbone for data exchange. The ALE111-50 is ideal for integrating different industrial equipment and systems, offering a highly efficient, scalable solution for modern industrial networking needs. It is engineered to handle real-time data transmission with high reliability, providing critical network infrastructure support in diverse industrial environments.

This module is built to provide advanced features such as dual-port communication, redundant network configuration, and protocol conversion. The ALE111-50 ensures smooth integration between process control systems and field devices by supporting various network protocols, including Modbus TCP/IP, Ethernet/IP, and Profinet. It also features built-in diagnostics, making it a reliable choice for industries requiring continuous, uninterrupted communication in mission-critical applications.

With its compact design and easy-to-install features, the ALE111-50 offers an effective solution for plant-wide automation, enabling fast communication across multiple control systems. Whether used in oil and gas, chemical manufacturing, or power generation, the module excels in ensuring real-time, efficient, and reliable data transfer across Ethernet networks.

Product Parameters

Product Applications

1. Industrial Network Integration: The ALE111-50 is primarily used to integrate various industrial devices and control systems over Ethernet networks. It plays a critical role in connecting PLC systems, HMIs, SCADA systems, and other devices, enabling them to exchange data in real-time, ensuring smooth communication for industrial automation.

2. Redundant Network Configuration: This module is ideal for use in critical systems where network reliability is essential. By supporting redundant network setups, the ALE111-50 ensures that communication remains uninterrupted, even in case of a network failure, offering a fail-safe mechanism for mission-critical operations.

3. Protocol Conversion and Communication Bridge: The ALE111-50 supports multiple communication protocols, making it an excellent choice for applications that require the conversion between different industrial network protocols, such as Modbus TCP/IP to Ethernet/IP or Profinet.

4. Real-time Data Transmission: In process control systems and monitoring stations, the ALE111-50 is used to transmit real-time data between field devices and central control units, ensuring that operators have up-to-date information at all times to make informed decisions.

Product Advantages

1. Reliable Data Communication: With support for multiple Ethernet-based protocols, the ALE111-50 ensures high-speed and reliable communication, making it ideal for applications where real-time data exchange is critical. The dual-port functionality further ensures network redundancy, preventing downtime.

2. Compact and Efficient Design: Measuring just 130 × 125.5 × 32.8 mm and weighing only 0.3 kg, the module is designed to fit easily into limited spaces. Its compact form factor makes it easy to integrate into existing systems without requiring extensive modifications.

3. Flexible Protocol Support: The ALE111-50 supports a wide range of industrial communication protocols, including Modbus TCP/IP, Ethernet/IP, and Profinet. This flexibility allows for seamless integration with various control systems and devices from different manufacturers.

4. Enhanced Diagnostics and Monitoring: The module comes with built-in diagnostic features, enabling proactive monitoring of network health and performance. This helps in troubleshooting, reducing downtime, and improving the overall reliability of the communication network.

Frequently Asked Questions (FAQ)

1. What is the primary function of the Yokogawa ALE111-50?

   • The ALE111-50 is an Ethernet communication module used for integrating different devices and systems over Ethernet, enabling real-time communication and data exchange in industrial environments.

2. What protocols are supported by the ALE111-50?

   • The module supports Modbus TCP/IP, Ethernet/IP, and Profinet communication protocols.

3. How many Ethernet ports does the ALE111-50 have?

   • The ALE111-50 features dual Ethernet ports, providing network redundancy for uninterrupted communication.

4. What is the weight of the ALE111-50 module?

   • The ALE111-50 weighs approximately 0.3 kg, making it lightweight and easy to install.

5. What is the operating temperature range for the ALE111-50?

   • The module operates within a temperature range of -20°C to +60°C, suitable for use in a wide range of industrial environments.

6. Can the ALE111-50 be mounted on a DIN rail?

   • Yes, the module is designed to be DIN rail mountable, ensuring easy and flexible installation.

7. What is the power supply requirement for the ALE111-50?

   • The module operates with a 24 VDC power supply.

8. What industries benefit from using the ALE111-50 module?

   • The module is used in various industries, including oil and gas, chemical manufacturing, power generation, and automated manufacturing systems.

9. How does the ALE111-50 ensure network reliability?

   • The dual-port feature provides network redundancy, allowing the module to switch to an alternate network path if the primary path fails, ensuring continuous communication.

10. What is the power consumption of the ALE111-50?

    • The module has a low power consumption of approximately 5W, making it energy-efficient.
