Product Introduction

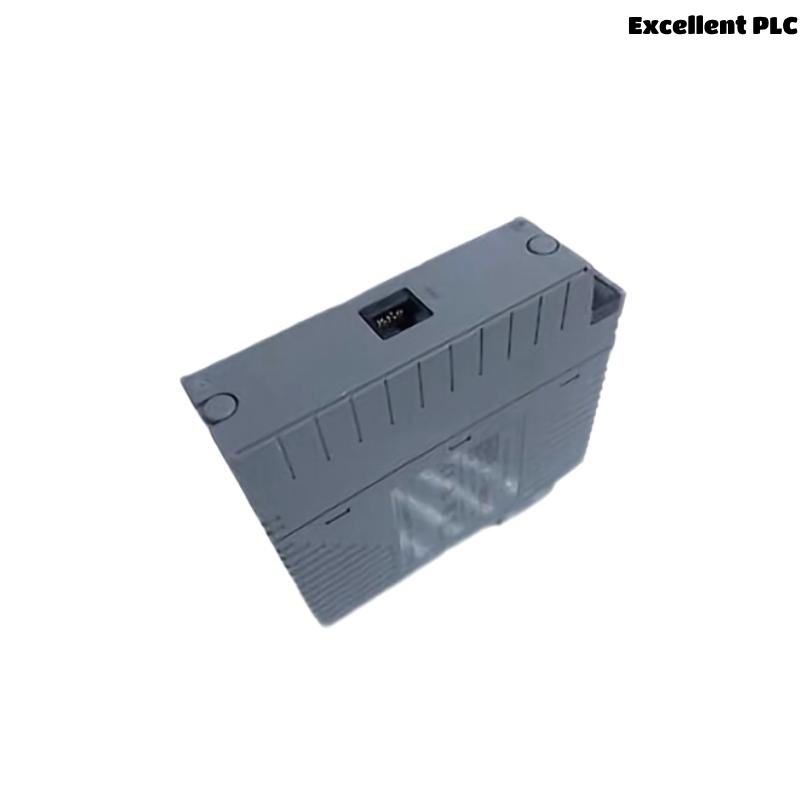

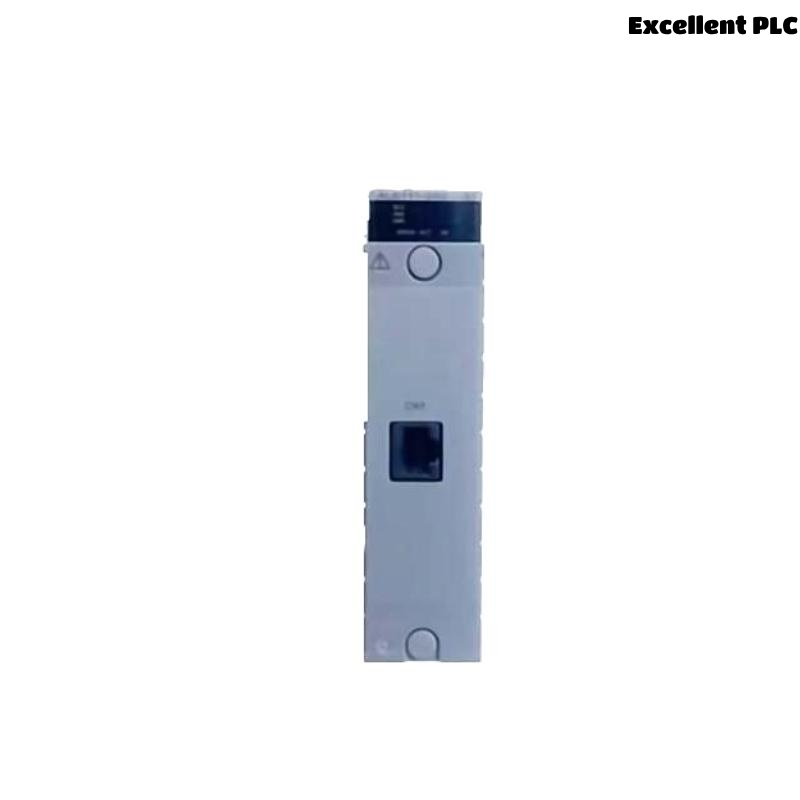

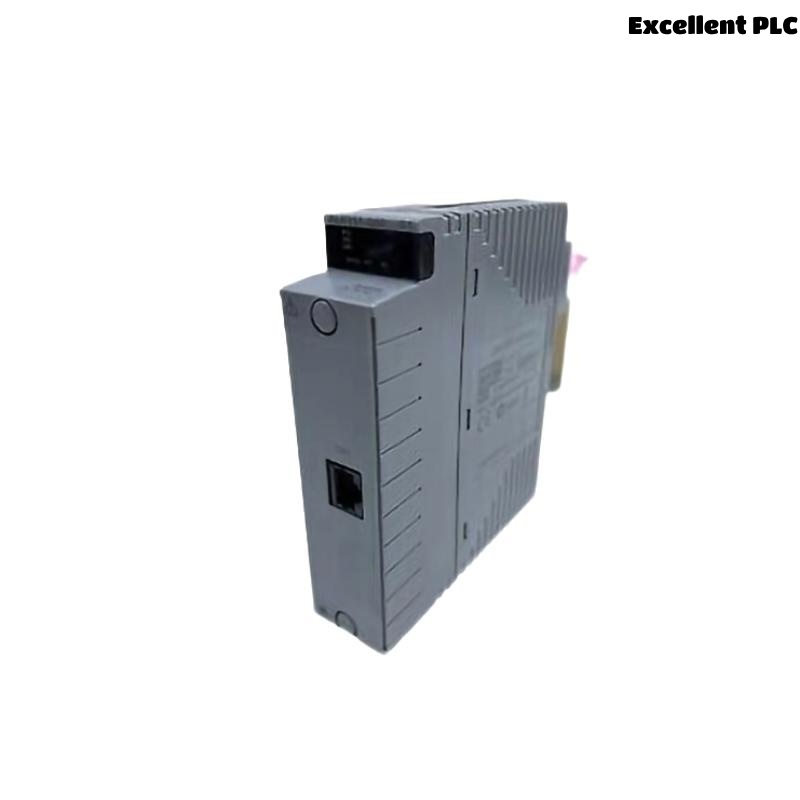

The Yokogawa ALE111-S53 Ethernet Communication Module is designed to facilitate high-performance communication between devices in industrial automation systems. By supporting Ethernet connectivity, this module ensures reliable data exchange for process control, monitoring, and data acquisition. Its robust design and versatility make it an ideal choice for industries that require high availability, real-time performance, and scalability.
Specifications
Here are the detailed specifications of the Yokogawa ALE111-S53:
| Specification | Details |
|---|---|
| Model | ALE111-S53 |
| Communication Protocol | Ethernet, TCP/IP, UDP |
| Input Power | 24V DC ± 10% |
| Operating Temperature | -20°C to 60°C |
| Dimensions (WxHxD) | 130 x 125.5 x 32.8 mm |
| Weight | 0.3 kg |
| Network Ports | 2 x Ethernet ports |
| Transmission Speed | 100/1000 Mbps |
| Mounting | DIN rail mounting |
| Environment | Industrial environments |
| Humidity | 5% to 95% RH (non-condensing) |
| Certifications | CE, UL, RoHS compliant |
Applications
The ALE111-S53 Ethernet Communication Module is ideal for the following applications:
-
Industrial Automation: Facilitates communication between programmable logic controllers (PLCs), human-machine interfaces (HMIs), and other devices within a control network.
-
Data Acquisition: The module enables high-speed data collection from sensors and other field devices in real-time for process monitoring and analysis.
-
Process Control Systems: It plays a vital role in controlling and monitoring industrial processes, including temperature, pressure, flow, and other parameters.
-
Distributed Control Systems (DCS): Seamlessly integrates into DCS networks, enhancing connectivity and communication.
-
SCADA Systems: Provides an efficient interface for SCADA systems, ensuring that operators have accurate, real-time data from remote devices.
Advantages
-
High-Speed Communication: With support for 100/1000 Mbps Ethernet speeds, the ALE111-S53 ensures fast and efficient data transfer across the network.
-
Reliability: Built with high-quality components, the module guarantees durability and stable performance in harsh industrial environments.
-
Versatility: Supports both TCP/IP and UDP protocols, making it adaptable to various communication needs.
-
Compact Design: The module’s small size and DIN rail mounting make it easy to install and integrate into existing control systems.
-
Wide Temperature Range: With an operating temperature range of -20°C to 60°C, the module performs well in extreme conditions.
-
Energy Efficient: Consumes low power, making it an eco-friendly choice for industrial networks.
-
Scalability: Multiple ALE111-S53 modules can be easily added to expand network capacity as the system grows.
FAQ (Frequently Asked Questions)
-
What is the primary function of the ALE111-S53 module?
The ALE111-S53 module is used for Ethernet communication in industrial automation systems, enabling fast and reliable data exchange between devices. -
Can this module be used in a wireless network?
No, the ALE111-S53 is designed for wired Ethernet communication. Wireless communication would require a different module. -
What is the maximum operating temperature of the ALE111-S53?
The module operates in a temperature range of -20°C to 60°C. -
How is the ALE111-S53 mounted?
It can be mounted on a DIN rail, making it easy to integrate into existing control panels or cabinets. -
What is the weight of the ALE111-S53 module?
The module weighs 0.3 kg. -
Does the ALE111-S53 support both TCP/IP and UDP protocols?
Yes, it supports both TCP/IP and UDP communication protocols. -
What type of power supply is required for the ALE111-S53?
It requires a 24V DC ± 10% power supply for operation. -
Can the ALE111-S53 be used in hazardous environments?
The ALE111-S53 is designed for use in industrial environments but is not specifically rated for hazardous areas. Additional precautions may be necessary. -
How many Ethernet ports does the ALE111-S53 have?
The module has two Ethernet ports to support redundant connections and improved network reliability. -
Is the ALE111-S53 compatible with all Yokogawa automation systems?
Yes, it is compatible with various Yokogawa automation and control systems, as well as other Ethernet-enabled devices.
Recommended Related Models (Same Series or Related)
| Model | Description | Key Features |
|---|---|---|
| ALE111-S51 | Entry-level Ethernet communication module | Lower bandwidth, single Ethernet port |
| ALE111-S52 | Enhanced version of ALE111-S53 | Higher transmission speed, redundant ports |
| ALE112-S53 | Similar model for industrial applications | Expanded protocol support, more robust design |
| ALE121-S53 | Enhanced reliability in harsh environments | Extended temperature range, higher IP rating |
| ALE130-S53 | Version for larger networks | Supports more devices, optimized for large systems |
| ALE150-S53 | Premium version with advanced features | Advanced diagnostic capabilities, faster processing |
