Product Introduction

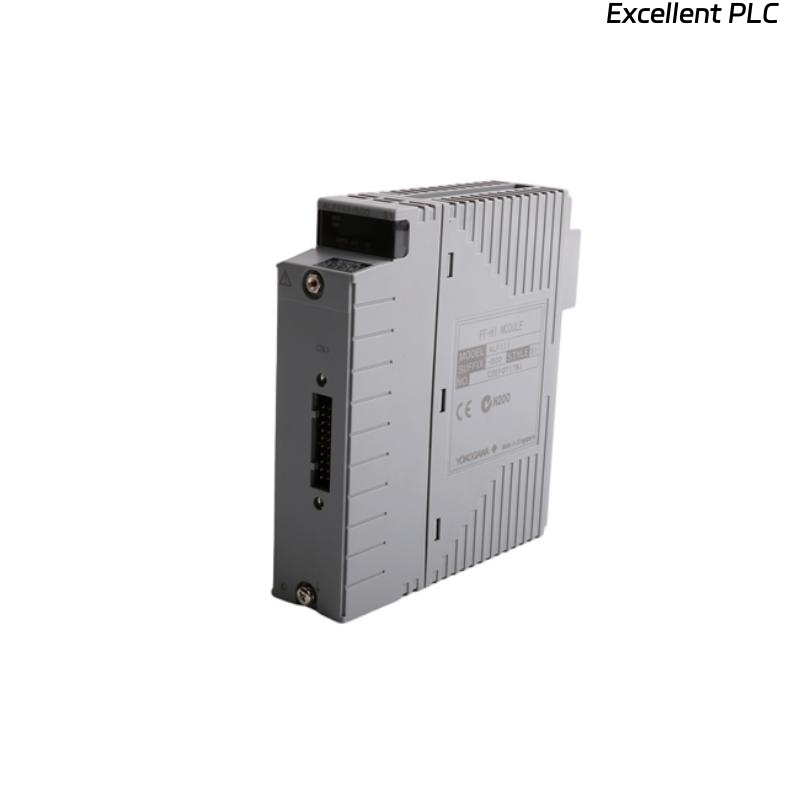

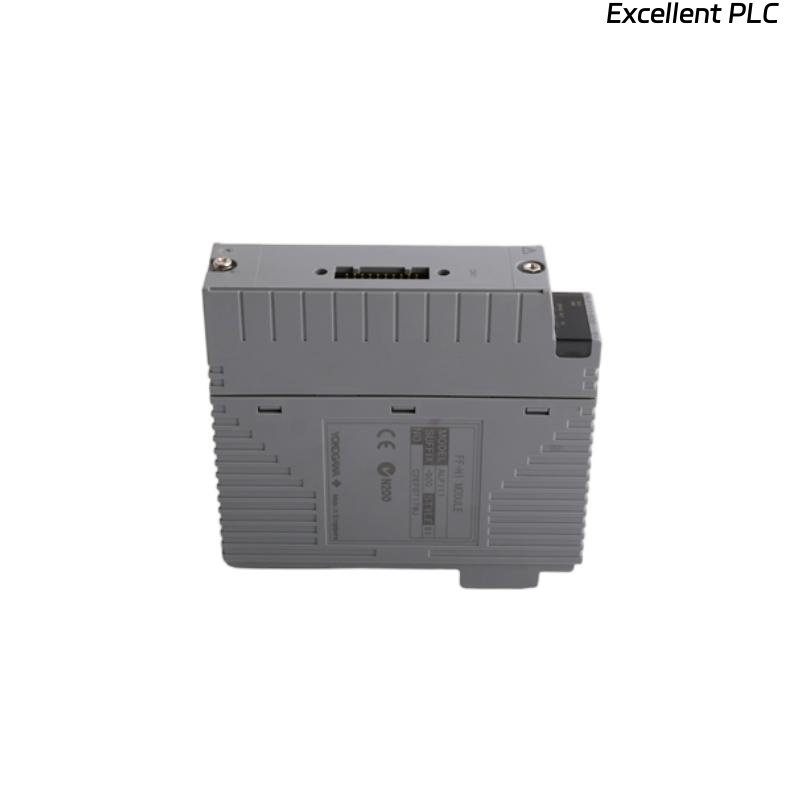

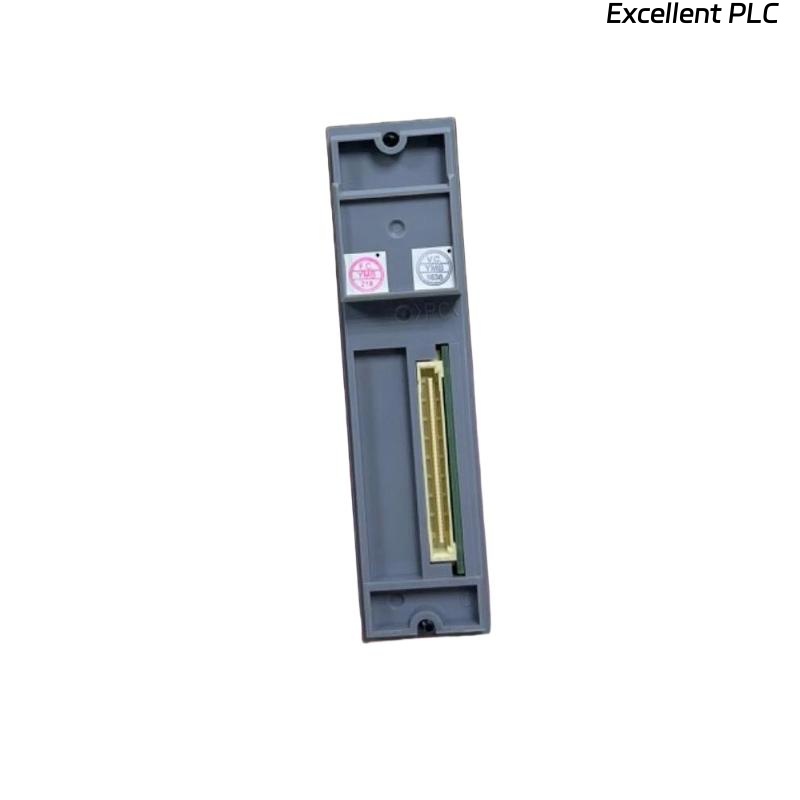

The Yokogawa ALF111-S00 S1 Fieldbus Communication Module is a cutting-edge device designed to provide seamless communication between field devices and control systems via the Fieldbus network. This module supports high-speed, reliable data transmission, making it an essential part of any advanced automation and control system. It enables efficient, real-time communication across a wide range of industrial applications, ensuring smooth operations and improved system performance.
Engineered to meet the demands of modern industrial automation, the ALF111-S00 S1 supports the Foundation Fieldbus protocol, which is widely used for process control, monitoring, and system integration. By offering reliable data exchange between control systems and field devices, this module significantly enhances operational efficiency and process optimization.
The ALF111-S00 S1 is designed for easy integration into existing systems, thanks to its compact size and robust design. It is perfect for industries where real-time data transfer and efficient control are crucial, such as oil & gas, chemicals, power generation, and manufacturing.
Product Specifications
Feature | Specification |
---|---|
Model Number | ALF111-S00 S1 |
Dimensions (L x W x H) | 130 x 127.5 x 32.8 mm |
Weight | 0.4 kg |
Power Supply | 24 VDC |
Fieldbus Protocol | Foundation Fieldbus |
Operating Temperature | -20°C to 60°C |
Humidity | 5% to 95% RH, non-condensing |
Mounting Type | DIN Rail or Panel Mount |
Enclosure Rating | IP20 |
Communication Speed | 31.25 kbps to 1 Mbps |
Product Applications
The Yokogawa ALF111-S00 S1 Fieldbus Communication Module is used across various industries for real-time data transmission and control. Its primary applications include:
-
Process Control Systems: The module facilitates seamless communication between field devices and control systems in chemical plants, power stations, and refineries, improving overall process management and efficiency.
-
Oil & Gas: In the oil and gas sector, the ALF111-S00 S1 helps integrate and communicate with remote field devices in hazardous environments, enabling better monitoring and control of operations.
-
Manufacturing: The module is employed in manufacturing facilities to ensure smooth communication between different pieces of equipment, sensors, and actuators, optimizing the production process.
-
Power Generation: In power plants, the module connects various field devices and control systems, ensuring real-time monitoring of equipment health and optimizing performance.
-
Water Treatment: The ALF111-S00 S1 is used in water treatment facilities to connect field instruments like flow meters, pressure transmitters, and level sensors to central control systems, ensuring efficient operation and real-time data collection.
Product Advantages
-
Reliable Communication: Supporting Foundation Fieldbus, the ALF111-S00 S1 provides stable and high-quality communication between control systems and field devices, ensuring uninterrupted operations.
-
Compact and Robust: With a compact size of 130 x 127.5 x 32.8 mm and a weight of 0.4 kg, this module is easy to install and integrate into space-constrained environments while offering long-term reliability.
-
Wide Protocol Support: The ALF111-S00 S1 supports a range of communication speeds from 31.25 kbps to 1 Mbps, making it adaptable to various operational needs and ensuring flexibility in network design.
-
Flexible Mounting Options: The module can be mounted either on a DIN rail or directly on a panel, providing users with flexibility in installation.
-
Durability and Reliability: The ALF111-S00 S1 is designed to operate in harsh environments, with an operating temperature range of -20°C to 60°C and an enclosure rating of IP20, offering protection against dust and moisture.
-
Ease of Integration: With its easy integration into existing Fieldbus networks, the ALF111-S00 S1 simplifies system upgrades and facilitates the addition of new devices without the need for major infrastructure changes.
FAQ (Frequently Asked Questions)
-
What is the main purpose of the ALF111-S00 S1 Fieldbus Communication Module?
-
The ALF111-S00 S1 enables reliable, high-speed communication between field devices and control systems via the Foundation Fieldbus protocol.
-
-
How is the ALF111-S00 S1 powered?
-
The ALF111-S00 S1 operates on a 24 VDC power supply.
-
-
What communication protocol does the ALF111-S00 S1 support?
-
The module supports the Foundation Fieldbus protocol, which is widely used in industrial automation systems for real-time control and monitoring.
-
-
What are the dimensions and weight of the ALF111-S00 S1?
-
The ALF111-S00 S1 has dimensions of 130 x 127.5 x 32.8 mm and weighs 0.4 kg.
-
-
What is the operating temperature range for the ALF111-S00 S1?
-
The module operates within a temperature range of -20°C to 60°C.
-
-
What is the communication speed supported by the ALF111-S00 S1?
-
The module supports communication speeds ranging from 31.25 kbps to 1 Mbps.
-
-
What mounting options are available for the ALF111-S00 S1?
-
The module can be mounted on either a DIN rail or a panel mount, offering flexibility in installation.
-
-
Can the ALF111-S00 S1 be used in outdoor or harsh environments?
-
The ALF111-S00 S1 is rated with an IP20 enclosure, which is suitable for indoor environments but not for direct exposure to harsh outdoor conditions.
-
-
Which industries benefit most from using the ALF111-S00 S1?
-
The ALF111-S00 S1 is widely used in process control, oil & gas, power generation, and manufacturing industries, among others.
-
-
What are the main advantages of using the ALF111-S00 S1?
-
Key advantages include reliable communication, compact size, high-speed data transmission, flexible mounting options, and easy integration with existing systems.
-
Related Models (Same Series)
Model Number | Description |
---|---|
ALF112-S00 | Enhanced Fieldbus Communication Module |
ALF111-S10 | Fieldbus Communication Module with advanced protocol support |
ALF113-S00 | Fieldbus Communication Module with higher speed support |
ALF114-S00 | Compact Fieldbus Communication Module for small systems |
ALF110-S00 | Basic Fieldbus Communication Module for entry-level applications |
ALF111-S00 S2 | Fieldbus Communication Module with additional I/O capabilities |
