Product Introduction

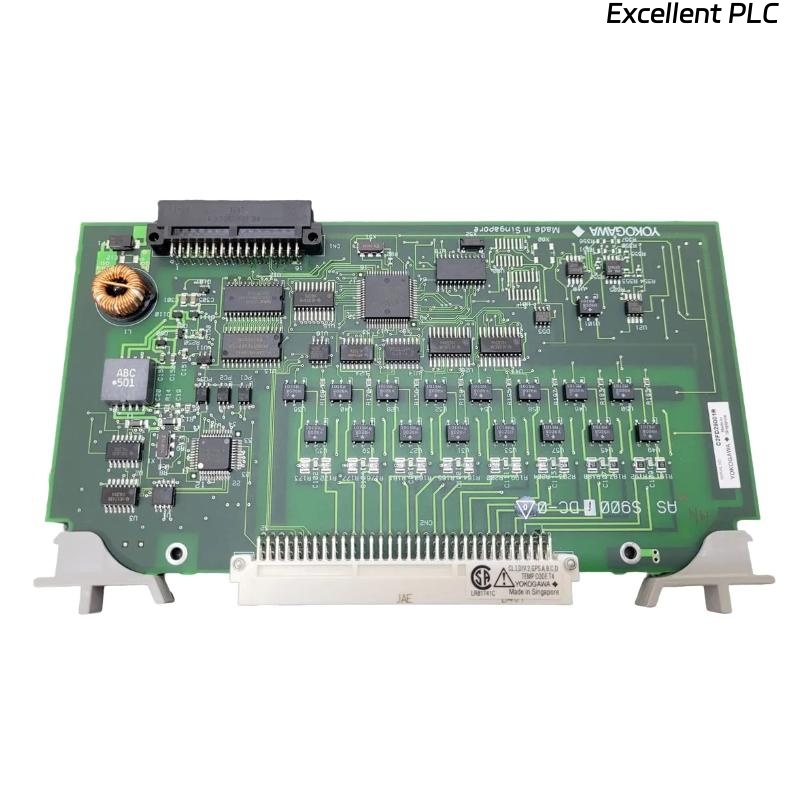

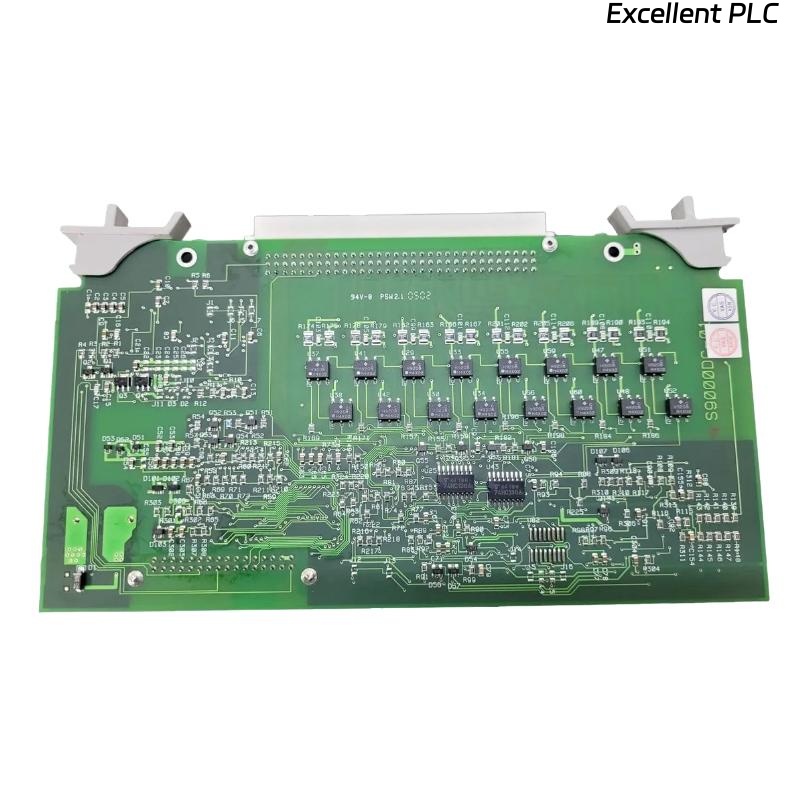

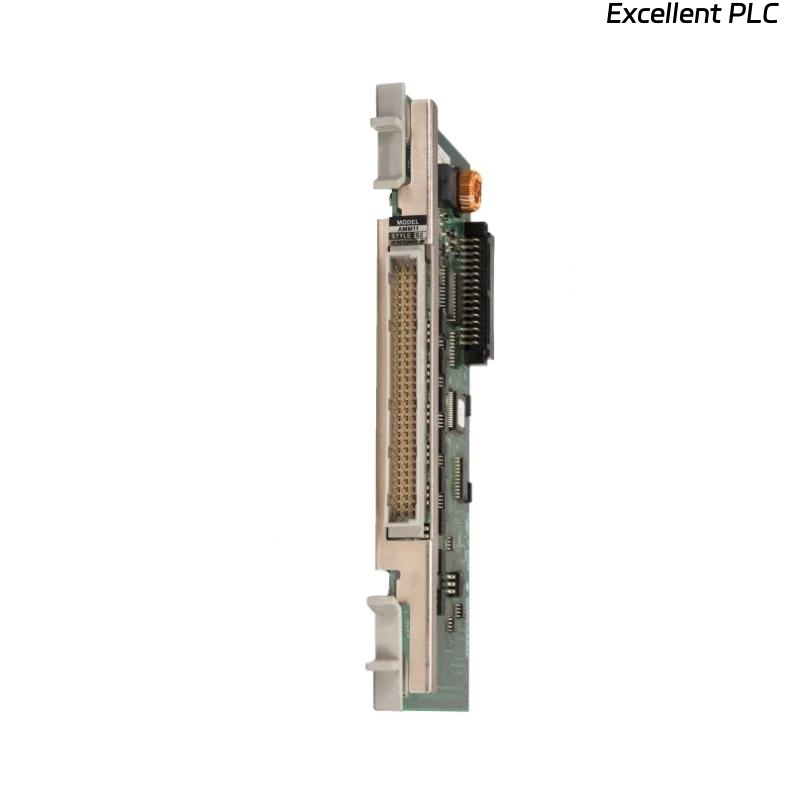

The Yokogawa AMM11 Voltage Input Multiplexer Module is a precision analog input module designed for high-performance process control and monitoring applications. As part of Yokogawa’s distributed control system (DCS) architecture, particularly the CENTUM and STARDOM series, the AMM11 serves as a critical interface between field devices and the system’s control processors. It enables the acquisition of multiple voltage input signals from sensors, transmitters, or other instrumentation sources, converting them into digital data for accurate control and analysis.
The AMM11 is built to handle multiple analog voltage inputs simultaneously, featuring high-resolution analog-to-digital conversion and excellent linearity. This allows the module to maintain measurement accuracy even under varying load or environmental conditions. It supports a wide range of voltage signal levels, offering flexibility for diverse industrial measurement needs.
Engineered with Yokogawa’s renowned reliability and diagnostic intelligence, the AMM11 ensures stable operation, self-diagnostics, and easy integration into existing system configurations. It is particularly suited for complex, safety-critical, or data-intensive process automation systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Yokogawa Electric Corporation |
| Model | AMM11 |
| Product Type | Voltage Input Multiplexer Module |
| Function | Multiplexed analog voltage signal acquisition |
| Number of Channels | 16 voltage input channels |
| Input Type | DC voltage (single-ended or differential) |
| Input Range | -10 V to +10 V (configurable) |
| Input Impedance | >10 MΩ |
| Resolution | 16-bit analog-to-digital conversion |
| Accuracy | ±0.1% of full scale |
| Common Mode Rejection Ratio (CMRR) | 100 dB minimum |
| Sampling Rate | Up to 100 samples per second per channel |
| Isolation | Channel-to-bus and channel-to-ground isolation |
| Noise Rejection | 50/60 Hz filtering built-in |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -20°C to +70°C |
| Relative Humidity | 10% to 90% non-condensing |
| Power Supply Voltage | 24 V DC (from backplane) |
| Power Consumption | Approx. 3.5 W |
| Diagnostics | Built-in self-check and input channel fault detection |
| Interface | Compatible with Yokogawa control bus and system I/O rack |
| Mounting Type | Plug-in module for I/O base |
| Dimensions | 45 x 120 x 110 mm |
| Weight | 0.5 kg |
| Compliance | CE, RoHS, IEC 61010-1, and IEC 61326-3-1 |
| Protection | Over-voltage and reverse polarity protection |
| Cooling Method | Natural convection |
| Maintenance | Hot-swappable module design |
Applications
The Yokogawa AMM11 Voltage Input Multiplexer Module is designed for high-precision voltage signal acquisition and is widely used in various industrial automation systems. Its robust performance and wide compatibility make it suitable for the following applications:
-
Process Control Systems: Collects analog voltage signals from sensors and transmitters in refineries, chemical plants, and manufacturing systems.
-
Power Generation: Monitors turbine and generator parameters through voltage-based sensors.
-
Environmental Monitoring: Measures voltage outputs from transducers used in flow, pressure, and temperature monitoring systems.
-
Research and Development Facilities: Provides accurate multi-channel voltage measurement for experimental data acquisition systems.
-
Factory Automation: Integrates with PLCs and DCS platforms for production process monitoring and quality assurance.
-
Energy Management Systems: Used for continuous voltage input measurements in grid management and substation automation.
Advantages
-
High Measurement Accuracy: Offers precise and stable analog-to-digital conversion for reliable data acquisition.
-
Multi-Channel Efficiency: Enables multiple voltage signal inputs to be processed simultaneously, reducing hardware complexity.
-
Wide Input Range: Supports a broad range of voltage signals, ensuring flexibility for various sensors and transducers.
-
Robust Noise Immunity: Integrated filtering and isolation minimize interference from electrical noise and cross-talk.
-
Modular and Expandable: Easily integrates into Yokogawa I/O systems, allowing for flexible expansion as system demands grow.
-
Reliable Diagnostics: Built-in self-checking and fault indication reduce maintenance time and enhance system reliability.
-
Compact and Lightweight Design: Saves panel space while offering high functionality and durability.
-
Industrial-Grade Durability: Designed to perform under harsh operating conditions typical in heavy industry and process environments.
-
Ease of Maintenance: Hot-swappable design allows for module replacement without system shutdown.
FAQ
1. What type of signals does the Yokogawa AMM11 handle?
The AMM11 is designed to handle DC voltage input signals, either single-ended or differential, within a configurable range of -10 V to +10 V.
2. Can the AMM11 be used for current input signals?
No, the AMM11 is optimized for voltage inputs. Current signals require a corresponding current input module, such as the AIM10.
3. How does the AMM11 ensure accurate signal measurement in noisy environments?
It features advanced 50/60 Hz noise rejection filters, channel isolation, and high CMRR to maintain stable and accurate measurements even in high-EMI industrial areas.
4. What is the resolution of the AMM11 analog-to-digital conversion?
The module uses a 16-bit A/D converter, providing fine signal resolution for precise process monitoring.
5. Is the AMM11 compatible with Yokogawa’s CENTUM VP system?
Yes, the AMM11 is fully compatible with Yokogawa’s CENTUM VP and STARDOM control systems through standard I/O interfaces.
6. What kind of diagnostic functions does the AMM11 include?
It provides channel fault detection, self-check diagnostics, and status indication through system software for predictive maintenance.
7. Can the module be replaced during system operation?
Yes, the AMM11 supports hot-swapping, allowing replacement without system shutdown, minimizing operational downtime.
8. Does the AMM11 provide isolation between channels?
Yes, each channel is isolated from the bus and ground, which prevents interference and ensures measurement integrity.
9. What power source does the AMM11 require?
It operates on a 24 V DC power supply provided through the system backplane, with a consumption of approximately 3.5 W.
10. Is the AMM11 suitable for high-temperature environments?
Yes, it can operate within an ambient temperature range of 0°C to +55°C, making it suitable for most industrial applications.
