Product Introduction

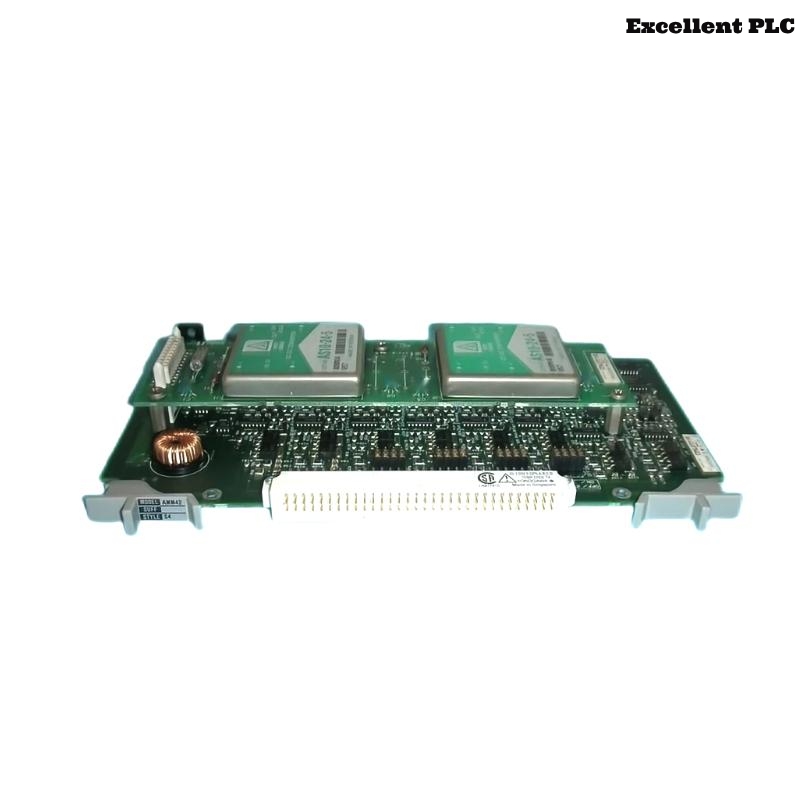

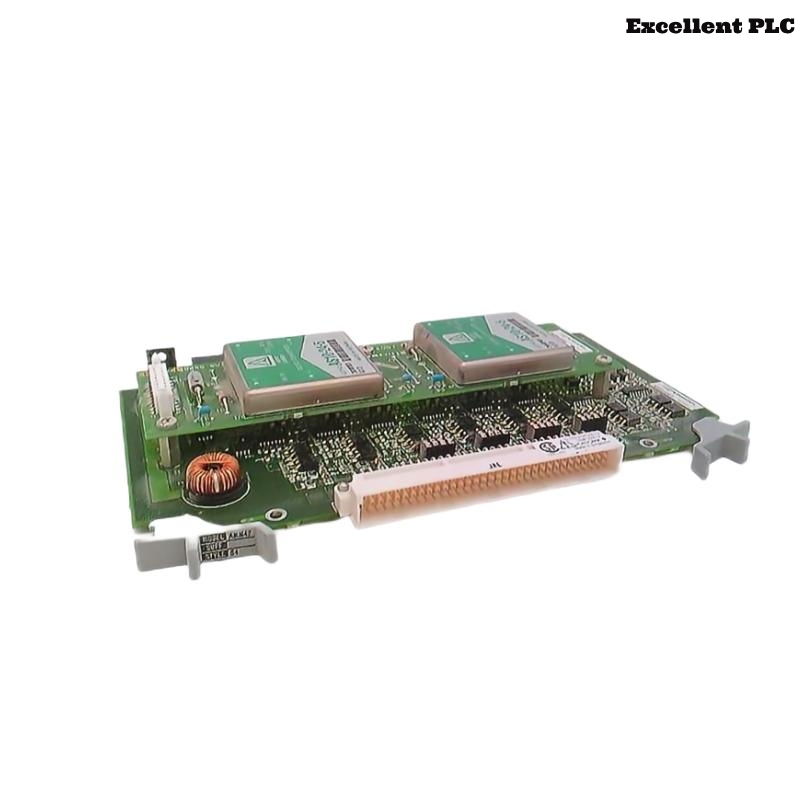

The Yokogawa AMM42-S4 Multiplexer Input Module is a high-performance input module specifically designed for use with Yokogawa’s control and automation systems, particularly in industrial environments requiring high channel density and cost-effective analog signal acquisition. This module is part of the Yokogawa CENTUM series control systems and integrates seamlessly with its I/O subsystems.
The AMM42-S4 supports multiple analog input channels through a multiplexing mechanism, allowing it to monitor multiple field signals such as temperature, pressure, or level signals efficiently. The module offers high reliability, precision, and noise immunity—critical for demanding industrial applications like power generation, petrochemicals, and manufacturing process control.
Its compact form factor and modular architecture enable easy installation and system scalability. The AMM42-S4 module also supports hot-swap capability, facilitating maintenance and system expansion without interrupting process operations.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | AMM42-S4 |
| Product Type | Multiplexer Input Module |
| Input Channels | 32-channel multiplexer (analog input) |
| Input Signal Type | DC voltage (typically 1–5V, 0–10V), thermocouple, or RTD (depending on setup) |
| Signal Resolution | 16-bit A/D conversion |
| Scan Rate | 250 ms per channel (typical) |
| Input Isolation | Isolated per channel |
| Accuracy | ±0.1% of span (typical) |
| Common Mode Rejection | > 100 dB |
| Power Supply | Supplied from base unit |
| Hot Swap Support | Yes |
| Diagnostic Functions | Self-diagnostics, error logging |
| Communication Interface | Via base unit to the FCS (Field Control Station) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting Type | Mounted on VJ series terminal boards or base units |
| Dimensions (W x H x D) | 120 × 90 × 60 mm |
| Weight | 0.249 kg |
| Certifications | CE, CSA, ATEX (when used with certified systems) |
Applications
The AMM42-S4 module is suited for a wide range of industrial control applications where compact, multi-point analog input solutions are required. Key application areas include:
-
Power Plants: For monitoring turbine temperatures, boiler pressure, and feedwater flow.
-
Petrochemical Facilities: Handling multiple sensor readings such as pressure, flow, and level.
-
Water Treatment Plants: Monitoring pH, turbidity, and chemical dosing levels.
-
Pharmaceutical Manufacturing: Collecting cleanroom environmental data or production process variables.
-
General Manufacturing: Centralized analog signal acquisition from distributed sensors.
Its ability to handle high channel density within a compact module makes it ideal for applications where control panel space is at a premium.
Product Advantages
-
High Channel Density: 32 analog input channels in a single module, minimizing hardware and panel space.
-
Compact Design: Slim and lightweight, ideal for dense installations.
-
Cost-Effective: Reduces overall system cost by multiplexing multiple signals through one module.
-
Flexible Input Types: Supports voltage, thermocouple, or RTD signals depending on terminal board and configuration.
-
Reliable and Safe: Built-in isolation, diagnostic functions, and robust design ensure system reliability and safety.
-
Hot Swappable: Modules can be replaced without stopping the system, reducing downtime.
-
Integrated Diagnostics: Real-time error checking and alarm indication enhance maintainability.
Frequently Asked Questions (FAQ)
-
What is the function of the AMM42-S4 module?
It functions as a multiplexed analog input module, allowing the acquisition of multiple analog signals through a single module. -
How many input channels does it support?
It supports 32 analog input channels. -
Can I hot-swap the AMM42-S4 during system operation?
Yes, it supports hot-swapping without requiring a system shutdown. -
What signal types can it handle?
It can handle DC voltage, thermocouple, or RTD signals based on the connected terminal board. -
Is the AMM42-S4 compatible with all Yokogawa systems?
It is designed primarily for use with Yokogawa’s CENTUM series control systems. -
Does the module offer channel isolation?
Yes, each input channel is electrically isolated to enhance safety and prevent cross-talk. -
What kind of diagnostics does the module support?
It includes internal self-checking, signal error detection, and module failure logging. -
What’s the operating temperature range of the AMM42-S4?
It operates reliably from 0°C to 60°C. -
Can I use it for temperature measurements in power plants?
Yes, it is suitable for temperature signal acquisition using thermocouples or RTDs. -
What terminal boards are compatible with the AMM42-S4?
Terminal board compatibility depends on signal type; typically, it connects with Yokogawa’s VJ or TB series terminal boards.
Recommended Related or Similar Models (Same Series or Functionality)
| Model | Description | Input Type | Channels | Note |
|---|---|---|---|---|
| AMM12C | Analog Input Module (non-multiplexed) | Voltage, RTD | 8 | High precision inputs |
| AMM32 | Analog Multiplexed Input Module | Voltage | 16 | Older generation of AMM series |
| AAM50 | Advanced Multiplexer Input Module | Voltage | 32 | Newer version with enhanced features |
| ADV151 | Thermocouple Input Module | Thermocouple | 16 | Temperature-specific applications |
| AAM11 | Analog Input Module (multiplexer type) | Current/Voltage | 32 | Cost-effective solution |
| ADM52 | RTD Multiplexed Input Module | RTD | 16 | RTD optimized |
