Product Introduction

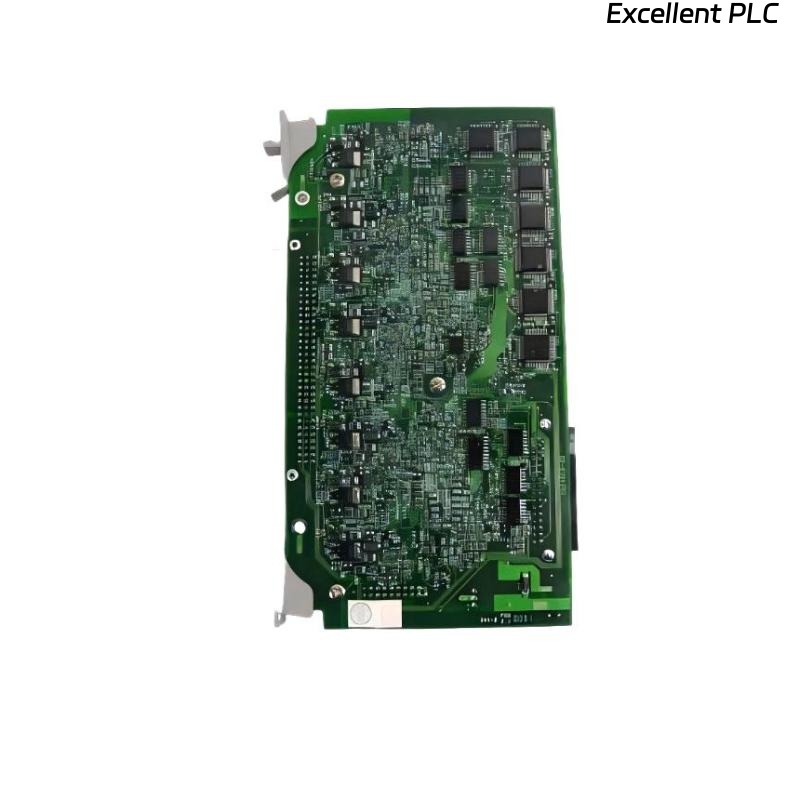

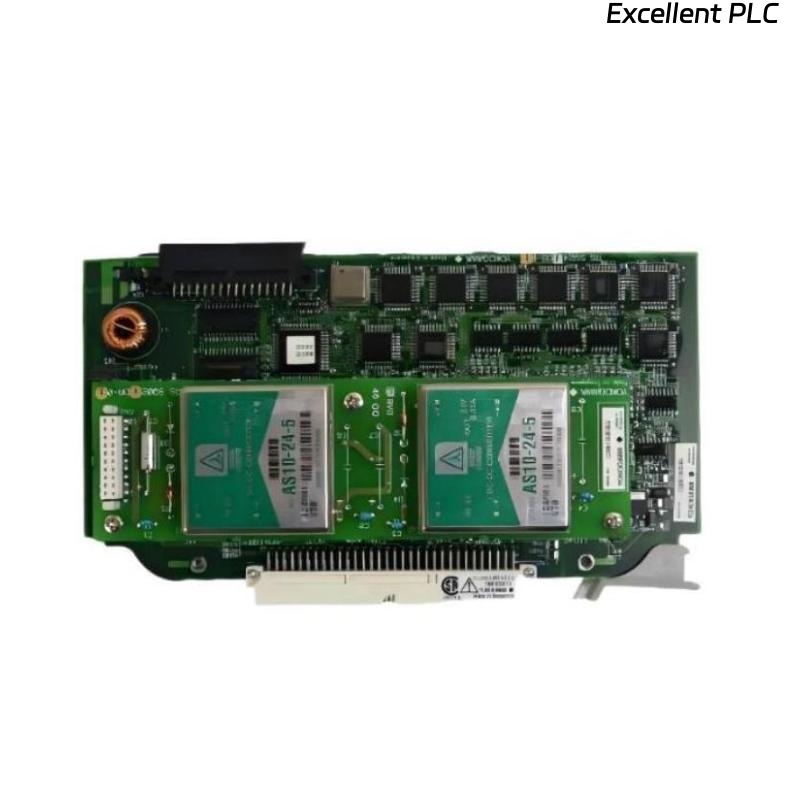

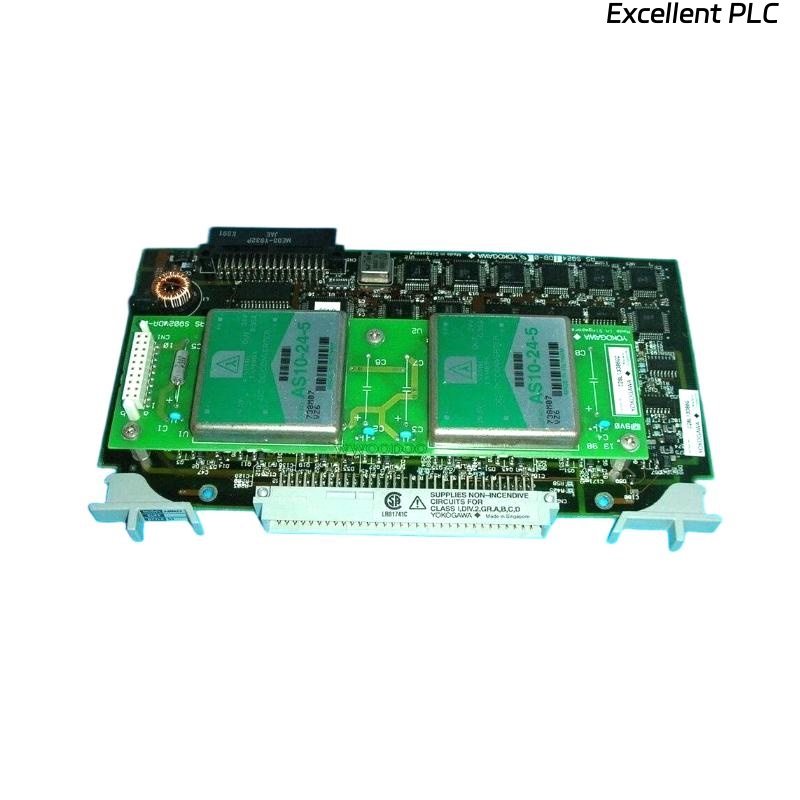

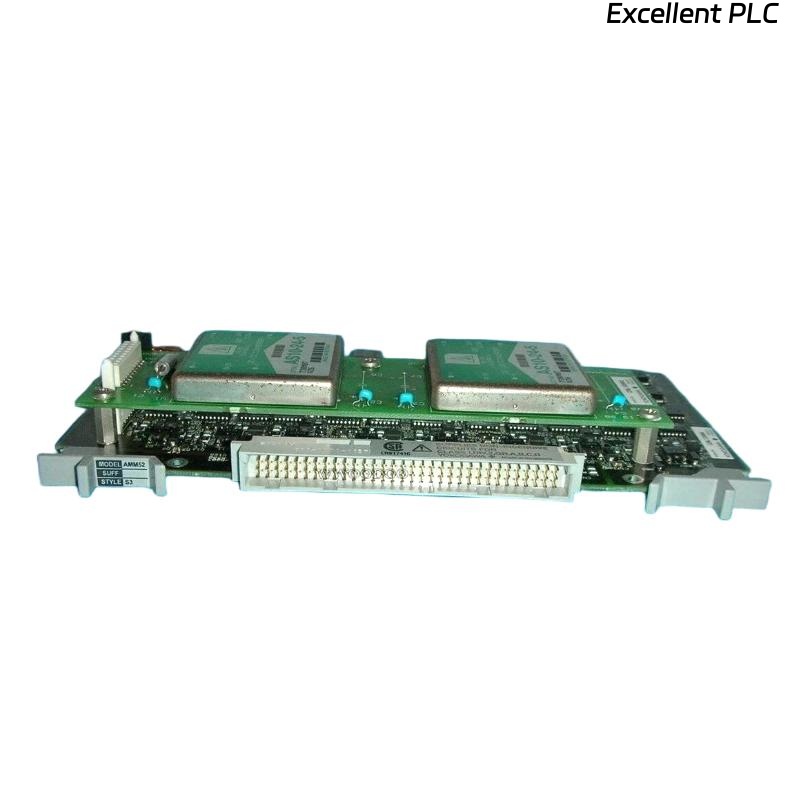

The Yokogawa AMM52 is a highly reliable analog signal conditioning module designed for industrial control systems that require precise adjustments to analog signals. This module ensures high-quality signal processing, transforming input signals into optimized output signals for various industrial processes. It supports a wide range of signal types and offers flexible features that make it suitable for diverse automation applications.
The AMM52 is built to handle signals that are noisy or require precise scaling or filtering, providing consistent, noise-free data for real-time control. This module’s compact size and versatility make it an ideal choice for integration into industrial measurement, control, and monitoring systems. Designed for robust performance in harsh industrial environments, the AMM52 provides users with high confidence in the accuracy of their signal processing.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 30 x 130 x 248 mm |
| Weight | 0.6 kg |
| Input Signal Types | Voltage, Current |
| Input Voltage Range | 0-10V, ±10V, 4-20mA |
| Output Voltage Range | 0-10V, ±10V |
| Power Supply | 24 VDC ±20% |
| Signal Accuracy | ±0.1% of reading |
| Response Time | 200 ms |
| Mounting Type | DIN Rail |
| Connector Type | Screw Terminal |
Product Applications
The AMM52 signal conditioning module is widely used across various industries where precise analog signal processing is essential for reliable control and monitoring. Key applications include:
-
Process Control: Integrating with sensors to condition and scale analog signals for accurate control of industrial processes.
-
Automation Systems: Interfacing with PLCs and SCADA systems to enhance signal conditioning for analog data processing in automation.
-
Measurement Systems: Used in data acquisition systems to process and filter analog signals for accurate readings.
-
Signal Filtering and Scaling: Ideal for systems where analog signals need to be filtered, amplified, or scaled for optimal system performance.
-
Field Instrumentation: Suitable for use with a wide variety of field instruments, ensuring that input signals are conditioned and calibrated correctly for further processing.
Product Advantages
-
High-Accuracy Signal Conditioning: With an accuracy of ±0.1% of reading, the AMM52 ensures reliable data processing and signal conditioning, essential for precise control.
-
Versatile Signal Input and Output: Supports both voltage and current input signals (0-10V, ±10V, 4-20mA), offering flexibility for various sensor types and industrial applications.
-
Fast Response Time: The module’s 200 ms response time allows for real-time signal processing, which is critical for control systems requiring immediate feedback.
-
Compact and Efficient Design: Measuring 30 x 130 x 248 mm and weighing just 0.6 kg, the AMM52’s compact design ensures it fits into tight spaces while providing efficient signal conditioning.
-
Easy Installation: The module can be easily mounted on a DIN rail, facilitating quick installation and integration into existing industrial systems.
-
Wide Temperature Range: It operates effectively in a broad temperature range, making it suitable for challenging industrial environments.
FAQ
1. What types of input signals can the AMM52 module handle?
The AMM52 can handle both voltage and current input signals, including 0-10V, ±10V, and 4-20mA.
2. What is the output voltage range of the AMM52 module?
The AMM52 provides output signals in the range of 0-10V and ±10V, depending on the configuration.
3. What is the accuracy of the AMM52 module?
The module offers an accuracy of ±0.1% of the reading, ensuring precise signal conditioning for accurate control.
4. What is the power supply requirement for the AMM52?
The AMM52 requires a 24 VDC power supply with a tolerance of ±20%.
5. How fast is the response time of the AMM52 module?
The AMM52 has a response time of 200 ms, making it suitable for real-time applications that require quick signal processing.
6. Can the AMM52 be mounted on a DIN rail?
Yes, the AMM52 is designed for DIN rail mounting, allowing for easy installation in industrial control panels.
7. What is the weight of the AMM52 module?
The AMM52 weighs 0.6 kg, which is lightweight and easy to handle during installation.
8. Can the AMM52 module be used for both current and voltage signals?
Yes, the AMM52 can handle both current (4-20mA) and voltage (0-10V, ±10V) signals, providing versatile signal conditioning capabilities.
9. Is the AMM52 suitable for harsh industrial environments?
Yes, the AMM52 is built for reliable performance in harsh industrial environments, with a wide operating temperature range and robust construction.
10. Is the AMM52 compatible with other Yokogawa products?
Yes, the AMM52 is fully compatible with other Yokogawa measurement and control instruments, ensuring smooth integration into existing systems.
