Product Introduction

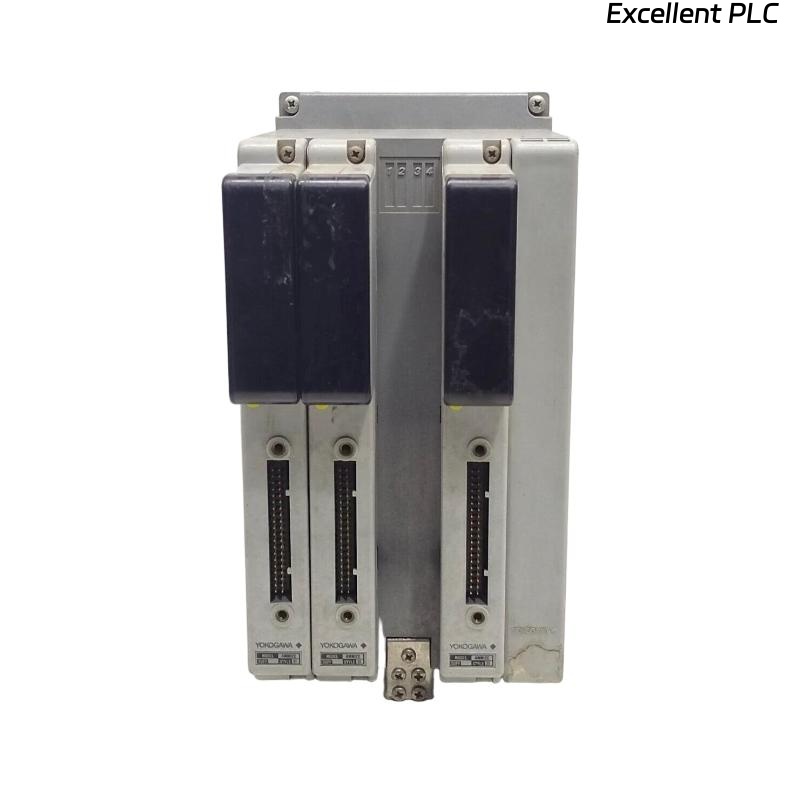

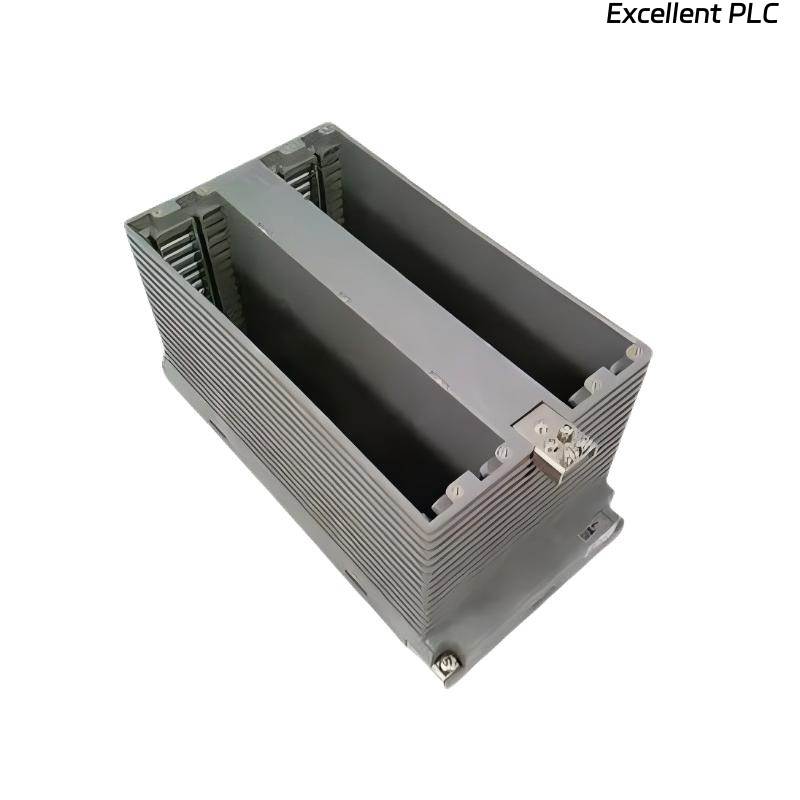

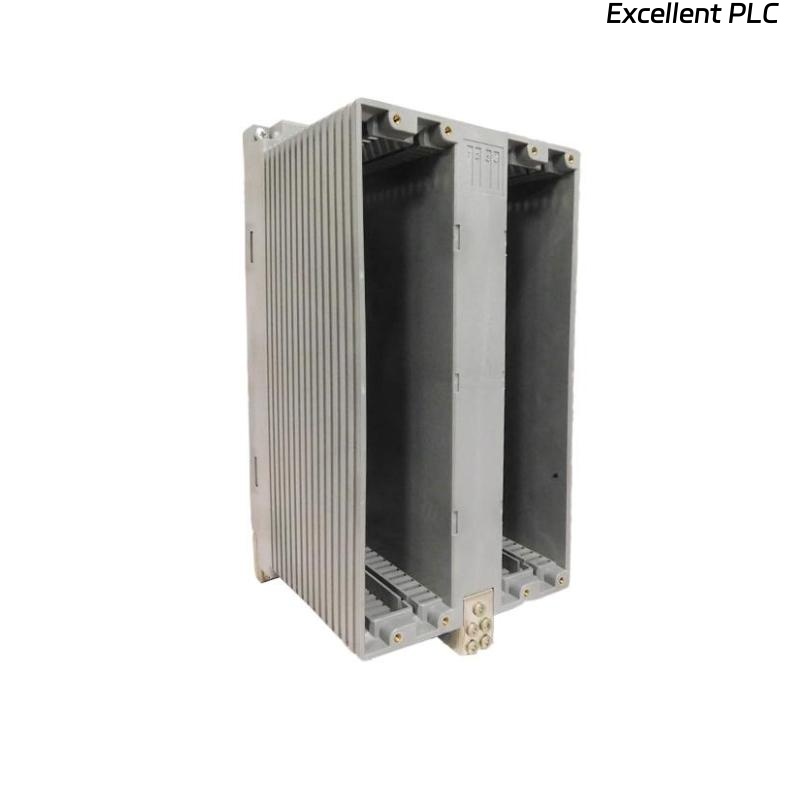

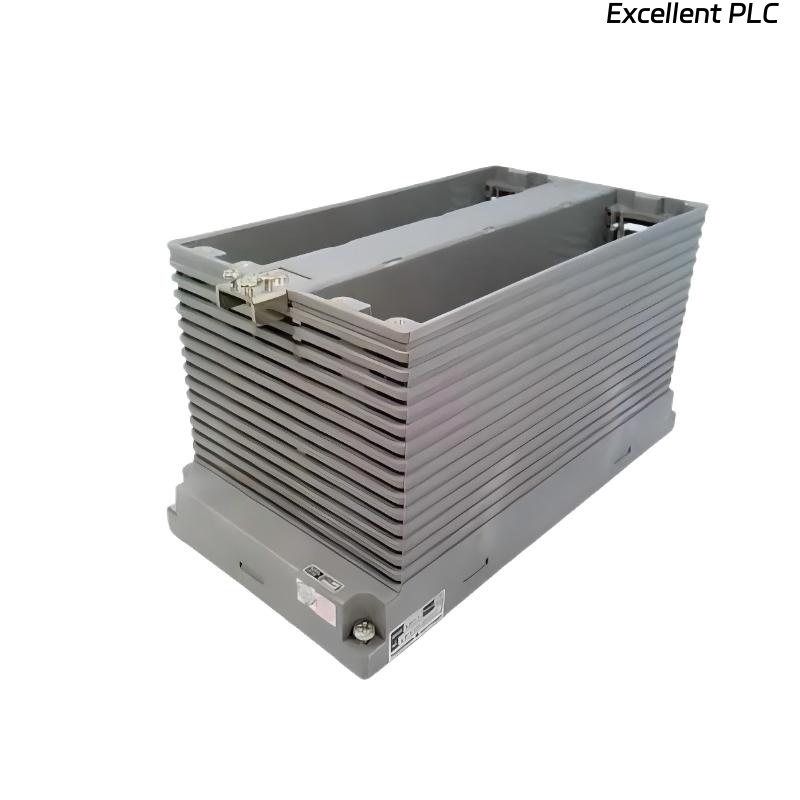

The Yokogawa AMN32T is a high-performance connector I/O module rack designed to support the efficient integration of multiple I/O modules in industrial automation systems. The AMN32T provides a robust and reliable platform for connecting various I/O devices, ensuring seamless data flow and effective signal processing in a range of industrial applications. This module rack is designed to accommodate multiple modules, offering flexibility and scalability for expanding your system as needed.
Built for reliability and ease of use, the AMN32T offers simple installation and maintenance, allowing for quick module replacements and minimizing downtime. Its design is ideal for environments where space is a constraint, providing an organized, efficient solution for industrial automation systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 125 x 130 x 248 mm |
| Weight | 2 kg |
| Supported Modules | Up to 32 I/O Modules |
| Power Supply | 24 VDC ±20% |
| Mounting Type | DIN Rail |
| Connector Type | Screw Terminal |
| Communication Protocol | Compatible with Yokogawa systems |
| Environmental Conditions | -20°C to +60°C |
| Cooling Type | Passive |
| Input Voltage Range | 0-10V, ±10V, 4-20mA |
Product Applications
The AMN32T Connector I/O Module Rack is widely used across industries that rely on complex automation and control systems. Some common applications include:
-
Industrial Automation: The AMN32T serves as a critical connection hub for industrial control systems, allowing seamless integration of I/O modules with automation controllers and monitoring systems.
-
Process Control Systems: It facilitates the connection and organization of sensors, actuators, and measurement instruments, ensuring smooth data transfer and control in manufacturing processes.
-
Data Acquisition Systems: Perfect for use in data logging and acquisition setups, where a large number of I/O modules need to be connected to efficiently collect and process data.
-
Building Management Systems: Used for managing and connecting various control and monitoring devices in HVAC, lighting, and security systems.
-
Environmental Monitoring: Useful in monitoring environmental parameters across large areas, with multiple sensors and modules connected to the AMN32T for effective data collection.
Product Advantages
-
Scalable Design: The AMN32T supports up to 32 I/O modules, offering flexibility to expand your system as your requirements grow.
-
Space-Efficient: With its compact dimensions of 125 x 130 x 248 mm and a weight of just 2 kg, it is designed to maximize space efficiency in industrial control panels.
-
Easy Installation: The module rack can be easily mounted on a DIN rail, making installation quick and straightforward. The screw terminal connectors ensure secure connections for reliable operation.
-
Reliable Power Supply: Powered by a stable 24 VDC source, the AMN32T ensures consistent operation, even in fluctuating power conditions.
-
Passive Cooling: Designed with passive cooling, the module rack ensures efficient heat dissipation, even in environments with higher operating temperatures.
-
Wide Compatibility: Fully compatible with Yokogawa’s range of I/O modules, ensuring seamless integration and efficient operation within Yokogawa automation systems.
FAQ
1. How many I/O modules can the AMN32T support?
The AMN32T can support up to 32 I/O modules, offering scalability for growing systems.
2. What is the power supply requirement for the AMN32T?
The AMN32T requires a 24 VDC power supply with a tolerance of ±20%.
3. What is the maximum number of modules that can be installed in the AMN32T rack?
The AMN32T can accommodate up to 32 I/O modules, providing ample space for connecting multiple devices.
4. How does the AMN32T mount?
The AMN32T is designed for DIN rail mounting, ensuring easy and secure installation within industrial control panels.
5. What environmental conditions can the AMN32T operate in?
The AMN32T is built to operate in a wide temperature range of -20°C to +60°C, making it suitable for various industrial environments.
6. Is the AMN32T compatible with all Yokogawa I/O modules?
Yes, the AMN32T is fully compatible with Yokogawa’s I/O modules, ensuring smooth integration into Yokogawa-based systems.
7. How does the AMN32T manage heat dissipation?
The module rack uses passive cooling to dissipate heat efficiently, ensuring reliable performance even in demanding environments.
8. What types of connectors are used in the AMN32T?
The AMN32T uses screw terminal connectors for secure and reliable connections between I/O modules.
9. What types of input signals can the AMN32T handle?
The AMN32T is compatible with a wide range of input signals, including 0-10V, ±10V, and 4-20mA, allowing for versatile system integration.
10. How much does the AMN32T module rack weigh?
The AMN32T weighs 2 kg, providing a lightweight and compact solution for managing I/O modules.
