Product Overview

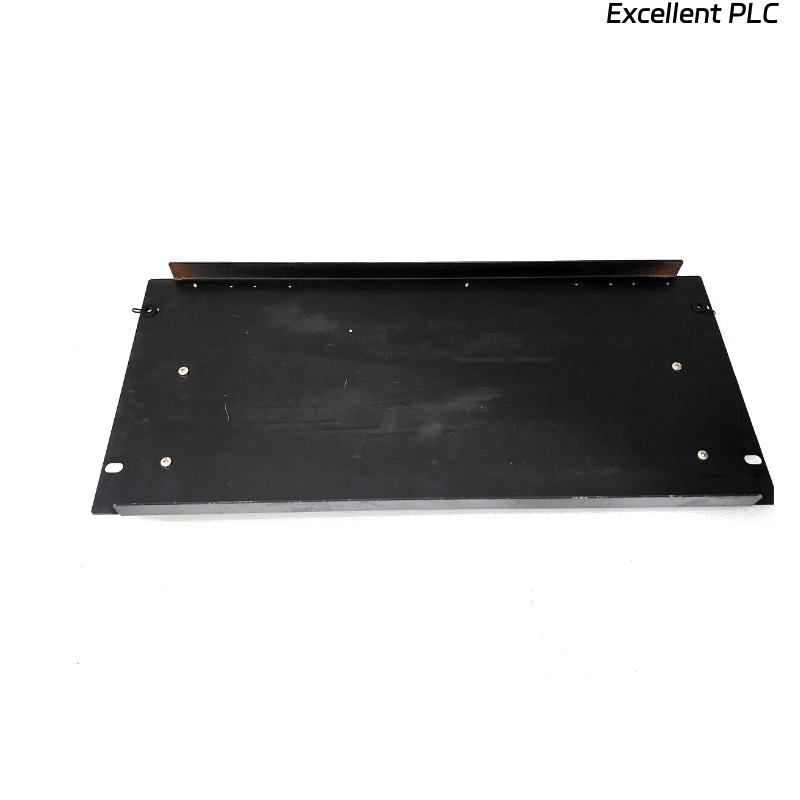

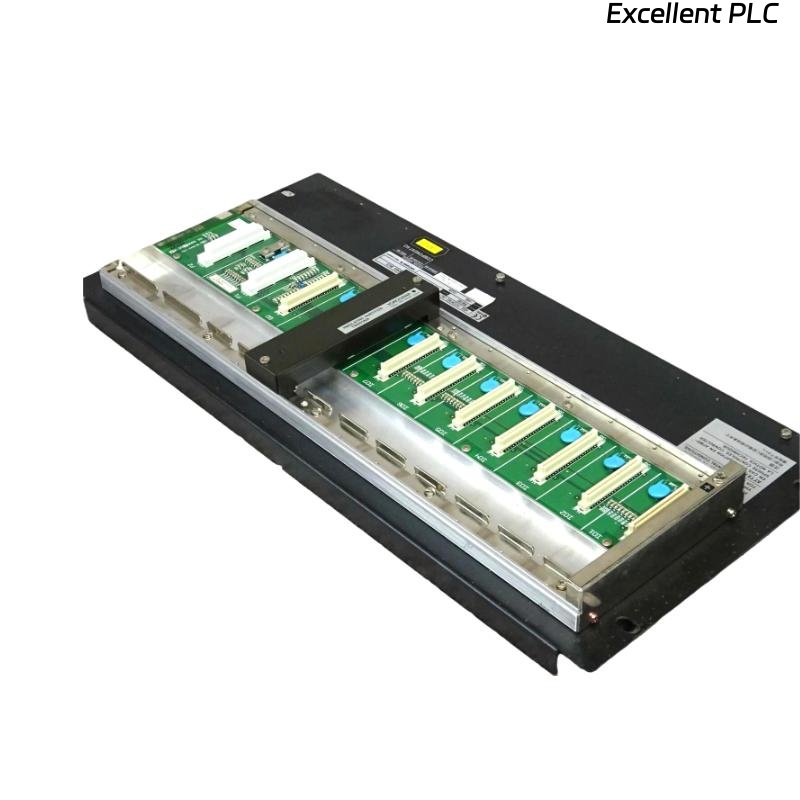

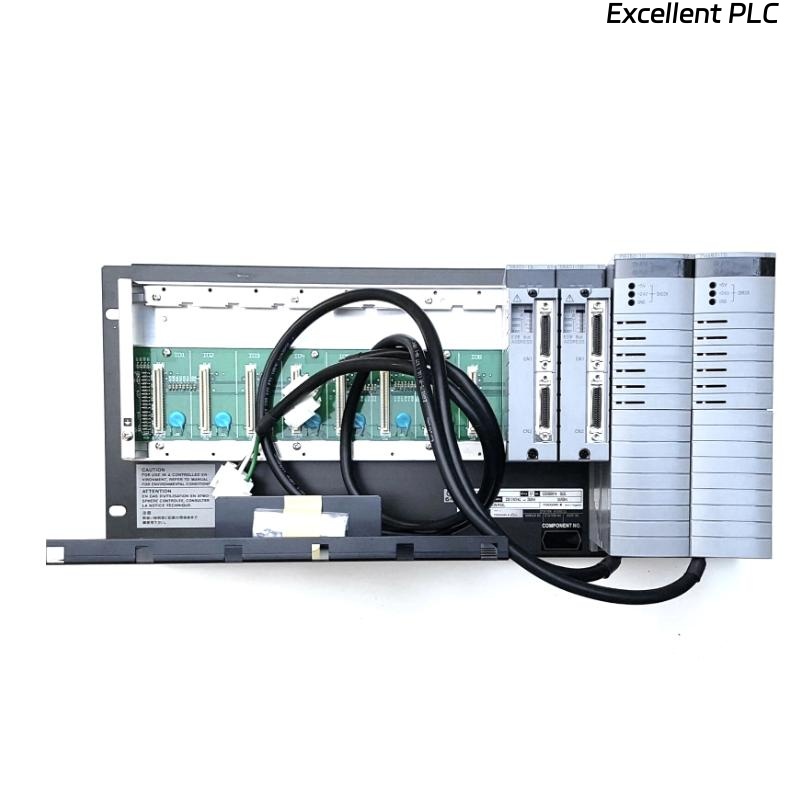

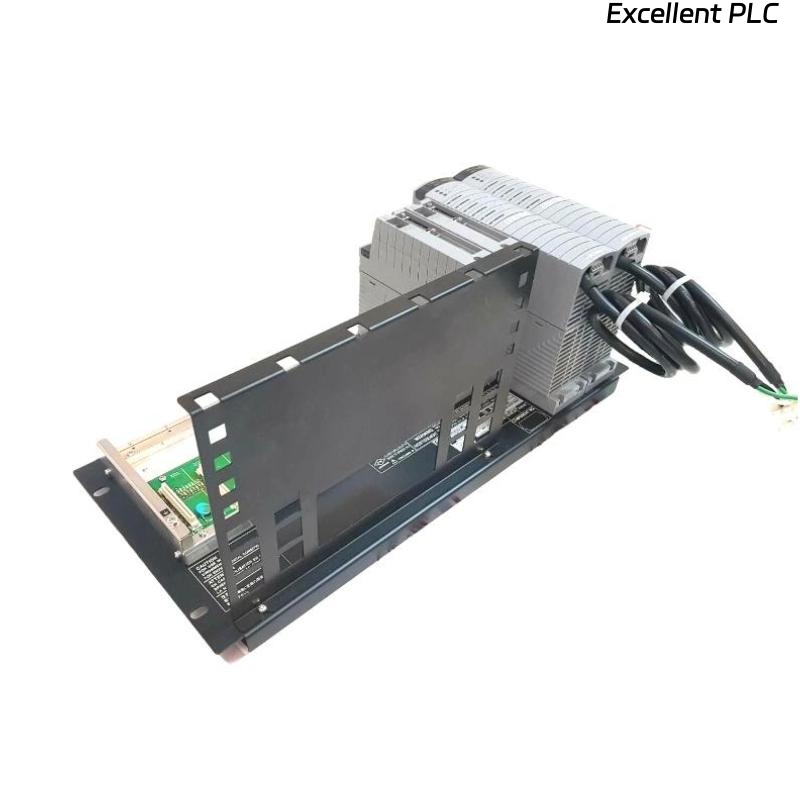

The Yokogawa ANB10D-125/CU2N ESB Bus Node Unit is a high-performance interface module designed for the CENTUM VP distributed control system. It acts as a communication bridge between field I/O signals and the Field Control Unit (FCU) via the ESB bus, providing stable power to connected I/O modules. This unit ensures reliable operation in critical industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ANB10D-125/CU2N |
| Type | ESB Bus Node Unit |
| Power Supply | Dual-redundant |
| Communication | ESB bus interface |
| Input/Output | Analog & Digital I/O support |
| Connector | /CU2N connector unit |
| Dimensions | 482.6 × 221.5 × 205 mm |
| Weight | 10 kg |
| System Compatibility | CENTUM VP distributed control system |
| Operating Temperature | 0–55 °C |
| Mounting | Rack-mountable |
Applications
-
Oil & Gas: Field operation monitoring and control.
-
Chemical Processing: Precise reaction and process management.
-
Power Generation: Power plant operation and distribution management.
-
Water Treatment: Water purification and distribution control.
Advantages
-
High Reliability: Dual-redundant power supply ensures continuous operation.
-
Flexible Connectivity: Supports both analog and digital I/O modules.
-
Seamless Integration: Compatible with CENTUM VP systems for stable system communication.
-
Durability: Designed for harsh industrial environments, offering long-term service.
FAQ
1. What type of communication does the ANB10D-125/CU2N use?
It uses the ESB bus interface for high-speed and reliable communication with the FCU.
2. Can it handle both analog and digital signals?
Yes, it supports both analog and digital I/O signals.
3. Is the power supply redundant?
Yes, it comes with a dual-redundant power supply for uninterrupted operation.
4. What is the unit’s operating temperature range?
The unit operates safely between 0 °C and 55 °C.
5. How is the unit mounted?
It is designed for standard rack mounting.
6. What are the dimensions and weight of the unit?
The unit measures 482.6 × 221.5 × 205 mm and weighs 10 kg.
7. Can it be used in chemical plants?
Yes, it is suitable for precise process control in chemical plants.
8. Is it compatible with other Yokogawa modules?
Yes, it integrates seamlessly with CENTUM VP I/O modules.
9. How does it improve system reliability?
By offering redundant power supply and robust ESB communication, it ensures continuous operation.
10. What industries are suitable for this unit?
Oil & gas, chemical processing, power generation, and water treatment facilities.
Related and Series Models
| Model | Type | Key Parameters |
|---|---|---|
| ANB10D-420/CU2N/NDEL | ESB Bus Node Unit | Dual-redundant, ESB, 482.6×221.5×205 mm, 10 kg |
| ANB10D-125/CU2N/RM | Rack-mounted Node Unit | ESB, Dual-redundant, Analog/Digital I/O |
| ANB10D-100/CU2N | ESB Node Unit | Standard ESB interface, 9 kg |
| ANB10D-200/CU2N | ESB Node Unit | Dual-redundant, Analog I/O, 10 kg |
| ANB10D-320/CU2N/NDEL | ESB Node Unit | ESB communication, 10 kg |
| ANB10D-400/CU2N | ESB Node Unit | High-speed ESB, Redundant power |
