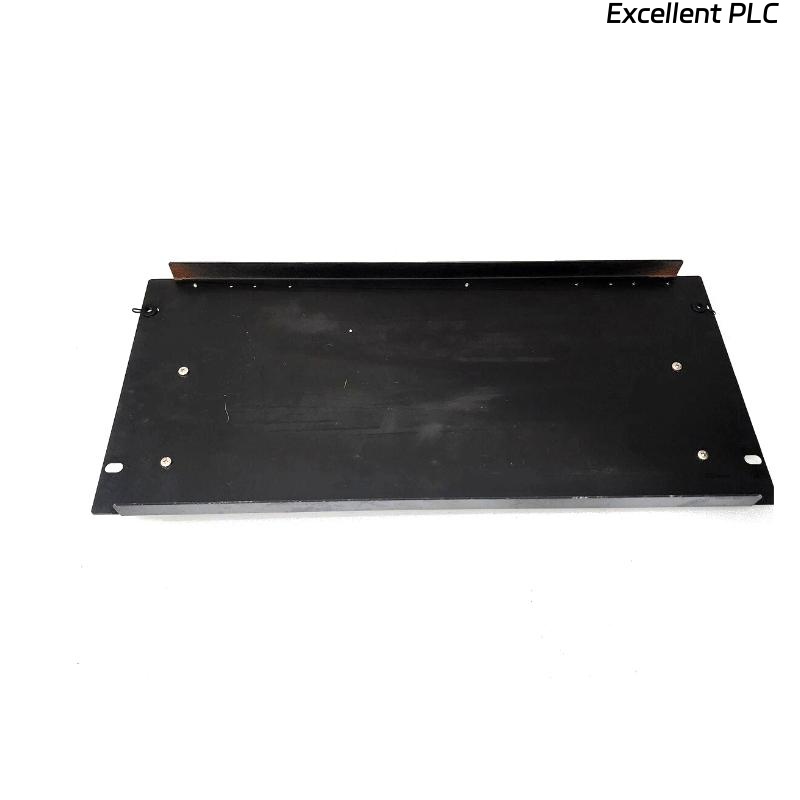

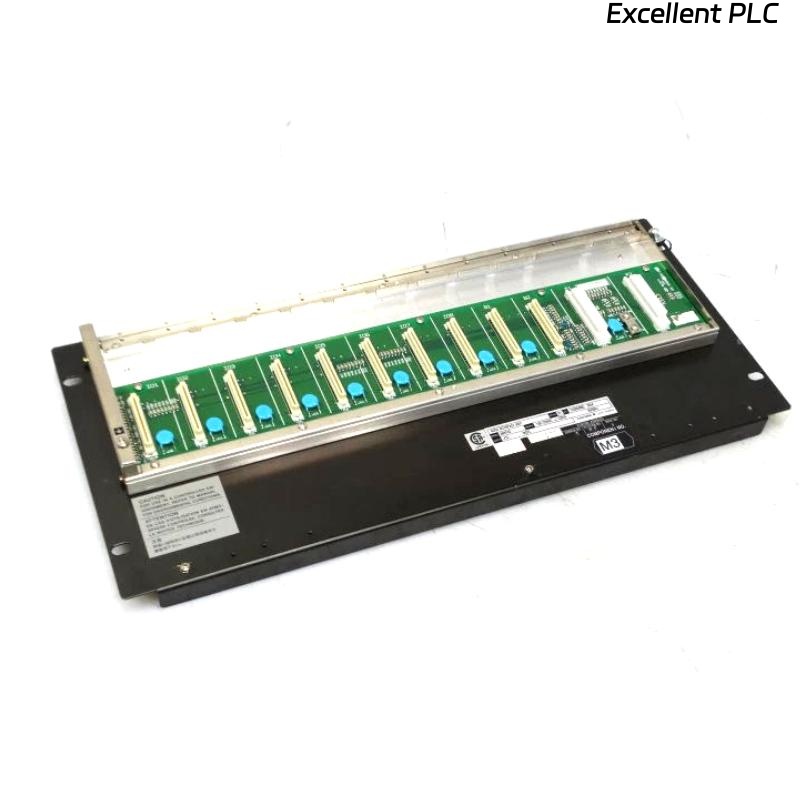

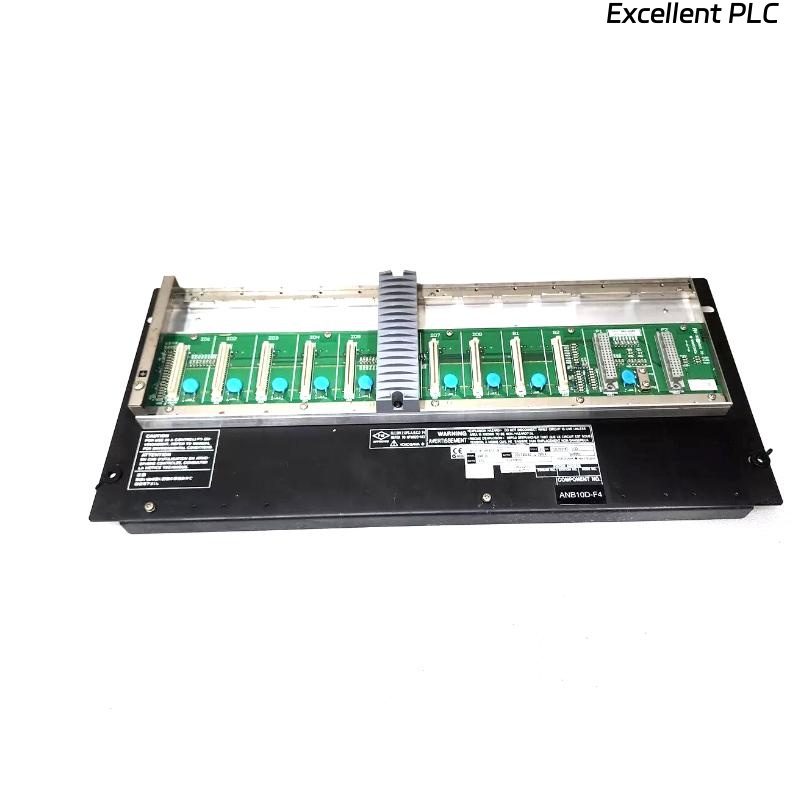

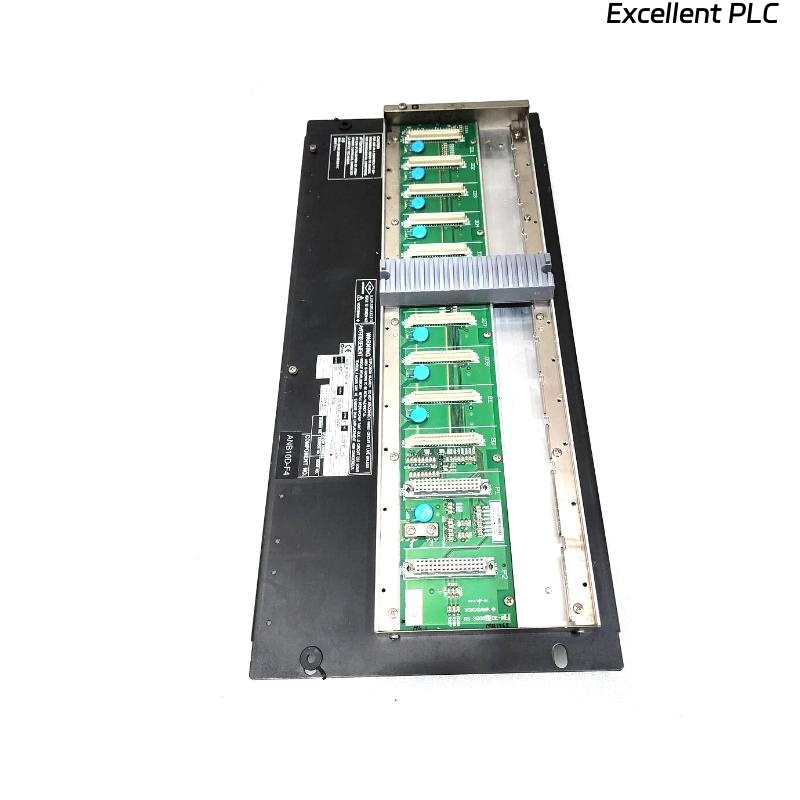

Yokogawa ANB10D-125/CU2T ESB Bus Node Unit

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The Yokogawa ANB10D-125/CU2T ESB Bus Node Unit is a high-reliability communication interface for CENTUM VP systems. It integrates field I/O signals with the Field Control Unit (FCU) via the ESB bus, supporting dual-redundant power and communication paths for maximum operational availability. Its robust design ensures stable operation in industrial environments.

---

Product Specifications

---

Applications

• Chemical Processing: Reliable process monitoring and control.

• Power Generation: Continuous operation and high system availability.

• Oil & Gas: Stable performance in harsh environments.

• Pharmaceuticals: Supports compliance with regulatory process standards.

• Industrial Automation: Integrates field I/O signals with control systems efficiently.

---

Advantages

• High Reliability: Dual-redundant power and ESB bus for uninterrupted operation.

• Flexible Integration: Compatible with multiple I/O modules in CENTUM VP systems.

• Industrial Robustness: Designed to withstand temperature variations, vibration, and humidity.

• Compact Design: Efficient rack-mounting solution with low footprint.

• Simplified Maintenance: Modular structure enables easy replacement and servicing.

---

FAQ

1. What is the primary function of the ANB10D-125/CU2T?
It serves as an interface between field I/O modules and the FCU, transmitting data via the ESB bus.

2. Can it operate in a redundant system?
Yes, it supports dual-redundant power and communication paths for high reliability.

3. What is the maximum ESB bus speed supported?
The unit supports ESB communication at up to 1.25 Mbps.

4. What are the environmental operating conditions?
It operates in -20 to +60°C with 10–90% non-condensing humidity.

5. What is the physical size and weight of the unit?
Dimensions are 482.6 × 221.5 × 205 mm, and weight is 10 kg.

6. Is the unit suitable for chemical or pharmaceutical plants?
Yes, it is designed for industries requiring high process reliability and regulatory compliance.

7. How is the unit mounted?
It is 19-inch rack mountable, suitable for control system cabinets.

8. Does it supply power to connected I/O modules?
Yes, it provides power to compatible I/O modules within the system.

9. Can it withstand vibration?
Yes, it is rated for up to 10 G, 5–50 Hz vibration resistance.

10. Is maintenance complex?
No, the modular design allows straightforward replacement and servicing of components.

---
