Product Introduction

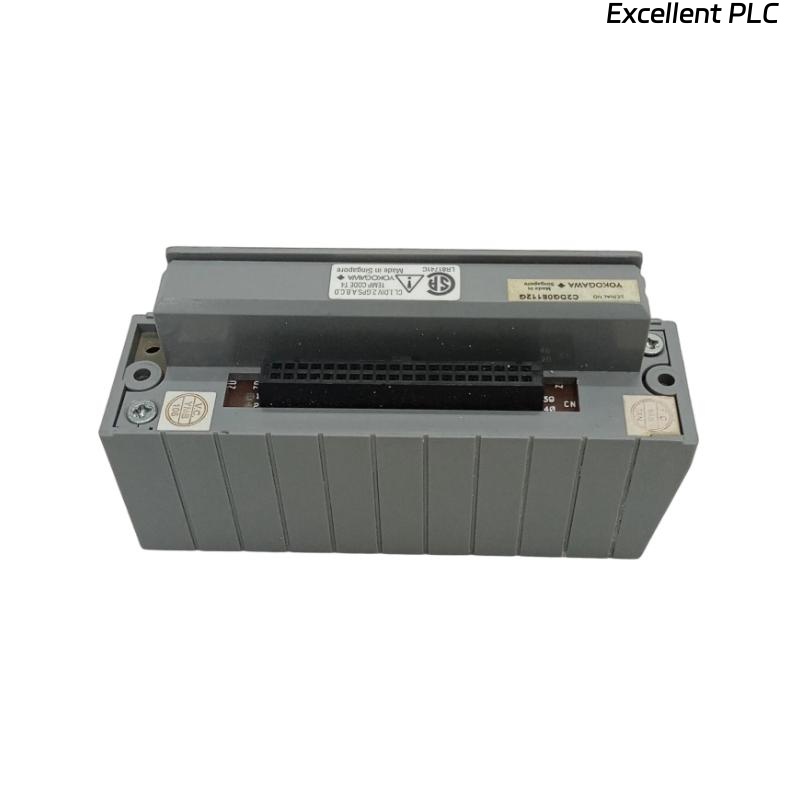

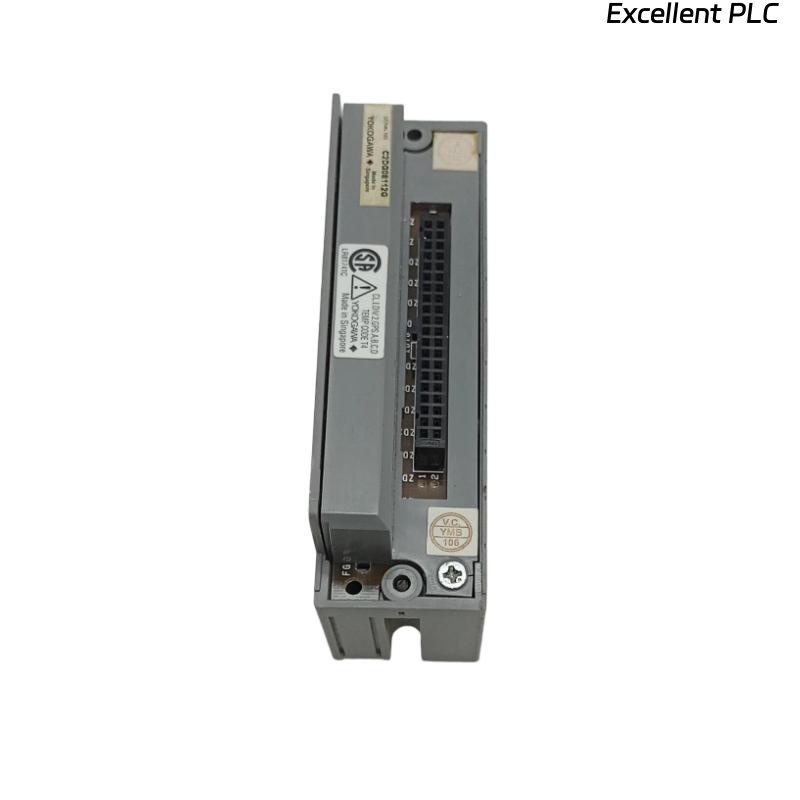

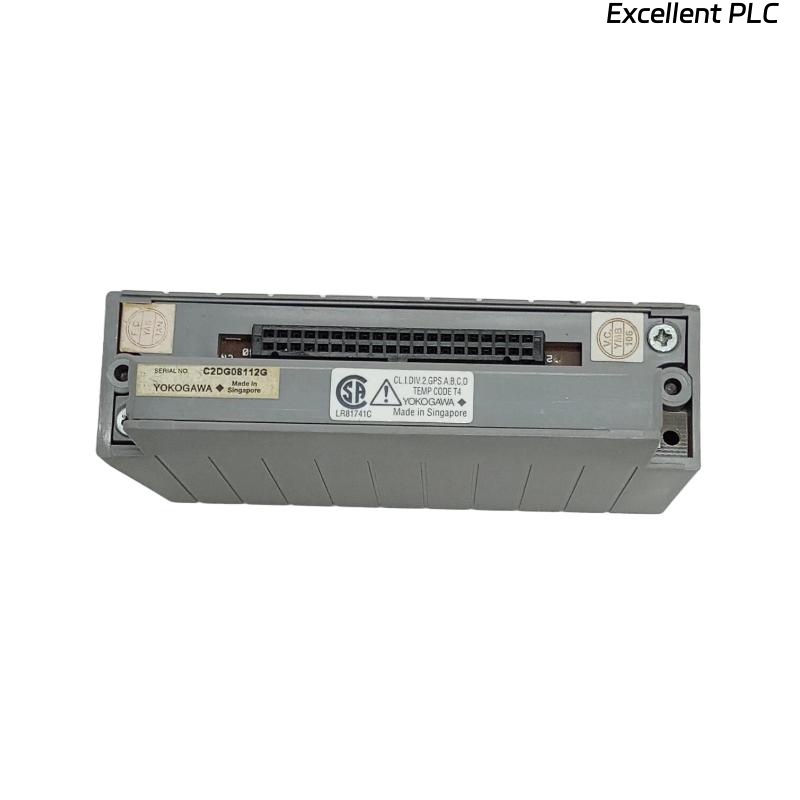

The Yokogawa ATA4S-00 is a robust pressure terminal block designed for use in demanding industrial environments where accuracy, reliability, and durability are essential. This model features a high-quality construction with easy-to-install connections for seamless integration into industrial control systems. The ATA4S-00 is specifically designed for applications that require precise pressure monitoring and control, offering a safe and effective solution for various sectors, including oil and gas, chemical processing, power plants, and manufacturing industries. Its compact size and dependable performance make it a go-to choice for engineers seeking a reliable pressure monitoring solution.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | ATA4S-00 |
| Size (Dimensions) | 114 x 32.6 x 60.5 mm |
| Weight | 0.2 kg |
| Input Voltage | 24 VDC |
| Maximum Pressure | 1000 psi |
| Operating Temperature | -40°C to 85°C |
| Contact Resistance | <1 ohm |
| Insulation Voltage | 500 VAC |
| Redundant Connections | Single |
| Enclosure Material | Polycarbonate |
Applications
The ATA4S-00 pressure terminal block is ideal for a wide range of industrial applications where precise pressure measurements and reliable data transmission are essential. Some of the primary applications include:
-
Oil and Gas: Used for monitoring pressure in pipelines, tanks, and drilling operations to ensure safe and optimal performance.
-
Chemical Processing: Helps control and measure pressure in reactors, pipelines, and chemical storage systems, contributing to the safe operation of chemical plants.
-
Power Plants: Used in turbines, boilers, and cooling systems to ensure accurate pressure readings for improved efficiency and safety.
-
Manufacturing & Automation: Integrated into industrial control systems for precise pressure monitoring, ensuring consistent performance in production lines.
-
HVAC Systems: Helps regulate and monitor pressure in heating, ventilation, and air conditioning systems for optimal performance and safety.
Advantages
-
Compact and Space-Saving Design: With dimensions of just 114 x 32.6 x 60.5 mm, the ATA4S-00 is designed to fit into spaces where larger terminal blocks cannot, making it an ideal choice for compact control systems.
-
Reliable Pressure Measurement: The ATA4S-00 provides highly accurate pressure measurements with low contact resistance (<1 ohm), ensuring consistent and precise data transmission.
-
Wide Temperature Range: The device can operate efficiently within a temperature range of -40°C to 85°C, making it suitable for use in both harsh and extreme environments.
-
Polycarbonate Enclosure: Its durable polycarbonate construction ensures the ATA4S-00 is resistant to chemicals, environmental stress, and mechanical damage, offering long-lasting performance.
-
Safety Features: With an insulation voltage rating of 500 VAC, the ATA4S-00 ensures safe and reliable operation in electrically sensitive environments.
-
Ease of Installation: The ATA4S-00 is designed for easy installation, reducing system downtime and simplifying maintenance procedures.
FAQ
-
What is the maximum pressure that the ATA4S-00 can handle?
The ATA4S-00 can handle a maximum pressure of up to 1000 psi, making it suitable for many high-pressure industrial applications. -
What is the required voltage for the ATA4S-00 to operate?
The ATA4S-00 operates on a 24 VDC input voltage, which is typical in industrial automation and control systems. -
Can the ATA4S-00 be used in hazardous environments?
Yes, the ATA4S-00 is suitable for industrial environments, including hazardous locations. However, it’s important to verify specific compliance with local regulations and standards. -
How does the ATA4S-00 ensure accuracy in pressure measurement?
The ATA4S-00 provides accurate pressure measurements with minimal contact resistance (<1 ohm), ensuring stable and precise data for process control. -
What materials are used in the construction of the ATA4S-00?
The ATA4S-00 features a polycarbonate enclosure, which is highly resistant to environmental and chemical stress, providing excellent durability and long service life. -
What is the insulation resistance rating of the ATA4S-00?
The ATA4S-00 is rated for an insulation voltage of 500 VAC, ensuring safe operation in systems that may experience electrical disturbances. -
Can the ATA4S-00 be used outdoors?
Yes, the ATA4S-00 can be used outdoors, but it should be protected from extreme weather conditions and direct exposure to moisture to ensure optimal performance. -
Is the ATA4S-00 compatible with other Yokogawa products?
Yes, the ATA4S-00 is designed to integrate seamlessly with other Yokogawa equipment, making it a flexible option for industrial control systems. -
How is the ATA4S-00 installed?
The ATA4S-00 is designed for easy installation with simple connection procedures, reducing the setup time and minimizing downtime in critical systems. -
How does the ATA4S-00 handle electrical interference?
The ATA4S-00 offers excellent resistance to electrical interference, thanks to its low contact resistance and high insulation rating, making it reliable even in environments with potential electrical noise.
Related Models of Yokogawa ATA Series
| Model Number | Description |
|---|---|
| ATA4S-01 | A variant with enhanced pressure tolerance and additional features for more demanding industrial applications. |
| ATA5S-00 | A more compact model offering high precision and safety features for smaller-scale applications. |
| ATA3S-00 | A cost-effective option for general-purpose pressure monitoring with slightly lower pressure tolerance. |
| ATA2S-01 | A small and lightweight pressure terminal block designed for applications where space is limited. |
| ATA4S-02 | An updated model with improved insulation and greater environmental protection for harsh conditions. |
| ATA7S-00 | A high-performance model with advanced features such as digital pressure control integration and enhanced safety mechanisms. |
