Product Overview

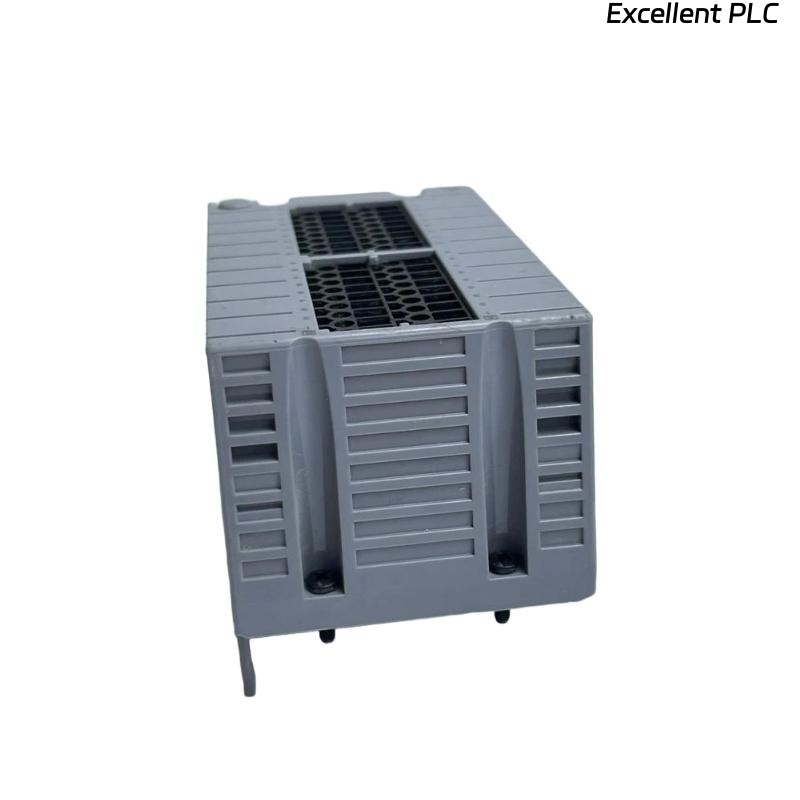

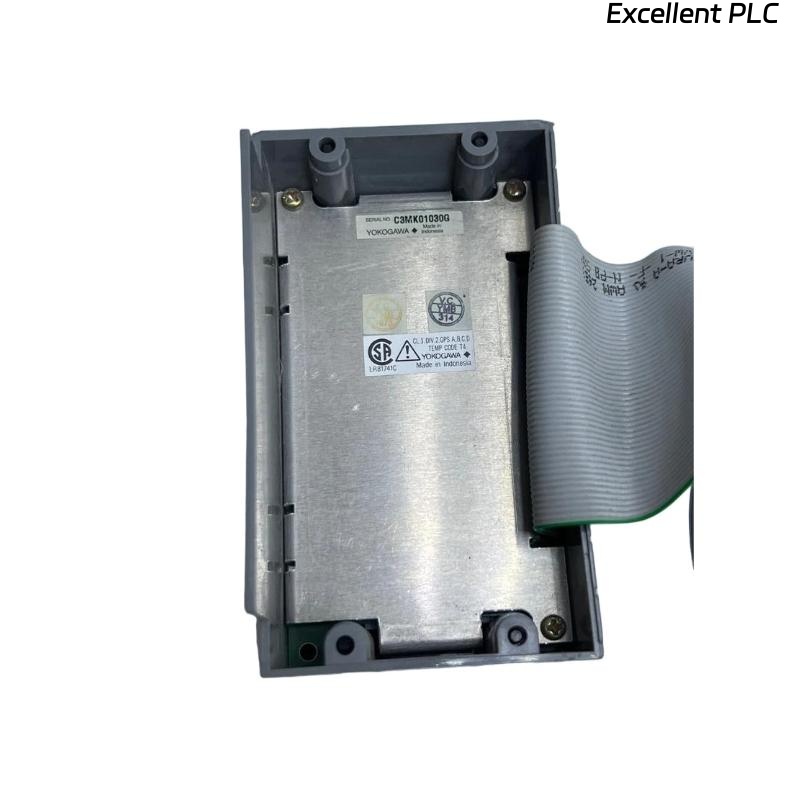

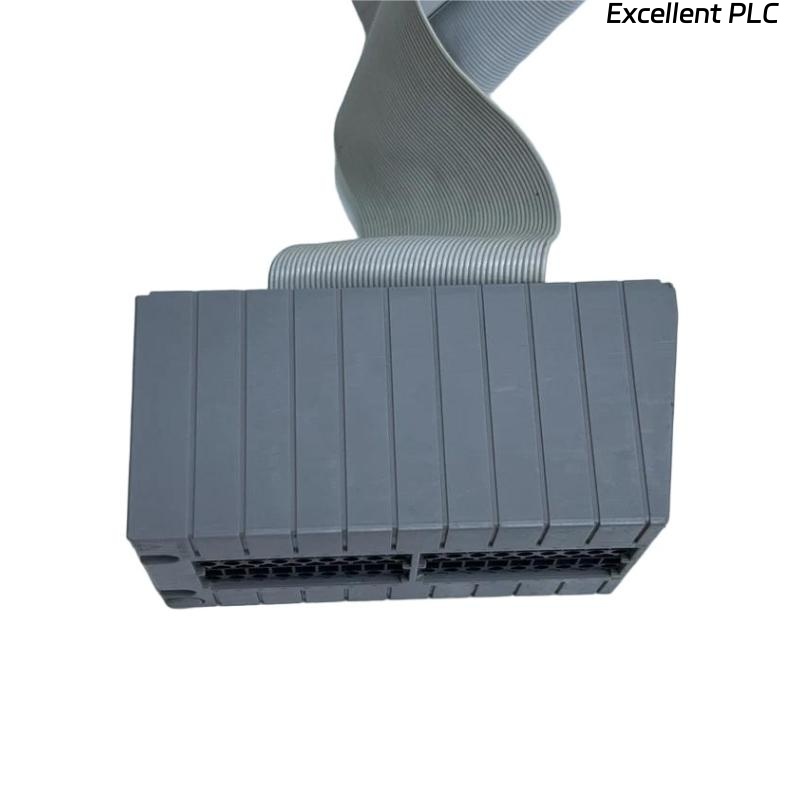

The Yokogawa ATB5D-00 is a dual-redundant digital input terminal block designed for use with ADV151 Digital Input Modules in Yokogawa CENTUM VP Distributed Control Systems (DCS). It provides secure, vibration-resistant connections for up to 32 digital input channels operating at 24 V DC. This module ensures reliable interfacing between field devices and the control system for efficient and safe process operations.
Key Features
-
Dual-Redundant Design: High availability and fault tolerance for critical applications.
-
Pressure Clamp Terminals: Secure and vibration-resistant connections for field wiring.
-
32 Digital Input Channels: Supports 24 V DC signals from sensors and switches.
-
Compact Form Factor: Efficient panel space utilization.
-
Industrial Reliability: Designed for continuous operation in industrial environments.
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | ATB5D-00 |
| Type | Dual-Redundant Digital Input Terminal Block |
| Number of Channels | 32 |
| Input Voltage | 24 V DC |
| Mounting Type | Panel Mount |
| Connection Type | Pressure Clamp Terminals |
| Weight | 0.4 kg |
| Dimensions | 127 × 100 × 50 mm |
| Compatibility | ADV151 Digital Input Module |
| Application | CENTUM VP Distributed Control Systems |
Industry Applications
-
Oil & Gas – Connecting digital signals from field instruments in upstream and downstream operations.
-
Power Generation – Integration of turbines, generators, and auxiliary equipment signals.
-
Chemical & Petrochemical – Interface for process sensors and actuators.
-
Water & Wastewater Treatment – Connecting digital inputs from pumps, valves, and flow meters.
-
Manufacturing – Reliable interfacing for automation and process control systems.
Frequently Asked Questions (FAQ)
Q1: What is the function of the ATB5D-00?
It provides a secure connection between field devices and the ADV151 Digital Input Module in CENTUM VP systems.
Q2: How many channels does it support?
It supports up to 32 digital input channels.
Q3: What input voltage is supported?
24 V DC.
Q4: Is the ATB5D-00 compatible with other Yokogawa modules?
It is specifically designed for use with the ADV151 Digital Input Module.
Q5: What type of connections does it use?
Pressure clamp terminals for reliable and vibration-resistant wiring.
Q6: How is it mounted?
It is panel-mounted within control cabinets.
Q7: What is the weight of the module?
Approximately 0.4 kg.
Q8: Can it be used in industrial environments?
Yes, it is suitable for standard industrial applications.
Q9: Does it include surge protection?
The ATB5D-00 standard model does not include surge protection; a version with surge protection is available (ATB5D-10).
Q10: Where can I purchase the ATB5D-00?
Through authorized Yokogawa distributors and online marketplaces.
Related Models
| Model Number | Description |
|---|---|
| ADV151 | 32-channel digital input module (24 V DC, isolated) |
| ATB5S-00 | Single pressure clamp terminal block for digital input |
| ATB5S-10 | Single pressure clamp terminal block with surge protection |
| ATB5D-10 | Dual pressure clamp terminal block with surge protection |
| ATD5A-00 | KS cable interface adapter for digital input modules |
| ATA4D-00 | 16-channel digital input terminal block |
