Product Introduction

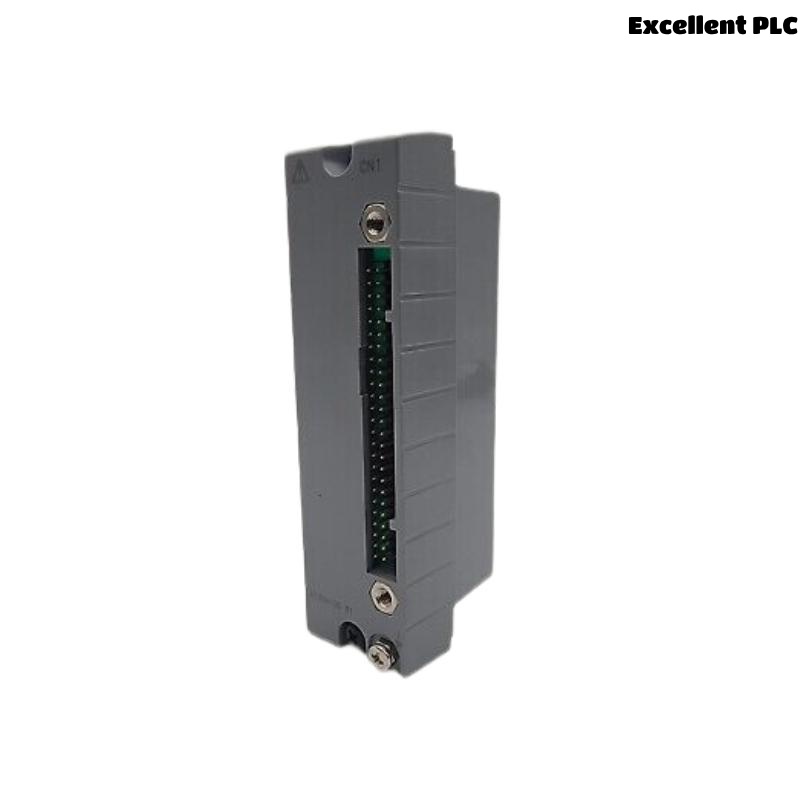

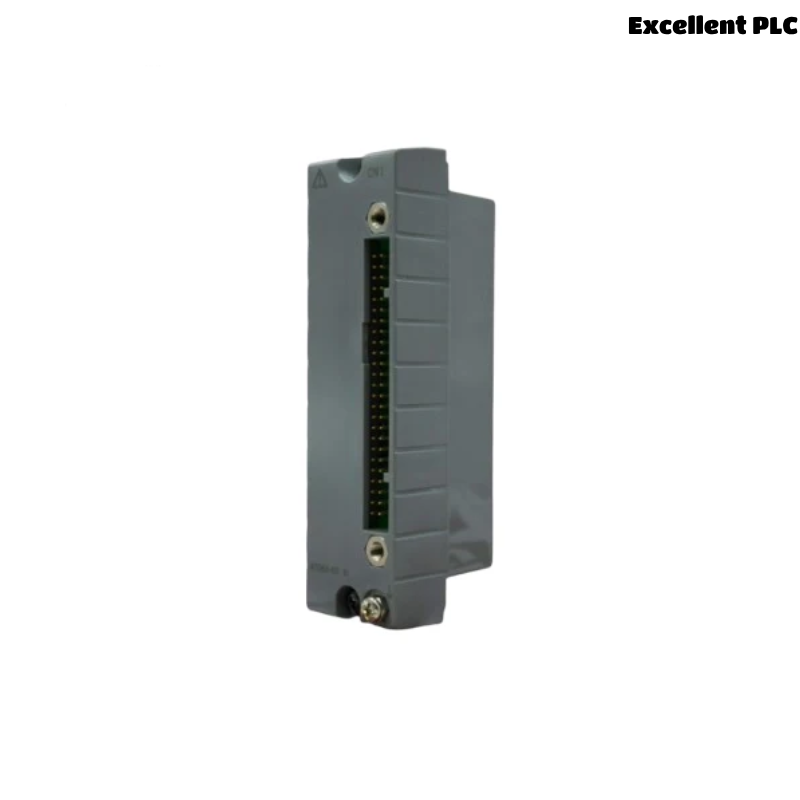

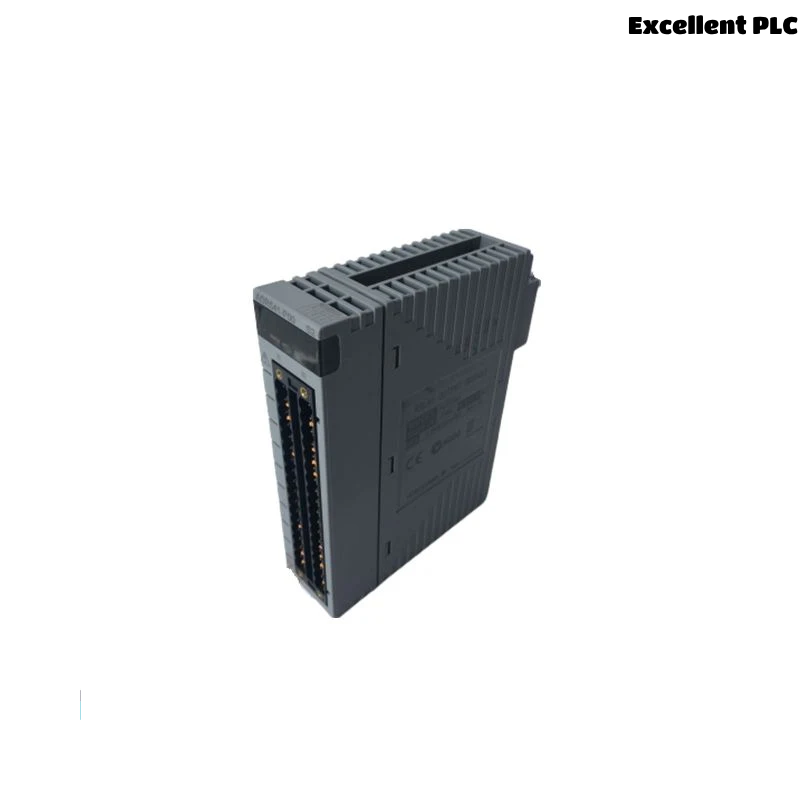

The Yokogawa ATD5A-00 is a state-of-the-art temperature detection device designed for accurate and reliable temperature measurement in industrial applications. This high-performance instrument is engineered for extreme environments, providing precise data to ensure optimized processes and enhanced safety. It integrates seamlessly with Yokogawa’s control systems, offering real-time data acquisition and automated control functionalities.
Its robust design ensures longevity and high accuracy, making it an essential part of industrial monitoring systems. The ATD5A-00 is commonly used in applications where temperature stability is critical, such as in manufacturing, chemical processes, and power generation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | ATD5A-00 |
| Temperature Range | -200°C to 1200°C |
| Accuracy | ±0.2% of span |
| Input Type | Thermocouple (Type J, K, T) |
| Output Type | Analog (4-20 mA) |
| Response Time | 0.5 seconds |
| Dimensions | 114 x 38.8 x 32.6 mm |
| Weight | 0.1 kg |
| Power Supply | 24 VDC |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | Panel Mount |
| Material | ABS Plastic |
| Ingress Protection | IP65 (Dust tight, water-resistant) |
| Certification | CE, UL, RoHS compliant |
Product Applications
The Yokogawa ATD5A-00 is highly versatile and suitable for a wide range of industrial applications, including:
-
Chemical and Pharmaceutical Manufacturing: Used to monitor the temperature of chemical reactions and processes, ensuring optimal conditions and product quality.
-
Power Plants: Ideal for use in power generation and distribution, particularly in systems where maintaining a stable temperature is vital to the efficiency of turbines, boilers, and heat exchangers.
-
Food and Beverage Industry: Ensures precise temperature control in processing lines to maintain food safety standards and product consistency.
-
Automotive Manufacturing: Employed to monitor heat processes such as welding or engine testing, where precise temperature control is critical.
-
HVAC Systems: Used to measure temperature in heating, ventilation, and air conditioning systems, promoting energy efficiency and reliable operation.
-
Metallurgical Industry: Tracks temperature in metal processing environments, where accurate readings can prevent damage to equipment and improve material quality.
Advantages of the Yokogawa ATD5A-00
-
High Accuracy: The ATD5A-00 offers an exceptional accuracy of ±0.2% of span, ensuring precise temperature readings that are crucial for industrial processes.
-
Wide Temperature Range: With a temperature range of -200°C to 1200°C, it can be used in a variety of environments, from extreme cold to high heat conditions.
-
Rapid Response Time: The device offers a quick response time of just 0.5 seconds, allowing for real-time temperature monitoring and control.
-
Robust Design: The ABS plastic construction ensures durability, and its IP65 protection rating safeguards against dust and water, enabling it to perform in harsh conditions.
-
Easy Integration: Compatible with various Yokogawa control systems, making it easy to integrate into existing infrastructure.
-
Low Power Consumption: Powered by a 24 VDC supply, it is energy-efficient, reducing operational costs over time.
-
User-Friendly Interface: The device offers straightforward operation and maintenance, improving user experience and reducing downtime.
-
Long-Lasting: The quality of construction and high-grade materials ensure long service life, even in demanding environments.
-
Multiple Output Options: The ATD5A-00 supports an analog output of 4-20mA, providing flexibility for integration with other systems.
-
Certification Compliance: CE, UL, and RoHS certifications guarantee that the product meets international safety and environmental standards.
FAQs
-
What is the temperature range of the Yokogawa ATD5A-00?
-
The temperature range is from -200°C to 1200°C, making it suitable for a variety of industrial applications.
-
-
What is the accuracy of the ATD5A-00?
-
The accuracy is ±0.2% of the span, ensuring precise temperature measurements.
-
-
What types of thermocouples are compatible with this device?
-
The ATD5A-00 is compatible with thermocouples of types J, K, and T.
-
-
What is the response time of the ATD5A-00?
-
The response time is 0.5 seconds, providing real-time temperature data.
-
-
Can the ATD5A-00 be used in hazardous environments?
-
Yes, with its IP65 rating, it is protected against dust and water, making it suitable for challenging industrial environments.
-
-
How do I mount the ATD5A-00?
-
The device can be panel mounted for easy integration into existing systems.
-
-
What is the power supply requirement?
-
The ATD5A-00 operates on a 24 VDC power supply.
-
-
Is the ATD5A-00 easy to integrate with Yokogawa control systems?
-
Yes, the ATD5A-00 is designed for seamless integration with Yokogawa’s control systems.
-
-
What materials is the ATD5A-00 made of?
-
The housing is made from ABS plastic, ensuring durability and resistance to harsh conditions.
-
-
Does the ATD5A-00 come with certifications?
-
Yes, the device complies with CE, UL, and RoHS standards.
-
