Product Introduction

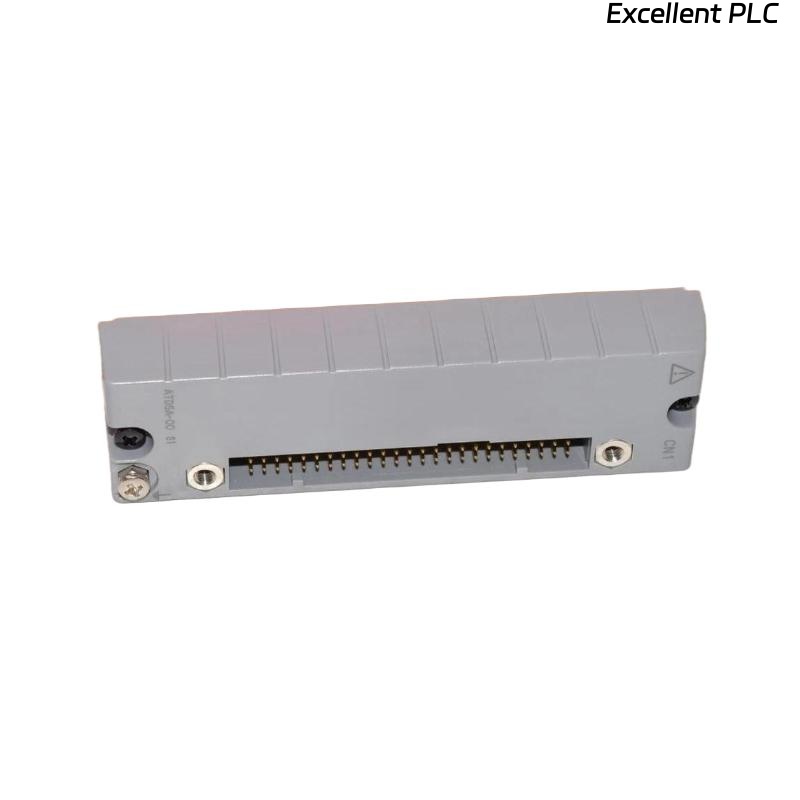

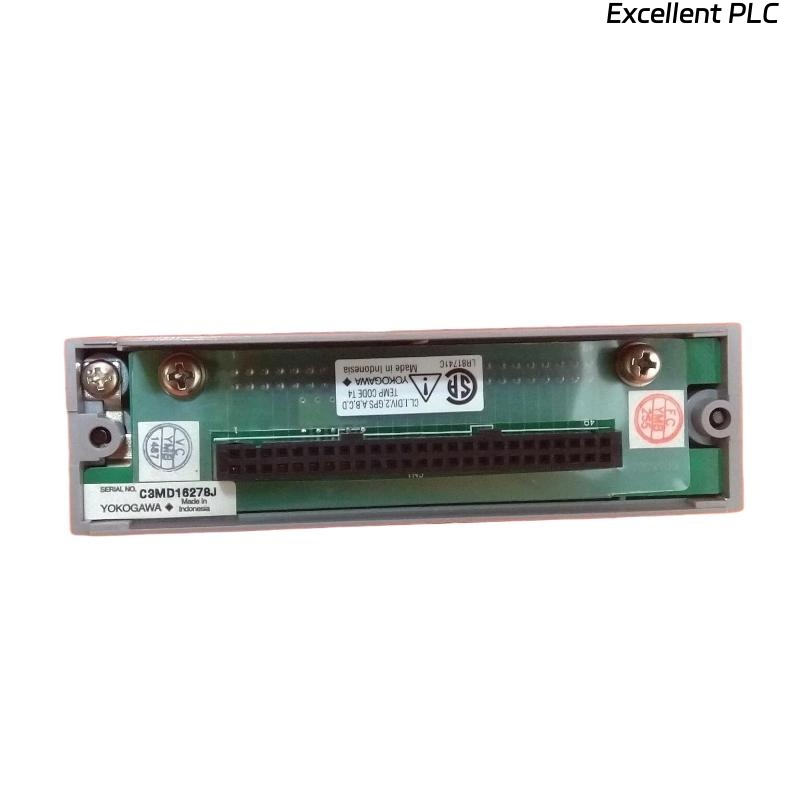

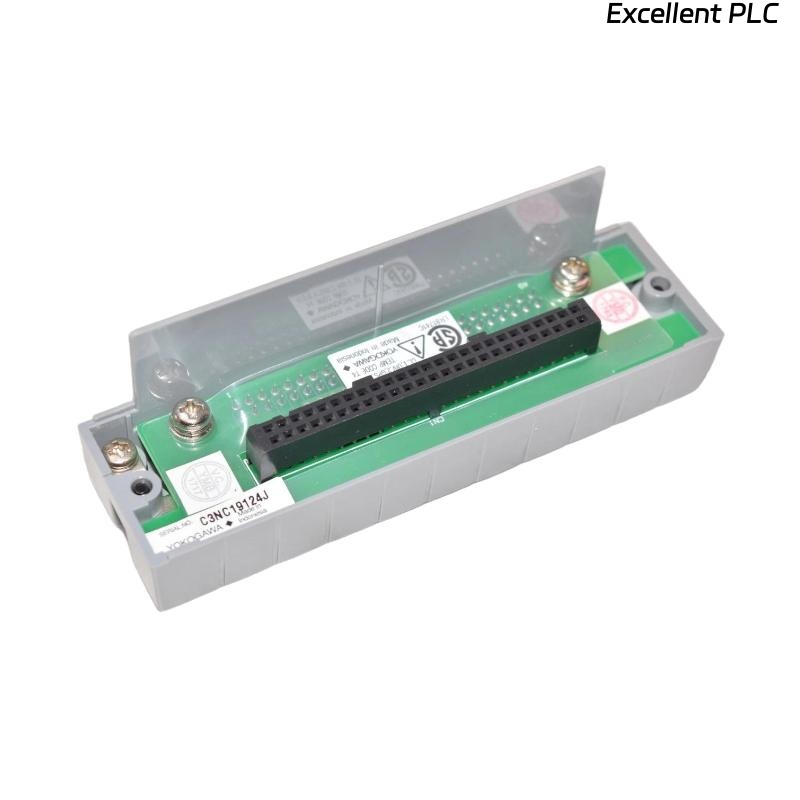

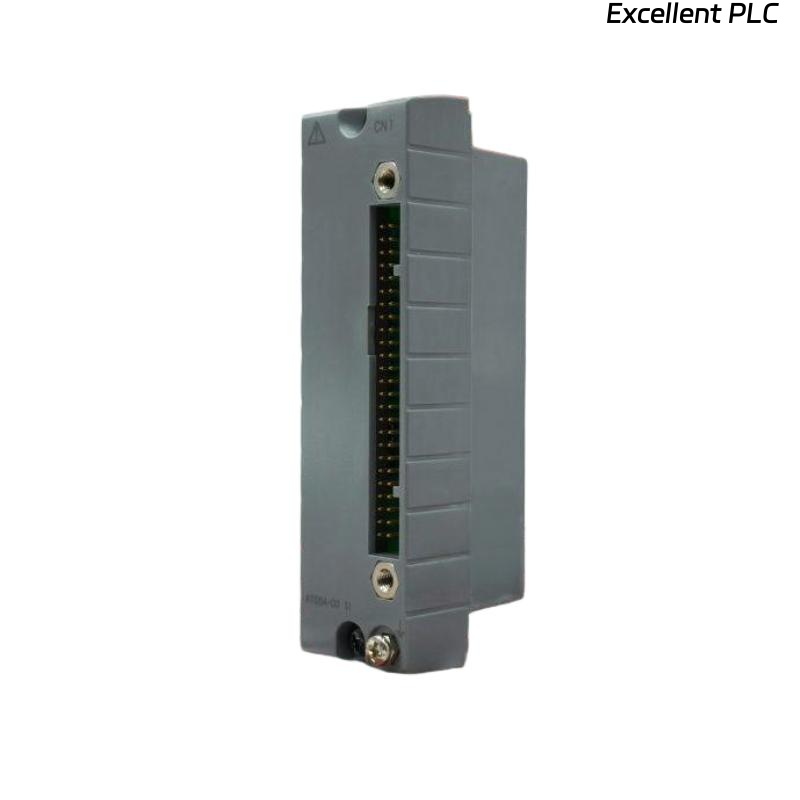

The Yokogawa ATD5A-00 S1 pressure terminal block is designed to provide reliable and accurate pressure measurement and monitoring in a wide range of industrial applications. It is engineered to meet the growing demands of industries requiring precision, high performance, and long-lasting reliability. The ATD5A-00 S1 features a compact design, easy integration into control systems, and minimal space requirements, making it ideal for applications where space is limited.
This terminal block is built to handle high pressure and is perfect for environments that demand high levels of accuracy and durability. It provides an essential solution for industries such as oil and gas, chemical processing, power generation, and manufacturing, where continuous and accurate pressure measurement is critical for operational safety and system efficiency. The ATD5A-00 S1 comes with a polycarbonate enclosure, ensuring protection against mechanical stress and environmental factors.
With a focus on user-friendly integration, this terminal block offers straightforward wiring, reducing installation time and ensuring seamless operation once installed. Its advanced electrical and mechanical design makes it a trusted choice for applications requiring continuous pressure monitoring.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | ATD5A-00 S1 |
| Size (Dimensions) | 114 x 32.6 x 38.8 mm |
| Weight | 0.1 kg |
| Input Voltage | 24 VDC |
| Maximum Pressure | 1000 psi |
| Operating Temperature | -40°C to 85°C |
| Contact Resistance | <1 ohm |
| Insulation Voltage | 500 VAC |
| Redundant Connections | Single |
| Enclosure Material | Polycarbonate |
Applications
The ATD5A-00 S1 is designed for a wide array of industrial and process control applications. Its robust features make it suitable for:
-
Oil & Gas: The ATD5A-00 S1 is widely used in pressure monitoring applications in pipelines, storage tanks, and production facilities, ensuring system safety and efficient operation in high-pressure environments.
-
Chemical Processing: In chemical manufacturing plants, it provides essential pressure monitoring in reactors, storage vessels, and pipelines, ensuring safe and accurate monitoring for sensitive chemical processes.
-
Power Generation: The ATD5A-00 S1 is critical in the power generation industry, used in turbines, boilers, and cooling systems to maintain and regulate pressure for optimized energy production.
-
Manufacturing & Automation: Integrated into automated manufacturing systems, the ATD5A-00 S1 ensures consistent pressure regulation in production lines, contributing to operational efficiency and reducing the risk of system failure.
-
HVAC Systems: Used for precise air pressure regulation in HVAC systems, the ATD5A-00 S1 plays a crucial role in maintaining proper airflow and energy-efficient heating, ventilation, and air conditioning.
Advantages
-
Compact and Space-Efficient: The ATD5A-00 S1 features a compact design with dimensions of 114 x 32.6 x 38.8 mm and a weight of only 0.1 kg, making it perfect for systems with space limitations.
-
High Accuracy: With a contact resistance of <1 ohm, the ATD5A-00 S1 ensures accurate and stable pressure readings, essential for critical industrial processes.
-
Durable Construction: Built with a polycarbonate enclosure, the ATD5A-00 S1 is highly resistant to environmental stressors such as chemicals, extreme temperatures, and physical damage, ensuring long-lasting performance.
-
Wide Temperature Range: It operates effectively in a wide range of temperatures, from -40°C to 85°C, making it suitable for both extremely cold and hot industrial environments.
-
Electrical Safety: The terminal block has an insulation voltage rating of 500 VAC, ensuring that it operates safely in electrical environments, preventing faults and protecting equipment.
-
Easy Installation: The ATD5A-00 S1 is designed for straightforward installation and integration into existing systems, significantly reducing installation time and improving system uptime.
FAQ
-
What is the maximum pressure the ATD5A-00 S1 can handle?
The ATD5A-00 S1 can handle a maximum pressure of 1000 psi, making it suitable for high-pressure applications in industries like oil and gas and chemical processing. -
What input voltage does the ATD5A-00 S1 require to operate?
The ATD5A-00 S1 operates on a 24 VDC input voltage, which is a standard voltage for industrial control systems. -
How does the ATD5A-00 S1 ensure accurate pressure measurement?
The ATD5A-00 S1 ensures accurate pressure readings by providing minimal contact resistance (<1 ohm), ensuring stable and consistent pressure data transmission. -
What materials are used in the construction of the ATD5A-00 S1?
The ATD5A-00 S1 is housed in a durable polycarbonate enclosure, which provides excellent resistance to chemicals, mechanical stress, and extreme environmental conditions. -
Can the ATD5A-00 S1 be used in hazardous environments?
Yes, the ATD5A-00 S1 is designed to be used in hazardous environments, but it is important to verify compliance with local safety regulations for specific applications. -
What is the insulation voltage rating of the ATD5A-00 S1?
The ATD5A-00 S1 has an insulation voltage rating of 500 VAC, ensuring safe operation in electrically sensitive environments. -
What is the operating temperature range for the ATD5A-00 S1?
The ATD5A-00 S1 can operate within a temperature range of -40°C to 85°C, making it suitable for both cold and hot environments. -
How is the ATD5A-00 S1 installed into a system?
The ATD5A-00 S1 is designed for easy installation with clear and simple wiring connections, allowing for quick integration into existing systems. -
What safety features does the ATD5A-00 S1 include?
The ATD5A-00 S1 features a polycarbonate enclosure for durability and electrical safety with a high insulation resistance, ensuring safe operation in sensitive environments. -
What type of connections does the ATD5A-00 S1 support?
The ATD5A-00 S1 supports single connections, designed for applications where dual redundancy is not required.
Related Models of Yokogawa ATA Series
| Model Number | Description |
|---|---|
| ATA4S-00 | A versatile pressure terminal block for general-purpose applications. |
| ATA4S-01 | A higher-pressure variant of the ATA4S-00, providing enhanced durability. |
| ATA3S-00 | A cost-effective solution for pressure monitoring in standard applications. |
| ATA2S-01 | A compact version designed for systems with limited space for terminal blocks. |
| ATA5S-00 | A more compact model with increased environmental protection for extreme conditions. |
| ATA7S-00 | A premium version with advanced digital control features for automation systems. |
