Product Introduction

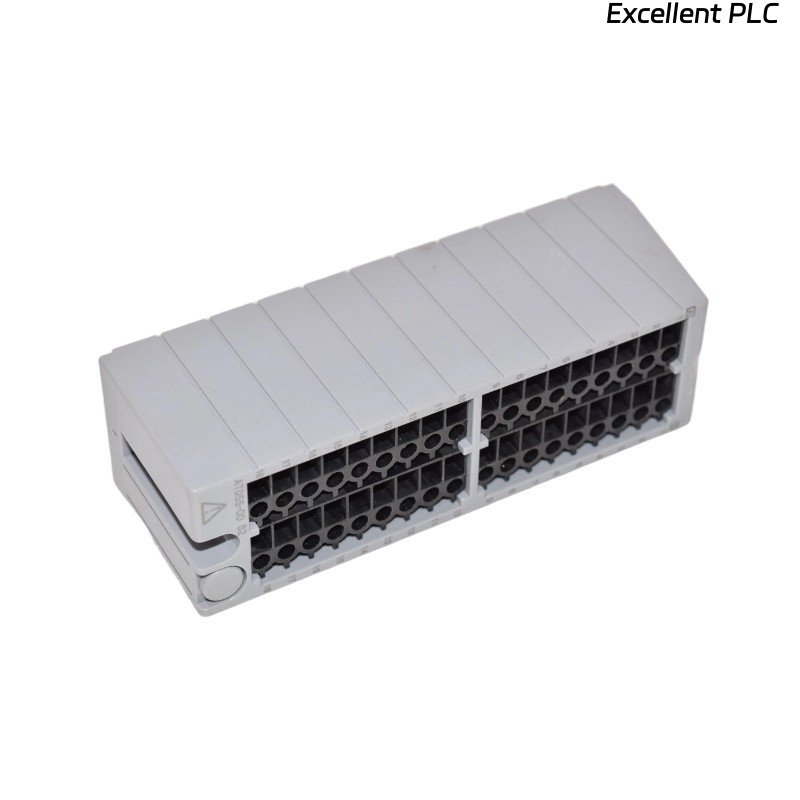

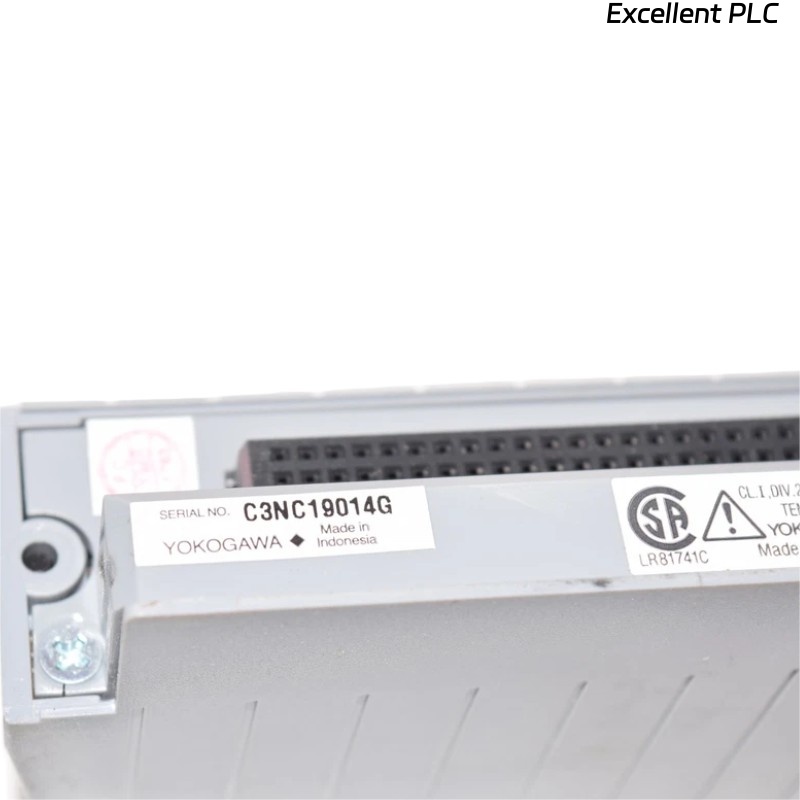

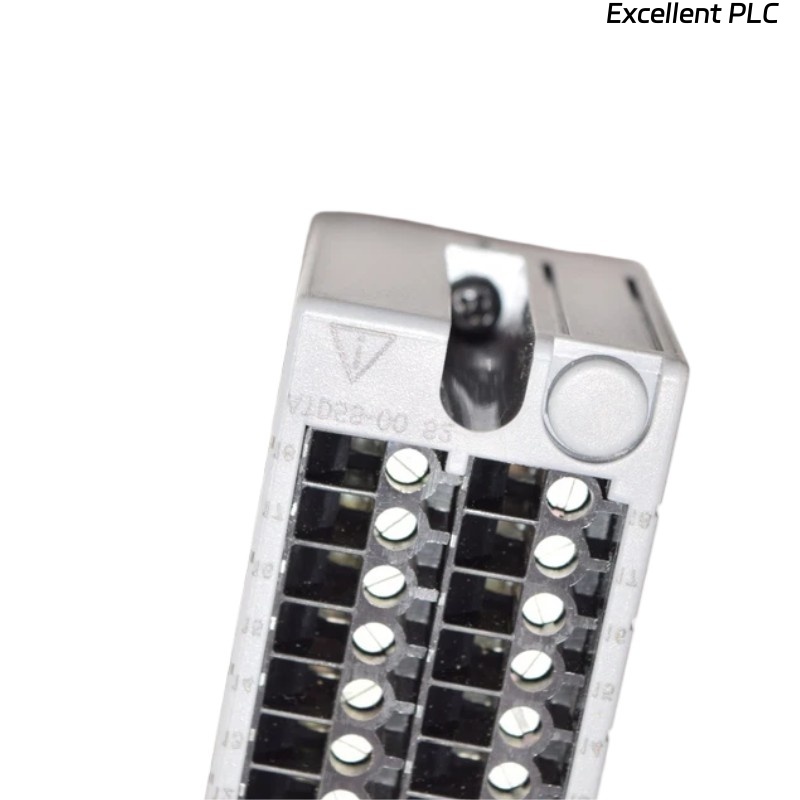

The Yokogawa ATD5S-00 Pressure Clamp Terminal Block is a high-reliability connection module designed for industrial control and automation systems. This terminal block enables secure and vibration-resistant wiring through a pressure clamp mechanism, eliminating the need for screw fastening. By applying a uniform clamping force, it ensures consistent electrical connectivity with reduced maintenance requirements. The ATD5S-00 is commonly used in distributed control systems (DCS), programmable logic controllers (PLCs), and other Yokogawa I/O modules, where stable wiring integrity is essential for safety and continuous operation.
This terminal block is manufactured with industrial-grade insulating materials that provide high dielectric strength and resistance to thermal stress. Its compact design optimizes cabinet space, while the quick installation process significantly shortens wiring time. As part of Yokogawa’s modular system components, the ATD5S-00 integrates seamlessly with related field I/O devices and terminal assemblies.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | Yokogawa ATD5S-00 |
| Product Type | Pressure Clamp Terminal Block |
| Dimensions | 114 x 32.6 x 60.5mm |
| Weight | 0.2 kg |
| Rated Voltage | 250 V AC / DC |
| Rated Current | 5 A per channel |
| Contact Material | Copper alloy with anti-corrosion plating |
| Insulation Resistance | ≥ 100 MΩ at 500 V DC |
| Dielectric Strength | 2000 V AC for 1 minute |
| Operating Temperature | -20°C to +70°C |
| Mounting Type | DIN rail mounting |
| Wire Size Compatibility | 0.2 – 2.5 mm² solid / stranded |
| Clamp Mechanism | Spring-loaded pressure clamp |
| Certifications | CE, RoHS compliant |
Product Applications
The ATD5S-00 terminal block is suitable for a wide range of industrial automation applications, including:
-
Process Automation: Used in DCS systems for reliable signal transmission between field devices and controllers.
-
Factory Automation: Integration with PLCs for I/O signal distribution and wiring management.
-
Power Plants: For stable signal and power wiring connections in turbine and generator monitoring systems.
-
Oil & Gas: Deployed in hazardous-area panels where vibration resistance is critical.
-
Water Treatment Facilities: For robust I/O connectivity in pump and flow monitoring applications.
-
Transportation Systems: Used in railway and traffic control systems requiring stable long-term wiring connections.
Product Advantages
-
Vibration Resistant: Pressure clamp design prevents loosening over time, ensuring stable operation.
-
Tool-Free Wiring: No screw tightening required; reduces installation time and labor effort.
-
Space Saving Design: Compact structure allows higher density terminal arrangements in control cabinets.
-
High Safety Standards: Excellent dielectric strength and insulation resistance ensure safe operation.
-
Maintenance-Free Operation: Eliminates the need for retightening screws, reducing downtime.
-
Reliable Performance: Designed for harsh industrial environments, with extended operating temperature range.
-
Seamless Integration: Fully compatible with Yokogawa control systems and terminal assemblies.
FAQ
Q1: What is the maximum current capacity of the ATD5S-00 terminal block?
A1: It supports up to 5 A per channel, suitable for most signal and low-power control wiring applications.
Q2: Does the ATD5S-00 require any special tools for wiring?
A2: No, it uses a spring-loaded clamp mechanism, allowing quick wiring without screws or special tools.
Q3: Can stranded wires be used with this terminal block?
A3: Yes, both solid and stranded wires are supported within the 0.2 – 2.5 mm² range.
Q4: How does the clamp maintain contact reliability under vibration?
A4: The pressure clamp applies constant force on the conductor, preventing loosening even under heavy vibration.
Q5: Is the ATD5S-00 suitable for both AC and DC signals?
A5: Yes, it is rated for 250 V AC/DC, making it compatible with both applications.
Q6: What insulation resistance does the ATD5S-00 provide?
A6: It offers ≥100 MΩ at 500 V DC, ensuring strong insulation between circuits.
Q7: Can the ATD5S-00 be mounted on a standard DIN rail?
A7: Yes, it is designed for DIN rail mounting for easy integration into control cabinets.
Q8: Does the block require regular tightening or maintenance?
A8: No, the pressure clamp eliminates screw loosening, requiring minimal maintenance.
Q9: How many times can the terminals be rewired?
A9: The clamp mechanism is highly durable and can handle multiple insertions without degrading performance.
Q10: What certifications does the ATD5S-00 comply with?
A10: It meets CE and RoHS compliance standards for safety and environmental protection.
