Product Introduction

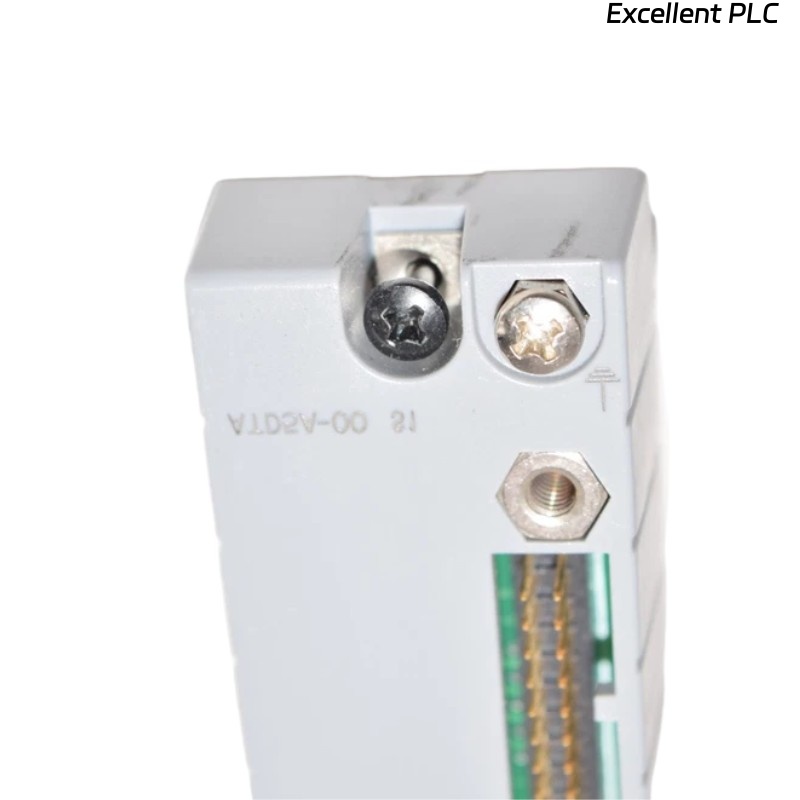

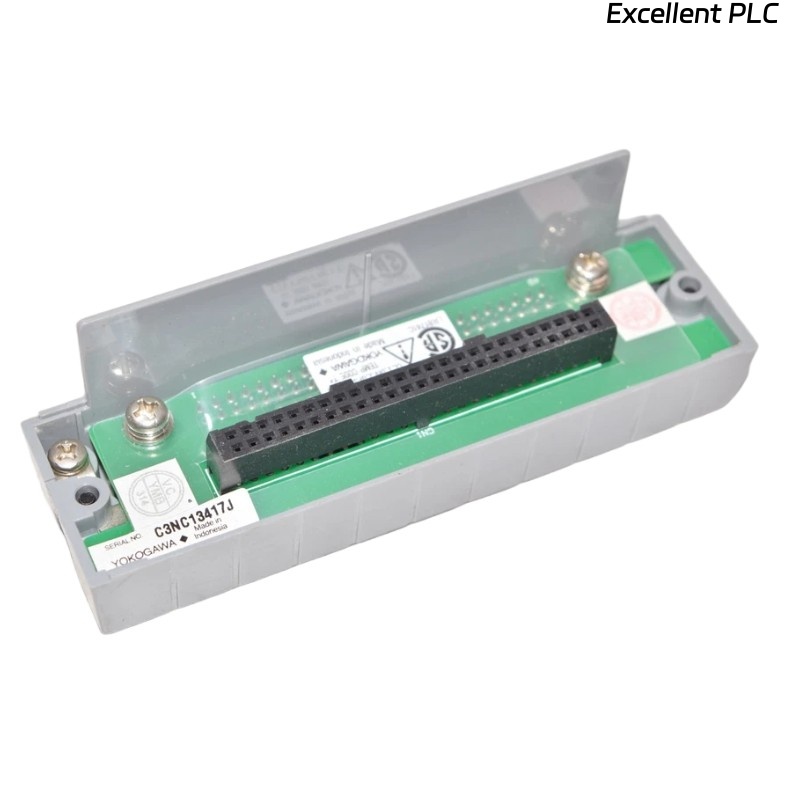

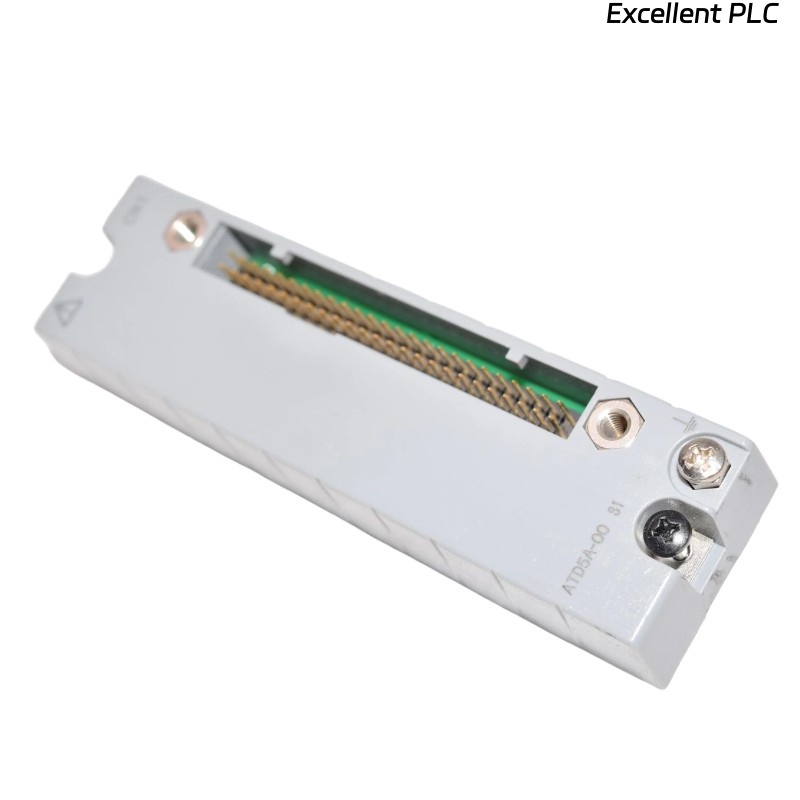

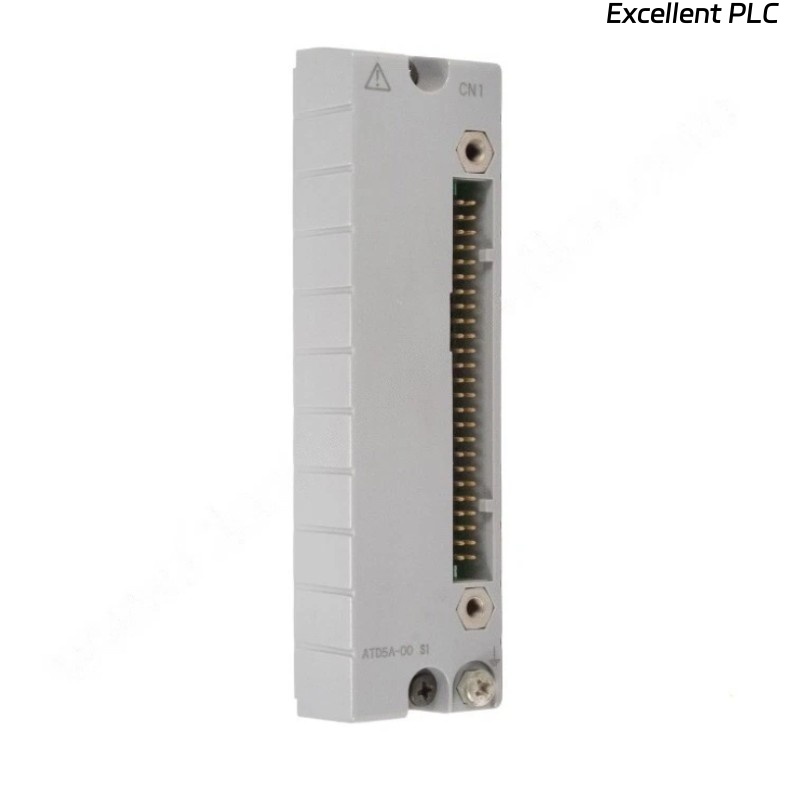

The Yokogawa ATD5T-00 Adapter Terminal Block is a reliable connection component designed for industrial automation systems, particularly within distributed control systems (DCS) and process control networks. It serves as an interface between field devices and control units, enabling secure signal transmission, simplified wiring, and stable operation in demanding industrial environments.
With its robust structure, the ATD5T-00 is widely applied in control panels, I/O assemblies, and instrumentation systems where efficiency, durability, and ease of integration are critical. This product ensures minimal wiring errors and reduced maintenance, making it highly suitable for long-term industrial applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | ATD5T-00 Adapter Terminal Block |
| Manufacturer | Yokogawa Electric Corporation |
| Function | Adapter terminal block for signal interfacing and wiring |
| Dimensions | 114 x 32.6 x 60.5mm |
| Weight | 0.2 kg |
| Material | Flame-retardant reinforced resin |
| Mounting Method | DIN rail or panel mount |
| Connection Type | Pressure clamp connection |
| Insulation Resistance | ≥ 100 MΩ at 500 V DC |
| Dielectric Strength | 2000 V AC, 1 min |
| Operating Voltage | 24 V DC nominal (supports signal wiring within system range) |
| Operating Temperature | -10 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 10% to 90% RH (non-condensing) |
| Compatibility | Designed for Yokogawa I/O modules and control systems |
Product Applications
The ATD5T-00 Adapter Terminal Block is engineered for use in industrial automation and process control environments. Typical applications include:
-
Distributed Control Systems (DCS): Facilitates connection between field wiring and I/O modules.
-
Power Plants: Reliable signal interfacing for monitoring and protection systems.
-
Petrochemical Plants: Supports complex process instrumentation with high reliability.
-
Factory Automation: Simplifies control panel assembly and ensures efficient wiring.
-
Pharmaceutical Industry: Ensures safe and accurate signal transmission in controlled environments.
-
Water Treatment Plants: Enhances reliability in environmental monitoring systems.
Product Advantages
-
Robust Design: Built with industrial-grade materials to withstand harsh environments.
-
Easy Installation: Supports DIN rail and panel mounting for quick integration.
-
High Reliability: Ensures stable signal transmission with strong insulation properties.
-
Low Maintenance: Simplified wiring minimizes the chance of connection errors.
-
Wide Compatibility: Designed to integrate seamlessly with Yokogawa’s control systems and I/O modules.
-
Enhanced Safety: Meets international insulation and dielectric strength standards.
-
Compact Structure: Saves space in control panels without compromising performance.
FAQ
Q1: What type of connection method does the ATD5T-00 use?
A1: It uses pressure clamp connection, ensuring strong contact and vibration resistance.
Q2: Can the ATD5T-00 be mounted on both DIN rails and panels?
A2: Yes, it supports both DIN rail and panel mounting for flexibility.
Q3: What insulation resistance is provided by the ATD5T-00?
A3: The insulation resistance is ≥100 MΩ at 500 V DC, ensuring electrical safety.
Q4: Is the ATD5T-00 suitable for use in high humidity environments?
A4: Yes, it operates reliably in relative humidity conditions of 10% to 90% (non-condensing).
Q5: Does the ATD5T-00 require additional grounding?
A5: It has built-in insulation protection, but grounding is recommended as per panel design.
Q6: What is the dielectric strength of the terminal block?
A6: It can withstand 2000 V AC for 1 minute without breakdown.
Q7: Can the ATD5T-00 handle both analog and digital signals?
A7: Yes, it is designed for versatile use in both analog and digital signal interfacing.
Q8: Is it compatible with non-Yokogawa systems?
A8: While optimized for Yokogawa systems, it may be used in other setups with proper matching specifications.
Q9: How does the pressure clamp mechanism improve reliability?
A9: It provides strong mechanical retention, reducing loose connections caused by vibration.
Q10: What is the maximum operating voltage supported?
A10: The nominal operating voltage is 24 V DC, within typical signal wiring range.
