Product Overview

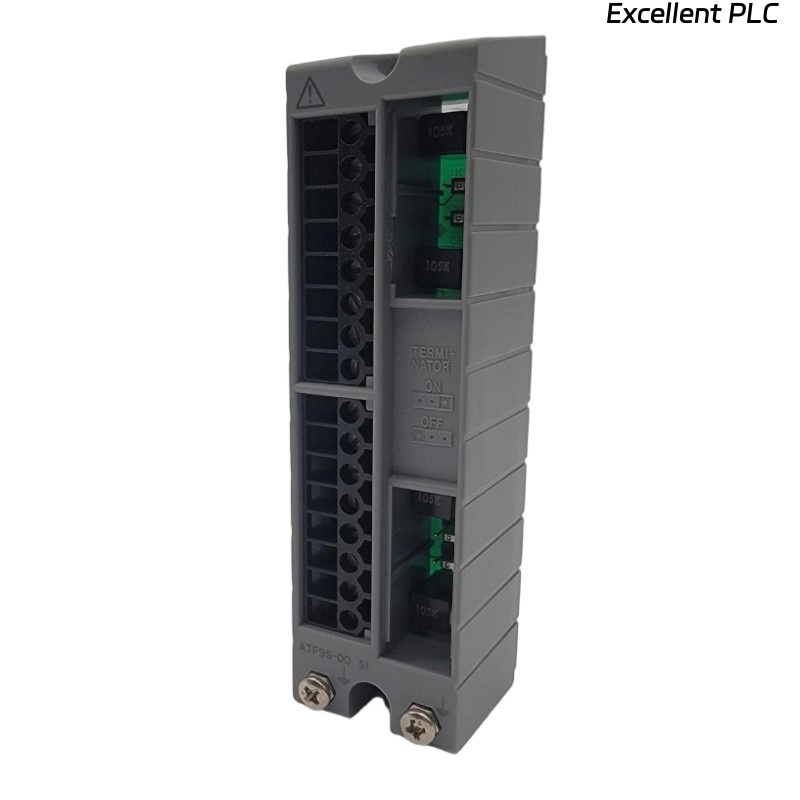

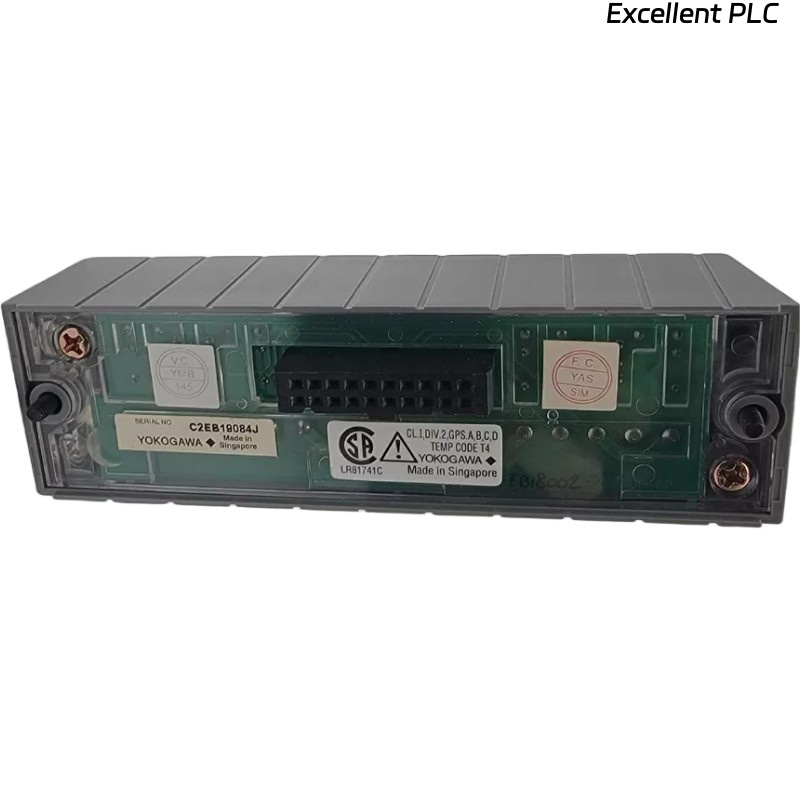

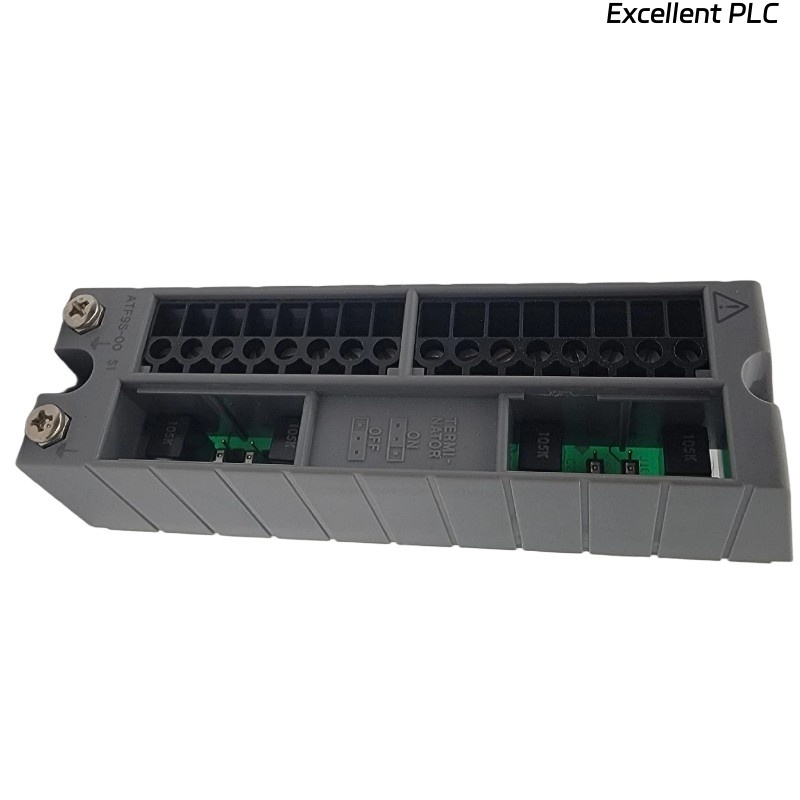

The Yokogawa ATF9S-00 is a pressure clamp terminal block designed for use in Foundation Fieldbus wiring within Yokogawa FIO (Field I/O) systems. It provides four ports (CH1–CH4) for secure field connections and is typically used with the ALF111 Foundation Fieldbus communication module. The unit is compact, lightweight, and uses spring pressure clamp technology for reliable, maintenance-free terminations.
Advantages
-
4-port design for orderly and efficient wiring.
-
Spring pressure clamp terminals reduce maintenance compared with screw-type terminals.
-
Compact size allows high-density panel installation.
-
ISA G3 environmental compliance for industrial environments.
-
Direct compatibility with ALF111 communication module.
Applications
-
Foundation Fieldbus H1 segment wiring for process automation systems.
-
Control cabinet and marshalling cabinet terminations.
-
Replacement for screw terminals in upgrade projects.
-
Installations requiring vibration-resistant and reliable wiring connections.
Technical Parameters
| Parameter | Value |
|---|---|
| Model | ATF9S-00 |
| Type | Pressure Clamp Terminal Block |
| Fieldbus Support | Foundation Fieldbus |
| Number of Ports | 4 (CH1–CH4) |
| Compatible Module | ALF111 |
| Connection Method | Spring pressure clamp |
| Dimensions | 112 x 35.2 x 32.6 mm |
| Weight | 0.1 kg |
| Environmental Category | ISA G3 |
| Surge Absorber | Not included (suffix “-00”) |
Installation Notes
-
Mount on the designated FIO rail or base.
-
Follow port labeling (CH1–CH4) to ensure correct channel wiring.
-
Use approved twisted pair cables for Fieldbus connections.
-
Maintain proper shielding and grounding practice.
FAQ
Q1: Which communication module is the ATF9S-00 used with?
A1: It is used with the ALF111 Foundation Fieldbus communication module.
Q2: How many channels can it support?
A2: Four channels (CH1–CH4).
Q3: Does the ATF9S-00 include surge protection?
A3: No, the “-00” version does not include a surge absorber.
Q4: What connection type is used?
A4: Spring pressure clamp terminals.
Q5: Is it suitable for harsh environments?
A5: Yes, it is designed to comply with ISA G3 standards.
Q6: What is the maximum weight of the unit?
A6: The weight is 0.1 kg.
Q7: Can it be used in vibration-prone installations?
A7: Yes, spring clamp design ensures secure contact under vibration.
Q8: What is the main advantage over screw-type terminals?
A8: It eliminates the need for periodic re-tightening.
Q9: How should shielding be handled?
A9: Shields should be grounded according to standard Fieldbus wiring practices.
Q10: Is it possible to use it with dual-redundant modules?
A10: No, ATF9S is designed specifically for single FF modules like ALF111.
Related Models
| Model | Application | Channels | Connection |
|---|---|---|---|
| ATA4S | Analog input | 16 ch | Pressure clamp |
| ATB5S | Digital input | 32 ch | Pressure clamp |
| ATD5S | Digital output | 32 ch | Pressure clamp |
| ATI3S | Isolated AI & pulse | 8 ch | Pressure clamp |
| ATA4D | Analog input (redundant) | 16 ch | Pressure clamp |
| ATB5D | Digital input (redundant) | 32 ch | Pressure clamp |
