Product Overview

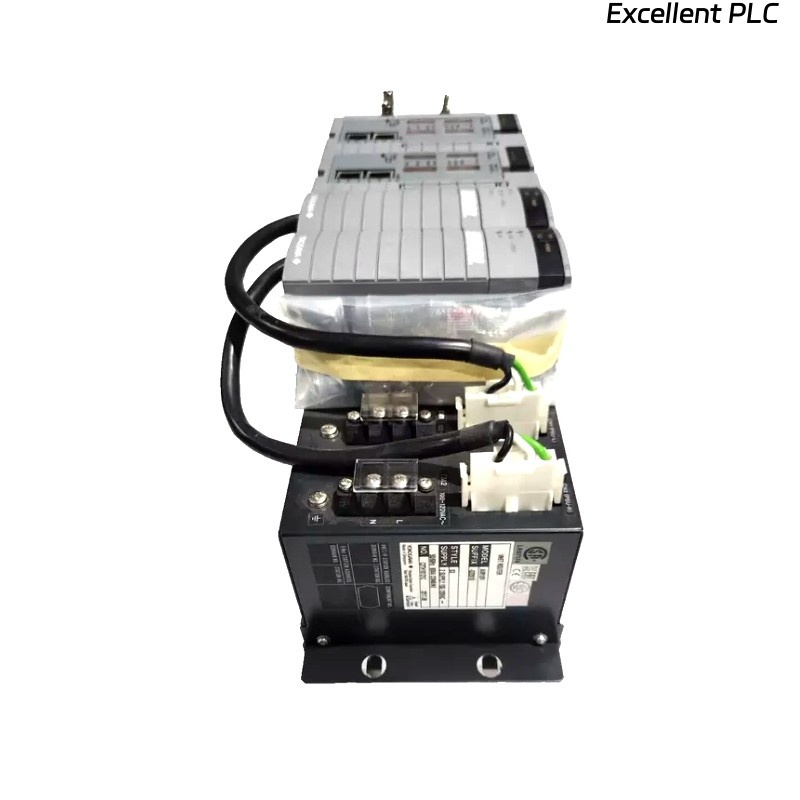

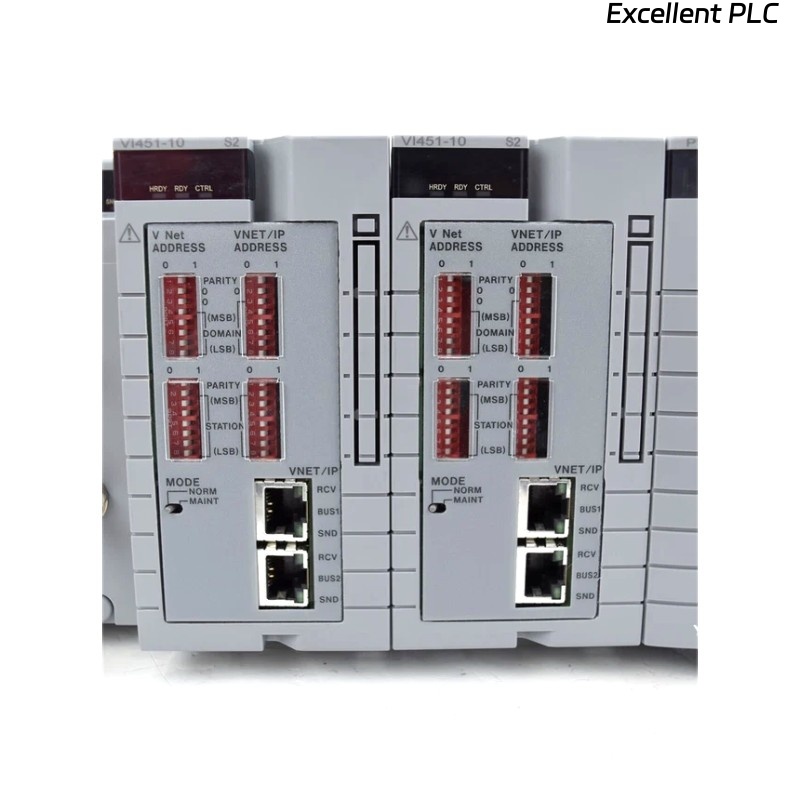

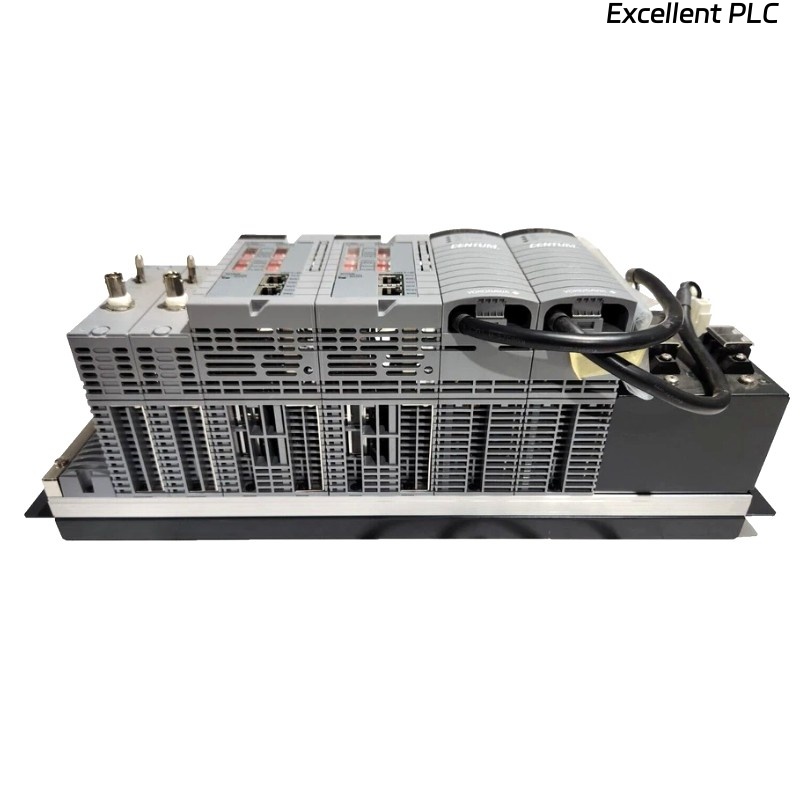

The Yokogawa AVR10D-0022020 is a dual-redundant V Net router designed for high-reliability industrial network communication. It ensures seamless data exchange between V Net networks (Yokogawa’s proprietary control network) and other Ethernet-based systems, enabling robust integration and real-time monitoring in critical automation environments.
Key Features
-
Dual-redundant architecture for continuous operation.
-
Supports protocol conversion between V Net and Ethernet.
-
Enhanced security and diagnostics for industrial networks.
-
Designed for harsh environments with industrial-grade durability.
Specifications
| Parameter | Value |
|---|---|
| Network Standards | V Net, Ethernet (IEEE 802.3) |
| Redundancy | Dual-redundant design |
| Power Supply Voltage | 24 V DC (±10%) |
| Operating Temperature | -20 to 70°C |
| Dimensions | 482.6 x 132.5 x 169 mm |
| Weight | 5.8 kg |
| Communication Speed | V Net: 10 Mbps, Ethernet: 100/1000 Mbps |
| Protocols Supported | TCP/IP, UDP/IP, V Net protocol |
Applications
-
Process control systems in oil & gas, chemical, and power generation industries.
-
Integration of legacy V Net systems with modern Ethernet-based SCADA or DCS.
-
Redundant network infrastructure for critical automation platforms.
-
Real-time data routing between control networks and enterprise systems.
Advantages
-
High Reliability: Dual-redundancy minimizes network downtime.
-
Seamless Integration: Bridges Yokogawa V Net with standard Ethernet networks.
-
Robust Design: Operates reliably in extreme industrial conditions.
-
Enhanced Diagnostics: Built-in tools for network monitoring and troubleshooting.
FAQ
1. How does the dual-redundant functionality work?
The device employs two independent communication paths, automatically switching to the backup path if the primary fails.
2. Is the router compatible with IPv6?
No, it supports IPv4 via TCP/IP and UDP/IP protocols only.
3. Can it be used in non-Yokogawa control systems?
Yes, it facilitates communication between V Net and third-party Ethernet-based systems.
4. What diagnostic tools are available?
It includes LED status indicators and software-based network monitoring via Yokogawa’s configuration tools.
5. Does it support multicast routing?
Yes, it supports multicast communication for efficient data distribution.
6. How is the device configured?
Configuration is done using Yokogawa’s dedicated software (e.g., V net Configuration Tool).
7. Can it operate in a high-electromagnetic interference environment?
Yes, it is designed to meet industrial EMI/RFI standards.
8. What cybersecurity features are included?
It offers basic network segmentation and access control but requires external firewalls for advanced security.
9. Is firmware upgradeable?
Yes, firmware can be updated via Yokogawa’s official tools.
10. What happens during a power failure?
The device requires uninterrupted power; redundancy does not cover power supply failures.
