Product Introduction

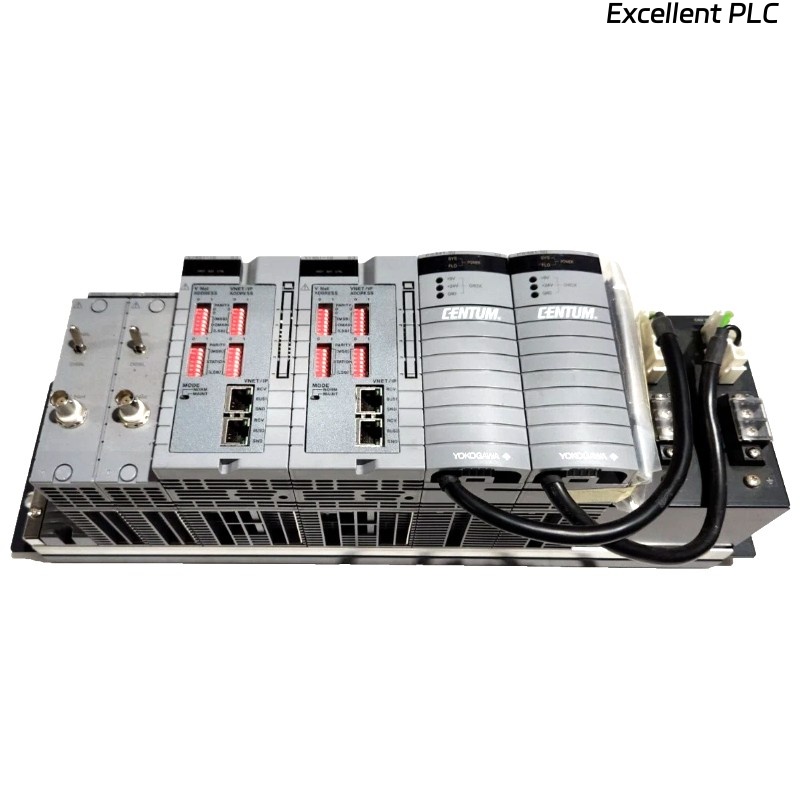

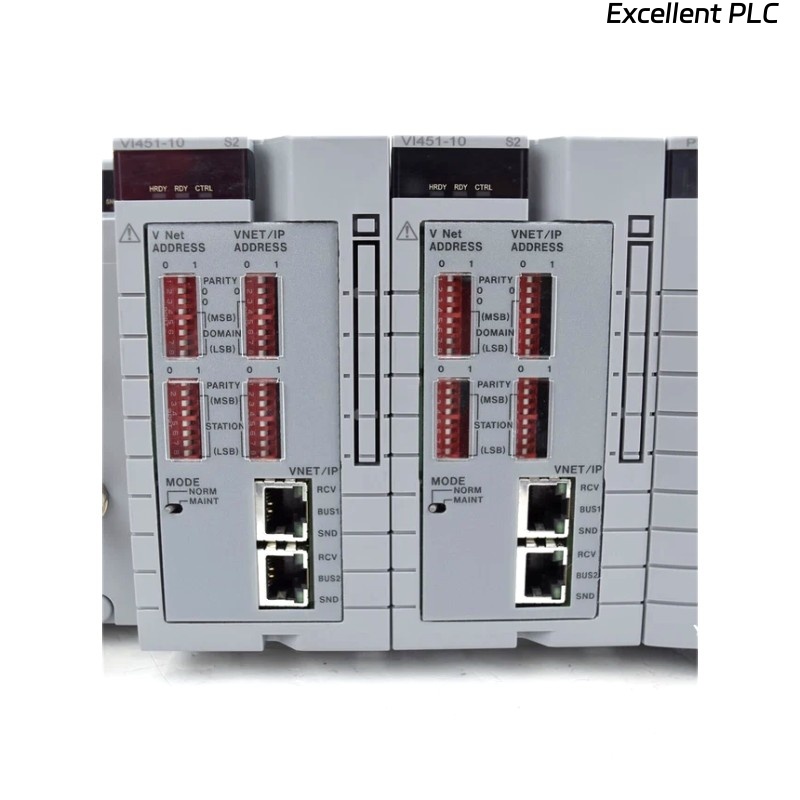

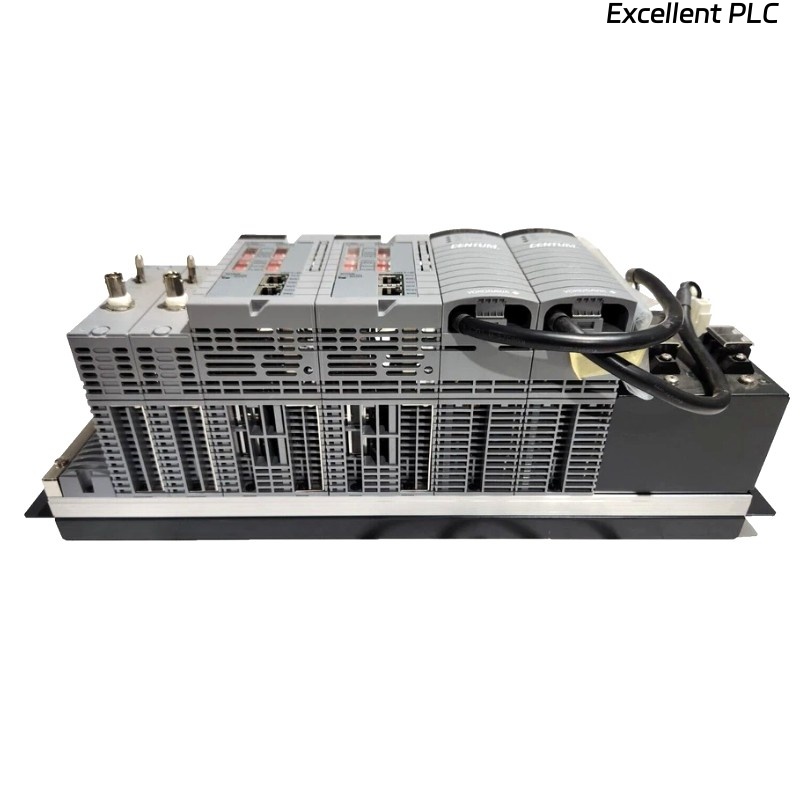

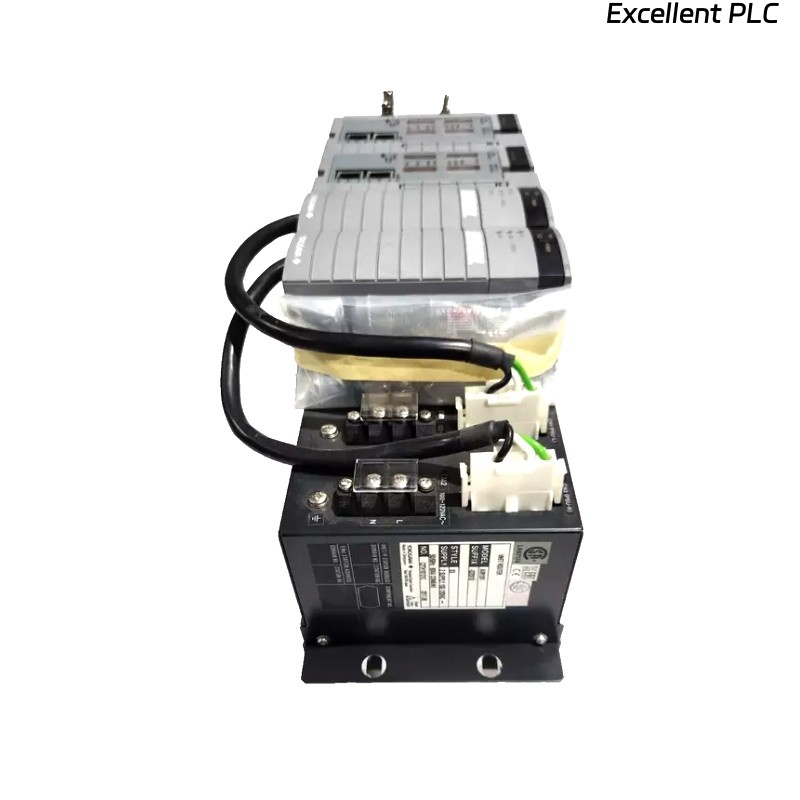

The Yokogawa AVR10D-Q22021 Duplex V-net Router is a high-performance networking device specifically designed for use in distributed control systems (DCS). As part of Yokogawa’s V-net architecture, it provides robust communication pathways between controllers, operator stations, and engineering tools, ensuring reliable data transfer and fault-tolerant operation.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | AVR10D-Q22021 Duplex V-net Router |
| Network Type | V-net (Duplex) |
| Communication Speed | 100 Mbps full-duplex |
| Power Supply | 24 V DC (typical) |
| Power Consumption | 20 W |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 70 °C |
| Relative Humidity | 10–90% non-condensing |
| Dimensions | 482.6 x 132.5 x 169 mm |
| Weight | 5.8 kg |
| Mounting Type | Panel or rack mount |
| Compliance | CE, UL, RoHS |
Product Applications
-
Distributed control systems (DCS) for power generation plants.
-
Refinery and petrochemical control networks.
-
Oil and gas upstream and midstream operations.
-
Chemical production facilities requiring high-availability networks.
-
Pulp and paper process automation.
-
Pharmaceutical manufacturing plants with strict process control requirements.
Product Advantages
-
High Availability: Duplex redundancy minimizes communication failures.
-
Seamless Switchover: Automatic transition between redundant lines without data loss.
-
System Integration: Fully compatible with Yokogawa CENTUM VP and other control systems.
-
Scalability: Supports large system expansion without compromising performance.
-
Robust Security: Designed for industrial-grade secure communication.
-
Ease of Maintenance: Modular design for easy installation and replacement.
-
Reliability: Built to withstand demanding industrial operating conditions.
FAQ
Q1: What type of redundancy does the AVR10D-Q22021 support?
A1: It supports duplex redundancy with automatic switchover to ensure continuous communication.
Q2: Can this router be integrated with third-party control systems?
A2: It is optimized for Yokogawa systems but can exchange data with third-party systems using standard protocols supported by V-net/IP.
Q3: What is the maximum communication speed supported?
A3: The router supports 100 Mbps full-duplex communication.
Q4: How is fault detection managed within the duplex system?
A4: The router continuously monitors communication lines and automatically switches over if a failure is detected.
Q5: Is the AVR10D-Q22021 suitable for harsh industrial environments?
A5: Yes, it is designed with industrial-grade protection, wide operating temperature range, and compliance with CE and UL standards.
Q6: Can the router be used in a non-redundant configuration?
A6: While designed for duplex redundancy, it can be used in single-path configurations if required.
Q7: How does the router handle network load balancing?
A7: Load balancing is managed by the V-net system architecture, ensuring optimized traffic distribution across redundant links.
Q8: What diagnostic features are available?
A8: Built-in self-diagnostic and communication monitoring tools allow operators to quickly identify issues.
Q9: Is hot-swapping supported for this router?
A9: Yes, the router supports hot-swapping, minimizing downtime during replacement.
Q10: What type of network topology can it support?
A10: It supports star, ring, and hybrid topologies within the V-net architecture.
Related Models
| Model Number | Description | Network Type | Redundancy | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| AVR10D-Q22011 | Duplex V-net Router (Standard Version) | V-net/IP | Duplex | 130 × 250 × 200 | 3.6 kg |
| AVR10D-Q22012 | Duplex V-net Router with Extended Features | V-net/IP | Duplex | 130 × 250 × 200 | 3.7 kg |
| AVR20D-Q33021 | High-Capacity Duplex Router | V-net/IP | Duplex | 150 × 270 × 220 | 4.0 kg |
| AVR30D-Q44010 | Enhanced Security Duplex Router | V-net/IP | Duplex | 150 × 270 × 220 | 4.2 kg |
| AFV30D-A400 | Duplex Field Control Unit Router | V-net | Duplex | 140 × 260 × 210 | 4.0 kg |
| AFV10D-S4115 | Compact Duplex Field Control Router | V-net | Duplex | 120 × 240 × 200 | 3.5 kg |
