Product Overview

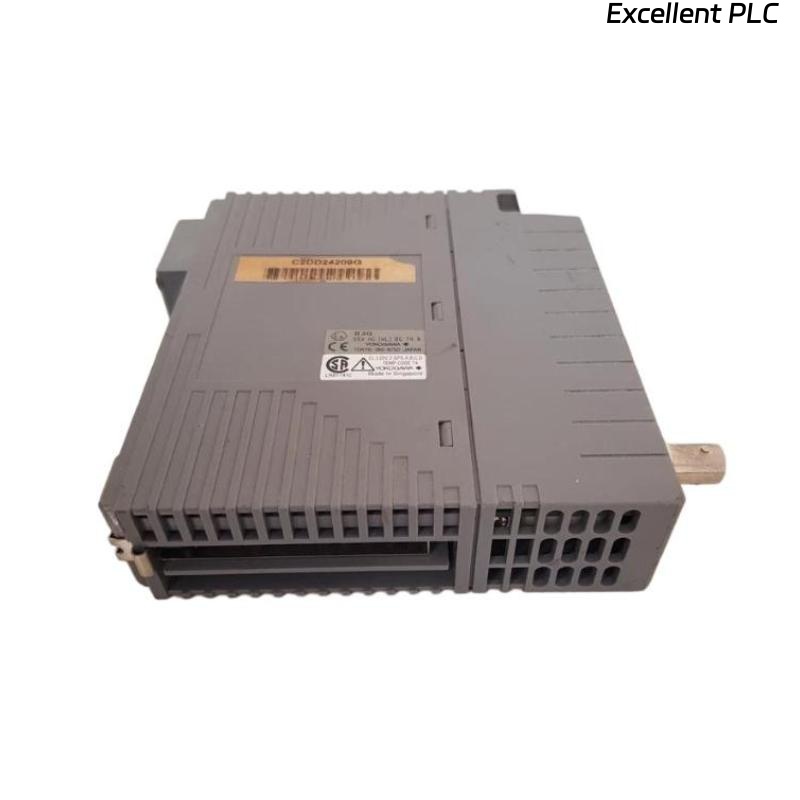

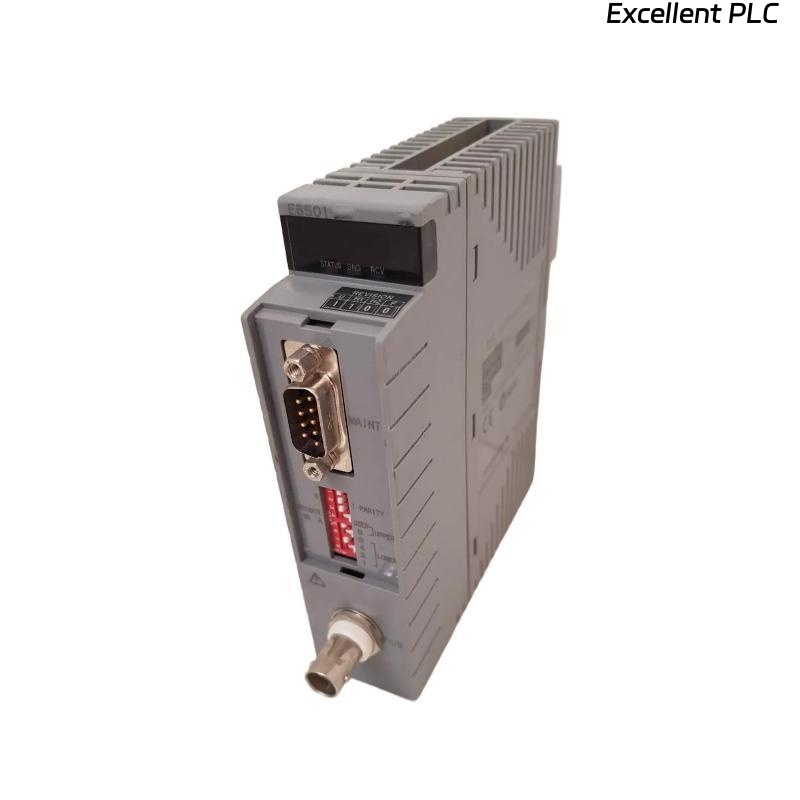

The Yokogawa EB501 Bus Interface Module is designed to facilitate reliable communication between the CENTUM VP Control Bus and connected field devices. It acts as a key interface in distributed control systems (DCS), enabling seamless data exchange for process monitoring, control, and diagnostics. The EB501 ensures efficient system performance and provides stable connectivity for multiple field devices in industrial automation environments.
Key Features
-
Interfaces field devices with the CENTUM VP Control Bus
-
High-speed, reliable communication for real-time process monitoring
-
Supports multiple devices on the control bus simultaneously
-
Compact, rack-mountable design for easy integration
-
Robust and reliable operation under industrial conditions
-
Ensures accurate and synchronized data collection
-
Compatible with Yokogawa CENTUM VP DCS systems
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | Bus Interface Module |
| Model Number | EB501 |
| Network Compatibility | CENTUM VP Control Bus |
| Supported Devices | Multiple field devices |
| Communication Speed | High-speed Control Bus protocol |
| Rack Compatibility | CENTUM VP DCS rack systems |
| Power Supply | Provided via rack backplane |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95%, non-condensing |
| Dimensions | 144.65 x 130 x 32.8mm |
| Weight | 0.3 kg |
Industry Applications
-
Process automation in chemical, petrochemical, and oil & gas industries
-
Power generation plants – integrating field devices with DCS
-
Water and wastewater treatment – reliable monitoring and control
-
Pharmaceutical production – accurate process data collection
-
Industrial automation systems – high-speed communication with field instrumentation
Frequently Asked Questions (FAQ)
Q1: What is the main function of the EB501?
It connects field devices to the CENTUM VP Control Bus for reliable communication and process control.
Q2: Is it compatible with CENTUM VP systems?
Yes, it is fully compatible with Yokogawa CENTUM VP DCS racks.
Q3: How many devices can it support?
It supports multiple field devices connected to the Control Bus.
Q4: What is the operating temperature range?
0°C to 55°C.
Q5: Can it be mounted in standard racks?
Yes, it is designed for CENTUM VP DCS rack systems.
Q6: How is it powered?
It is powered via the rack backplane.
Q7: Does it support high-speed communication?
Yes, it ensures fast and reliable data transfer on the Control Bus.
Q8: What types of data does it handle?
Process measurements, status signals, alarms, and control commands.
Q9: Can it operate in harsh industrial environments?
Yes, it is built for typical industrial temperatures and humidity conditions.
Q10: Is installation complex?
No, it is a plug-in module for Yokogawa racks, allowing easy integration.
Related Models
| Model Number | Description |
|---|---|
| EB502 | Enhanced Bus Interface Module |
| EB503 | Redundant Bus Interface Module |
| EB504 | High-capacity Bus Interface Module |
| EB505 | Bus Interface Module with Diagnostics Support |
| EB506 | Advanced Bus Interface Module |
| EB507 | Bus Interface Module for Large Systems |
