Product Overview

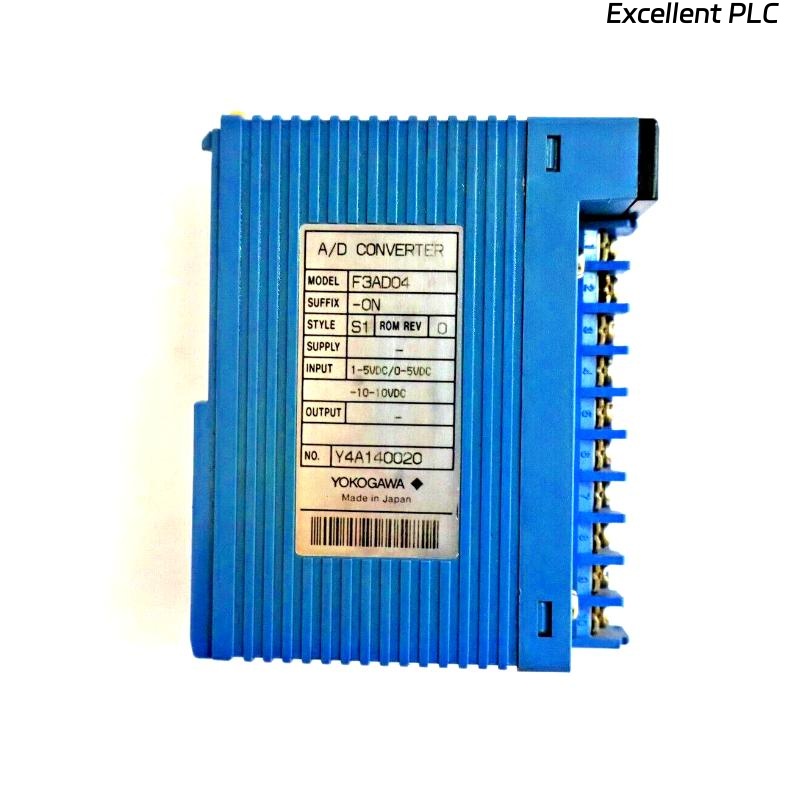

The Yokogawa F3AD04-0N Analog Input Module is a high-performance, 4-channel input module designed for FA-M3 multi-controller systems. It supports multiple voltage input ranges and high-speed 12-bit A/D conversion, providing precise and reliable data acquisition for industrial automation applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 4 differential inputs |
| Input Voltage Ranges | 0–5 V DC, 1–5 V DC, -10 to 10 V DC |
| A/D Resolution | 12-bit |
| Input Accuracy | ±0.2% of full scale (23°C ±2°C), ±0.5% (0–55°C) |
| Conversion Speed | 1 ms per channel |
| Input Resistance | 1 MΩ |
| Scaling Range | -20,000 to 20,000 |
| Isolation | Photocoupler isolation; non-isolated negative line common |
| Withstand Voltage | 500 V DC for 1 minute |
| Power Consumption | 210 mA at 5 V DC |
| Dimensions (W×H×D) | 28.9 × 100 × 83.2 mm |
| Weight | 0.17 kg |
Applications
-
High-speed analog signal acquisition for process control
-
Voltage monitoring in industrial automation systems
-
Integration with FA-M3 multi-controller for precise measurement
-
Signal scaling and conditioning in manufacturing systems
-
Data acquisition for testing and calibration laboratories
Advantages
-
High-Speed Conversion: 1 ms per channel for rapid data acquisition
-
Flexible Input: Multiple voltage ranges compatible with various sensors
-
Compact Design: Small footprint suitable for dense control panels
-
High Accuracy: 12-bit A/D ensures precise measurements
-
Advanced Signal Processing: Built-in scaling and filtering capabilities
FAQ
1. What input signals does the F3AD04-0N support?
It supports DC voltage inputs of 0–5 V, 1–5 V, and -10 to 10 V.
2. How fast is the module’s conversion speed?
Conversion occurs at 1 ms per input channel.
3. Can it be used in high-temperature environments?
Yes, the module operates accurately from 0 to 55°C.
4. What is the resolution of the analog input?
It features a 12-bit A/D converter for high-resolution measurement.
5. Is isolation provided between input channels?
Yes, photocoupler isolation exists between input terminals and internal circuits.
6. Can this module be scaled for different engineering units?
Yes, input signals can be scaled within the range of -20,000 to 20,000.
7. What is the power consumption?
The module consumes 210 mA at 5 V DC.
8. How is signal integrity maintained?
Using shielded wiring and proper grounding ensures accurate measurement.
9. Can multiple F3AD04-0N modules be used in one system?
Yes, they can be combined to expand analog input capacity for FA-M3 controllers.
10. What industries benefit most from this module?
Automotive, manufacturing, testing laboratories, and process control industries.
Related and Similar Models
| Model | Channels | Voltage Range | Resolution | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| F3AD04-1N | 4 | 0–5 V, 1–5 V | 12-bit | 28.9×100×83.2 | 0.17 |
| F3AD08-0N | 8 | 0–5 V, 1–5 V | 12-bit | 28.9×100×83.2 | 0.18 |
| F3AD04-2N | 4 | -10–10 V | 12-bit | 28.9×100×83.2 | 0.17 |
| F3AD16-0N | 16 | 0–5 V | 12-bit | 28.9×120×83.2 | 0.22 |
| F3AD04-0P | 4 | 0–5 V, 1–5 V | 12-bit | 28.9×100×83.2 | 0.17 |
| F3AD08-1N | 8 | -10–10 V | 12-bit | 28.9×100×83.2 | 0.18 |
