Product Introduction

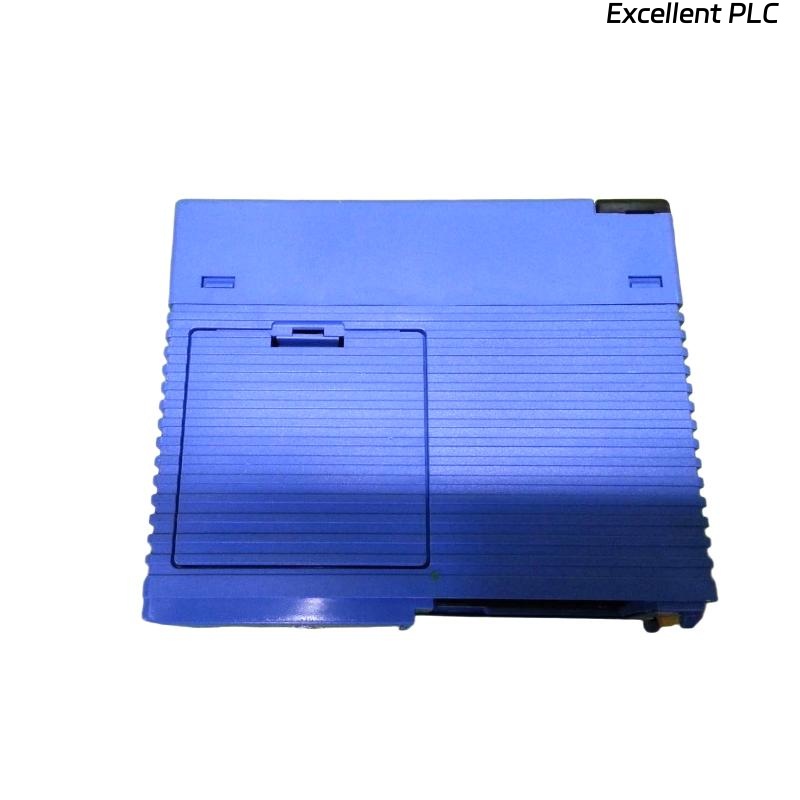

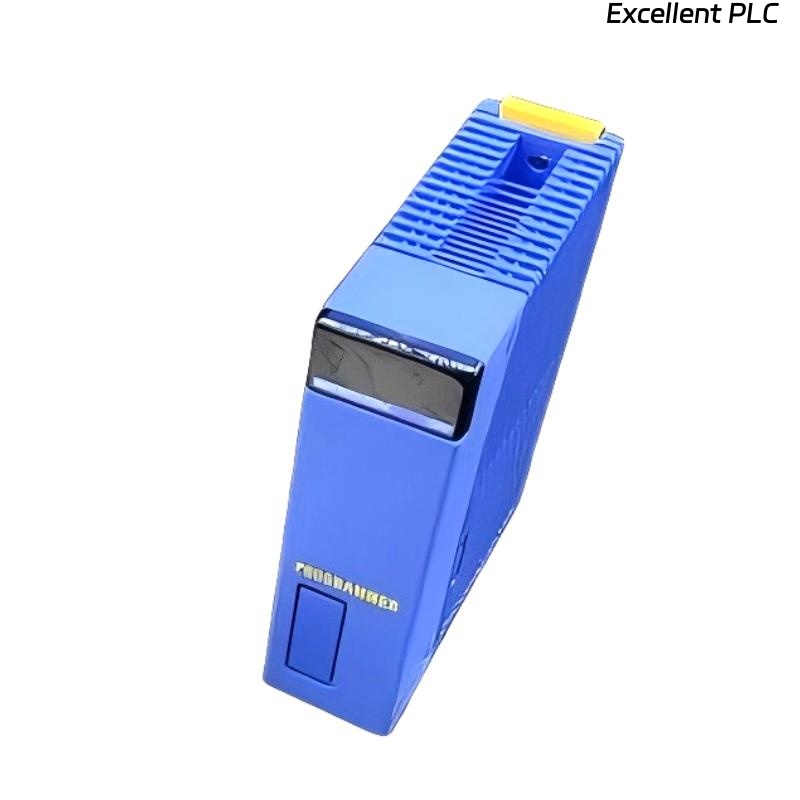

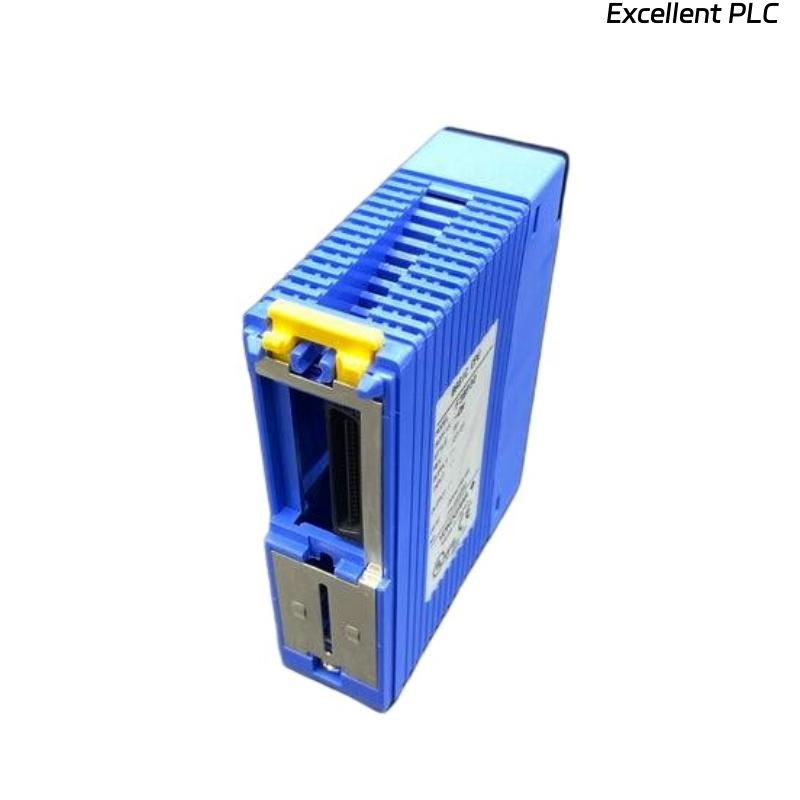

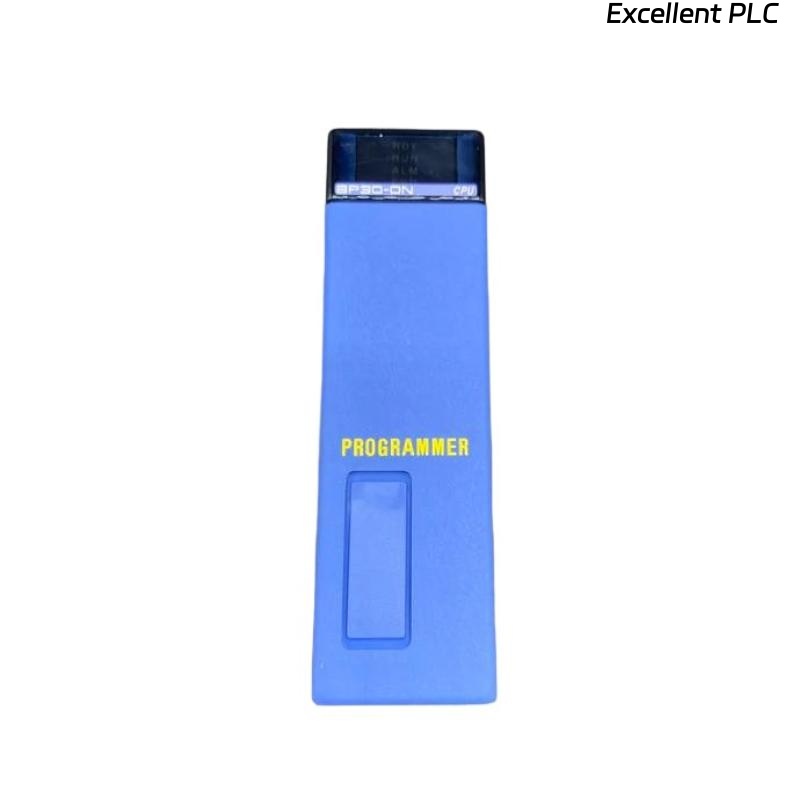

The Yokogawa F3BP30-0N is a BASIC CPU module designed for the FA-M3 multi-controller system. It enables high-speed, real-time industrial control using YM-BASIC/FA programming language. The module can operate as a standalone BASIC controller or as an add-on CPU for sequence CPU modules, offering direct I/O access and enhanced communication capabilities. It is suitable for applications requiring complex computation or communication beyond ladder logic control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | F3BP30-0N |
| Programming Language | YM-BASIC/FA |
| ROM Pack Storage | Supports RK30-0N, up to 1024 words |
| Direct I/O Access | Yes |
| Communication | RS-422-A / RS-485 via F3RS41-0N module |
| Programming Tools | WideField2 (SF620-MCW R5.01+) / WideField3 (SF630-MCW R2.01+) |
| Dimensions (W × H × D) | 28.9 × 100 × 83.2 mm |
| Weight | 0.105 kg |
| Mounting | FA-M3 slot 2–4 |
Applications
-
Real-time industrial process control
-
High-speed computation tasks
-
Communication-intensive automation systems
-
Standalone BASIC controller applications
-
Integrated FA-M3 system expansions
Advantages
-
High-speed YM-BASIC/FA processing for complex logic
-
Direct access to input/output modules without sequence CPU dependency
-
Flexible integration as standalone or add-on CPU
-
Supports large program and data storage via ROM packs
-
Enhanced communication with RS-422-A/RS-485 modules
-
Compatible with advanced programming tools for efficient development
FAQ
1. What programming language is used for the F3BP30-0N?
It uses YM-BASIC/FA, optimized for industrial automation with real-time processing.
2. Can it operate as a standalone CPU?
Yes, it can function independently or as an add-on to sequence CPU modules.
3. How is program storage handled?
Programs and data are stored on ROM packs, supporting up to 1024 words.
4. Does it support direct I/O access?
Yes, enabling real-time control without a sequence CPU.
5. Which communication standards are supported?
It supports RS-422-A and RS-485 using compatible communication modules.
6. Which programming tools are compatible?
WideField2 (SF620-MCW R5.01+) and WideField3 (SF630-MCW R2.01+) are supported.
7. What are the module dimensions and weight?
Dimensions: 28.9 × 100 × 83.2 mm, Weight: 0.105 kg.
8. Can it be installed in any FA-M3 slot?
It should be installed in slots 2–4 for add-on operation.
9. Is it suitable for high-speed computation tasks?
Yes, it is designed for applications that require fast and complex calculations.
10. Can it communicate with other FA-M3 modules?
Yes, it integrates seamlessly with other FA-M3 modules via communication interfaces.
Related and Series Models
| Model | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| F3BP10-0N | BASIC CPU | 28.9 × 100 × 83.2 | 0.105 |
| F3BP20-0N | BASIC CPU | 28.9 × 100 × 83.2 | 0.105 |
| F3BP40-0N | BASIC CPU | 28.9 × 100 × 83.2 | 0.105 |
| F3BP50-0N | BASIC CPU | 28.9 × 100 × 83.2 | 0.105 |
| F3BP60-0N | BASIC CPU | 28.9 × 100 × 83.2 | 0.105 |
| F3BP70-0N | BASIC CPU | 28.9 × 100 × 83.2 | 0.105 |
