Product Overview

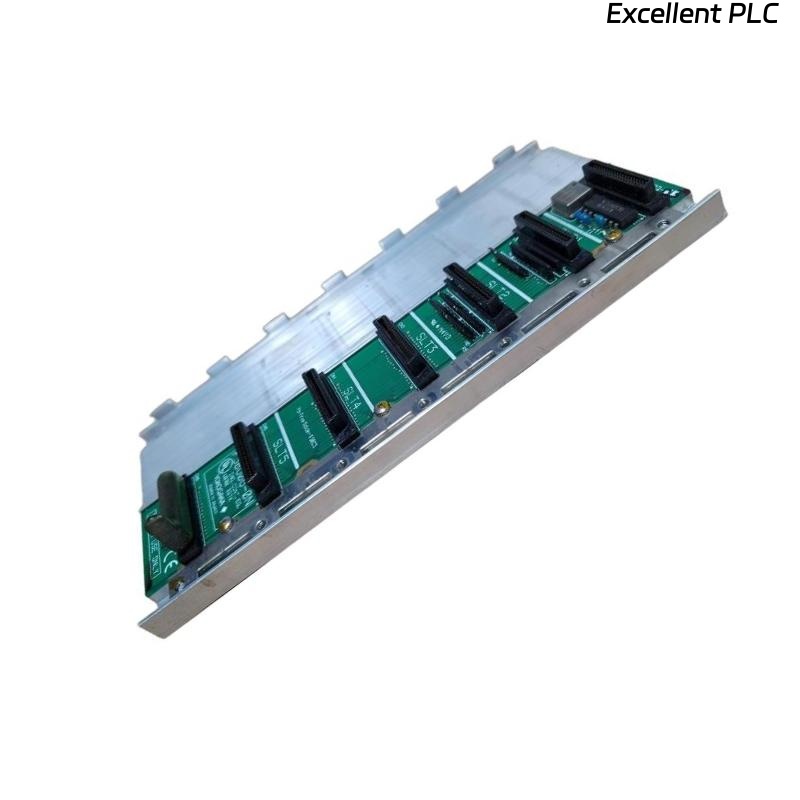

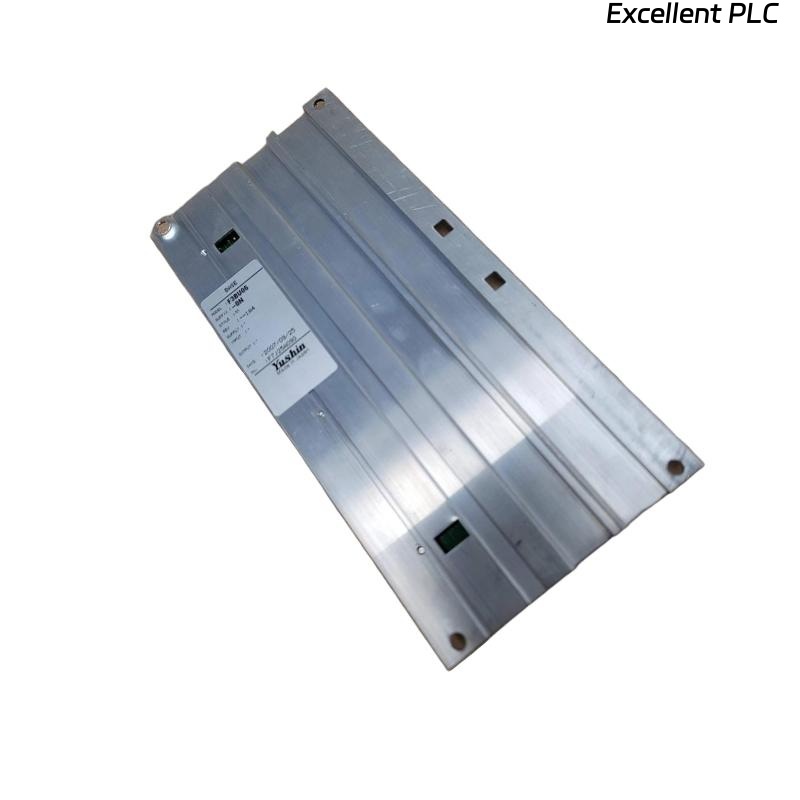

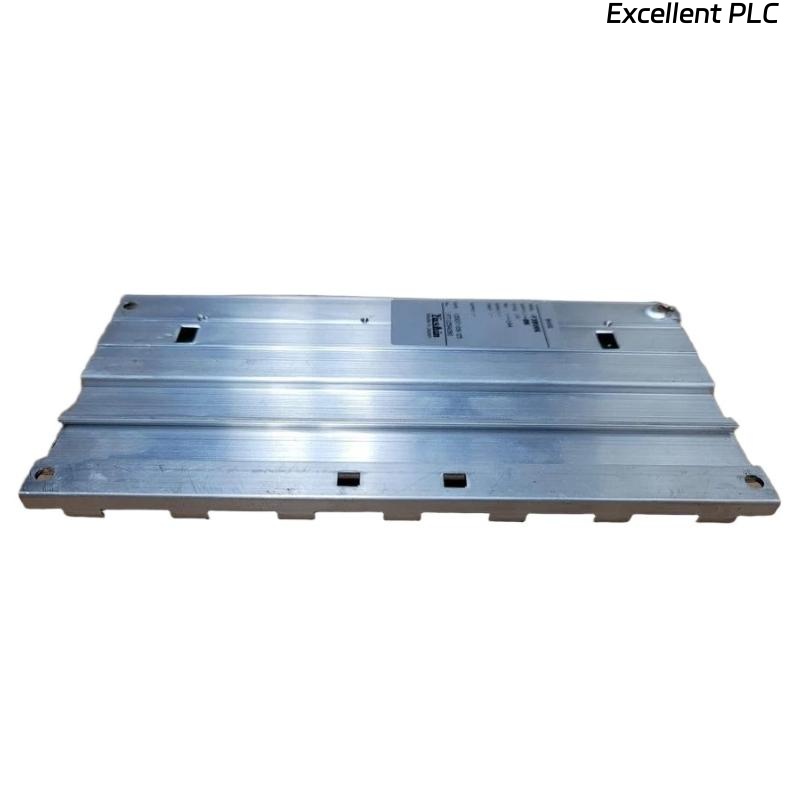

The Yokogawa F3BU06-0N Base Module is a critical component in the Yokogawa F3 Series modular system. It serves as the foundation for various I/O modules within the system, providing the necessary power, communication, and mechanical support for these modules. The base module integrates all functional connections, including system bus communication and power distribution, enabling seamless integration of additional modules as needed.
Key Features
-
Core module for the Yokogawa F3 Series systems
-
Provides power, communication, and structural support for I/O modules
-
Ensures stable system integration and scalability
-
Supports hot-swapping of I/O modules without system downtime
-
Easy installation with clear module slot identification
-
Compact and durable design for long-term industrial use
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | F3BU06-0N |
| Module Type | Base Module |
| System Compatibility | Yokogawa F3 Series |
| Power Supply | 24VDC (Nominal) |
| Communication Bus | System bus for inter-module communication |
| Mounting | DIN rail mounting |
| Dimensions | 205 x 102 x 88.8 mm |
| Weight | 0.21 kg |
| Material | Metal and plastic housing |
| Cooling Method | Passive cooling |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10% to 90% RH, non-condensing |
Industry Applications
-
Industrial Automation – Supports I/O modules for process automation systems
-
Process Control – Reliable base for modular control systems in various industries
-
Power Generation – Powers and supports monitoring modules in turbine control systems
-
Oil & Gas – Core for control systems in remote and onshore/offshore oil & gas operations
-
Manufacturing – Modular automation in automated manufacturing plants
Advantages
-
Provides a reliable foundation for module-based control systems
-
Supports easy expansion with hot-swapping capability
-
Ensures consistent performance in various environmental conditions
-
Simple to install and maintain, reducing downtime
-
Robust design with passive cooling, suitable for harsh industrial environments
Frequently Asked Questions (FAQ)
Q1: What is the function of the F3BU06-0N Base Module?
It acts as the core component, providing power, communication, and structural support for the I/O modules in the Yokogawa F3 Series system.
Q2: Is the F3BU06-0N Base Module hot-swappable?
Yes, it supports the hot-swapping of I/O modules without requiring system shutdown.
Q3: What is the power supply requirement for the F3BU06-0N?
The base module requires a 24VDC power supply.
Q4: What is the maximum operating temperature for the module?
The module operates within a temperature range of 0 °C to 60 °C.
Q5: What materials is the base module made of?
It has a durable metal and plastic housing designed for long-term industrial use.
Q6: How is the F3BU06-0N Base Module mounted?
It can be mounted onto a DIN rail for easy integration into control panels.
Q7: What are the dimensions of the module?
The dimensions are 205 mm x 102 mm x 88.8 mm.
Q8: Can this module be used in other Yokogawa systems?
It is designed specifically for the Yokogawa F3 Series systems and may not be compatible with other series.
Q9: Does the module require additional cooling?
No, it uses passive cooling for temperature regulation.
Q10: Is the module maintenance-free?
Yes, the module is low-maintenance and designed for continuous, reliable operation.
Related Modules
| Model Number | Description |
|---|---|
| F3BU06-0N | Base Module |
| F3AI00-0N | Analog Input Module |
| F3DO00-0N | Digital Output Module |
| F3DI00-0N | Digital Input Module |
| F3AO00-0N | Analog Output Module |
| F3VY00-0N | Voltage Input Module |
