Product Overview

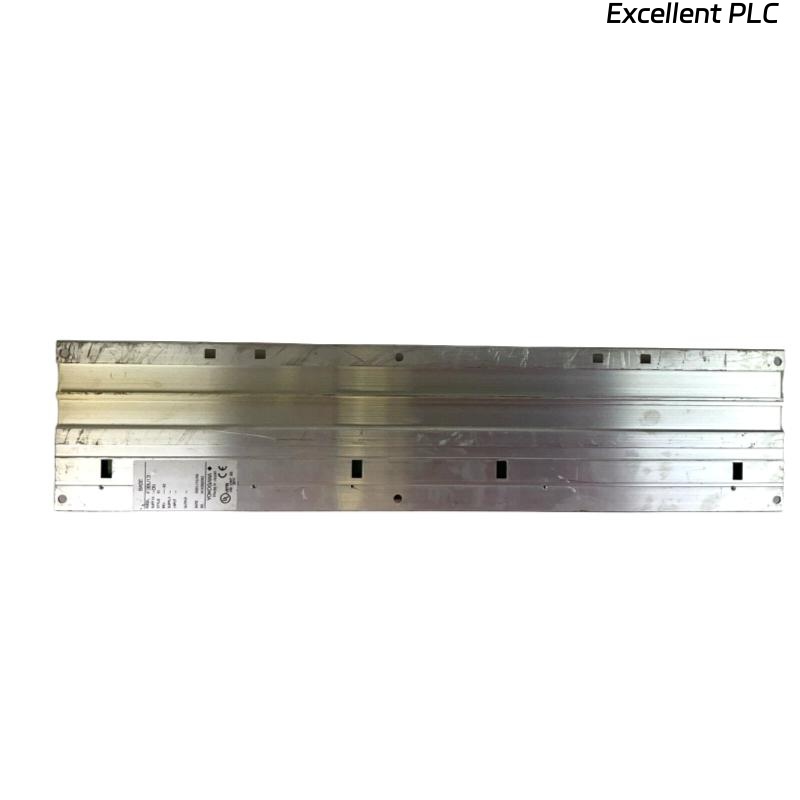

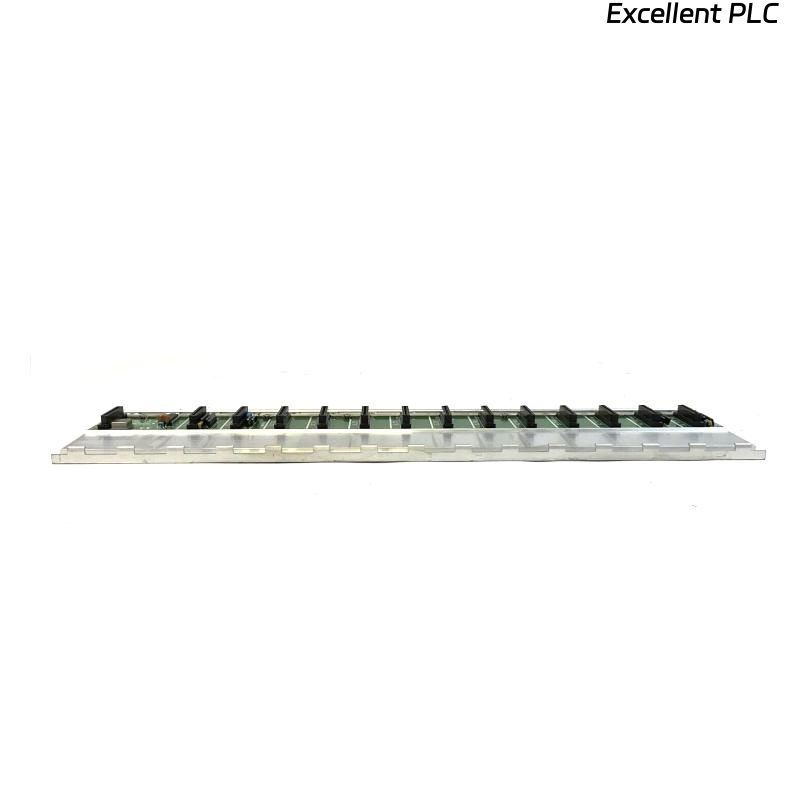

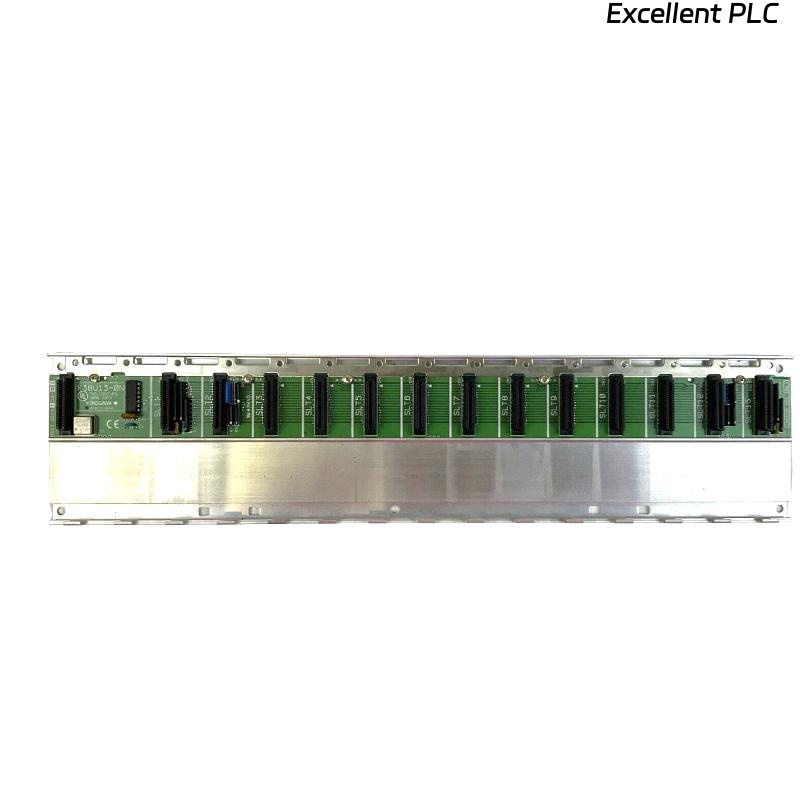

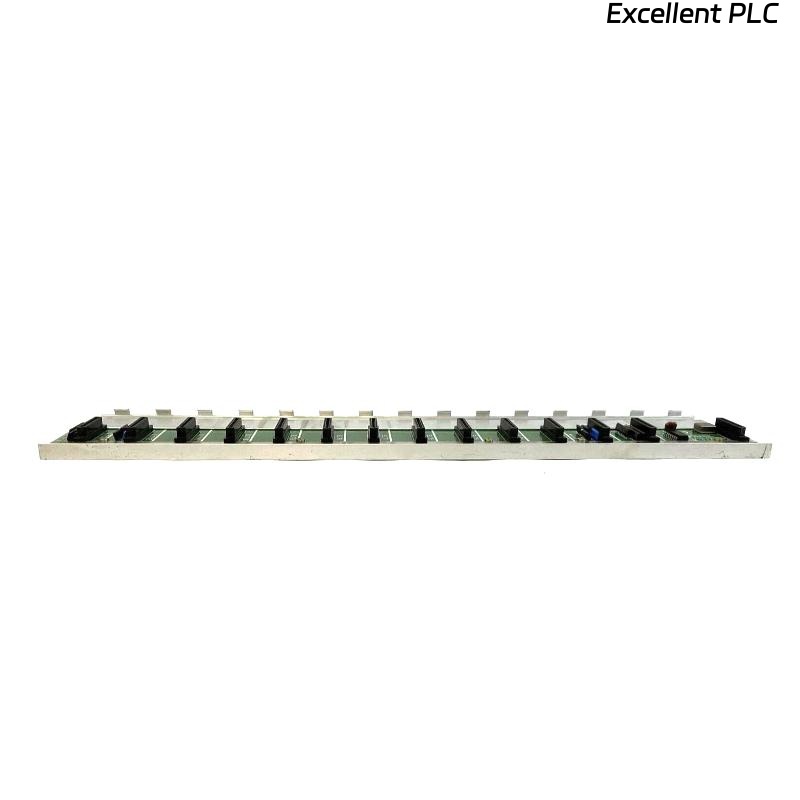

The Yokogawa F3BU13-0N Base Module is a 13-slot modular base designed for the FA-M3 series multi-controller systems. It provides robust support for CPU, I/O, and power supply modules, ensuring stable performance in industrial automation applications. Its modular architecture enables easy scalability and maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | F3BU13-0N |
| Total Slots | 13 (12 I/O + 1 CPU) |
| Dimensions (W × H × D) | 439 × 100 × 88.8 mm |
| Weight | 0.47 kg |
| Current Consumption | 50 mA at 5V DC |
| Operating Temperature | 0°C to 55°C |
| Mounting | DIN rail or panel mountable |
| Compatible Power Modules | F3PU20, F3PU26, F3PU30, F3PU36 |
Applications
The F3BU13-0N Base Module is widely used in:
-
Process control systems
-
Industrial automation monitoring
-
Modular and scalable control systems
-
Multi-controller setups requiring high reliability
Advantages
-
High modularity enabling flexible system design
-
Compact footprint while supporting up to 13 slots
-
Stable electrical performance and low current consumption
-
Wide operating temperature range for industrial environments
-
Easy installation with DIN rail or panel mounting
Frequently Asked Questions (FAQ)
1. How many modules can the F3BU13-0N support?
It supports 12 I/O modules and 1 CPU module, for a total of 13 slots.
2. What are the dimensions of the base module?
The module measures 439 × 100 × 88.8 mm.
3. What is the weight of the F3BU13-0N?
The module weighs 0.47 kg.
4. Which power supply modules are compatible?
Compatible power modules include F3PU20, F3PU26, F3PU30, and F3PU36.
5. What is the operating temperature range?
The module operates between 0°C and 55°C.
6. How is the module mounted?
It can be mounted on a DIN rail or directly on a panel.
7. Is the module suitable for harsh industrial environments?
Yes, it supports a wide temperature range and stable electrical operation.
8. Can this module be used in process control applications?
Yes, it is designed for process control and industrial automation systems.
9. Does the module allow easy expansion?
Yes, its modular design allows easy addition or replacement of I/O modules.
10. What maintenance is required?
Routine inspection of slot connections and ensuring correct voltage supply is recommended.
Related Models (Same Series / Related)
| Model | Slots | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| F3BU7-0N | 7 | 250 × 100 × 88.8 | 0.28 |
| F3BU9-0N | 9 | 314 × 100 × 88.8 | 0.35 |
| F3BU11-0N | 11 | 376 × 100 × 88.8 | 0.42 |
| F3BU13-0N/D2 | 13 | 439 × 100 × 88.8 | 0.47 |
| F3BU15-0N | 15 | 502 × 100 × 88.8 | 0.53 |
| F3BU16-0N | 16 | 536 × 100 × 88.8 | 0.57 |
