Product Overview

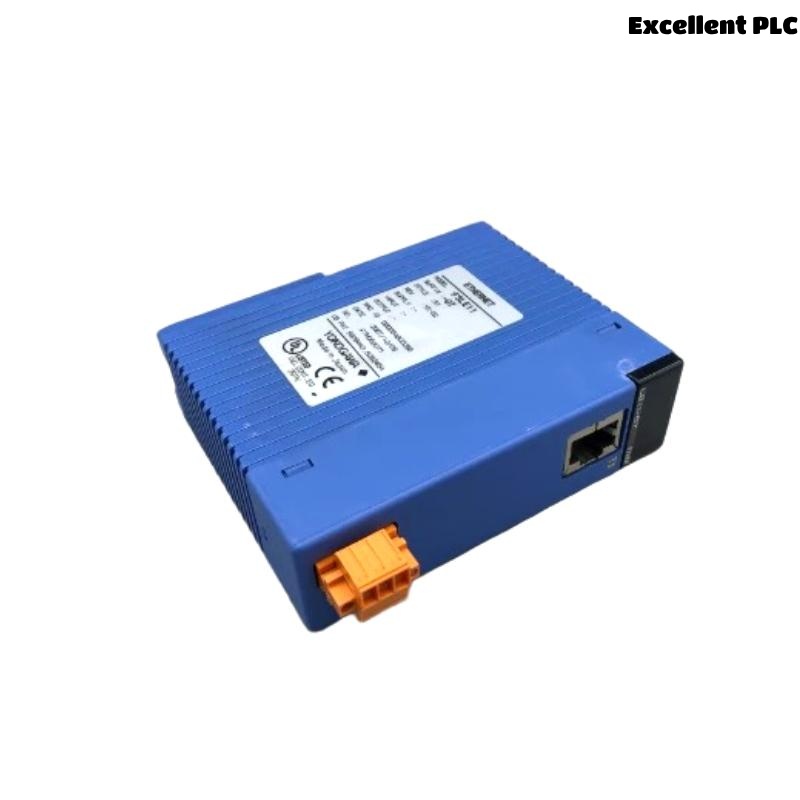

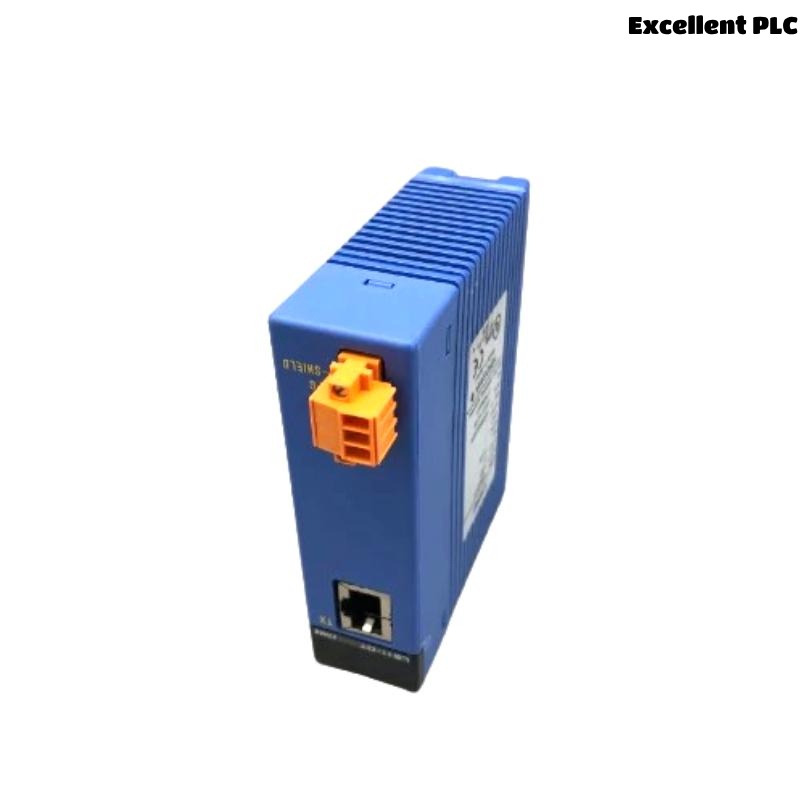

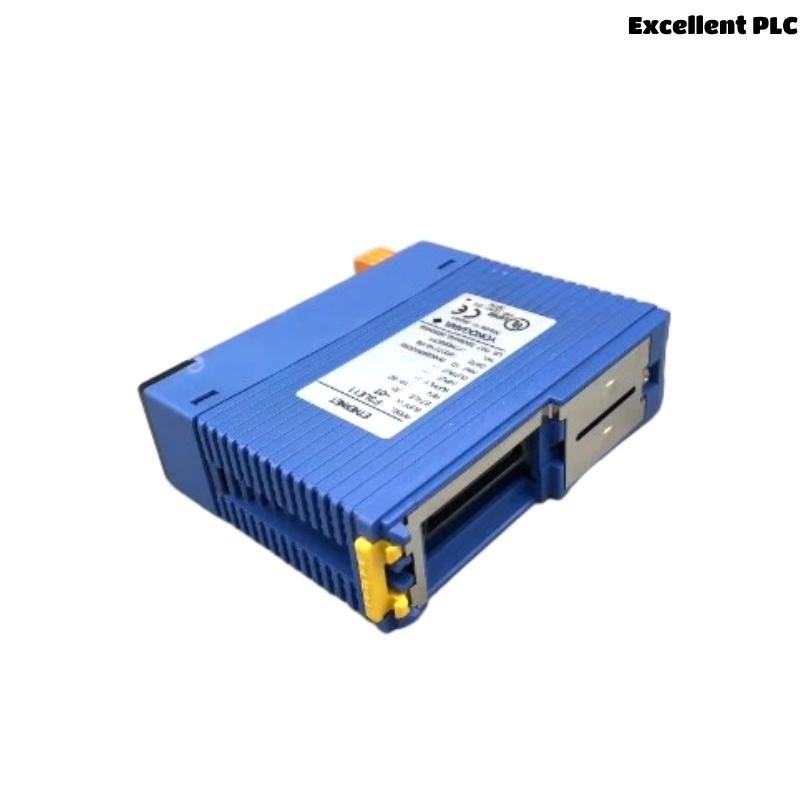

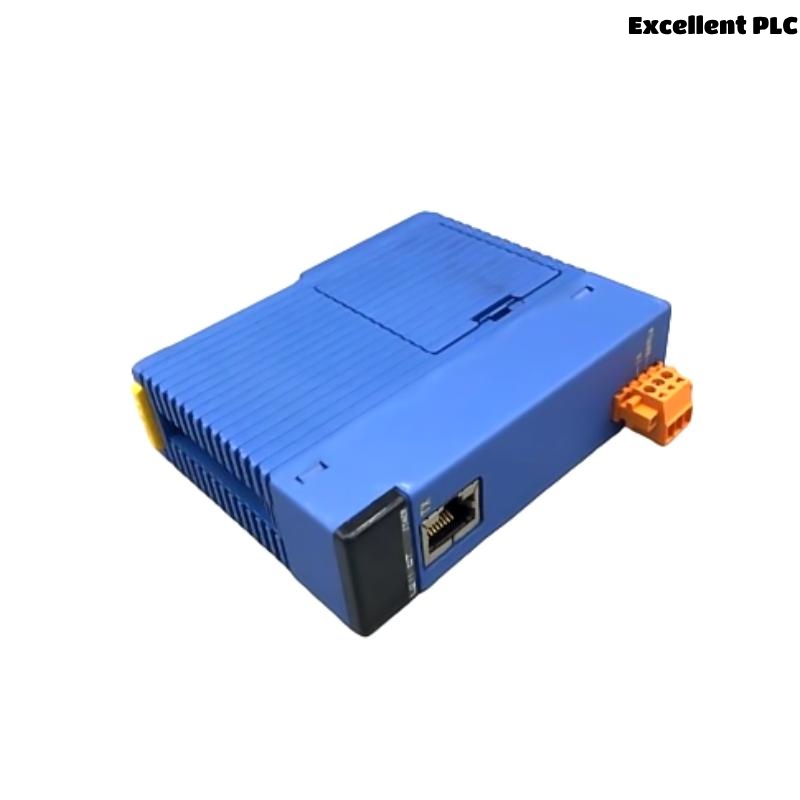

The Yokogawa F3LE11-0T Ethernet Interface Module is an advanced communication solution designed to integrate field devices with industrial Ethernet networks. This module serves as a key component in modern control systems, offering seamless and high-speed communication between devices, controllers, and data acquisition systems.
The F3LE11-0T module is specifically engineered for demanding industrial environments where reliable and fast data transfer is essential. Its compatibility with a wide range of devices and industrial protocols makes it highly versatile, catering to applications across various sectors such as process automation, power generation, and manufacturing.
With robust features, ease of integration, and high scalability, the F3LE11-0T enables businesses to build future-proof automation systems capable of handling the increasing demands of modern industries.
Product Specifications
| Specification | Details |
|---|---|
| Product Model | F3LE11-0T Ethernet Interface Module |
| Manufacturer | Yokogawa |
| Bus Type | Ethernet |
| Communication Protocols | TCP/IP, UDP, Modbus TCP, EtherNet/IP |
| Power Supply | 24 V DC ± 20% |
| Dimensions (W x H x D) | 28.98 x 100 x 83.2 mm |
| Weight | 0.13 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Humidity Range | 10% to 95% RH (non-condensing) |
| Mounting Type | DIN Rail Mounting |
| LED Indicators | Power, Status, Communication, and Error indicators |
| Compliance | CE, UL, RoHS certified |
| Material | Industrial-grade plastic and metal housing |
Applications
-
Process Automation
The module is widely used in industries such as chemical, pharmaceutical, and oil & gas for controlling and monitoring process systems. It provides seamless communication between devices and controllers, ensuring accurate and efficient operations. -
Power Generation and Distribution
In power plants, the module facilitates communication between control systems, remote devices, and sensors, ensuring reliable operation and safety in power generation, transmission, and distribution networks. -
Factory Automation
The F3LE11-0T enables high-speed data transfer in automated manufacturing plants. It connects machines, sensors, and control systems, optimizing processes such as assembly lines, robotics, and quality control. -
Building Management Systems (BMS)
Used in smart buildings, the module integrates various systems such as HVAC, lighting, and security into a unified Ethernet network for efficient management and energy savings. -
Water and Wastewater Treatment
The module helps integrate sensors, actuators, and control systems in water treatment plants, providing real-time monitoring and control to ensure optimal water quality and compliance with regulations. -
Remote Monitoring and Control
The Ethernet interface allows remote monitoring and control of devices, making it ideal for applications where operations need to be supervised from a central control room or via cloud-based systems.
Advantages
-
High-Speed Communication
Supporting Ethernet-based communication protocols such as TCP/IP and EtherNet/IP, the F3LE11-0T provides fast and reliable data transfer, enabling real-time monitoring and control. -
Versatile Protocol Support
The module is compatible with multiple industrial communication protocols, including Modbus TCP and UDP, making it flexible and adaptable to various automation systems. -
Reliable and Robust
Designed for industrial environments, the F3LE11-0T offers high durability with resistance to temperature variations, humidity, and electromagnetic interference. -
Scalability
The module supports scalable system architectures, enabling easy expansion as your automation needs grow, and allows integration of additional field devices. -
Easy Integration
The module features an intuitive setup process and is compatible with various devices and controllers, making it easy to integrate into existing automation systems. -
Energy Efficient
With a 24V DC power supply, the F3LE11-0T operates efficiently, consuming minimal energy while delivering high performance in demanding industrial environments. -
Remote Monitoring Capabilities
Thanks to Ethernet-based communication, the F3LE11-0T can be easily monitored and controlled remotely, providing operators with the flexibility to manage devices from anywhere. -
Compact Design
The module’s compact size allows for installation in tight spaces, which is particularly useful in environments with limited room for equipment. -
Compliance with Industry Standards
The module is CE, UL, and RoHS certified, ensuring that it meets international safety, environmental, and quality standards.
Frequently Asked Questions (FAQ)
-
What is the main function of the F3LE11-0T Ethernet Interface Module?
It serves as an interface between Ethernet-based field devices and control systems, enabling fast and reliable data communication. -
What communication protocols does the F3LE11-0T support?
It supports TCP/IP, UDP, Modbus TCP, and EtherNet/IP protocols, offering flexibility in various industrial environments. -
Is the F3LE11-0T suitable for outdoor use?
While it is built to withstand industrial conditions, it is not specifically rated for outdoor use. It is best used in controlled indoor environments. -
What is the power supply requirement for this module?
The F3LE11-0T requires a 24V DC power supply. -
How is the F3LE11-0T module mounted?
The module can be mounted on a standard DIN rail, making installation straightforward. -
Can the F3LE11-0T be used for remote monitoring?
Yes, the module’s Ethernet interface allows for remote monitoring and control of devices via a network or cloud-based system. -
What is the environmental operating range for the F3LE11-0T?
The module operates within a temperature range of 0°C to 60°C and can be stored in temperatures ranging from -20°C to 70°C. -
Is the F3LE11-0T module compliant with global standards?
Yes, it is CE, UL, and RoHS certified, ensuring compliance with international safety and environmental standards. -
How much does the F3LE11-0T weigh?
The module weighs approximately 600 grams. -
What industries use the F3LE11-0T Ethernet Interface Module?
It is widely used in process automation, power generation, water treatment, factory automation, and building management systems.
Recommended Related Models from the Same Series
| Model Number | Key Features |
|---|---|
| F3LE11-1T | Enhanced version with additional communication ports for large systems. |
| F3LE12-0T | Compact Ethernet interface module for smaller installations. |
| F3LE11-2T | Supports dual Ethernet ports for redundant systems. |
| F3LE15-0T | Ethernet interface module with additional diagnostic functions. |
| F3LE11-3T | Suitable for use in high-performance systems with fast data transfer. |
| F3LE14-0T | Ethernet module designed for complex multi-network systems. |
