Product Overview

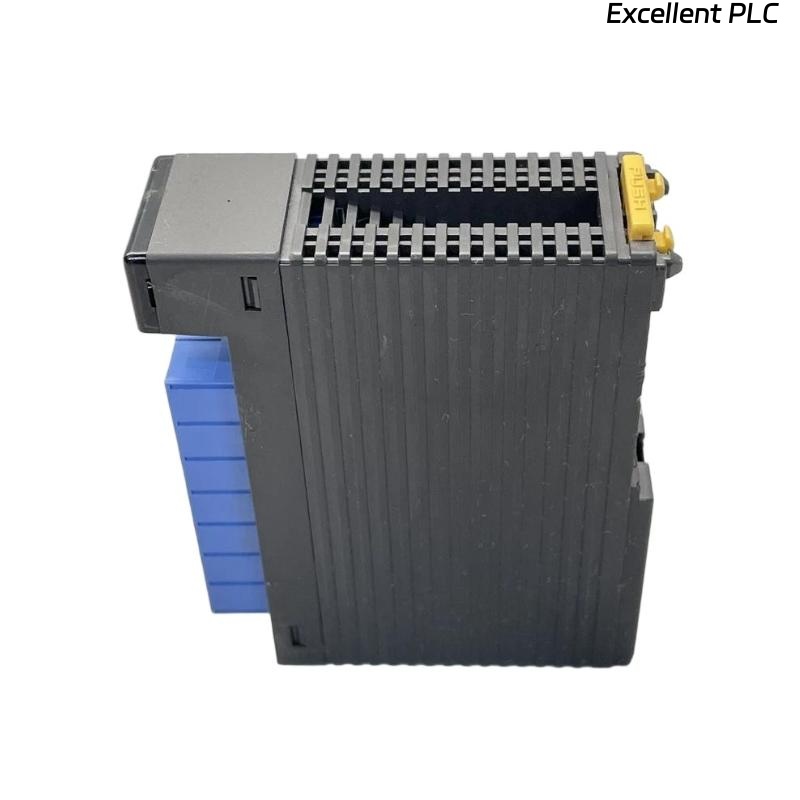

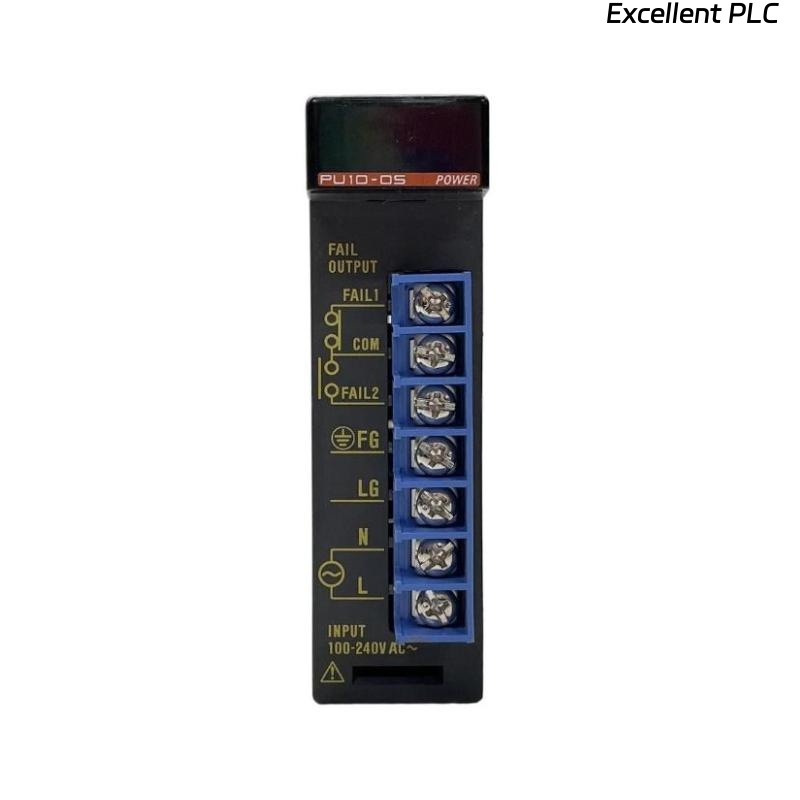

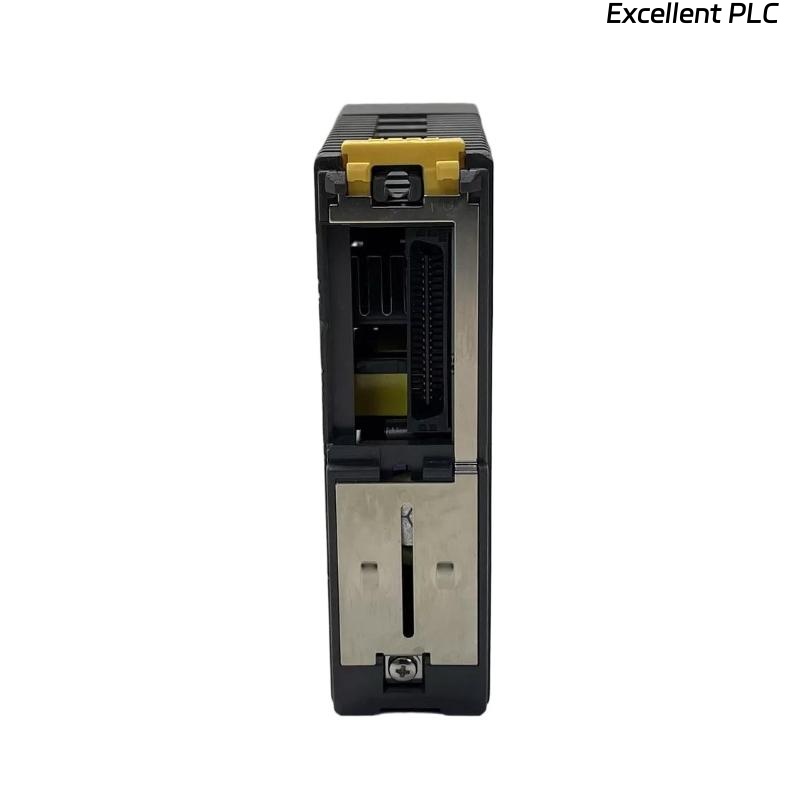

The Yokogawa F3PU10-0S Power Supply is a reliable and high-performance power module designed for the F3 Series control systems. It provides stable and regulated DC power to controllers and I/O modules, ensuring continuous operation of critical industrial automation systems.
Key Features
-
Provides stable and regulated DC power for F3 Series controllers and I/O modules
-
Supports continuous operation in industrial environments
-
Built-in protection against overcurrent, short circuits, and voltage fluctuations
-
Ensures reliable system performance and reduces downtime
-
Compact design for easy integration into F3 control racks
-
Compatible with all standard F3 Series modules
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | F3PU10-0S |
| Module Type | Power Supply |
| Output Voltage | 24 V DC |
| Output Current | 10 A |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Efficiency | ≥ 90% |
| Protection | Overcurrent, short circuit, overvoltage |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | DIN rail or panel mounting via base unit |
| Dimensions | 28.9 x 100 x 83.2 mm |
| Weight | 0.19 kg |
Industry Applications
-
Oil & Gas – Powering automation and control systems
-
Power Generation – Reliable operation of controller networks
-
Chemical & Petrochemical – Process control power supply
-
Water & Wastewater – SCADA and monitoring system power
-
Manufacturing – Power for automation and control networks
Advantages
-
Provides stable and reliable power to ensure uninterrupted operation
-
Protects connected modules with built-in safety features
-
Compact design allows easy integration into F3 racks
-
Enhances system reliability and reduces maintenance requirements
-
Supports critical industrial and process automation applications
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the F3PU10-0S?
It supplies stable DC power to Yokogawa F3 Series controllers and I/O modules.
Q2: What is the output voltage and current?
24 V DC output with a maximum of 10 A.
Q3: What is the input voltage range?
100–240 V AC, 50/60 Hz.
Q4: Does it have protection features?
Yes, it includes overcurrent, short circuit, and overvoltage protection.
Q5: Can it operate in industrial environments?
Yes, it is designed for reliable operation under industrial conditions.
Q6: What is the operating temperature range?
0 °C to +55 °C.
Q7: How is the module mounted?
It can be mounted on DIN rail or on a panel via the base unit.
Q8: What are the dimensions?
28.9 mm x 100 mm x 83.2 mm.
Q9: What is the module weight?
0.19 kg.
Q10: Which industries commonly use this power supply?
Oil & Gas, Power Generation, Chemical & Petrochemical, Water & Wastewater, and Manufacturing.
