Product Overview

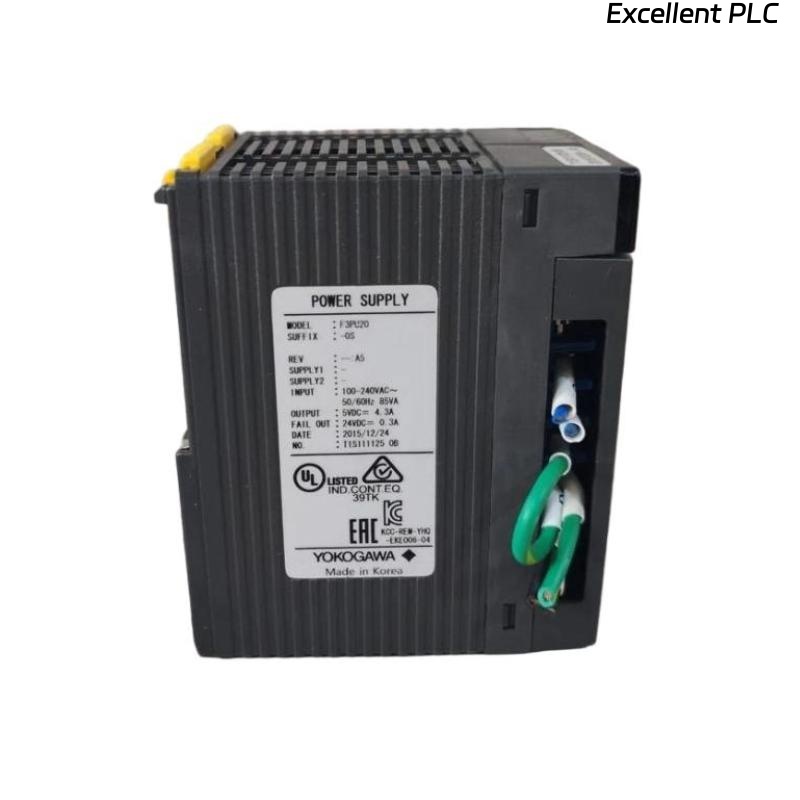

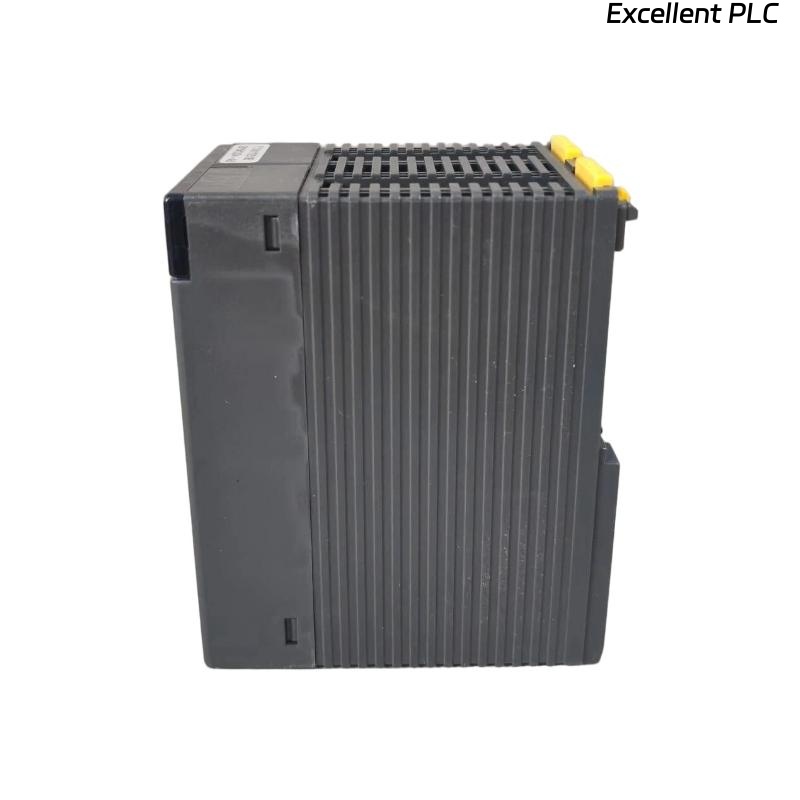

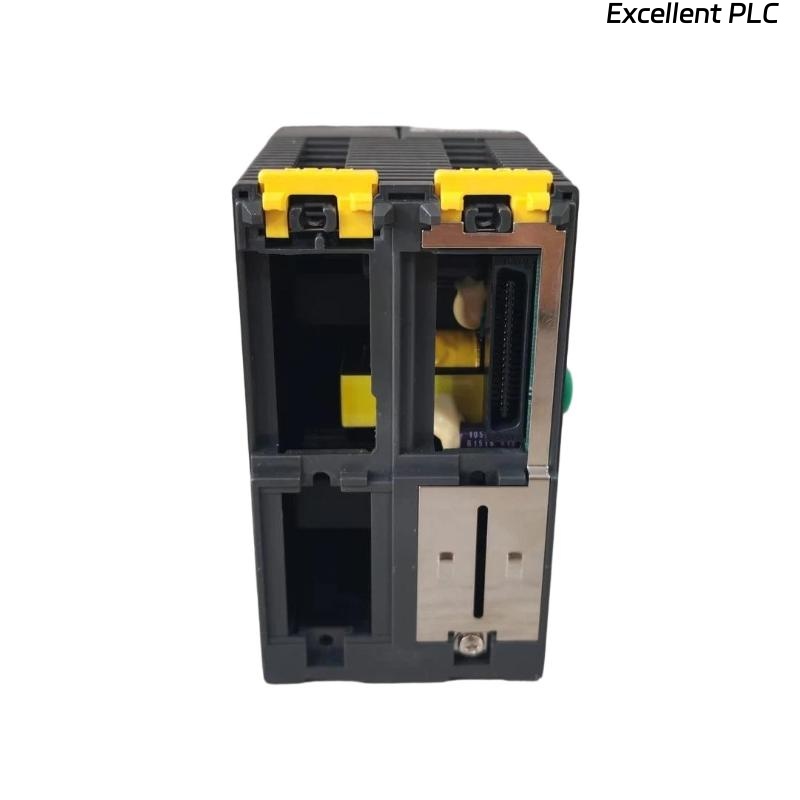

The Yokogawa F3PU20-0S Power Supply is a high-reliability, redundant power module designed for CENTUM VP distributed control systems. It provides stable DC power for field devices, interface modules, and system components, ensuring continuous operation even under fault or overload conditions.
Key Features
-
Redundant DC power supply for CENTUM VP system modules
-
Overload, short-circuit, and fault protection
-
High reliability for continuous industrial operation
-
Supports system expansion and additional module integration
-
Compact design suitable for DIN-rail or panel mounting
-
Simplifies maintenance and monitoring with status indicators
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | F3PU20-0S |
| Module Type | Redundant Power Supply Module |
| System Compatibility | Yokogawa CENTUM VP |
| Output Voltage | 24 VDC nominal |
| Output Current | 5 A per module |
| Power Rating | 120 W per module |
| Input Voltage | 100–240 VAC |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10% to 90% RH (non-condensing) |
| Dimensions | 58 x 100 x 83.2 mm |
| Weight | 0.32 kg |
| Mounting | DIN-rail or panel mounting |
| Indicators | Power ON and Fault LEDs |
Industry Applications
-
Oil & Gas – Redundant power for control systems and field devices
-
Power Generation – Ensures continuous operation for turbines, generators, and auxiliary systems
-
Chemical & Petrochemical – Reliable power for process control equipment
-
Water & Wastewater – Stable supply for sensors, pumps, and automation systems
-
Pharmaceutical & Food Processing – High-availability power for critical automation
Advantages
-
Provides redundant, stable DC power for CENTUM VP modules
-
Protects system components with overload, short-circuit, and fault protection
-
Supports system expansion and integration of additional modules
-
High reliability for continuous industrial operation
-
Simplifies maintenance and monitoring with clear indicators
Frequently Asked Questions (FAQ)
Q1: What is the main function of the F3PU20-0S module?
It provides redundant DC power for CENTUM VP system modules to ensure continuous operation.
Q2: What is the output voltage and current?
It provides 24 VDC at 5 A per module.
Q3: What is the input voltage range?
100–240 VAC.
Q4: What is the operating temperature range?
0 °C to 55 °C.
Q5: How is the module mounted?
It can be mounted on DIN-rails or control panels.
Q6: What indicators are included?
Power ON and Fault LEDs indicate module status.
Q7: Is the module suitable for harsh industrial environments?
Yes, it is designed for reliable operation under demanding conditions.
Q8: What is the weight of the module?
Approximately 0.32 kg.
Q9: Can it support system expansion?
Yes, it can provide power to additional modules as needed.
Q10: Which industries commonly use this power supply?
Industries include oil & gas, power generation, chemical, water treatment, and pharmaceuticals.
