Product Overview

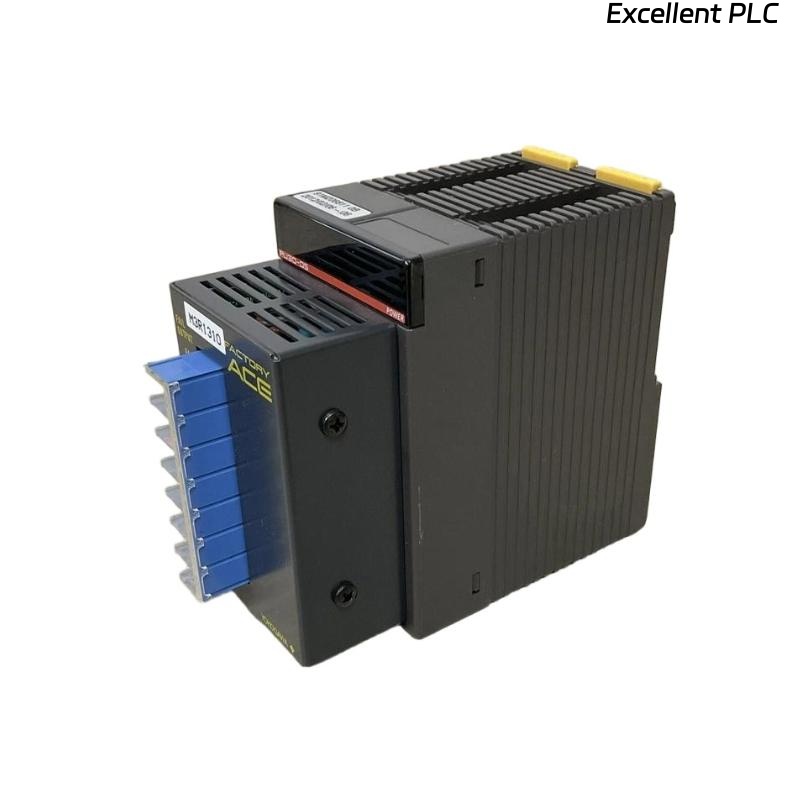

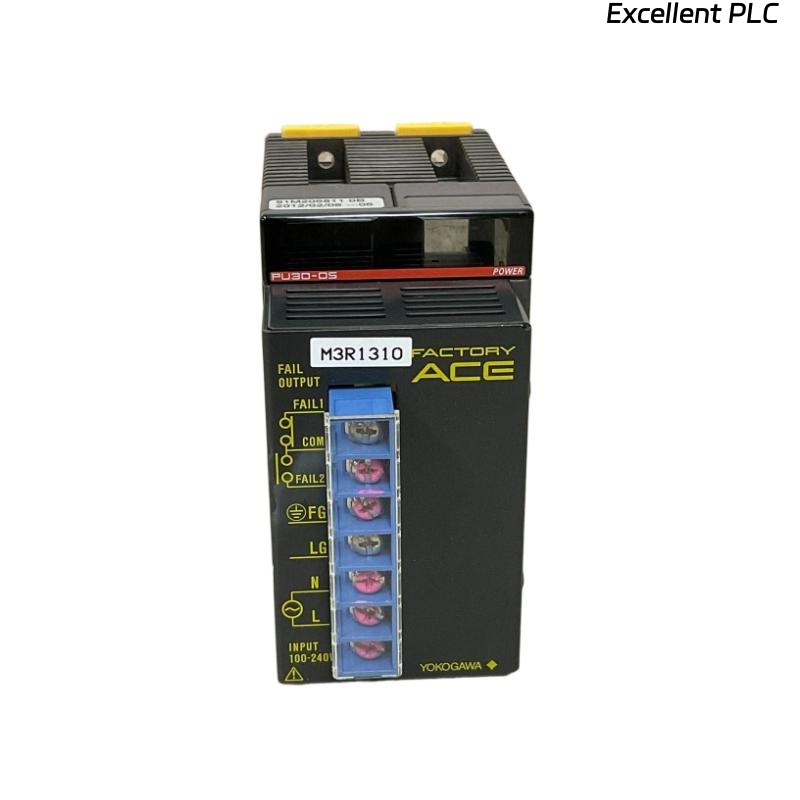

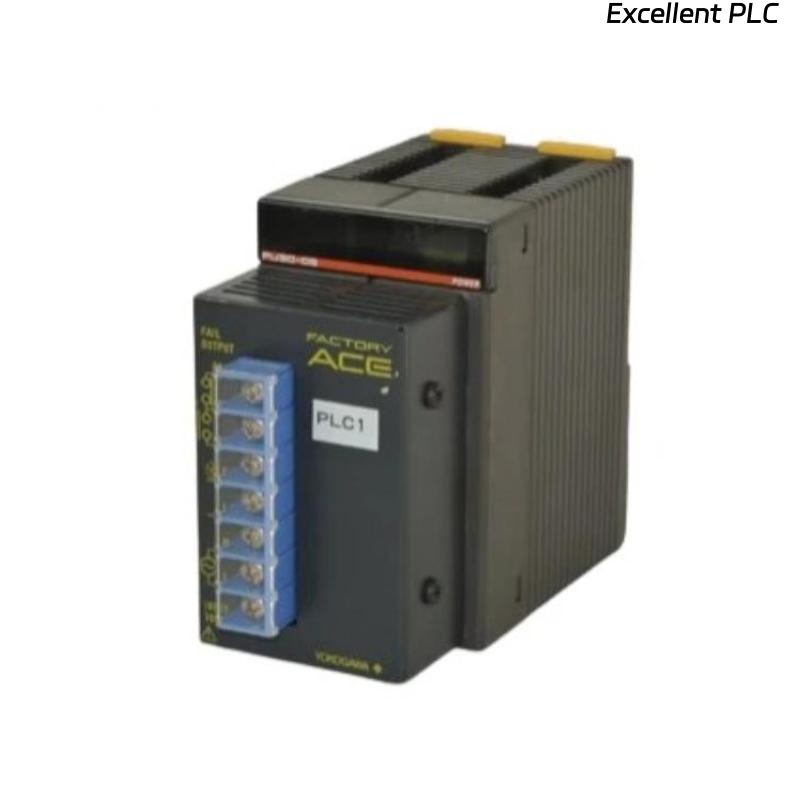

The Yokogawa F3PU30 Power Supply is a high-capacity, high-reliability module designed for CENTUM VP distributed control systems. It delivers stable DC power to field devices, interface modules, and system components, supporting large-scale automation systems and demanding industrial operations.
Key Features
-
High-capacity DC power output for CENTUM VP modules
-
Overload, short-circuit, and fault protection
-
High reliability for continuous industrial operation
-
Supports integration of additional modules and system expansion
-
Compact and rugged design for DIN-rail or panel mounting
-
Simplifies maintenance and monitoring with clear status indicators
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | F3PU30 |
| Module Type | High-capacity Power Supply Module |
| System Compatibility | Yokogawa CENTUM VP |
| Output Voltage | 24 VDC nominal |
| Output Current | 10 A |
| Power Rating | 240 W |
| Input Voltage | 100–240 VAC |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10% to 90% RH (non-condensing) |
| Dimensions | 58 x 100 x 126.1 mm |
| Weight | 0.38 kg |
| Mounting | DIN-rail or panel mounting |
| Indicators | Power ON and Fault LEDs |
Industry Applications
-
Oil & Gas – Provides reliable power for large control systems and field devices
-
Power Generation – Supports turbines, generators, and auxiliary systems with high-capacity power
-
Chemical & Petrochemical – Ensures stable power for process control equipment
-
Water & Wastewater – Supplies high-capacity power for sensors, pumps, and automation systems
-
Pharmaceutical & Food Processing – Enables continuous operation for critical automation systems
Advantages
-
Delivers high-capacity, stable DC power to CENTUM VP modules
-
Protects system components with overload, short-circuit, and fault protection
-
Supports system expansion and integration of additional modules
-
Ensures continuous operation under demanding industrial conditions
-
Simplifies maintenance and monitoring with clear status indicators
Frequently Asked Questions (FAQ)
Q1: What is the main function of the F3PU30 module?
It provides high-capacity DC power for CENTUM VP system modules.
Q2: What is the output voltage and current?
It provides 24 VDC at 10 A.
Q3: What is the input voltage range?
100–240 VAC.
Q4: What is the operating temperature range?
0 °C to 55 °C.
Q5: How is the module mounted?
It can be mounted on DIN-rails or control panels.
Q6: What indicators are included?
Power ON and Fault LEDs indicate module status.
Q7: Is the module suitable for harsh industrial environments?
Yes, it is designed for reliable operation under demanding conditions.
Q8: What is the weight of the module?
Approximately 0.38 kg.
Q9: Can it support system expansion?
Yes, it can provide power to additional modules as needed.
Q10: Which industries commonly use this power supply?
Industries include oil & gas, power generation, chemical, water treatment, and pharmaceuticals.
