Product Overview

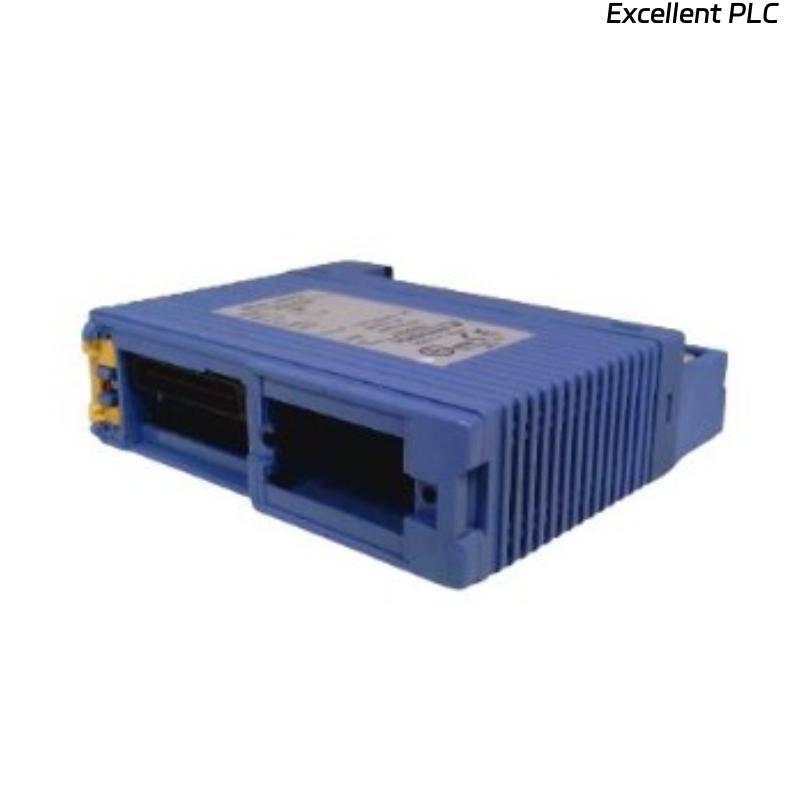

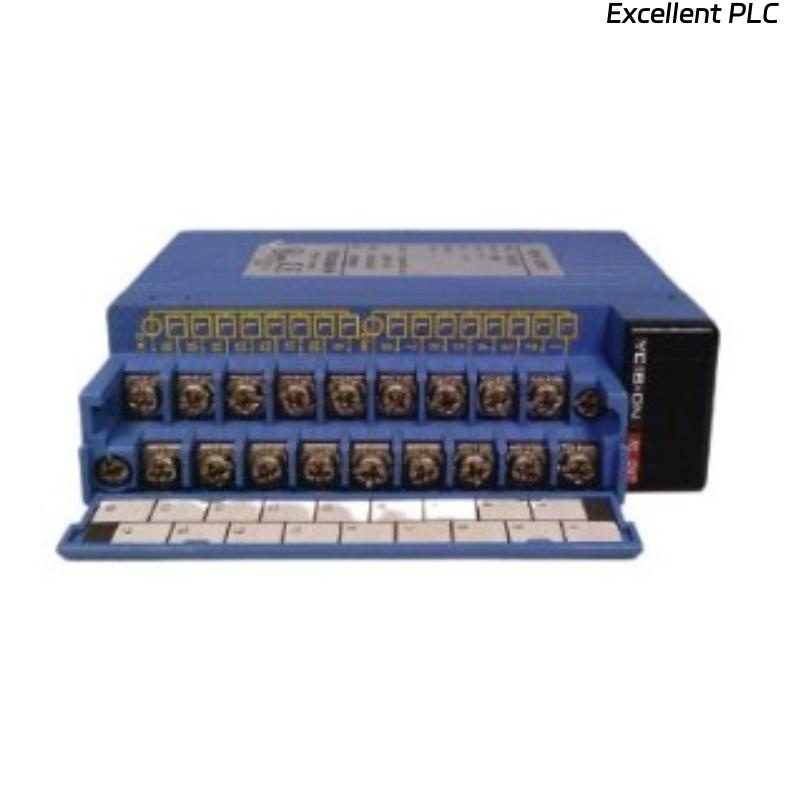

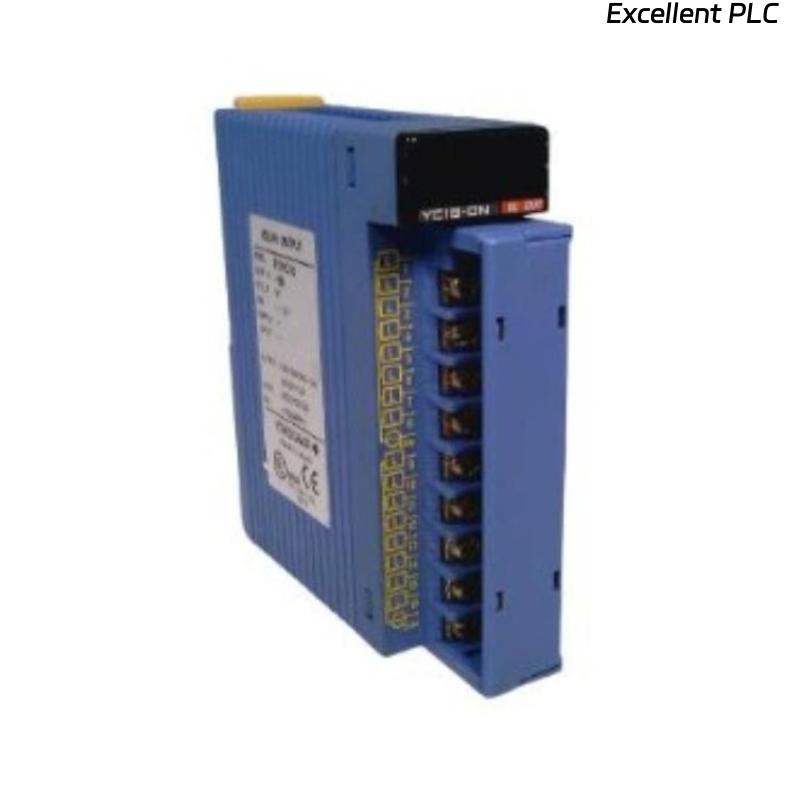

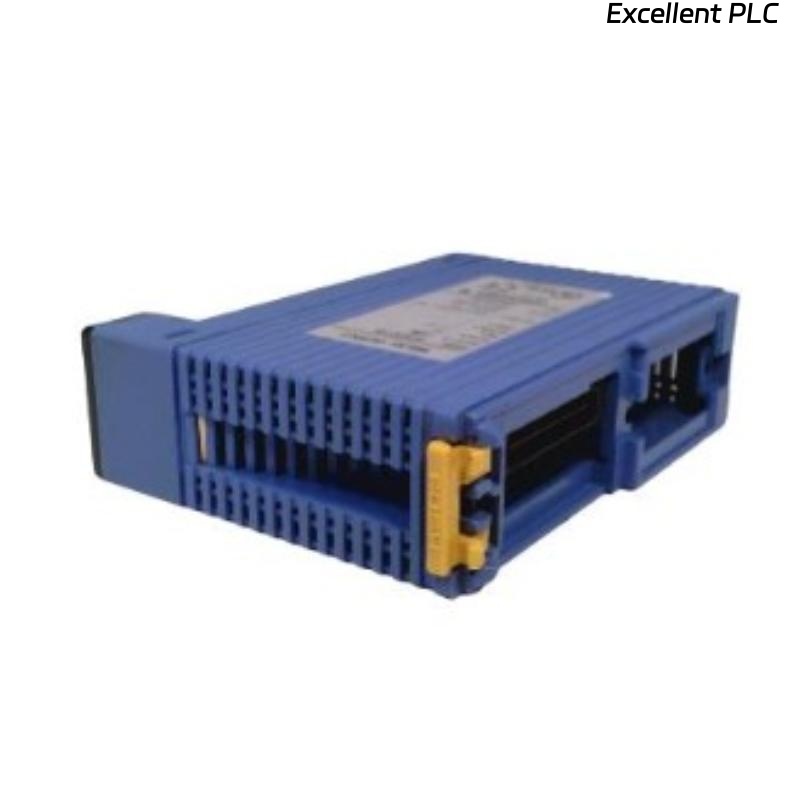

The Yokogawa F3YC16-0N Output Module is a high-performance digital output module designed for the F3 Series control systems, providing reliable control signals to actuators, relays, and other field devices. It enables precise operation of automated processes by converting controller commands into real-world actions.
Key Features
-
16-channel digital output module
-
High-speed switching for real-time control
-
Compatible with Yokogawa F3 Series controllers and I/O modules
-
Industrial-grade design for reliable operation in harsh environments
-
Simplifies system integration and expansion
-
Built-in protection against short circuits and overloads
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | F3YC16-0N |
| Module Type | Digital Output Module |
| Compatible System | Yokogawa F3 Series Controllers |
| Output Channels | 16 digital output channels |
| Output Type | DC/Relay (configurable) |
| Maximum Switching Current | 2 A per channel |
| Maximum Switching Voltage | 30 V DC |
| Response Time | ≤ 1 ms |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Power Supply | Supplied via F3 base unit |
| Mounting | DIN rail or panel mounting via base unit |
| Dimensions | 28.9 × 100 × 83.2 mm |
| Weight | 0.22 kg |
Industry Applications
-
Oil & Gas – Controlling valves, actuators, and relays
-
Power Generation – Field device control for turbines and generators
-
Chemical & Petrochemical – Automation of process control equipment
-
Water & Wastewater – Pump, motor, and valve control
-
Manufacturing – Industrial automation and machinery control
Advantages
-
Provides fast and reliable digital output signals
-
Compatible with multiple F3 Series modules for system expansion
-
Industrial-grade design ensures stable operation in harsh environments
-
Protects connected devices with built-in overload and short circuit protection
-
Simplifies integration and improves automation efficiency
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the F3YC16-0N module?
It provides 16-channel digital output control for F3 Series control systems.
Q2: What types of outputs are supported?
DC and relay outputs, configurable per channel.
Q3: How many channels does it support?
16 digital output channels.
Q4: Can it operate in industrial environments?
Yes, it is designed for reliable operation under industrial conditions.
Q5: What is the maximum switching current per channel?
2 A per channel.
Q6: What is the maximum switching voltage?
30 V DC.
Q7: How is the module powered?
Powered via the F3 base unit.
Q8: How is it mounted?
DIN rail or panel mounting via the base unit.
Q9: What are the module dimensions?
28.9 mm × 100 mm × 83.2 mm.
Q10: What is the module weight?
Approx. 0.22 kg.
