Product Introduction

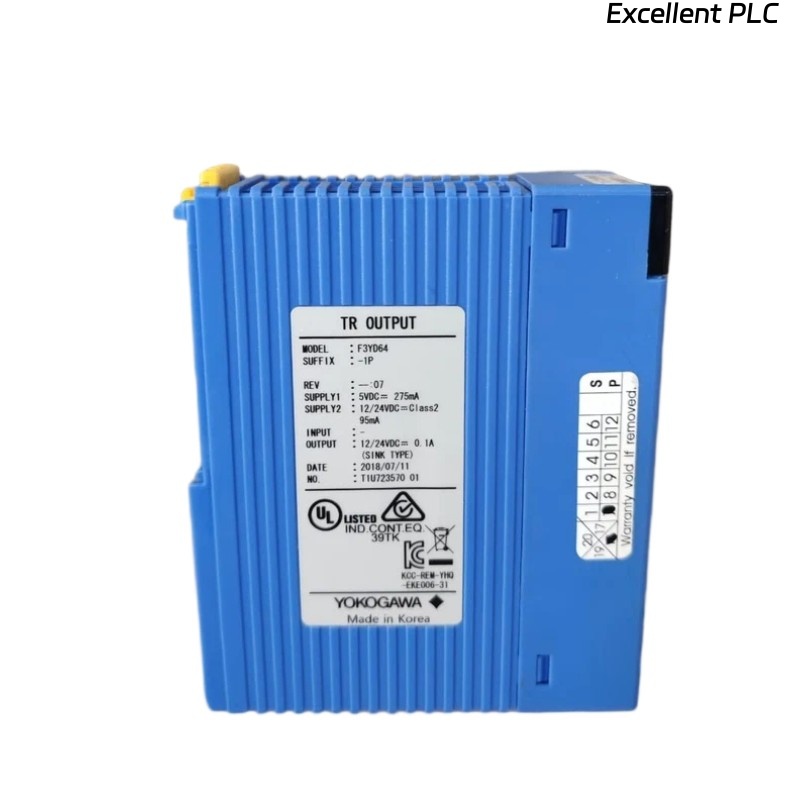

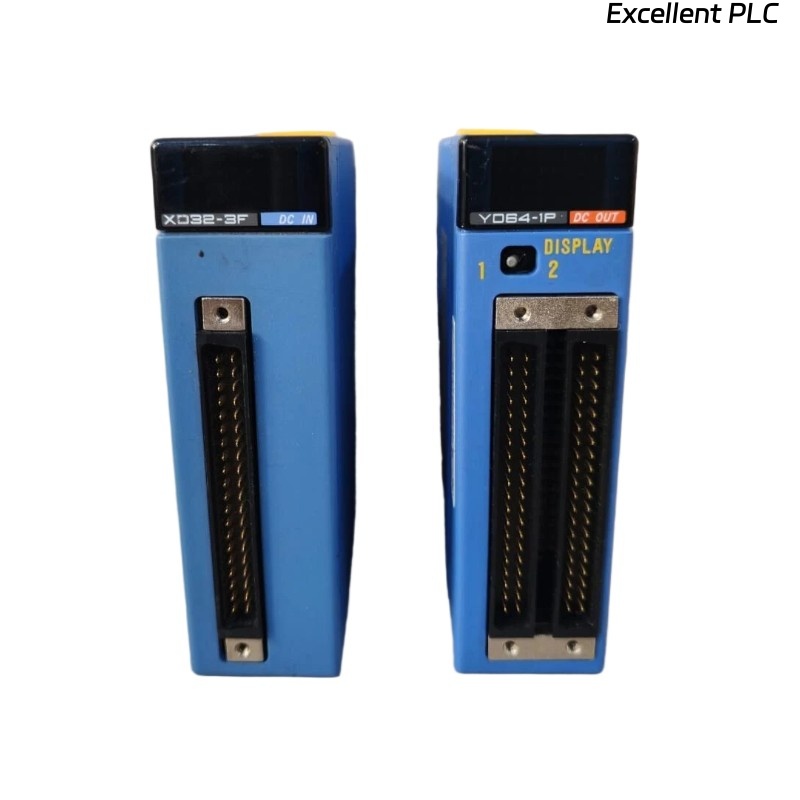

The Yokogawa F3YD64-1P Transistor Output Module is a high-density digital output unit designed for the Yokogawa FA-M3 PLC system. It offers 64 transistor output channels in a compact form factor, making it suitable for applications where large-scale digital signal switching is required.
This module uses sinking-type transistor outputs, enabling fast and reliable switching of DC loads such as solenoids, relays, and small actuators. Its compact design allows for high channel density, reducing space requirements in control cabinets while ensuring efficiency and scalability.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | Yokogawa F3YD64-1P |
| Module Type | Transistor Output Module |
| Number of Channels | 64 points |
| Output Type | Transistor (sinking type) |
| Output Voltage | 24 V DC (rated), 5–30 V DC (operating range) |
| Output Current per Channel | 0.1 A (maximum) |
| Common Terminal | 16-point common |
| Response Time | Typically less than 0.2 ms |
| Power Supply Voltage | Supplied from base unit (5 V DC internal) |
| Heat Dissipation | 3 W |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 70 °C |
| Dimensions | 28.9 x 85.1 x 102mm |
| Weight | 0.13 kg |
Product Applications
-
Factory Automation (FA): Used in controlling actuators, valves, relays, and solenoids in automated production lines.
-
Process Control: Provides digital outputs to field devices in chemical, oil & gas, and power plants.
-
Machine Control: Suited for packaging machines, assembly equipment, and conveyor systems.
-
Building Automation: Can be applied in lighting and HVAC system control.
-
Test Equipment: Enables high-speed digital output switching in test benches and inspection systems.
Product Advantages
-
High Channel Density – 64 channels in one compact module, saving cabinet space.
-
Fast Response – Transistor outputs ensure quick switching, improving system performance.
-
Low Power Consumption – Designed with efficient circuitry, minimizing energy use.
-
Robust Isolation – Photo-coupler isolation enhances system reliability and protects against electrical noise.
-
Modular Scalability – Easily integrated into Yokogawa FA-M3 PLC systems with flexible expansion.
-
Industrial Reliability – Built for harsh environments with stable performance under wide operating conditions.
FAQ
Q1: What type of load is best suited for the F3YD64-1P module?
A1: It is best suited for DC loads such as solenoids, small relays, and actuator coils within the rated voltage/current range.
Q2: Can this module drive AC loads directly?
A2: No, it is designed for DC loads only. For AC control, use relay or SSR interfaces.
Q3: What is the isolation method used between field outputs and internal circuits?
A3: It uses photo-coupler isolation to ensure noise immunity and system protection.
Q4: Does the F3YD64-1P support pulse output for high-speed applications?
A4: It is primarily for standard switching; pulse output functionality is limited compared to high-speed output modules.
Q5: How many common terminals are available for wiring?
A5: The module provides 16-point commons to simplify wiring connections.
Q6: Can multiple output channels be switched simultaneously without performance degradation?
A6: Yes, simultaneous switching is supported as long as total current limits are not exceeded.
Q7: What is the maximum current capacity per channel?
A7: Each channel supports up to 0.1 A maximum output current.
Q8: What protection features are included in the module?
A8: It has internal protection against overvoltage and electrical noise but requires external fuses for load protection.
Q9: Is hot-swapping supported for this output module?
A9: No, the module should only be inserted or removed when the PLC power is turned off.
Q10: How fast is the switching response time?
A10: The typical switching response is less than 0.2 ms, making it suitable for high-speed logic operations.
