Product Introduction

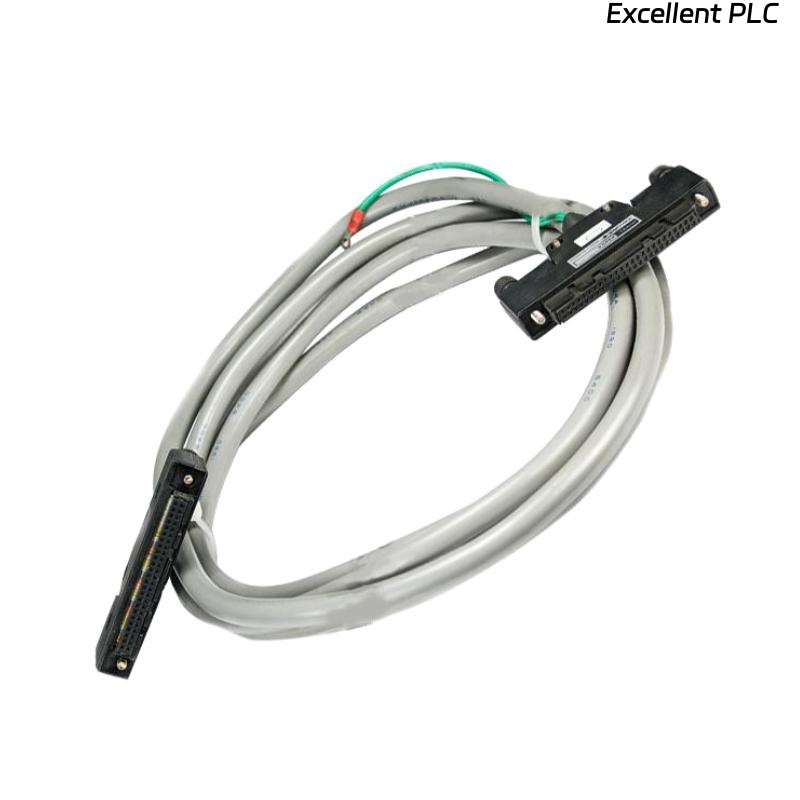

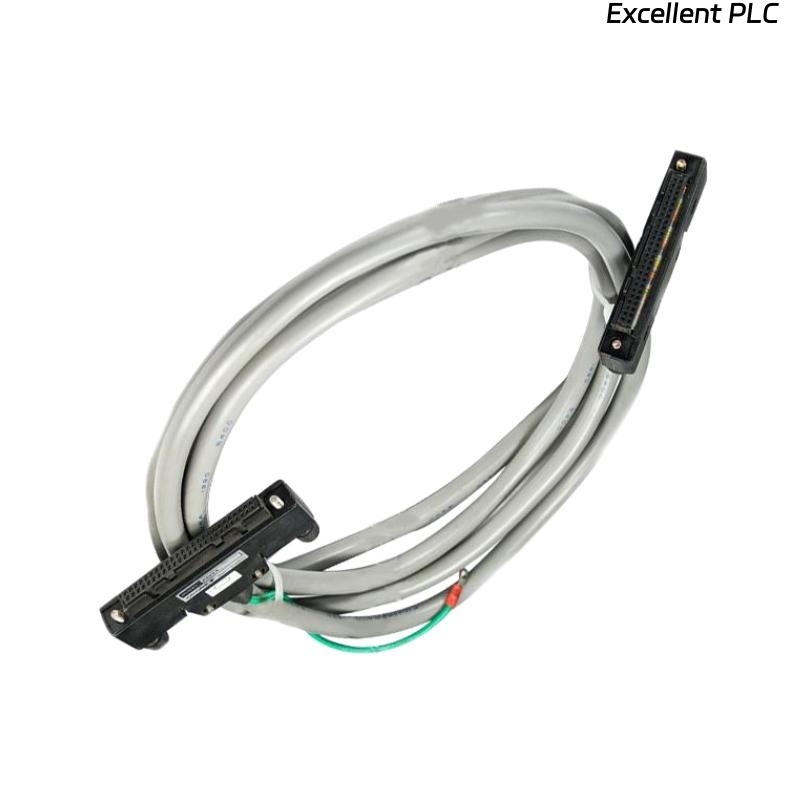

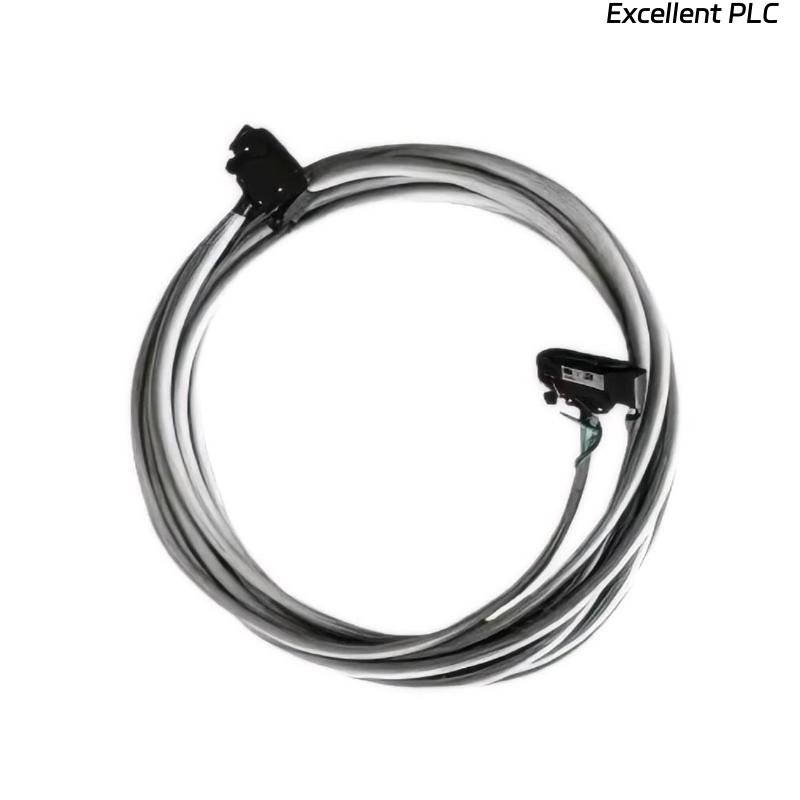

The Yokogawa KS9-20 Signal Cable is a specialized industrial-grade cable designed to provide reliable signal transmission in demanding process automation and instrumentation environments. Manufactured to Yokogawa’s strict standards, it guarantees precision, durability, and stable performance when used with analyzers, controllers, transmitters, and data acquisition systems.
With a length of 20 meters and a shipping weight of 3 kg, the KS9-20 is suitable for long-distance wiring applications within industrial plants. Its shielded design minimizes signal distortion caused by electromagnetic interference (EMI), ensuring accurate and stable communication across distributed control systems (DCS) and supervisory control and data acquisition (SCADA) platforms.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | KS9-20 |
| Cable Type | Signal/Instrumentation Cable |
| Cable Length | 20 meters |
| Shipping Weight | 3 kg |
| Conductor Material | High-purity copper |
| Conductor Cross-section | 0.5 mm² (typical) |
| Number of Conductors | 5 cores |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Outer Sheath Material | PVC or flame-retardant PVC |
| Shielding | Overall foil shield with drain wire |
| Rated Voltage | 300 V |
| Operating Temperature Range | –20 °C to +80 °C |
| Minimum Bend Radius | 10 × cable diameter |
| Compliance Standard | Yokogawa instrumentation standard |
Applications
The KS9-20 Signal Cable is suitable for a wide range of industrial applications:
-
Long-distance connection between Yokogawa analyzers and control systems.
-
Signal transmission in chemical and petrochemical processing facilities.
-
Wiring of field transmitters to control panels and distributed I/O modules.
-
Power generation plants requiring stable instrumentation wiring.
-
Reliable integration into DCS and SCADA architectures.
-
Use in laboratory and pilot-scale process systems requiring high signal integrity.
Advantages
-
Extended Cable Length: 20 m length ideal for long-distance signal wiring.
-
High Signal Integrity: Shielded construction ensures accurate analog and digital signal transmission.
-
Durable Build: Resistant to chemical exposure, abrasion, and industrial wear.
-
Electromagnetic Protection: Foil shield with drain wire minimizes EMI and crosstalk.
-
Temperature Stability: Reliable performance between –20 °C and +80 °C.
-
Standard Compliance: Built to Yokogawa instrumentation standards for assured compatibility.
-
Versatility: Supports multi-signal transmission within a single cable.
-
Ease of Installation: Flexible yet robust for routing through panels and conduits.
FAQ
1. What type of signals can the KS9-20 transmit?
It supports both analog (mA, V) and digital low-voltage control signals.
2. How does the shielding improve signal reliability?
The foil shield and drain wire reduce electromagnetic interference and prevent signal distortion.
3. What is the rated voltage of the KS9-20?
It is rated for a maximum of 300 V.
4. Can this cable be directly buried underground?
It is not designed for direct burial; additional protective conduit is required.
5. What is the recommended minimum bend radius?
The cable should not be bent tighter than 10 times its diameter.
6. Can KS9-20 be used in hazardous areas?
Yes, if installed in accordance with local hazardous area wiring standards and using approved glands.
7. Does the cable support twisted pairs or parallel conductors?
It uses parallel insulated conductors with overall shielding, not twisted pairs.
8. How many conductors are inside the KS9-20 cable?
It contains 5 copper conductors.
9. Is the cable resistant to chemicals commonly found in industrial plants?
Yes, the PVC sheath offers resistance to oils, solvents, and mild acids.
10. Can this cable be used with non-Yokogawa equipment?
Yes, provided voltage, current, and shielding requirements are compatible.
