Product Overview

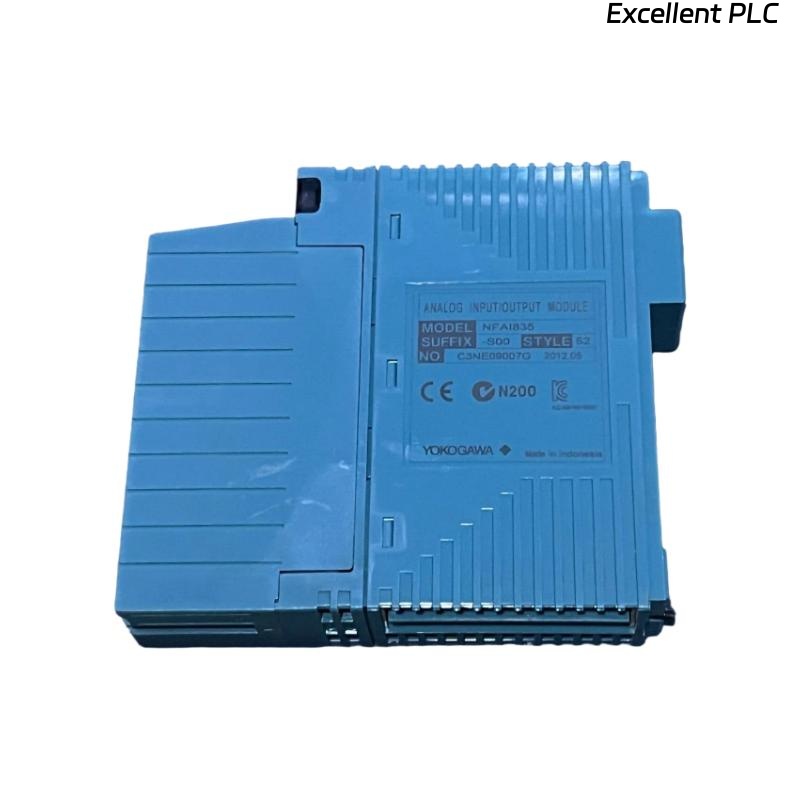

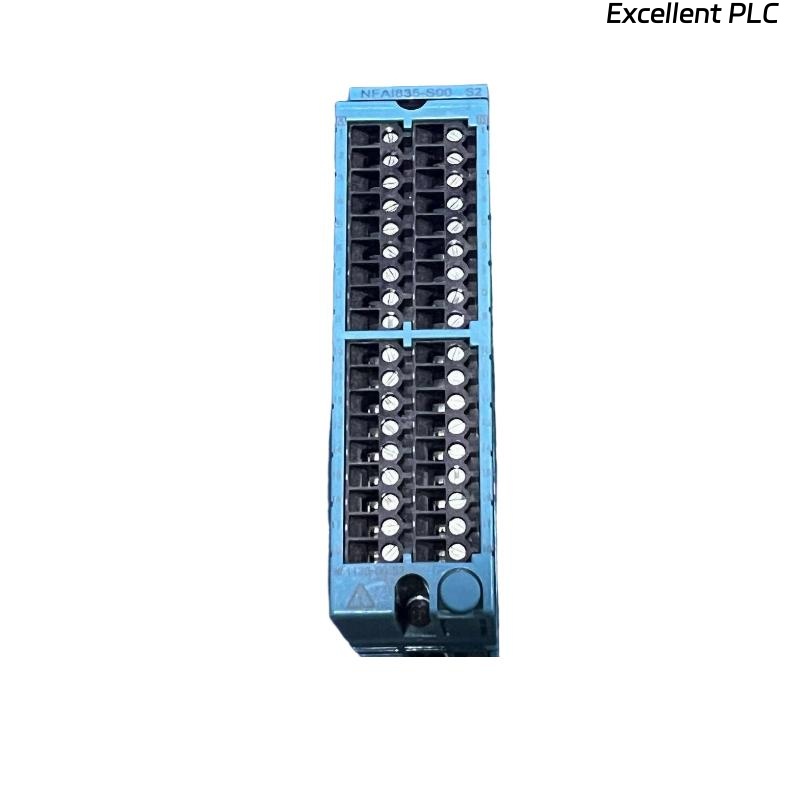

The Yokogawa NFAI835-S01 is an isolated analog input/output module designed to ensure high-precision signal processing and seamless integration in industrial automation systems. This module is equipped to handle a variety of analog signals, including current (4-20 mA) and voltage (0-10V) inputs and outputs. With its built-in isolation, the NFAI835-S01 ensures safe and efficient signal transmission while protecting sensitive control systems from electrical interference, noise, and surges.
The NFAI835-S01 module is an ideal solution for industries that require accurate analog signal conversion and isolation, such as power generation, oil and gas, manufacturing, and chemical processing. Its compact design allows for easy integration into various control systems, and its robust performance in demanding environments makes it highly reliable for continuous operations in industrial settings.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 32.8 × 107.5 × 130 mm |
| Weight | 0.3 kg |
| Input/Output Signals | 4-20 mA, 0-10V |
| Isolation | 1500 V Isolation |
| Communication Protocol | Modbus RTU |
| Power Supply | 24 VDC |
| Mounting Type | DIN Rail Mounting |
| Operating Temperature | -20°C to 60°C |
| Response Time | < 1 ms |
Product Applications
The Yokogawa NFAI835-S01 is designed for a wide range of industrial applications that require isolated signal processing. Some of its key applications include:
-
Power Generation: The module is used to convert signals from turbines, generators, and other power-related equipment into standardized outputs for control and monitoring systems.
-
Oil and Gas: It ensures safe and accurate transmission of sensor data, including pressure and flow rates, from offshore platforms or oil refineries to central control systems.
-
Manufacturing: In manufacturing systems, the module helps in converting input signals from temperature and pressure sensors into standardized outputs for automated systems like conveyors, robotic arms, and quality control processes.
-
Chemical Processing: The NFAI835-S01 is used to monitor and control critical variables such as temperature, pressure, and chemical flow, ensuring stable production and efficient operation in chemical plants.
-
Water Treatment: It facilitates the precise control of water flow and chemical dosing systems in treatment plants, enabling efficient operation and optimal resource use.
By providing high-level isolation and accuracy, the NFAI835-S01 ensures the protection and stability of automation systems in harsh industrial environments.
Product Advantages
-
High Isolation: The NFAI835-S01 provides 1500 V isolation, which protects the connected equipment from electrical surges, noise, and faults, ensuring stable and secure system performance.
-
Wide Compatibility: With support for 4-20 mA and 0-10V input and output signals, the NFAI835-S01 is compatible with a broad range of industrial sensors and control systems.
-
Compact and Efficient: The module’s compact size (32.8 × 107.5 × 130 mm) makes it easy to integrate into control panels, saving space without compromising on performance.
-
Real-Time Data Conversion: The NFAI835-S01 has a fast response time of less than 1 ms, making it suitable for applications that require real-time data processing.
-
Modbus RTU Communication: The module uses Modbus RTU, a widely used industrial communication protocol, making it easy to integrate with existing SCADA and control systems.
-
Wide Temperature Range: Operating effectively in temperatures from -20°C to 60°C, the module is designed for use in diverse environmental conditions, including harsh industrial settings.
FAQ
1. What input/output signals are supported by the NFAI835-S01?
The NFAI835-S01 supports 4-20 mA and 0-10V input and output signals, making it versatile for a variety of industrial sensors and devices.
2. What is the isolation rating of the NFAI835-S01?
The module provides 1500 V isolation, ensuring protection against electrical surges, noise, and other disturbances.
3. What communication protocol does the NFAI835-S01 use?
The NFAI835-S01 uses Modbus RTU, a standard communication protocol widely used in industrial automation and control systems.
4. Can the NFAI835-S01 be used in outdoor applications?
Yes, the NFAI835-S01 operates in a wide temperature range of -20°C to 60°C, making it suitable for both indoor and outdoor industrial applications.
5. How is the NFAI835-S01 mounted in control systems?
The NFAI835-S01 is designed for DIN rail mounting, allowing easy installation in control panels or automation systems.
6. How does the NFAI835-S01 ensure signal accuracy?
With its built-in isolation and high-performance analog-to-digital conversion, the NFAI835-S01 ensures accurate and reliable signal processing for industrial control systems.
7. What industries benefit from using the NFAI835-S01?
Industries such as power generation, oil and gas, chemical processing, and water treatment benefit from the NFAI835-S01’s precise signal conversion and isolation capabilities.
8. What is the response time of the NFAI835-S01?
The NFAI835-S01 has a response time of less than 1 ms, which ensures real-time signal conversion for time-sensitive applications.
9. Can the NFAI835-S01 be used in hazardous environments?
While the NFAI835-S01 is suitable for industrial environments, users should verify if it meets specific hazardous location certifications required for their application.
10. How does the NFAI835-S01 improve system reliability?
The isolation feature of the NFAI835-S01 helps prevent electrical faults from propagating to sensitive control systems, improving overall system stability and reducing downtime.
