Product Overview

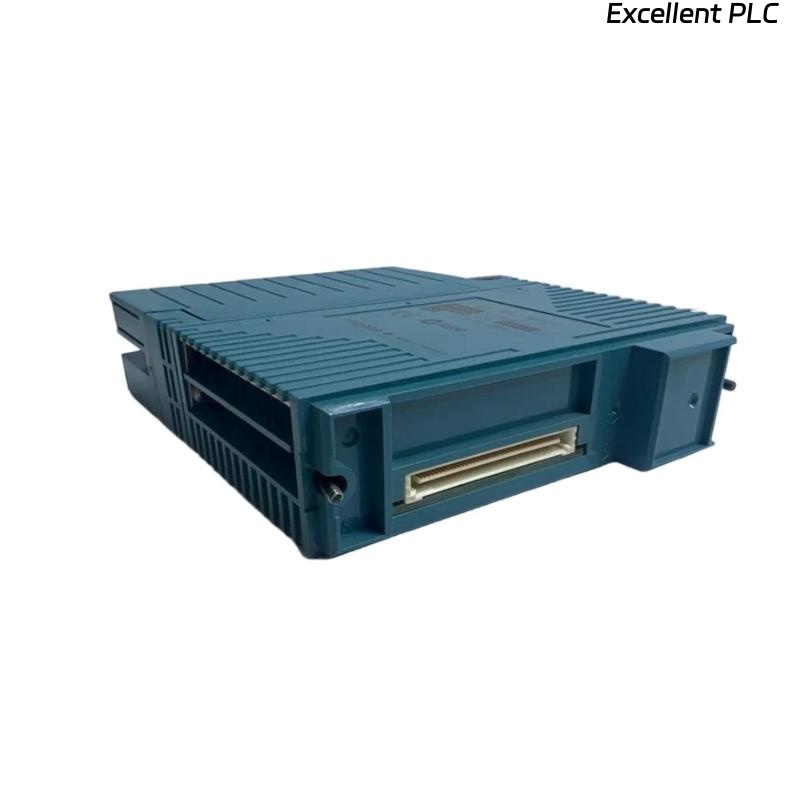

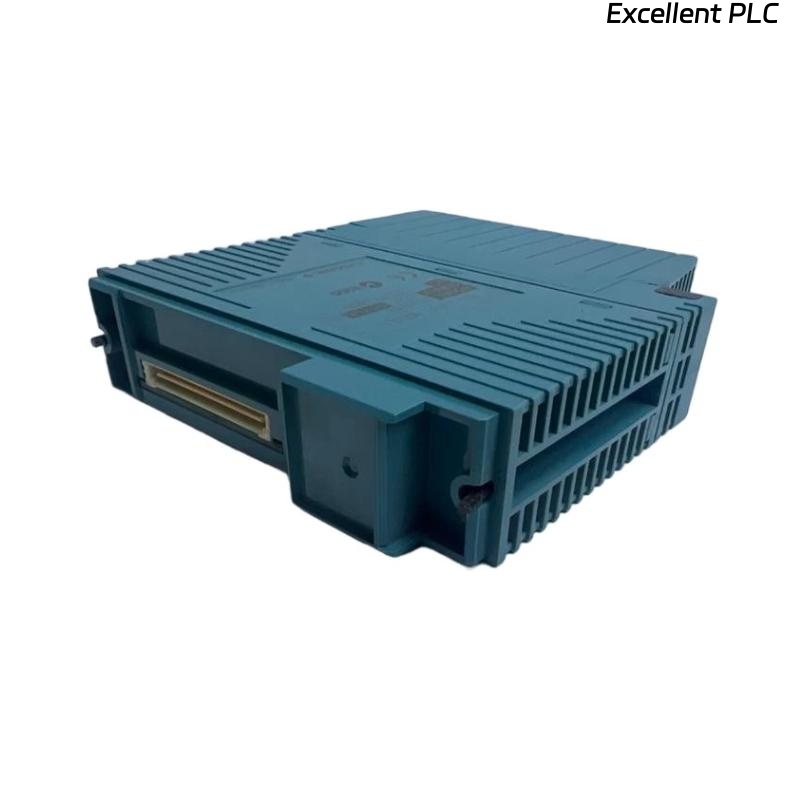

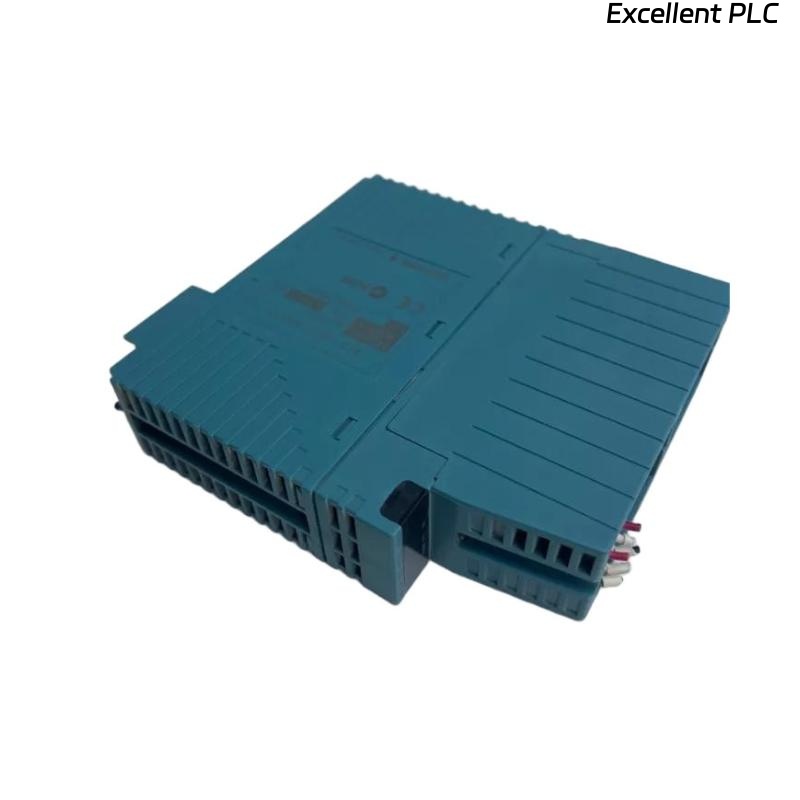

The Yokogawa NFAR181-S00 S2 RTD Input Module is a high-precision device designed to interface with RTD sensors for temperature measurement in industrial automation and control systems. It provides accurate, reliable data for F3 series controllers, ensuring precise process control and monitoring.
Key Features
-
Supports multiple RTD sensor types for flexible temperature measurement
-
Compatible with Yokogawa F3 series controllers
-
High-accuracy and stable temperature input conversion
-
Compact and rugged design for industrial environments
-
Plug-in modular installation for easy replacement
-
Supports continuous monitoring for critical processes
-
Simplifies integration into distributed control systems
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | NFAR181-S00 S2 |
| Series | Yokogawa F3 RTD Input Modules |
| Input Type | RTD (Pt100/Pt1000) |
| Number of Channels | 8 |
| Input Range | -200 °C to +600 °C (depending on sensor) |
| Accuracy | ±0.1% of reading |
| Response Time | ≤ 1 s |
| Power Supply | 24 VDC |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions | 130 x 107.5 x 32.8 mm |
| Weight | 0.2 kg |
| Mounting | DIN-rail or rack-mounted |
| Compliance | CE, UL, CSA |
Industry Applications
-
Power generation: boilers, turbines, and process heating
-
Chemical & petrochemical: reactor and process monitoring
-
Oil & gas: temperature monitoring in pipelines and equipment
-
Manufacturing: industrial process temperature control
-
Water & wastewater treatment: temperature measurement in treatment processes
-
HVAC systems: industrial heating and cooling control
-
General industrial automation requiring precise temperature monitoring
Advantages
-
High-precision RTD input for accurate process control
-
Supports multiple channels and sensor types
-
Durable design ensures reliable operation in harsh environments
-
Seamless integration with Yokogawa F3 series controllers
-
Enables predictive maintenance and process optimization
Frequently Asked Questions (FAQ)
Q1: What is the primary function of this module?
It interfaces with RTD sensors to measure temperature accurately.
Q2: How many channels does it support?
It supports 8 input channels.
Q3: Which controllers is it compatible with?
Yokogawa F3 series controllers.
Q4: What types of RTD sensors are supported?
Pt100 and Pt1000 sensors.
Q5: What is the measurement range?
-200 °C to +600 °C, depending on the sensor.
Q6: What is the accuracy of the module?
±0.1% of reading.
Q7: How is it mounted?
DIN-rail or rack-mounted.
Q8: What is the operating temperature range?
0 °C to +55 °C.
Q9: Is it suitable for industrial environments?
Yes, it is designed for rugged, continuous operation.
Q10: What is the weight of the module?
Approximately 0.2 kg.
