Product Introduction

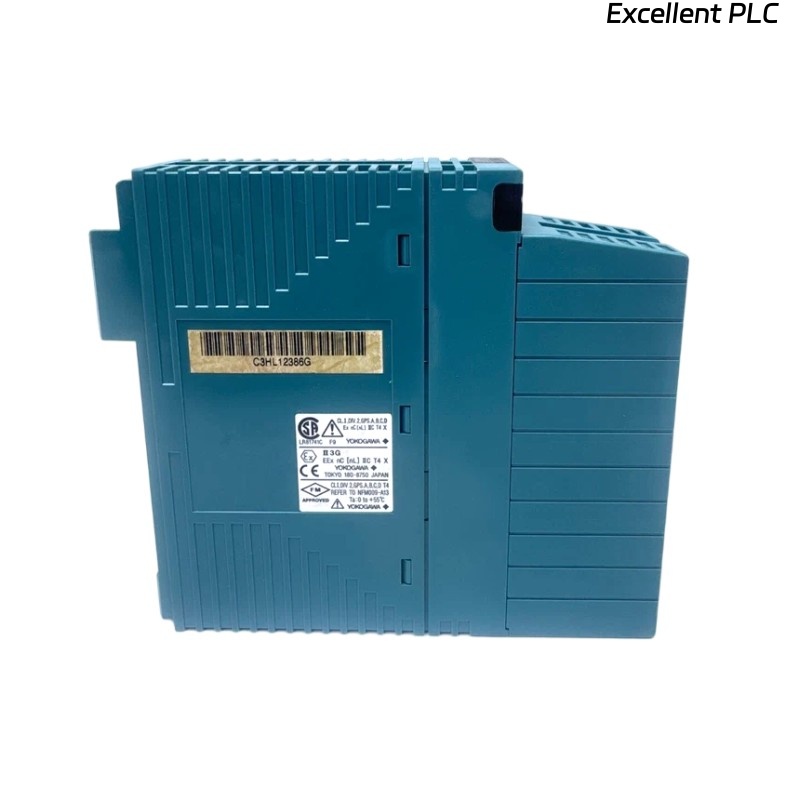

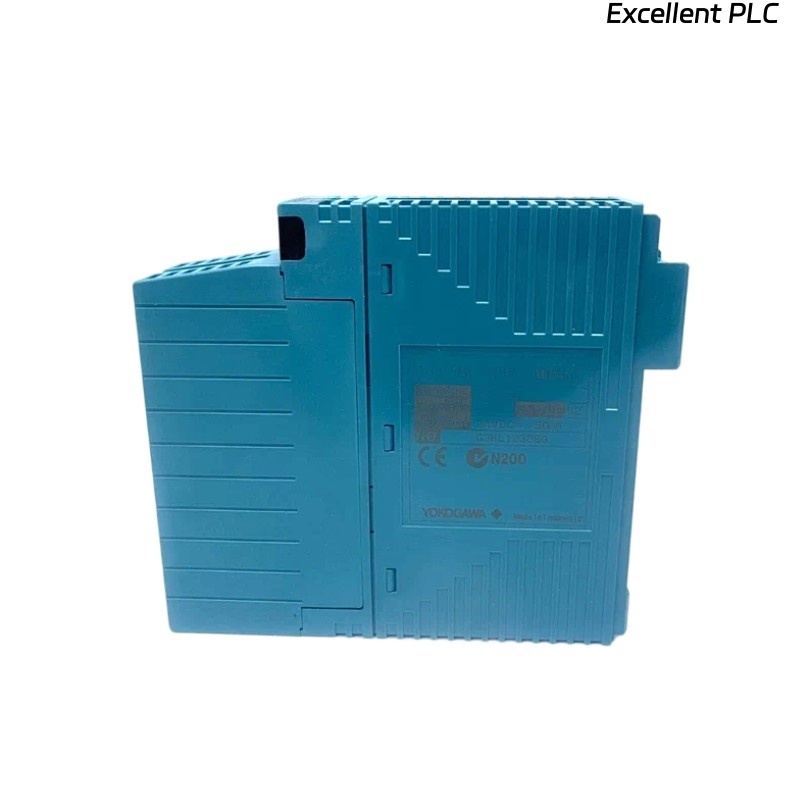

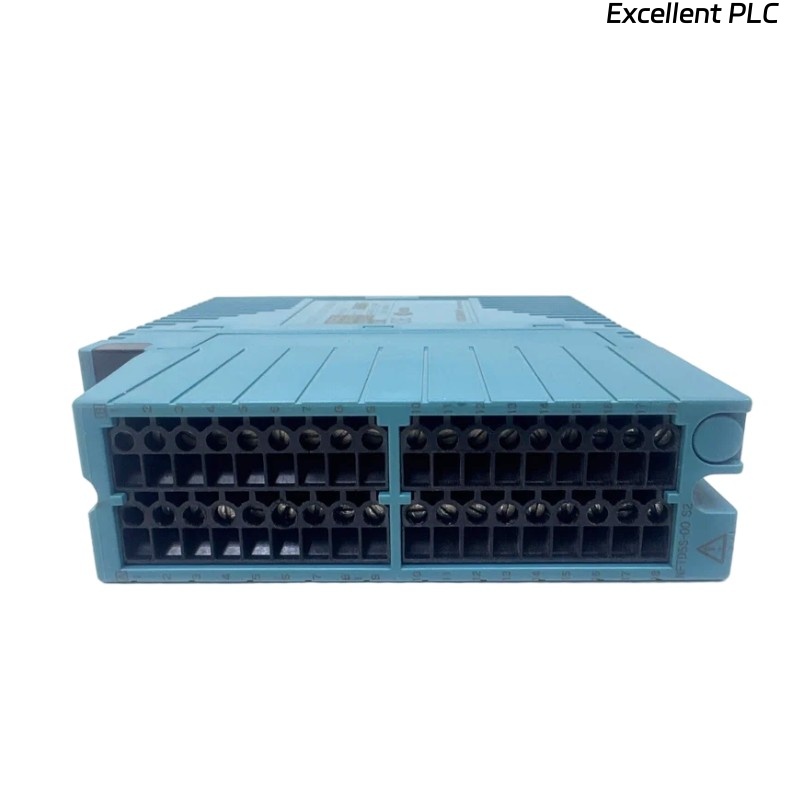

The Yokogawa NFDV551-P10 is a 32-channel digital output module designed for high-density, reliable control applications in process automation systems. It provides fast and stable digital signal output, allowing users to control actuators, indicators, and other field devices with precision. This module is part of Yokogawa’s trusted control system architecture, offering flexibility, durability, and long-term reliability for industrial environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | NFDV551-P10 |
| Type | 32-Channel Digital Output Module |
| Output Channels | 32 independent digital outputs |
| Output Type | Transistor |
| Rated Output Voltage | 24 V DC (typical) |
| Output Current per Channel | 0.5 A (max) |
| Response Time | Less than 1 ms |
| Dimensions | 32.8 × 107.5 × 130 mm |
| Weight | 0.2 kg |
| Power Consumption | 5.2 W |
| Mounting Method | DIN rail or system backplane |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -20 °C to 70 °C |
| Certifications | CE, UL, CSA |
Product Applications
-
Factory automation: Driving solenoids, relays, and indicators.
-
Process industries: Controlling valves, pumps, and interlock systems.
-
Power generation: Managing on/off control of auxiliary equipment.
-
Water treatment plants: Supervising actuators and flow control devices.
-
Building automation: Lighting and alarm system control.
Product Advantages
-
High density output: 32 channels in a single compact module, optimizing space usage.
-
Fast response time: Ensures accurate real-time control in demanding applications.
-
Robust isolation: Optical isolation improves system safety and reliability.
-
Built-in diagnostics: Supports error detection and output monitoring for preventive maintenance.
-
Energy efficiency: Low power consumption despite high channel capacity.
-
Easy integration: Designed for seamless use in Yokogawa control systems with minimal setup.
FAQ
Q1: How does the NFDV551-P10 handle short circuits on an output channel?
A1: The module provides built-in protection and diagnostics to detect and isolate short-circuit conditions, ensuring minimal impact on other channels.
Q2: Can the outputs of the NFDV551-P10 be used to directly drive inductive loads?
A2: Yes, but it is recommended to use external flyback diodes or suppressors to protect against voltage spikes from inductive loads.
Q3: What is the typical delay time between input command and output activation?
A3: The response time is typically less than 1 ms, suitable for high-speed control applications.
Q4: Is the module hot-swappable within the system rack?
A4: The module supports guided replacement but requires following system maintenance procedures to avoid interruptions.
Q5: Does the NFDV551-P10 support redundancy configurations?
A5: Yes, it can be implemented in redundant control system architectures to increase reliability.
Q6: What is the recommended maximum cable length for output wiring?
A6: The length depends on the load and wiring resistance; however, Yokogawa generally recommends keeping it under 500 meters for optimal performance.
Q7: How does the module ensure channel-to-channel isolation?
A7: Each output channel is optically isolated, providing electrical separation between signals and the backplane.
Q8: Can the module operate with mixed resistive and inductive loads on different channels simultaneously?
A8: Yes, the design allows handling of mixed load types, provided current limits are respected.
Q9: What happens if the power supply voltage fluctuates outside the rated range?
A9: The outputs may disable or trigger fault detection to protect devices from unstable power conditions.
Q10: Does the module support self-diagnostics during startup?
A10: Yes, it performs self-checks at startup to ensure functional integrity before engaging outputs.
Recommended Same-Series or Related Models
| Model | Description | Channels | Voltage | Special Feature |
|---|---|---|---|---|
| NFDV551-P10 | Digital Output Module | 32 | 24 VDC | Standard high-density output |
| NFAV551-P20 | Digital Output Module | 16 | 24 VDC | Enhanced diagnostics |
| NFDV561-P10 | Digital Output Module | 32 | 48 VDC | Higher voltage operation |
| NFDI551-P10 | Digital Input Module | 32 | 24 VDC | Complementary input module |
| NFDI561-P10 | Digital Input Module | 16 | 24 VDC | Compact input solution |
| NFAR531-P20 | Analog Output Module | 16 | 4–20 mA | High-resolution analog control |
