Product Overview

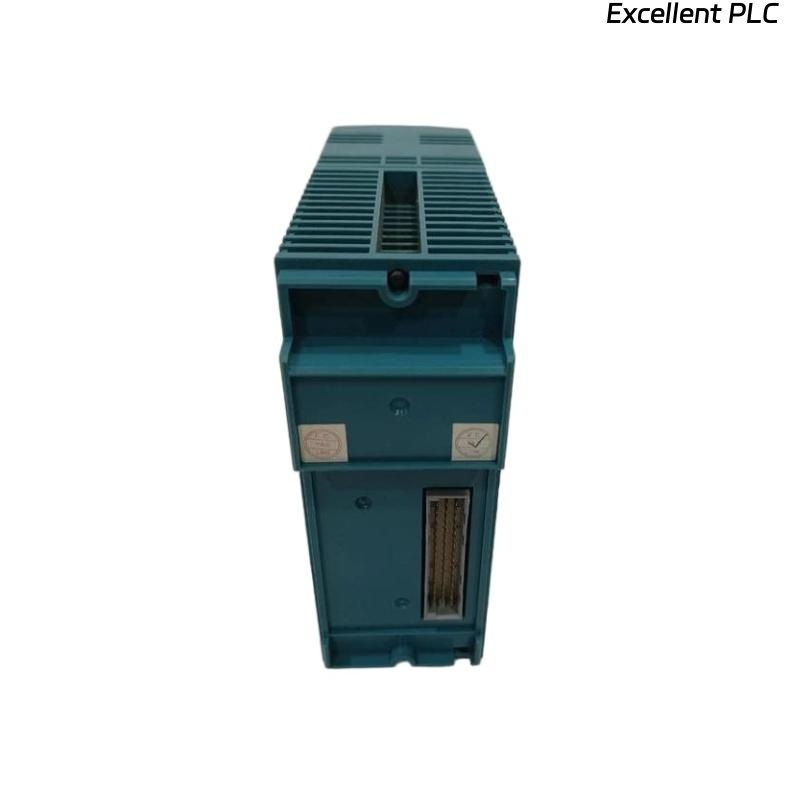

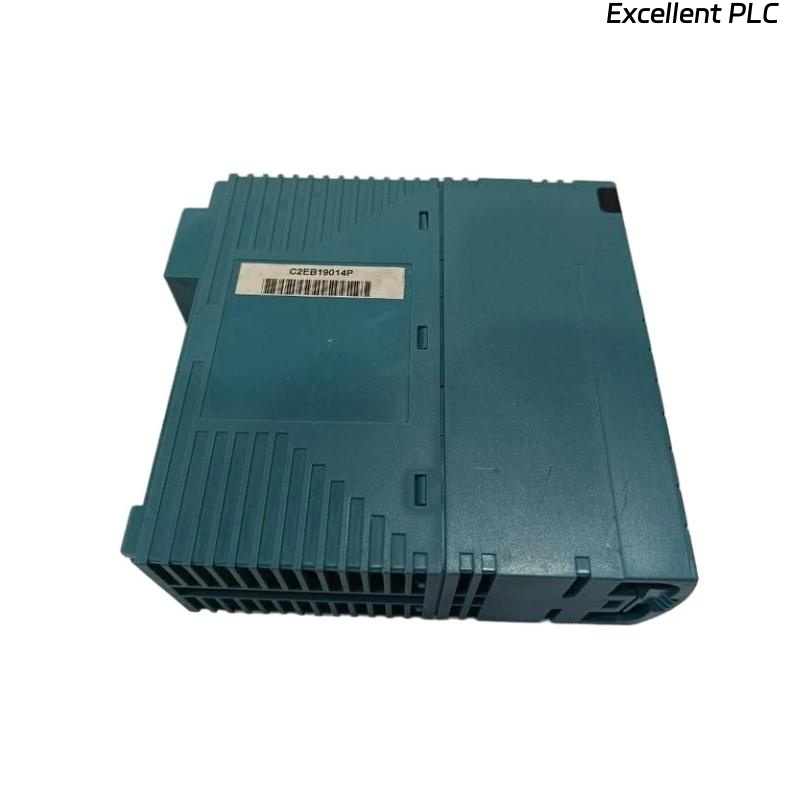

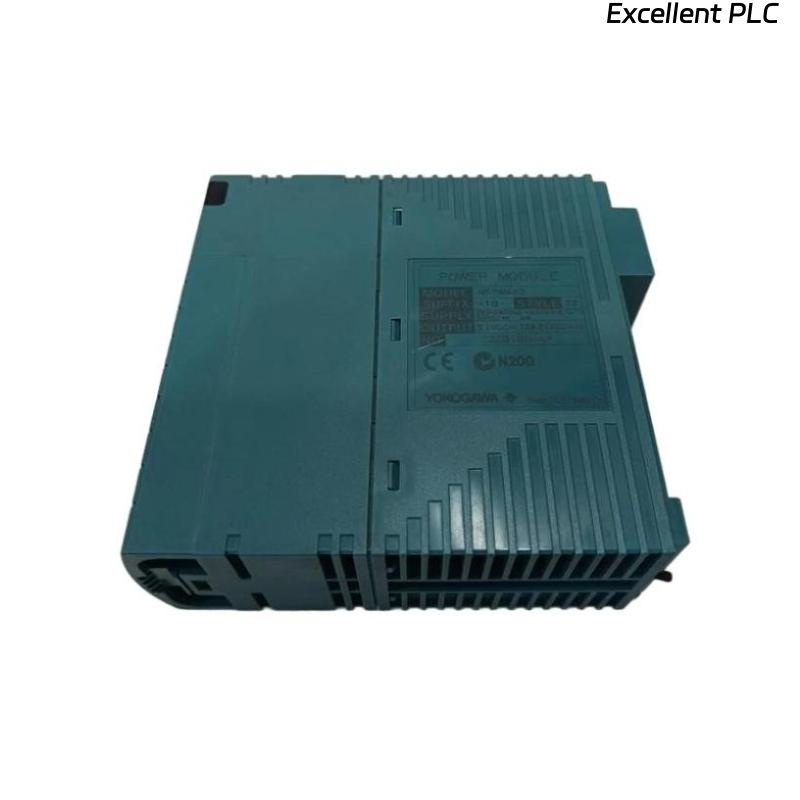

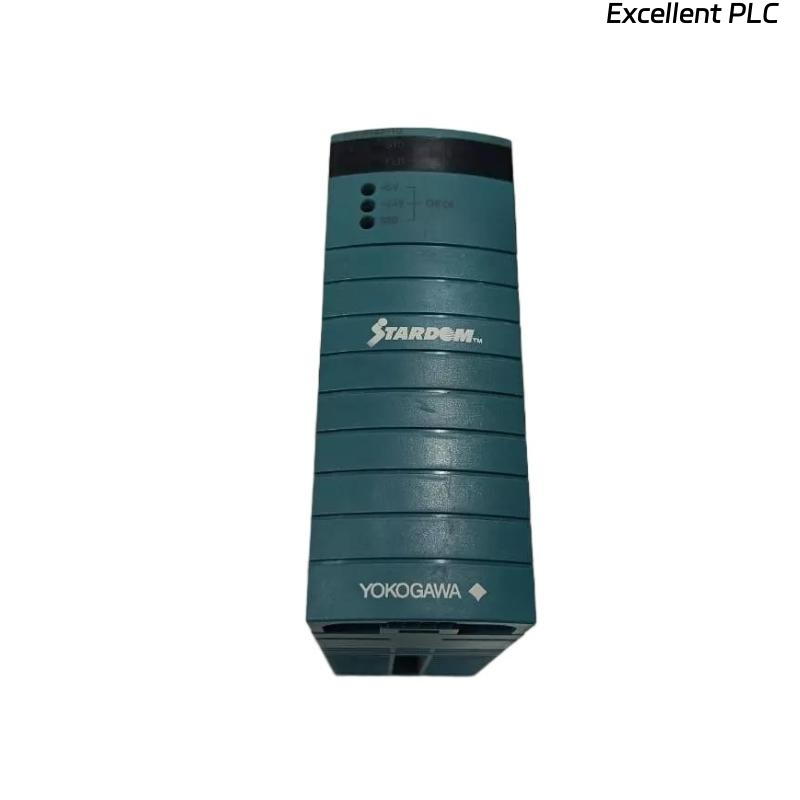

The Yokogawa NFPW442-10 Power Module is a high-performance power supply unit designed for use within Yokogawa control and safety systems. It provides stable and reliable power distribution to system modules, ensuring uninterrupted operation in mission-critical environments. Built with redundancy and fault tolerance in mind, the NFPW442-10 enhances system availability and supports long-term industrial applications.
Key Features
-
Reliable power supply for Yokogawa control and safety systems
-
Redundancy support for continuous system availability
-
Hot-swappable design for maintenance without system downtime
-
High efficiency and low heat generation
-
Integrated monitoring and diagnostics for fault detection
-
Compact form factor to save cabinet space
-
Designed for harsh industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | Power Module |
| Model Number | NFPW442-10 |
| System Compatibility | Yokogawa CENTUM VP, ProSafe-RS, and related platforms |
| Input Voltage | 24 V DC (typical) |
| Output Voltage | 5 V DC / 12 V DC (system dependent) |
| Output Power | 60 W (typical) |
| Redundancy | Supported (dual power supply configuration) |
| Diagnostics | Power health monitoring, status indication |
| Hot-Swappable | Yes |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Cooling Method | Natural convection |
| Dimensions | 49.7 x 130 x 146.5 mm |
| Weight | 0.6 kg |
Industry Applications
-
Oil & Gas – Powering critical control and safety system modules
-
Power Generation – Ensuring stable operation of turbine and boiler control systems
-
Chemical & Petrochemical – Supporting process control and safety interlocks
-
Pharmaceuticals – Reliable power for compliant batch automation systems
-
Water & Wastewater – Supplying power to distributed control and monitoring units
-
Pulp & Paper – Ensuring uninterrupted control system performance
Frequently Asked Questions (FAQ)
Q1: What is the function of the NFPW442-10 module?
It supplies regulated power to Yokogawa control and safety system modules.
Q2: What input voltage does it require?
It typically operates from a 24 V DC input supply.
Q3: Does the NFPW442-10 support redundancy?
Yes, it can be configured in redundant pairs for high availability.
Q4: Can the module be replaced without shutting down the system?
Yes, it is hot-swappable.
Q5: What is the output power rating?
The module delivers approximately 60 W of regulated power.
Q6: What diagnostic features are included?
It provides power health monitoring and status indication.
Q7: What is the operating temperature range?
It operates from 0°C to 55°C.
Q8: Which Yokogawa systems is it compatible with?
It is compatible with CENTUM VP, ProSafe-RS, and related platforms.
Q9: How is the module cooled?
It uses natural convection cooling.
Q10: How much does the module weigh?
It weighs approximately 0.6 kg.
