Product Introduction

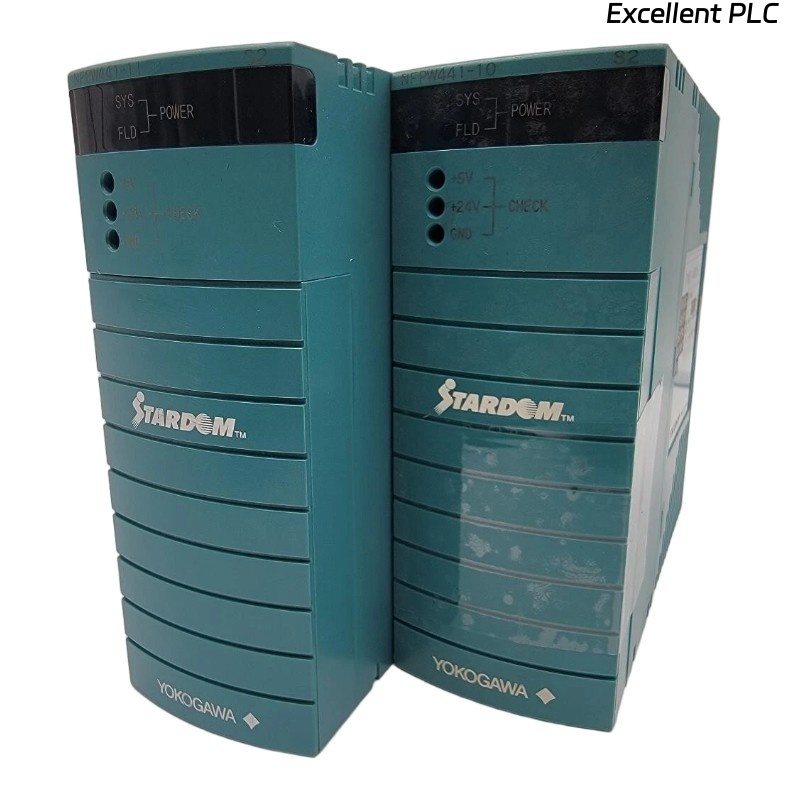

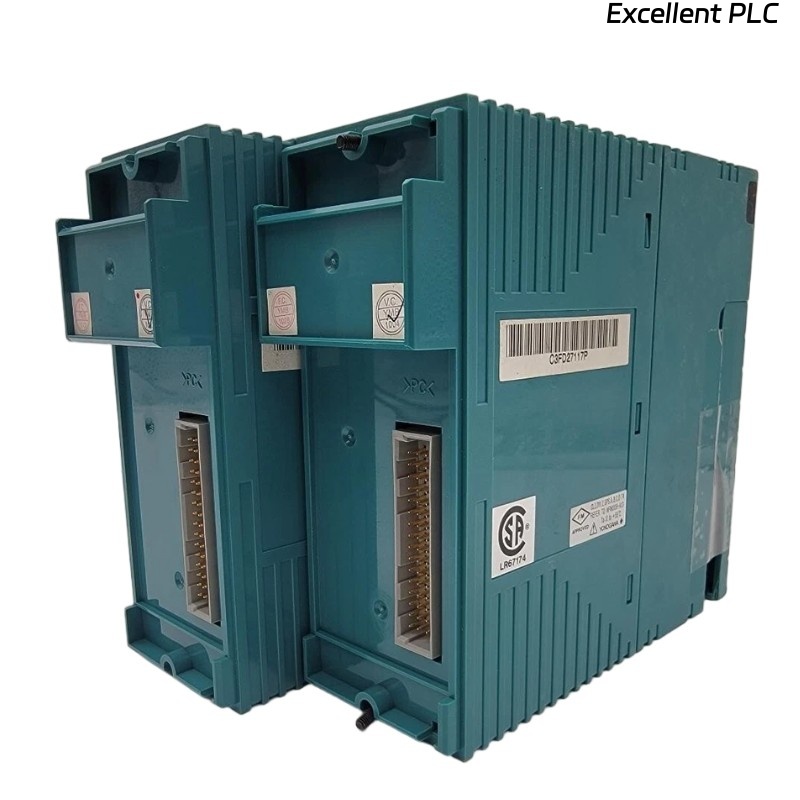

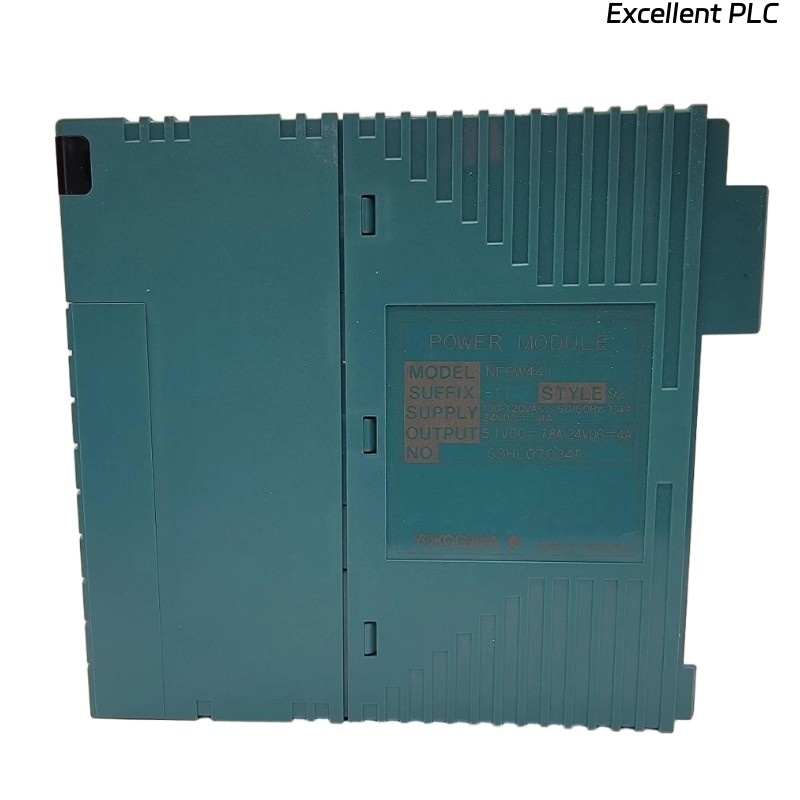

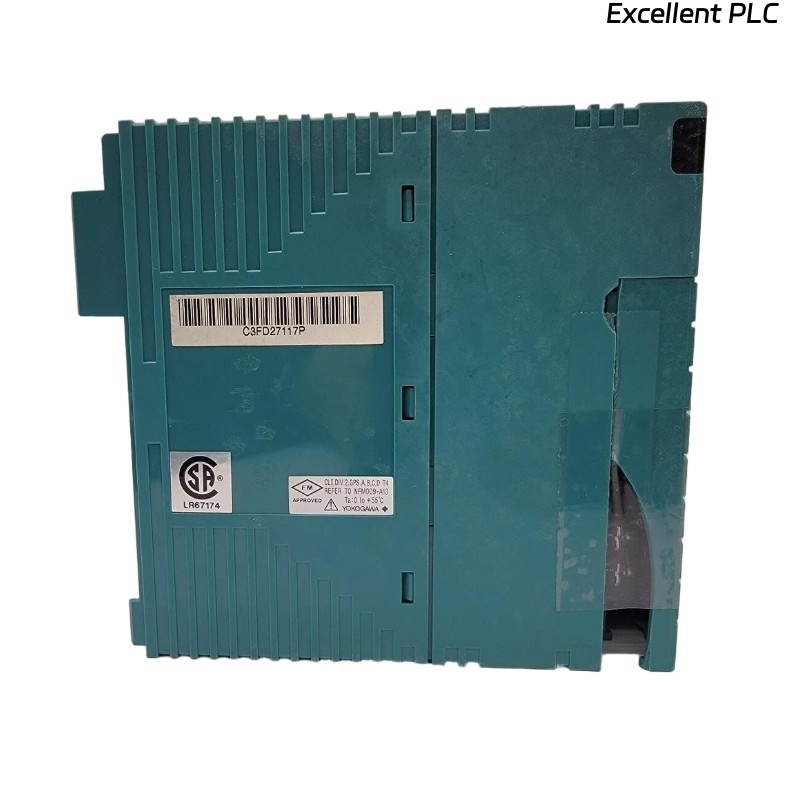

The Yokogawa NFPW444-10 Power Supply Module is a robust and high-performance power supply unit designed for use in distributed control systems (DCS) and other critical industrial automation applications. It provides reliable DC power to system modules, ensuring continuous operation and system stability. Built with advanced circuitry, this module safeguards connected equipment from power fluctuations, minimizing the risk of operational interruptions in demanding industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | NFPW444-10 |
| Product Type | Power Supply Module |
| Input Voltage Range | 100–240 V AC (typical wide-range input) |
| Output Voltage | 5 V DC / 24 V DC (depending on system design) |
| Output Power | Up to 120 W (nominal rating) |
| Efficiency | ≥ 85% |
| Protection Features | Over-voltage, Over-current, Short-circuit |
| Operating Temperature | 0 to 55 °C |
| Cooling Method | Natural convection / Forced air (system-based) |
| Dimensions | 49.7 × 130 × 146.5 mm |
| Weight | 0.6 kg |
| Mounting | Rack/Chassis mount |
| Compatibility | Yokogawa CENTUM VP, ProSafe-RS, and related |
Product Applications
-
Powering control processors, I/O modules, and communication modules within Yokogawa’s DCS systems.
-
Providing regulated DC voltage for instrumentation and monitoring equipment.
-
Serving as a reliable power source in safety instrumented systems (SIS).
-
Supporting continuous operation in process plants such as oil & gas, petrochemicals, power generation, pharmaceuticals, and water treatment.
Product Advantages
-
High Reliability – Engineered for continuous 24/7 operation in mission-critical applications.
-
Wide Input Range – Accepts a broad AC input voltage range, reducing sensitivity to supply variations.
-
Advanced Protection – Built-in safety features safeguard both the module and connected devices.
-
Seamless Integration – Fully compatible with Yokogawa control platforms, enabling easy system expansion and replacement.
-
Compact Design – Optimized for rack-based installation with efficient space utilization.
-
Reduced Downtime – Stable operation minimizes risks of unexpected shutdowns and costly interruptions.
FAQ
Q1: What type of output voltage does the NFPW444-10 provide?
A1: It provides regulated DC output, typically 5 V and/or 24 V DC depending on the system requirements.
Q2: Can this module operate in redundant power configurations?
A2: Yes, it supports redundant operation when paired with another identical power supply module.
Q3: What protection mechanisms are built into the NFPW444-10?
A3: It includes over-voltage, over-current, and short-circuit protection.
Q4: How does the module dissipate heat?
A4: Cooling is achieved through natural convection or forced air depending on the rack system configuration.
Q5: Is the NFPW444-10 hot-swappable?
A5: In most Yokogawa racks, it supports hot-swapping, allowing replacement without system shutdown.
Q6: What is the recommended operating environment?
A6: It is designed for operation in industrial environments, with an ambient temperature range of 0 to 55 °C.
Q7: How is the power supply monitored in a Yokogawa system?
A7: The DCS system provides diagnostics and alarm indications for voltage and module health status.
Q8: Can the NFPW444-10 be used with non-Yokogawa equipment?
A8: While technically possible, it is optimized for Yokogawa’s CENTUM VP and ProSafe-RS platforms.
Q9: Does the module support surge protection?
A9: Yes, the module is designed with internal surge suppression for input voltage stability.
Q10: What is the impact of module failure on the system?
A10: In redundant configurations, system operation continues without interruption; in single-supply mode, system shutdown may occur.
Same-Series or Related Models
| Model Number | Description |
|---|---|
| NFPW426-50 | Power Supply Module, high-capacity type |
| NFPW441-10 | Standard Power Supply Module |
| NFPW442-10 | Enhanced Power Supply Module with diagnostics |
| NFPW443-10 | Power Supply Module with redundancy option |
| NFPW445-10 | High-efficiency Power Supply Module |
| NFPW461-50 | Advanced Power Supply Module for large racks |
