Product Introduction

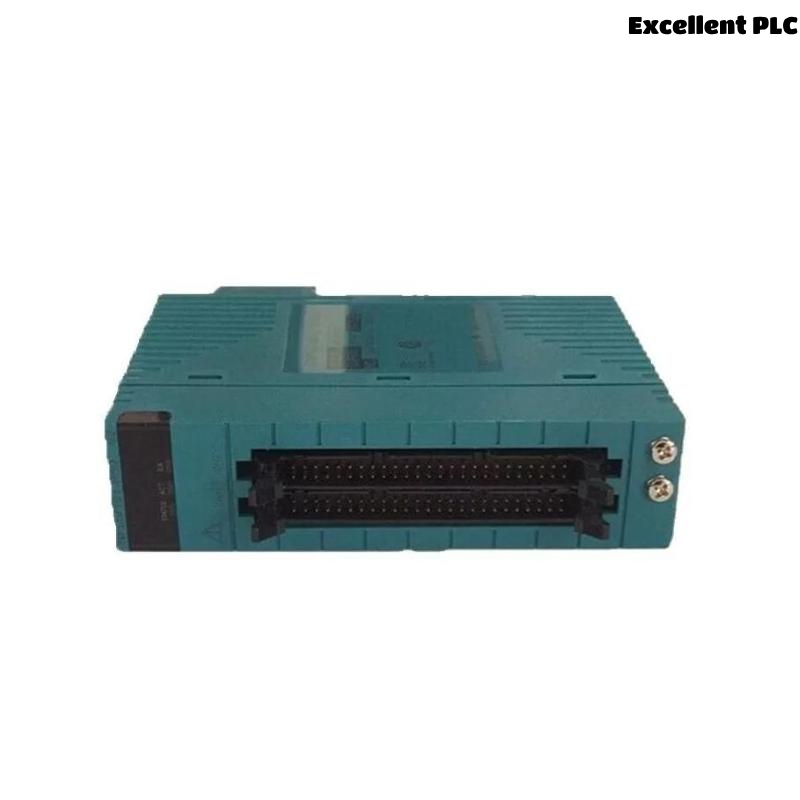

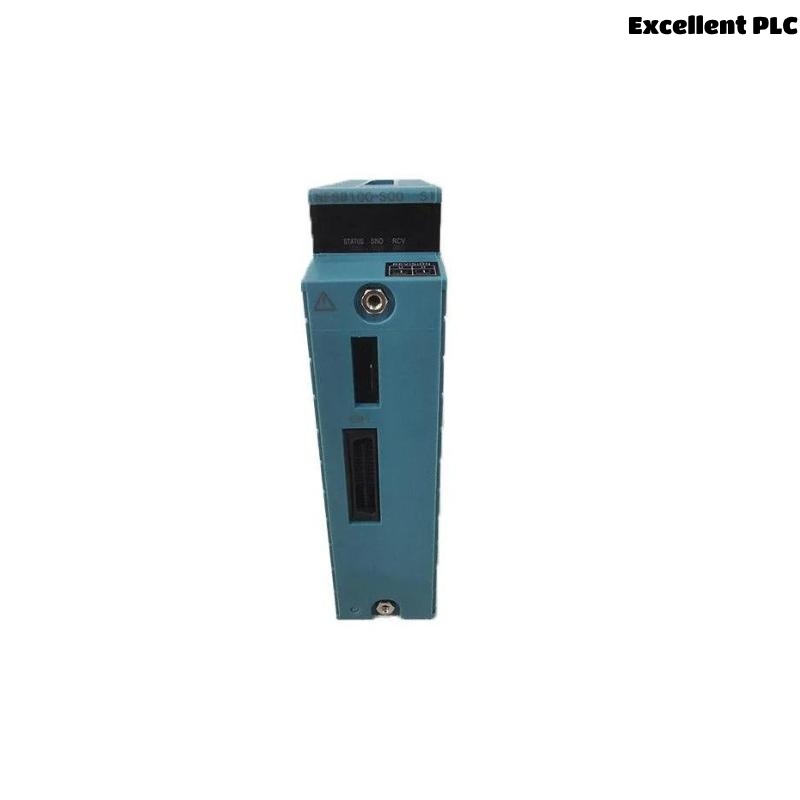

The Yokogawa NFTA4S-00 is a crimp-type terminal block designed for easy and reliable wire connection in industrial automation systems. This terminal block provides secure, safe, and effective electrical connections for a wide range of devices, especially in process control, power distribution, and instrumentation applications. Manufactured by Yokogawa, a leader in automation and industrial control technologies, the NFTA4S-00 terminal block features a compact design and high durability to meet the demanding requirements of industrial environments.
This terminal block is commonly used for terminating wires that connect sensors, actuators, and other devices to control systems. Its crimp-type design ensures a strong and reliable connection, minimizing the risk of signal loss or electrical failure. The 114 x 32.6 x 60.5 mm size and 0.2 kg weight make it suitable for both standard and space-constrained installations in control panels and field equipment.
Product Specifications
| Parameter | Description |
|---|---|
| Model | NFTA4S-00 |
| Product Type | Crimp-type Terminal Block |
| Dimensions (WxHxD) | 114 x 32.6 x 60.5 mm |
| Weight | 0.2 kg |
| Material | High-Quality Insulating Plastic (Flammability UL94-V0) |
| Electrical Rating | Up to 600V |
| Wire Size | Supports 16-22 AWG wires |
| Connection Type | Crimp type with screw terminal for secure connection |
| Mounting | DIN Rail Mounting |
| Temperature Range | -20°C to +60°C |
| Certification | CE, UL Certified |
| Safety Features | Vibration Resistant, High Durability |
| Compliance | RoHS Compliant |
Product Applications
The Yokogawa NFTA4S-00 crimp-type terminal block is commonly used in various industrial and commercial applications, including but not limited to:
-
Industrial Automation Systems: Connecting field devices such as sensors, actuators, and controllers to control panels or distribution systems.
-
Process Control: Used in control systems within the chemical, petrochemical, and pharmaceutical industries to ensure stable and secure electrical connections.
-
Power Distribution: Essential in power control systems to provide secure wire termination for power lines, circuit breakers, and relays.
-
Building Management Systems (BMS): Provides secure connections for HVAC control systems, lighting control, and energy monitoring.
-
Instrumentation: Ideal for use in instrument panels and control panels, ensuring a stable and reliable connection for measuring devices.
-
Transportation Infrastructure: Utilized in railways, airports, and transportation control systems where secure and long-lasting wire terminations are crucial.
-
Renewable Energy Systems: Used in solar power and wind power installations for secure connections between various electrical components.
-
Water and Wastewater Management: Terminating wires in control systems used for monitoring and controlling water treatment facilities.
-
Marine Applications: Provides a reliable electrical connection in ships, offshore platforms, and other marine infrastructures.
-
Heavy Machinery & Equipment: Facilitates secure wiring connections for control systems in manufacturing equipment, CNC machines, and more.
Product Advantages
-
Durable Construction: The Yokogawa NFTA4S-00 terminal block is designed with high-quality materials, ensuring durability and long-term reliability, even in harsh environments.
-
Crimp Type Connection: The crimp-type connection ensures a secure and robust termination of wires, reducing the risk of connection failures due to loosening or corrosion.
-
Easy Installation: It is designed for simple and quick installation, minimizing downtime and reducing the overall cost of system setup.
-
Compact Size: With dimensions of 114 x 32.6 x 60.5 mm, it can fit into tight spaces while maintaining efficient functionality.
-
Vibration Resistance: The terminal block can withstand vibrations and mechanical shocks, making it ideal for industrial applications where stability is essential.
-
Versatile Wire Compatibility: It supports a wide range of wire sizes, from 16 to 22 AWG, allowing it to be used in diverse applications.
-
DIN Rail Mounting: The terminal block can be mounted on standard DIN rails, allowing for quick and secure attachment in control panels.
-
Safe and Secure: UL and CE certified, the terminal block meets international safety standards and ensures a safe electrical connection.
-
Temperature Resistance: Operates within a wide temperature range of -20°C to +60°C, making it suitable for various industrial conditions.
-
RoHS Compliant: The terminal block is RoHS compliant, ensuring it meets global environmental and safety regulations.
Frequently Asked Questions (FAQ)
-
What is the Yokogawa NFTA4S-00?
It is a crimp-type terminal block used to securely terminate wires in industrial automation and control systems. -
What are the dimensions of the NFTA4S-00?
The dimensions are 114 x 32.6 x 60.5 mm. -
What is the weight of this terminal block?
It weighs 0.2 kg. -
What wire sizes are compatible with the NFTA4S-00?
It supports 16-22 AWG wire sizes. -
Can this terminal block be used for power distribution?
Yes, it is suitable for power distribution systems and can handle up to 600V electrical rating. -
Is this terminal block certified?
Yes, it is CE and UL certified, meeting international safety standards. -
What mounting options does the NFTA4S-00 support?
It supports DIN rail mounting, which allows for easy installation in control panels. -
What is the operating temperature range of the terminal block?
The temperature range is -20°C to +60°C. -
Is the terminal block resistant to vibrations?
Yes, it is designed to be vibration resistant, making it ideal for industrial applications. -
Is the NFTA4S-00 RoHS compliant?
Yes, the terminal block is RoHS compliant, ensuring it meets environmental and safety regulations.
Recommended Related Models (Same Series or Related)
| Model | Description | Notes |
|---|---|---|
| NFTA4S-01 | Crimp-type Terminal Block | Supports slightly different wire size compatibility |
| NFTA4S-02 | Crimp-type Terminal Block with Enhanced Insulation | Features enhanced insulation for harsher environments |
| NFTA4S-03 | Compact Terminal Block | More compact design for tighter spaces |
| NFTA5S-00 | Advanced Crimp-type Terminal Block | Offers higher electrical rating and more wire options |
| NFTA6S-00 | High-Density Crimp-type Terminal Block | Designed for high-density applications |
| NFTA4S-10 | Crimp-type Terminal Block with Surge Protection | Includes surge protection for sensitive circuits |
Popular Yokogawa Models (Same Brand)
| Model | Module Type | Description |
|---|---|---|
| NFTA4S-00 | Crimp-type Terminal Block | Primary crimp-type terminal block model |
| NFTA5S-00 | Advanced Crimp-type Terminal Block | Supports higher voltage and wire range |
| NFTA3S-01 | Push-in Terminal Block | Push-in design for quick and secure wire insertion |
| NFTA7S-00 | Barrier Terminal Block | Provides superior insulation and protection |
| NFTA8S-00 | Multi-Wire Crimp Terminal Block | Allows connection of multiple wires simultaneously |
| NFTA9S-00 | Modular Terminal Block | Modular design for flexible applications |
