Product Introduction

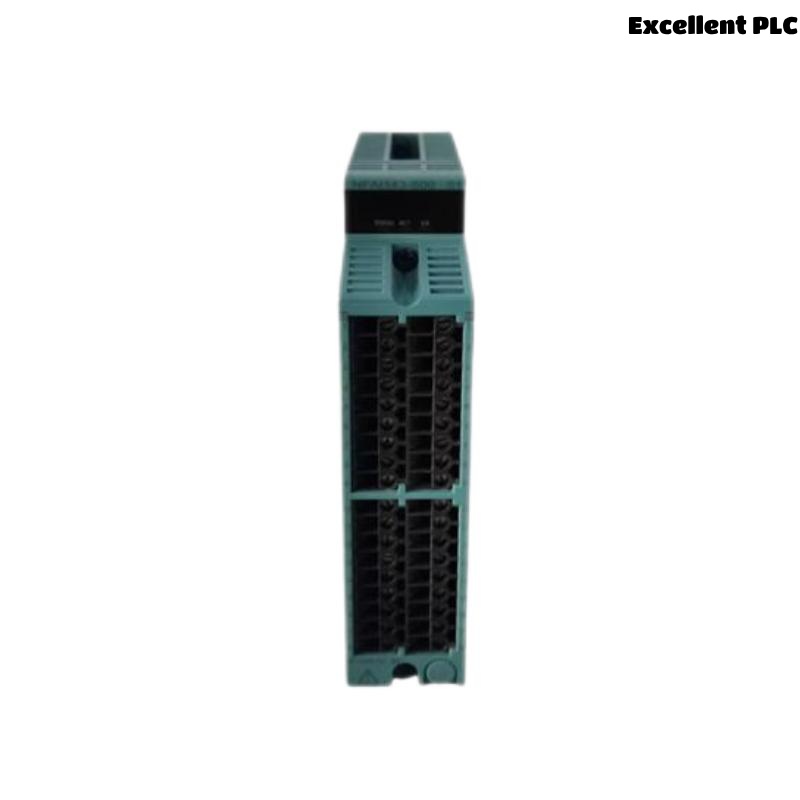

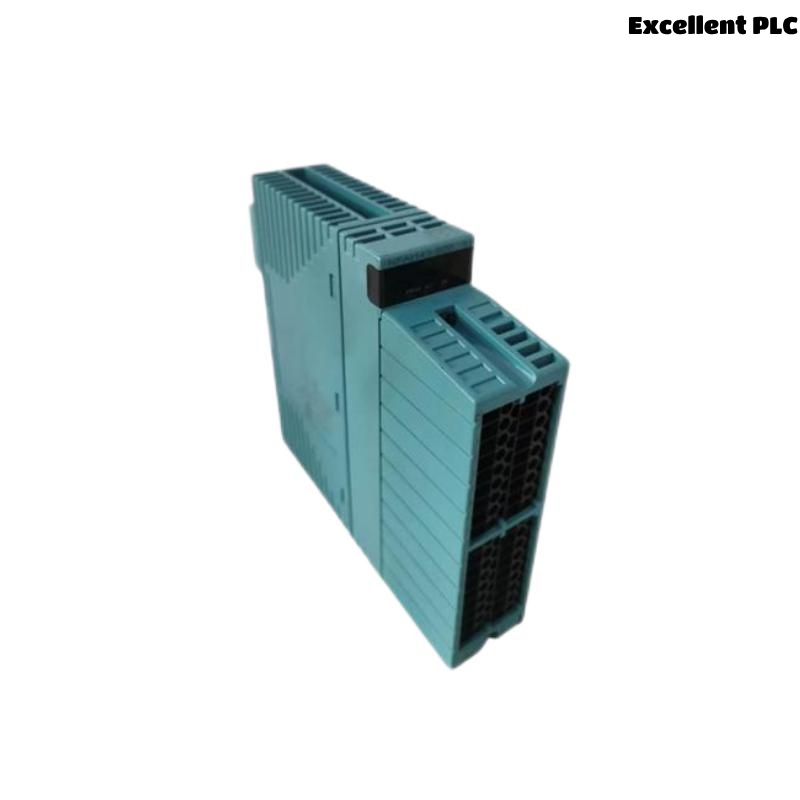

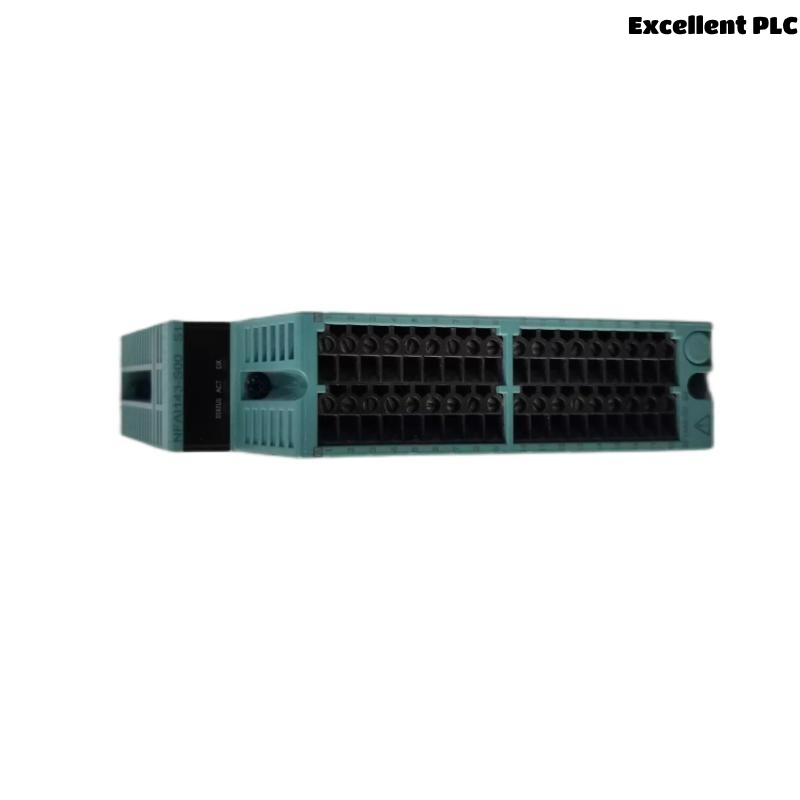

The Yokogawa NFTA4S-10 is a crimp-type terminal block designed for industrial applications that require a reliable and secure connection for wires. Known for its high quality and durability, this terminal block is an essential component in various control systems, providing an efficient solution for terminating wires in industrial automation, power distribution, and process control applications.
Manufactured by Yokogawa, a global leader in industrial automation and control, the NFTA4S-10 terminal block offers a compact and robust design, making it suitable for use in space-constrained environments and harsh industrial conditions. The terminal block’s crimp-type connection mechanism ensures a firm and long-lasting connection, reducing the risk of loose or failed electrical connections over time.
With a size of 114 x 32.6 x 60.5 mm and a weight of just 0.2 kg, the NFTA4S-10 is ideal for use in various industrial control panels and systems, offering easy installation and secure electrical connections. It supports a wide range of wire sizes, making it a versatile choice for different wiring needs.
Product Specifications
| Parameter | Description |
|---|---|
| Model | NFTA4S-10 |
| Product Type | Crimp-type Terminal Block |
| Dimensions (WxHxD) | 114 x 32.6 x 60.5 mm |
| Weight | 0.2 kg |
| Material | High-Quality Insulating Plastic (UL94-V0) |
| Electrical Rating | Up to 600V |
| Wire Size | Supports 16-22 AWG wires |
| Connection Type | Crimp type with screw terminal for secure connection |
| Mounting | DIN Rail Mounting |
| Temperature Range | -20°C to +60°C |
| Certification | CE, UL Certified |
| Safety Features | Vibration Resistant, High Durability |
| Compliance | RoHS Compliant |
Product Applications
The Yokogawa NFTA4S-10 crimp-type terminal block is used in a variety of applications, including but not limited to:
-
Industrial Automation Systems: For connecting field devices like sensors, actuators, and controllers to control panels or distribution systems.
-
Process Control: Used in chemical, petrochemical, and pharmaceutical industries to ensure reliable electrical connections in control systems.
-
Power Distribution: Ideal for securing wire terminations in power distribution networks, circuit breakers, and relays.
-
Building Management Systems (BMS): Utilized for secure connections in HVAC systems, energy management, and lighting control.
-
Instrumentation: Provides secure terminations for measurement and control instruments in industrial and laboratory settings.
-
Renewable Energy Systems: Used for secure wire terminations in solar power systems, wind turbines, and other green energy installations.
-
Transportation Systems: Ideal for use in railways, airports, and other transportation infrastructure to ensure reliable electrical connections.
-
Water and Wastewater Treatment: Terminating wires in monitoring and control systems for water treatment facilities.
-
Marine and Offshore Applications: Provides reliable connections in ships, offshore platforms, and marine systems.
-
Heavy Machinery: Facilitates secure wiring connections for control systems in heavy machinery, industrial equipment, and production lines.
Product Advantages
-
Durable and High-Quality Construction: Built with high-quality insulating plastic, the NFTA4S-10 offers excellent mechanical strength, chemical resistance, and durability, making it suitable for harsh industrial environments.
-
Crimp-type Connection: The crimp-type design ensures a secure and stable electrical connection, minimizing the risk of connection failures due to loosening or corrosion.
-
Easy Installation: The terminal block is designed for quick and simple installation on standard DIN rails, making it ideal for use in control panels.
-
Vibration Resistance: Its robust design helps it withstand vibrations, ensuring reliable connections even in environments with high levels of mechanical movement.
-
Wide Wire Size Compatibility: The NFTA4S-10 supports wire sizes from 16 to 22 AWG, providing flexibility for a wide range of industrial applications.
-
Compact and Space-Efficient: Its compact design, with dimensions of 114 x 32.6 x 60.5 mm, allows it to fit easily into control panels with limited space.
-
Temperature Resistance: The terminal block can operate effectively in temperatures ranging from -20°C to +60°C, making it suitable for diverse environments.
-
RoHS and CE Certified: The NFTA4S-10 is compliant with RoHS and CE standards, ensuring safety and environmental responsibility.
-
High Electrical Rating: It supports electrical ratings of up to 600V, making it suitable for high-power applications.
-
Long-Lasting Reliability: Built for durability, this terminal block ensures a long service life, reducing the need for maintenance and replacement.
Frequently Asked Questions (FAQ)
-
What is the Yokogawa NFTA4S-10?
The NFTA4S-10 is a crimp-type terminal block designed for reliable and secure wire terminations in industrial automation and control systems. -
What is the size of the NFTA4S-10?
The dimensions of the terminal block are 114 x 32.6 x 60.5 mm. -
What is the weight of this terminal block?
It weighs 0.2 kg. -
Which wire sizes are compatible with the NFTA4S-10?
The terminal block supports wire sizes ranging from 16 to 22 AWG. -
Is this terminal block suitable for power distribution?
Yes, it can handle up to 600V and is suitable for power distribution systems. -
What mounting options does the NFTA4S-10 support?
The terminal block supports DIN rail mounting, making it easy to install in control panels. -
What is the temperature range for this terminal block?
The NFTA4S-10 can operate within a temperature range of -20°C to +60°C. -
Is this terminal block vibration resistant?
Yes, the terminal block is designed to withstand vibrations and mechanical shocks. -
Is the NFTA4S-10 RoHS compliant?
Yes, it is RoHS compliant, meeting environmental safety standards. -
Is the NFTA4S-10 CE certified?
Yes, it is CE certified, ensuring it meets European safety and regulatory standards.
Recommended Related Models (Same Series or Related)
| Model | Description | Notes |
|---|---|---|
| NFTA4S-00 | Crimp-type Terminal Block | Standard model for wire termination |
| NFTA5S-00 | Advanced Crimp-type Terminal Block | Higher voltage and wire range support |
| NFTA6S-00 | High-Density Crimp Terminal Block | Designed for high-density applications |
| NFTA7S-00 | Barrier Terminal Block | Offers superior insulation and protection |
| NFTA4S-20 | Crimp Terminal Block with Surge Protection | Includes surge protection for sensitive circuits |
| NFTA4S-01 | Compact Crimp-type Terminal Block | Designed for smaller and more compact spaces |
