Product Introduction

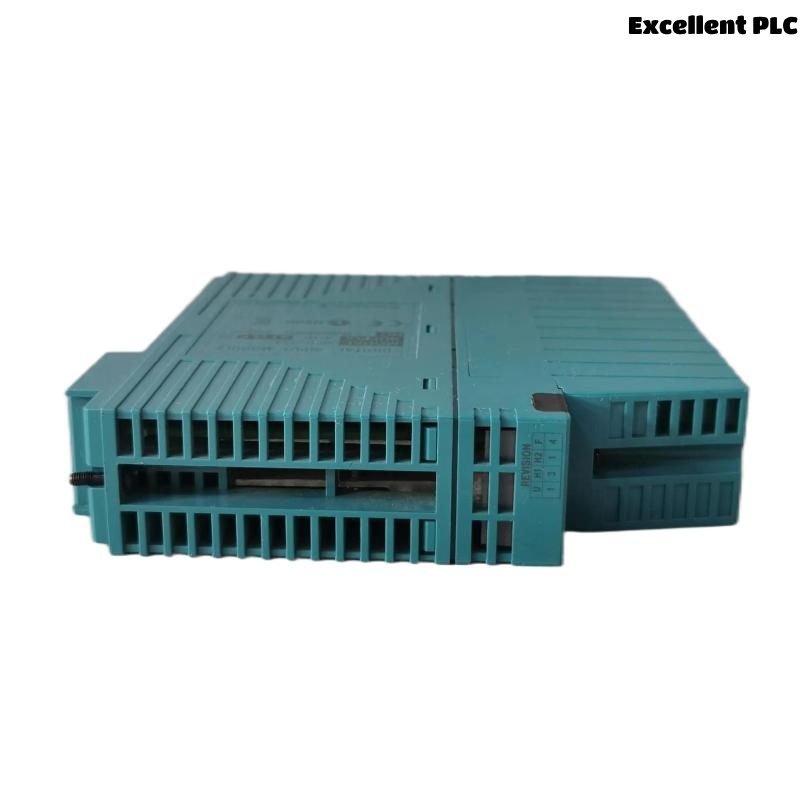

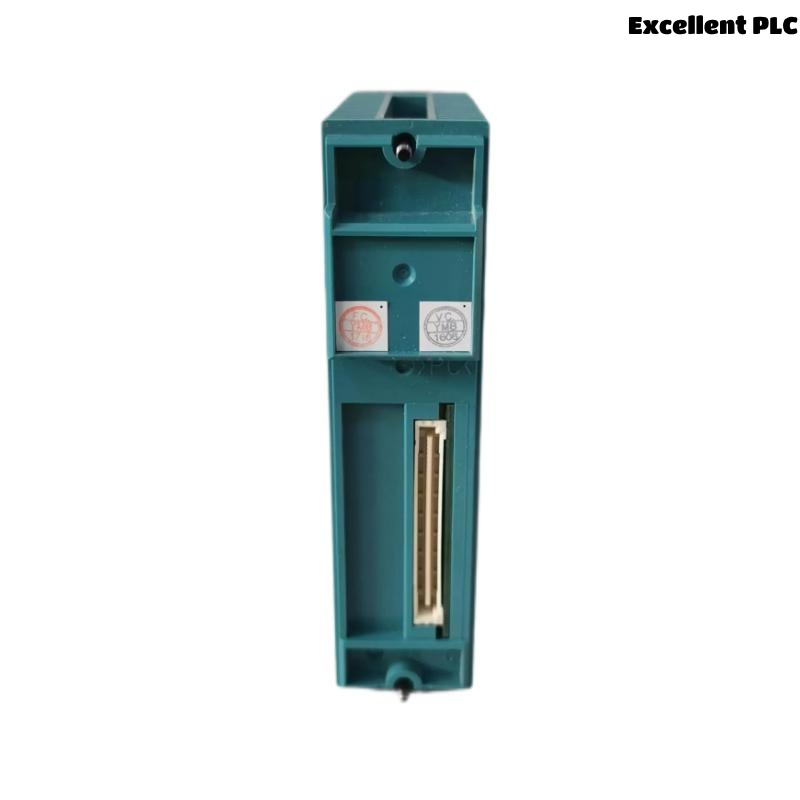

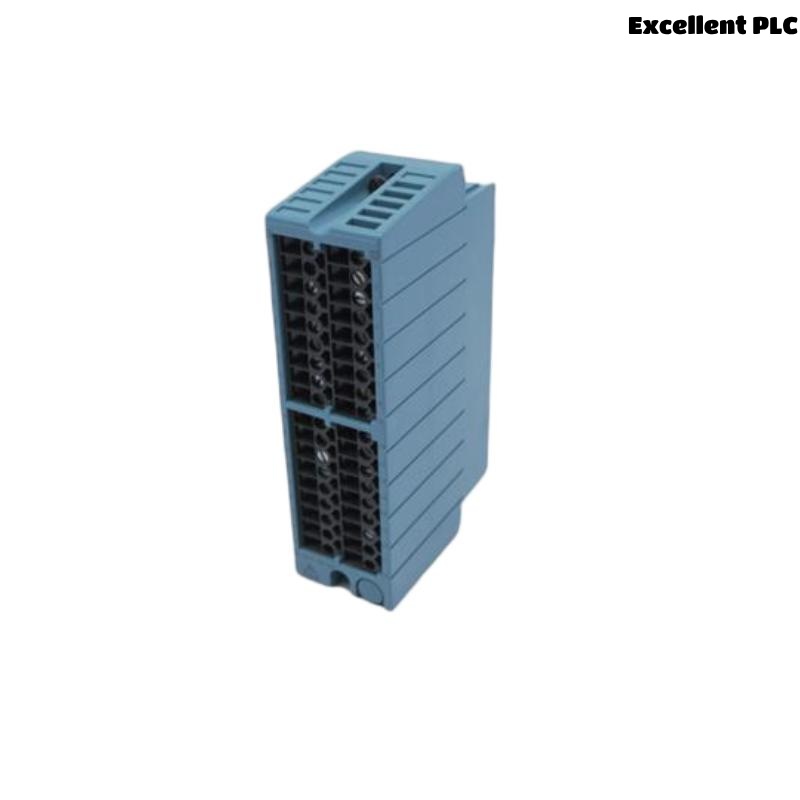

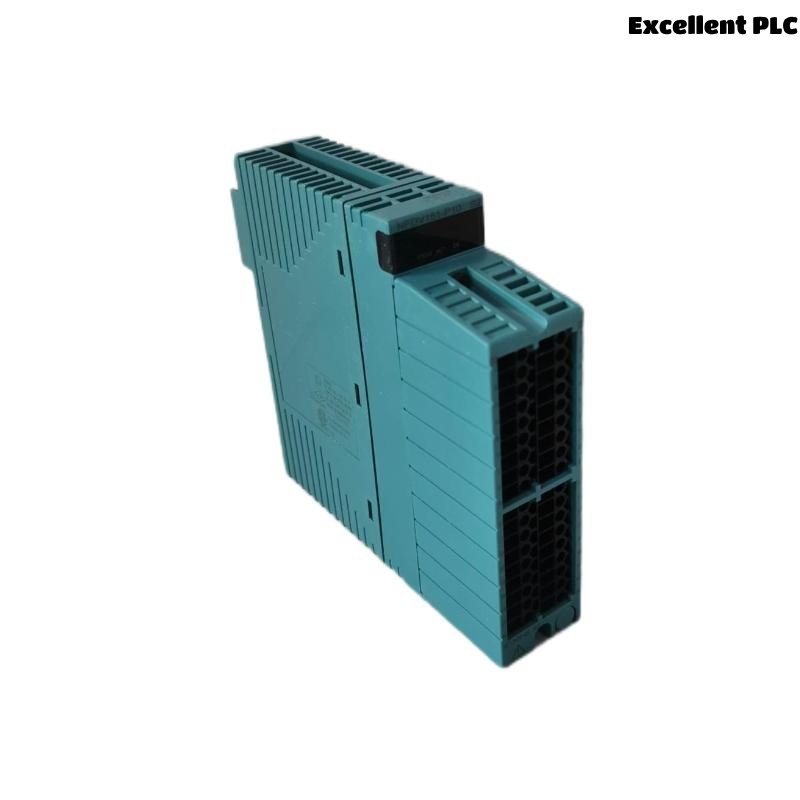

The Yokogawa NFTB5S-00 is a digital input crimp terminal, designed for reliable, high-quality wire terminations in industrial and control systems. Manufactured by Yokogawa, a leader in industrial automation, the NFTB5S-00 terminal provides a secure crimping connection, essential for ensuring the longevity and performance of electrical systems. Whether used in process control, automation, or power distribution, the NFTB5S-00 excels in performance and durability.
This terminal is designed for digital input connections, ensuring fast, accurate signals in industrial and commercial applications. The compact size of 114 x 32.6 x 60.5 mm and the lightweight design (weighing just 0.2 kg) make it ideal for use in control panels with limited space. Furthermore, the crimp-type connection ensures a strong, stable electrical connection that reduces the risk of connection failure and improves system reliability.
The Yokogawa NFTB5S-00 supports a wide variety of wire sizes and offers excellent resistance to harsh environments, including exposure to temperature extremes and vibrations. This versatility makes it an ideal choice for industries like automation, control systems, telecommunications, and energy management.
Product Specifications
| Parameter | Description |
|---|---|
| Model | NFTB5S-00 |
| Product Type | Digital Input Crimp Terminal |
| Dimensions (WxHxD) | 114 x 32.6 x 60.5 mm |
| Weight | 0.2 kg |
| Material | High-quality insulating plastic (UL94-V0) |
| Electrical Rating | Up to 600V |
| Wire Size | Supports 16-22 AWG |
| Connection Type | Crimp type with screw terminal |
| Mounting | DIN Rail mounting |
| Temperature Range | -20°C to +60°C |
| Certification | CE, UL Certified |
| Safety Features | Vibration resistant, robust design |
| Compliance | RoHS Compliant |
Product Applications
The Yokogawa NFTB5S-00 digital input crimp terminal is used in numerous industries for reliable digital signal inputs and wire connections. Key applications include:
-
Industrial Automation Systems: Ensures secure wiring connections for sensors, actuators, and controllers.
-
Process Control Systems: Used for reliable connections in control systems that manage industrial processes.
-
Power Distribution Systems: Ideal for use in power distribution panels and control cabinets.
-
Energy Management Systems: Used to monitor and manage energy distribution and consumption in smart grid systems.
-
Telecommunications: Ensures stable input signal transmission in telecom systems.
-
Building Management Systems (BMS): Used in HVAC systems and lighting control systems to facilitate secure input connections.
-
Renewable Energy: Secures wire connections in solar panels, wind turbines, and other renewable energy installations.
-
Automotive Industry: Ensures stable digital input connections in automotive electrical control systems.
-
Transportation Systems: Used in rail, aviation, and other transport infrastructure for reliable input signal connections.
-
Water and Wastewater Treatment: Used to manage control systems in water treatment plants.
Product Advantages
-
Durability and Robustness: Constructed from high-quality insulating plastic (UL94-V0), this terminal is resistant to wear and tear and can operate in harsh industrial environments.
-
Crimp Connection for Strong Electrical Contact: The crimp-type connection guarantees a secure and stable electrical contact, minimizing connection failure risks.
-
Compact and Space-Efficient: The compact design (114 x 32.6 x 60.5 mm) makes it suitable for space-constrained environments like control panels.
-
Easy to Install: Designed for easy DIN rail mounting, the NFTB5S-00 is simple to integrate into existing systems and control panels.
-
Wide Wire Size Compatibility: It supports wire sizes from 16 to 22 AWG, offering flexibility in connecting various wire gauges.
-
Vibration Resistance: The terminal is designed to withstand vibrations, which is essential in industrial and high-mechanical environments.
-
Temperature Resistance: Operating within a temperature range of -20°C to +60°C, the terminal block is highly versatile and reliable in extreme temperatures.
-
CE and UL Certification: The NFTB5S-00 meets international safety standards, ensuring it adheres to quality and safety regulations.
-
RoHS Compliant: The terminal is RoHS compliant, meaning it is free of hazardous materials and complies with European environmental directives.
-
Long-Term Reliability: Designed for long-term performance, the NFTB5S-00 reduces the need for frequent maintenance or replacement.
Frequently Asked Questions (FAQ)
-
What is the Yokogawa NFTB5S-00?
The NFTB5S-00 is a digital input crimp terminal used for secure wire terminations in industrial automation and control systems. -
What is the size of the NFTB5S-00?
The dimensions of the terminal are 114 x 32.6 x 60.5 mm. -
What is the weight of the NFTB5S-00?
The terminal weighs 0.2 kg. -
Which wire sizes are compatible with the NFTB5S-00?
The terminal supports wire sizes ranging from 16 to 22 AWG. -
Is the NFTB5S-00 suitable for use in industrial automation?
Yes, the terminal is ideal for industrial automation systems, ensuring secure and stable wire terminations. -
What mounting options does the NFTB5S-00 support?
The NFTB5S-00 is designed for DIN rail mounting, making it easy to integrate into control panels and systems. -
What is the electrical rating of the NFTB5S-00?
The terminal can handle electrical voltages of up to 600V. -
What is the temperature range of the NFTB5S-00?
The NFTB5S-00 operates in temperatures ranging from -20°C to +60°C. -
Is the NFTB5S-00 RoHS compliant?
Yes, the NFTB5S-00 is RoHS compliant, meeting environmental standards. -
Is the NFTB5S-00 certified?
Yes, the terminal is CE and UL certified, ensuring it meets global safety and quality standards.
Recommended Related Models (Same Series or Related)
| Model | Description | Notes |
|---|---|---|
| NFTB4S-00 | Digital Input Crimp Terminal | Similar design, smaller wire range |
| NFTB6S-00 | High-Power Crimp Terminal | Designed for higher voltage systems |
| NFTB7S-00 | High-Density Crimp Terminal | For high-density wiring needs |
| NFTB8S-00 | Digital Output Crimp Terminal | Used in output signal connections |
| NFTB5S-01 | Enhanced Vibration-Resistant Model | Suitable for harsh industrial conditions |
| NFTB3S-00 | Multi-Wire Crimp Terminal | Designed for multi-wire applications |
