Product Introduction

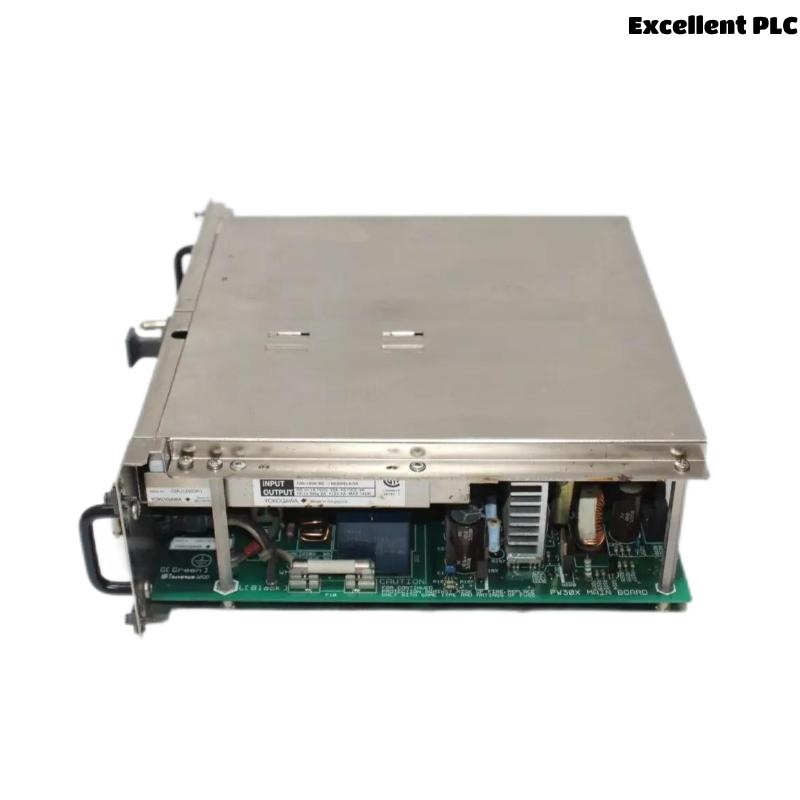

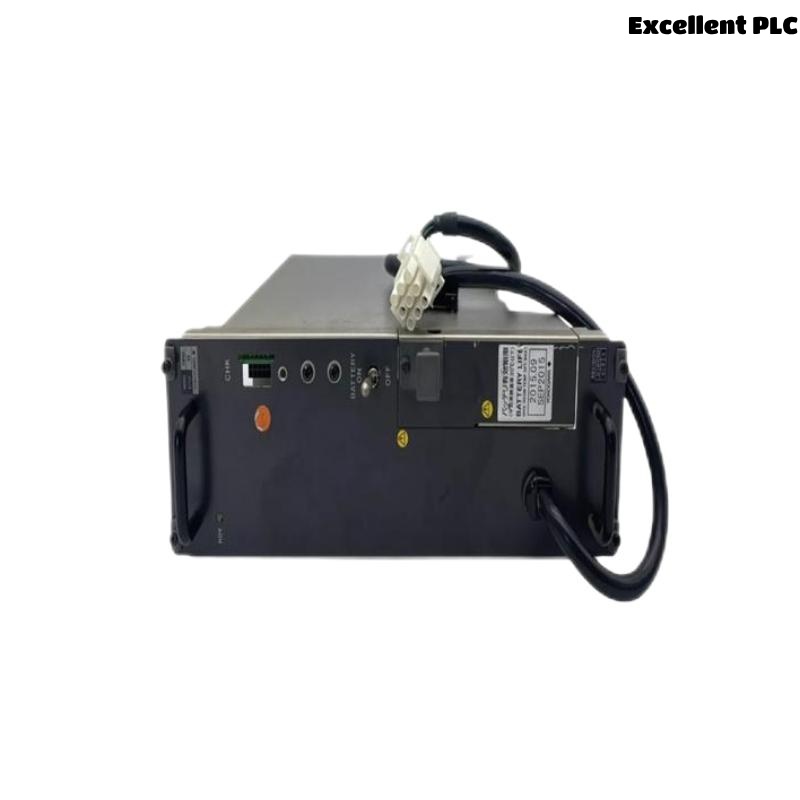

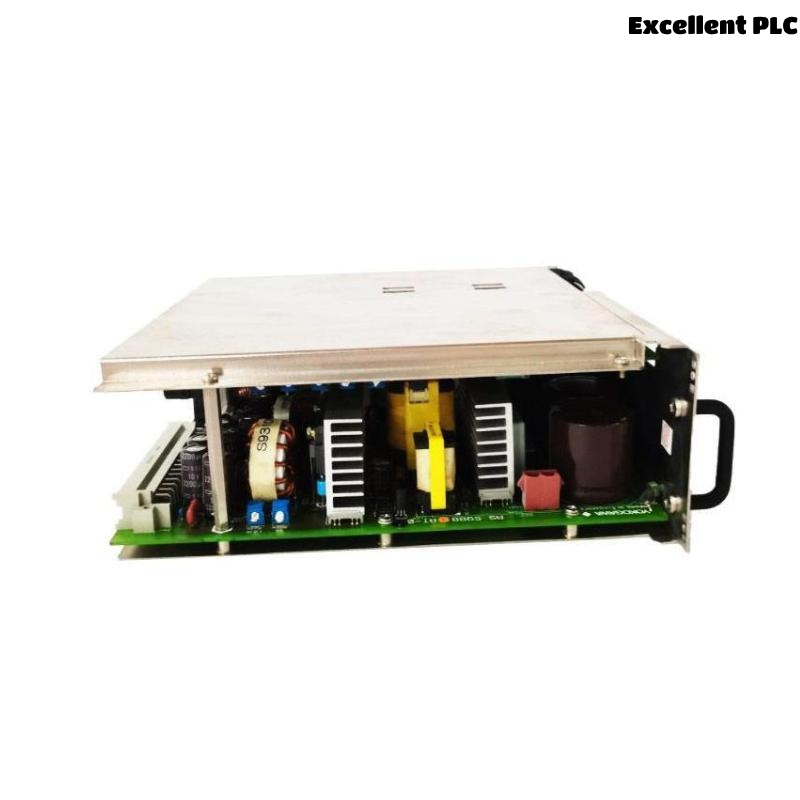

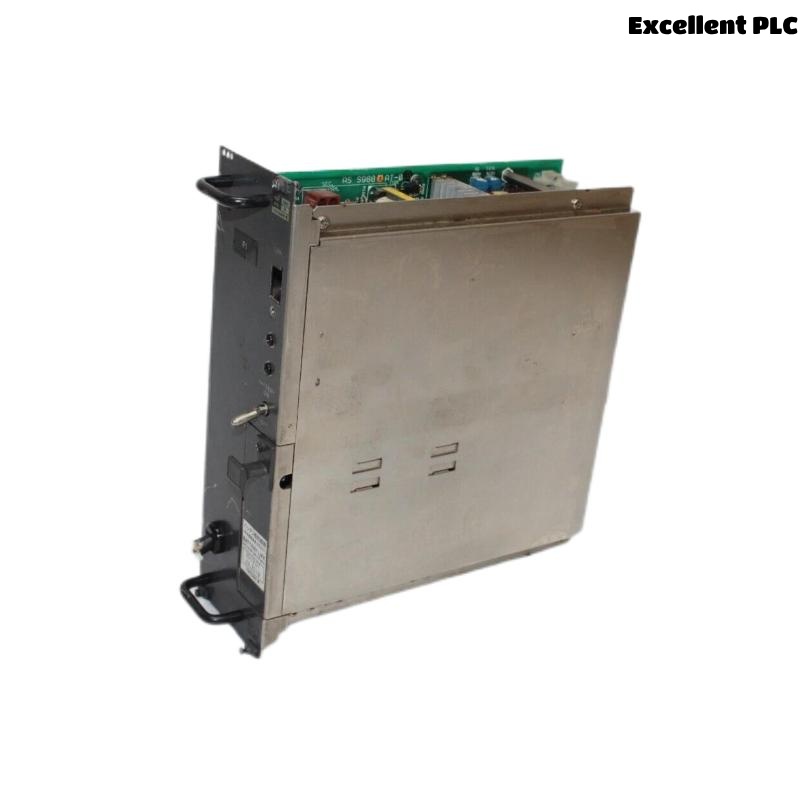

The Yokogawa PW301-S3 is a high-performance power supply module designed for industrial and automation applications. Known for its reliability and efficiency, this power supply module is engineered to provide a consistent and stable power output in demanding environments. The PW301-S3 is commonly used in process control systems, measurement equipment, and control panels where stable power is critical to the accurate functioning of sensitive equipment.
With advanced protection features like overvoltage, overcurrent, and short-circuit protection, the PW301-S3 ensures the longevity of both the power supply and the connected equipment. It is engineered for continuous operation in industrial environments, offering a robust solution for power distribution and regulation.
The unit features a compact design with dimensions of 279 x 102 x 279 mm and weighs approximately 3.3 kg, making it versatile for various installations, from control panels to heavy machinery.
Product Specifications
| Parameter | Description |
|---|---|
| Model | PW301-S3 |
| Type | Power Supply Module |
| Dimensions (WxHxD) | 279 x 102 x 279 mm |
| Weight | 3.3 kg |
| Input Voltage | 100 – 240 VAC |
| Output Voltage | 24 VDC |
| Output Current | 12 A |
| Power Output | 288 W |
| Efficiency | Up to 90% |
| Protection Features | Overvoltage, Overcurrent, Short-circuit |
| Mounting | Rack or DIN rail |
| Operating Temperature | -10°C to +60°C |
| Cooling | Fan-assisted |
| Certification | CE, UL Certified |
| Compliance | RoHS Compliant |
Product Applications
The Yokogawa PW301-S3 power supply module is ideal for a variety of applications, particularly in industries where high performance and reliability are crucial. Key applications include:
-
Industrial Automation Systems: The PW301-S3 powers programmable logic controllers (PLCs), sensors, actuators, and other automation components in factory automation systems.
-
Process Control Systems: Ensures reliable power to control loops, sensors, and measuring instruments in process industries such as chemicals, oil & gas, and manufacturing.
-
Control Panels: Used to power control systems within control cabinets and panels, providing the necessary voltage to a wide range of industrial equipment.
-
Telecommunications: Powers base stations, servers, and other telecommunication infrastructure requiring steady and reliable power.
-
Energy Management Systems: Provides stable voltage for equipment monitoring and control in energy distribution networks and smart grid systems.
-
Measurement and Test Equipment: Powers precise measuring instruments in laboratories, research facilities, and manufacturing quality control stations.
-
Renewable Energy: Essential for renewable energy monitoring systems, such as solar or wind energy applications, where stability and efficiency are key.
-
Railways and Transportation Systems: Provides power for various control and monitoring equipment in transportation infrastructure.
-
Water Treatment Plants: Supplies power to control systems, pumps, and sensors in water and wastewater treatment facilities.
-
Automation in the Pharmaceutical Industry: Ensures stable and consistent power for automated systems involved in pharmaceutical manufacturing processes.
Product Advantages
-
High Efficiency: With an efficiency of up to 90%, the PW301-S3 minimizes energy loss, making it a highly energy-efficient solution for industrial power needs.
-
Wide Voltage Range: The unit can accept 100-240 VAC input, providing flexibility for global use and different power grid standards.
-
Reliable Protection Features: Overvoltage, overcurrent, and short-circuit protection ensure the safety of both the power supply module and connected equipment.
-
Compact Design: With dimensions of 279 x 102 x 279 mm and weighing only 3.3 kg, the module is compact and easy to install in confined spaces.
-
Continuous Operation: The PW301-S3 is designed for 24/7 operation in industrial environments, providing continuous power without interruption.
-
Temperature Tolerance: Operating within a temperature range of -10°C to +60°C, the module performs well in extreme environments.
-
Fan-assisted Cooling: The built-in fan cooling ensures that the module operates at optimal temperatures, even during high loads.
-
Flexible Mounting Options: The module can be easily mounted on a DIN rail or within racks, making it suitable for different installation types.
-
Certified and Safe: The CE and UL certifications ensure that the PW301-S3 complies with international safety and quality standards.
-
RoHS Compliant: The module is RoHS compliant, making it an environmentally friendly option that adheres to European environmental regulations.
Frequently Asked Questions (FAQ)
-
What is the output voltage of the Yokogawa PW301-S3?
The output voltage of the PW301-S3 is 24 VDC. -
What is the input voltage range for the PW301-S3?
The input voltage range for the PW301-S3 is 100 – 240 VAC. -
How much does the PW301-S3 weigh?
The PW301-S3 weighs 3.3 kg. -
What is the power output of the PW301-S3?
The PW301-S3 provides a 288 W power output. -
What is the temperature range of the PW301-S3?
The operating temperature range of the PW301-S3 is -10°C to +60°C. -
What protection features does the PW301-S3 have?
The PW301-S3 features overvoltage, overcurrent, and short-circuit protection. -
How efficient is the PW301-S3?
The PW301-S3 has an efficiency of up to 90%. -
What is the mounting type for the PW301-S3?
The PW301-S3 can be mounted on DIN rail or rack. -
Is the PW301-S3 RoHS compliant?
Yes, the PW301-S3 is RoHS compliant, ensuring it meets environmental standards. -
What certifications does the PW301-S3 have?
The PW301-S3 is CE and UL certified, ensuring it meets international safety and quality standards.
Recommended Related Models (Same Series or Related)
| Model | Description | Notes |
|---|---|---|
| PW301-S1 | Power Supply Module | Smaller power output, compact design |
| PW301-S2 | Power Supply Module | Slightly higher output, flexible use |
| PW302-S3 | High Output Power Supply Module | Suitable for larger systems |
| PW304-S5 | Power Supply with enhanced protection | Extra protections for sensitive systems |
| PW305-S4 | Dual output power supply module | Provides multiple outputs |
| PW301-S4 | Extended temperature range version | Operates in higher temperature extremes |
