Product Introduction

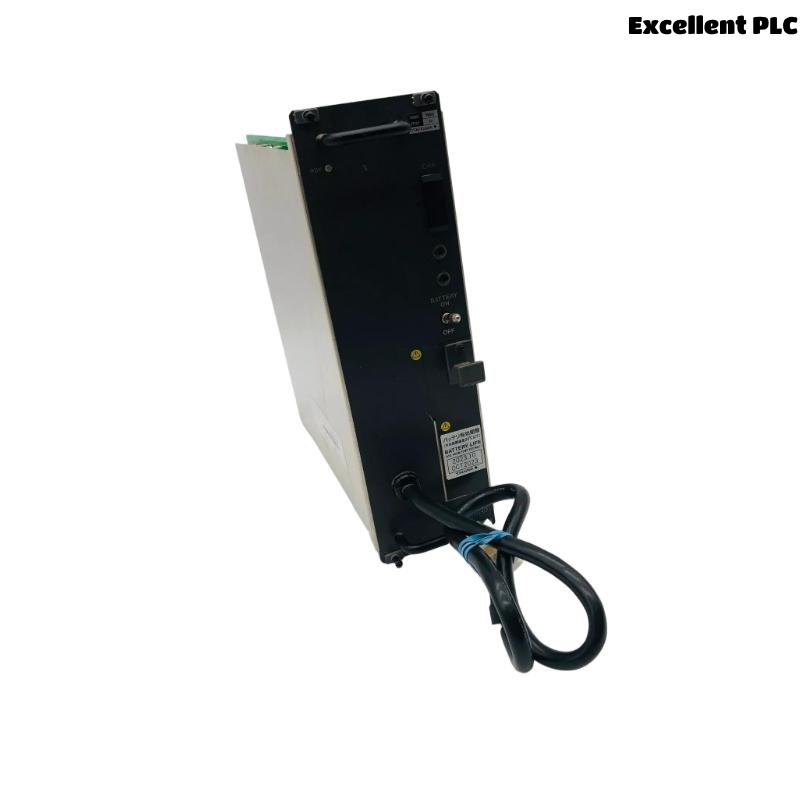

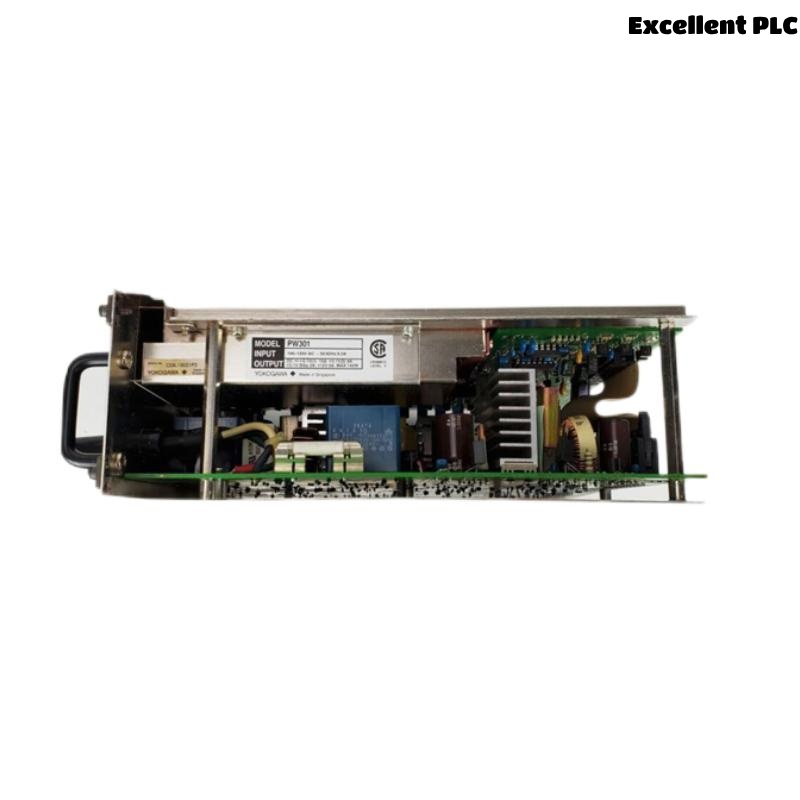

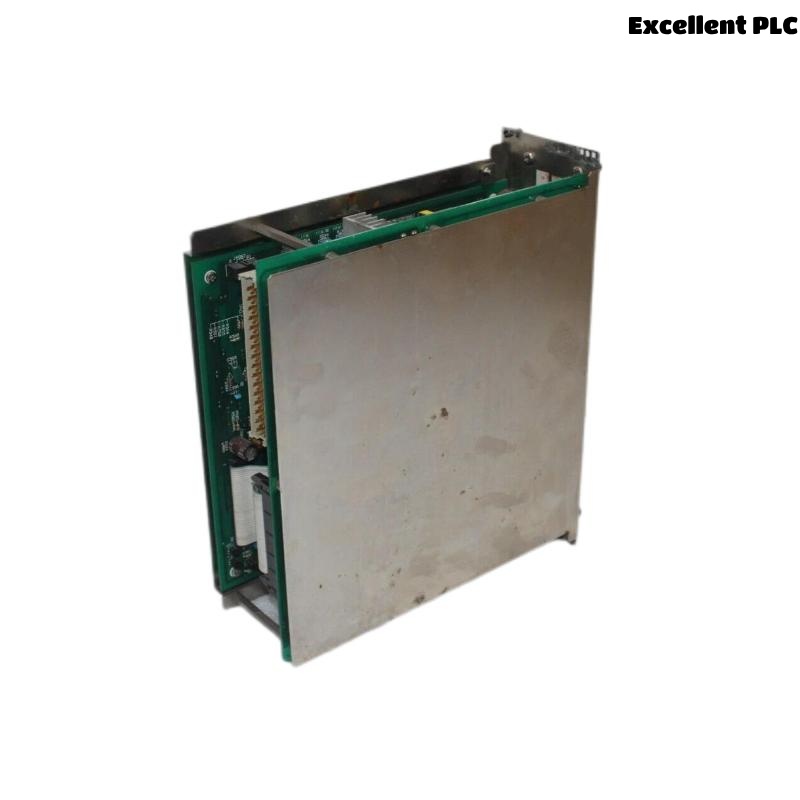

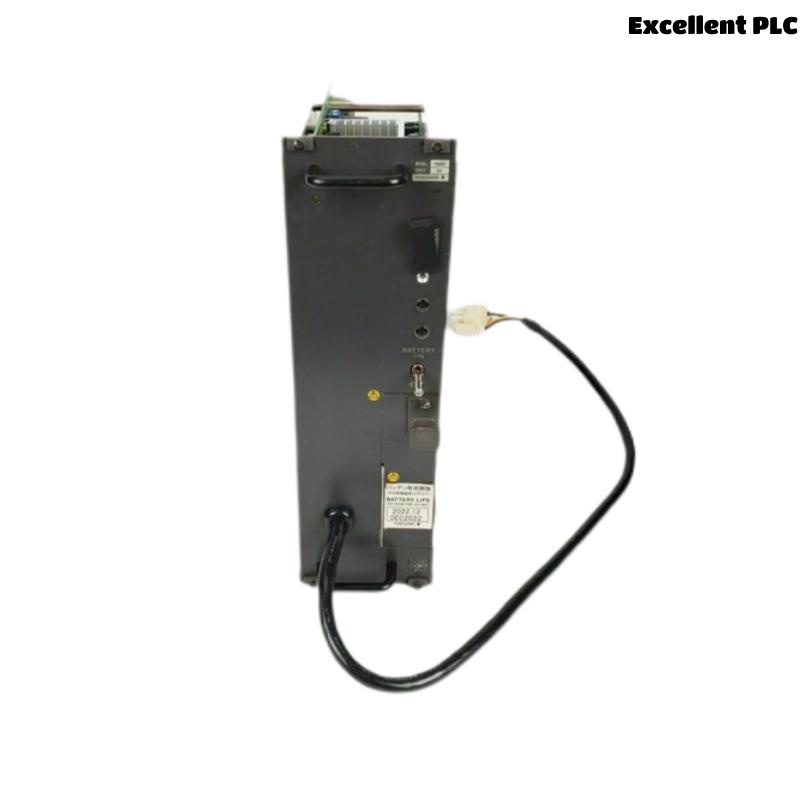

The Yokogawa PW301-S4 is a high-performance, reliable power supply module designed for industrial and automation applications. It offers stable and efficient power delivery, making it ideal for systems that require continuous and uninterrupted operation. Whether used in process control, measurement equipment, or control panels, the PW301-S4 ensures seamless power support for various industrial and control systems.
With advanced protection features, such as overvoltage, overcurrent, and short-circuit protection, this module offers a safe and long-lasting solution for powering sensitive equipment. It is engineered for robust performance under demanding environmental conditions, ensuring your systems remain operational even in challenging industrial environments.
The Yokogawa PW301-S4 has dimensions of 279 x 102 x 279 mm and weighs 3.3 kg, providing a compact and space-efficient power solution for your control systems. The module is known for its high efficiency and durability, making it a key component in any system requiring reliable power.
Product Specifications
| Parameter | Description |
|---|---|
| Model | PW301-S4 |
| Type | Power Supply Module |
| Dimensions (WxHxD) | 279 x 102 x 279 mm |
| Weight | 3.3 kg |
| Input Voltage | 100 – 240 VAC |
| Output Voltage | 24 VDC |
| Output Current | 12 A |
| Power Output | 288 W |
| Efficiency | Up to 90% |
| Protection Features | Overvoltage, Overcurrent, Short-circuit |
| Mounting | Rack or DIN rail |
| Operating Temperature | -10°C to +60°C |
| Cooling | Fan-assisted |
| Certification | CE, UL Certified |
| Compliance | RoHS Compliant |
Product Applications
The Yokogawa PW301-S4 power supply module is designed for use in a variety of applications across several industries. Some of the key areas where this power supply module is used include:
-
Industrial Automation Systems: The PW301-S4 is used to power control systems, PLCs, and sensors in factory automation systems. It ensures smooth operation of automated machinery and systems.
-
Process Control Systems: In industries such as chemicals, pharmaceuticals, and oil & gas, the PW301-S4 provides consistent power for process controllers, analyzers, and measuring devices.
-
Control Panels: The power supply module is a critical component for control systems in industrial panels and cabinets, ensuring the stable operation of connected devices.
-
Energy Management Systems: The module is used in energy monitoring and control systems, providing power to devices that manage and optimize energy use in industrial and commercial applications.
-
Telecommunications: The PW301-S4 is used to power communication equipment in telecom networks, providing continuous power for base stations and other telecom infrastructure.
-
Test and Measurement Equipment: In laboratories and quality control systems, the module powers test equipment and sensors that require a stable and reliable power source.
-
Renewable Energy Systems: Used in solar and wind energy systems to provide stable power for monitoring and control systems.
-
Transportation Infrastructure: The module is used to power systems in transportation infrastructure, such as signaling systems, control units, and monitoring systems.
-
Water Treatment Plants: The PW301-S4 ensures reliable power for control systems, pumps, and sensors in water and wastewater treatment facilities.
-
Pharmaceutical Manufacturing: Provides stable power for automated systems used in pharmaceutical production processes, ensuring compliance with strict industry regulations.
Product Advantages
-
High Efficiency: The PW301-S4 offers up to 90% efficiency, reducing energy losses and improving overall system performance.
-
Wide Input Voltage Range: The module can accept input voltages from 100 to 240 VAC, making it suitable for use in a variety of global environments.
-
Robust Protection Features: Includes overvoltage, overcurrent, and short-circuit protection, ensuring the protection of both the power supply and connected equipment.
-
Compact and Space-Efficient: With a compact size of 279 x 102 x 279 mm and a weight of 3.3 kg, the module fits easily into control panels and other space-constrained installations.
-
Continuous Operation: Designed for 24/7 operation, the PW301-S4 ensures continuous power supply, making it ideal for critical industrial applications.
-
Wide Operating Temperature Range: The module operates efficiently in a wide temperature range of -10°C to +60°C, ensuring reliability in harsh environments.
-
Flexible Mounting Options: Can be mounted on DIN rails or in racks, providing installation flexibility in a variety of configurations.
-
Fan-Assisted Cooling: The fan-assisted cooling system ensures that the module maintains optimal performance even under high loads or extended operating periods.
-
Certified for Safety: The PW301-S4 is CE and UL certified, ensuring compliance with international safety and quality standards.
-
RoHS Compliant: The module meets RoHS standards, making it an environmentally friendly solution for industrial power needs.
Frequently Asked Questions (FAQ)
-
What is the output voltage of the PW301-S4?
The output voltage of the PW301-S4 is 24 VDC. -
What is the input voltage range for the PW301-S4?
The input voltage range for the PW301-S4 is 100 – 240 VAC. -
How much does the PW301-S4 weigh?
The PW301-S4 weighs 3.3 kg. -
What is the power output of the PW301-S4?
The power output of the PW301-S4 is 288 W. -
What protection features does the PW301-S4 offer?
The PW301-S4 offers overvoltage, overcurrent, and short-circuit protection. -
What is the efficiency of the PW301-S4?
The PW301-S4 has an efficiency of up to 90%. -
What is the temperature range of the PW301-S4?
The PW301-S4 operates in temperatures ranging from -10°C to +60°C. -
What mounting options are available for the PW301-S4?
The PW301-S4 can be mounted on DIN rails or in racks. -
Is the PW301-S4 RoHS compliant?
Yes, the PW301-S4 is RoHS compliant, meaning it adheres to environmental standards. -
What certifications does the PW301-S4 have?
The PW301-S4 is certified with CE and UL, ensuring compliance with international safety and quality standards.
Recommended Related Models (Same Series or Related)
| Model | Description | Notes |
|---|---|---|
| PW301-S3 | Power Supply Module | Similar to the S4, but with slightly lower output |
| PW301-S2 | Power Supply Module | Compact version for lower power requirements |
| PW302-S3 | High Output Power Supply | Higher output version for large-scale applications |
| PW304-S5 | Power Supply with enhanced protection | Includes additional protection features for sensitive systems |
| PW305-S4 | Dual output power supply module | Suitable for powering multiple systems with two outputs |
| PW301-S5 | Enhanced temperature range version | Suitable for use in extreme environmental conditions |
Popular Yokogawa Models (Same Brand)
| Model | Features | Application Areas |
|---|---|---|
| SB401-50 S1 | High precision, compact design | Industrial automation, control systems |
| PW301-S3 | High-speed power supply, robust design | Process control, power distribution |
| PW301-S4 | Multi-output, high efficiency | Data centers, instrumentation |
| SB402-50 S1 | Fast switching, high reliability | Robotics, factory automation |
| PW302-S3 | Advanced monitoring, scalable output | Testing equipment, power management |
| PW303-S4 | Modular design, flexible configuration | Power systems, electrical control |
