Product Introduction

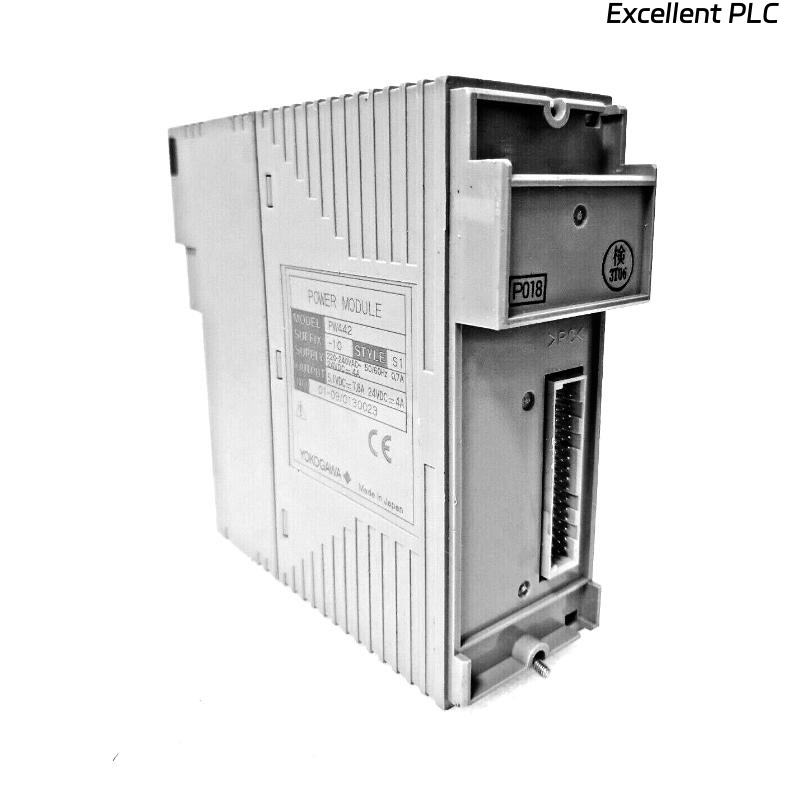

The Yokogawa PW442-50 Power Supply Module is a highly reliable and efficient power supply unit designed for demanding industrial environments. This module plays a crucial role in providing consistent and stable power to systems within automation and control applications. It is engineered with advanced technology to ensure performance, high efficiency, and enhanced durability, making it an ideal choice for various industrial and operational setups.
This power supply module features dual-redundant design, allowing for greater reliability and fault tolerance. With its modular architecture, it ensures system uptime and provides a stable power source even in the event of power disruptions or failures.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Yokogawa PW442-50 Power Supply Module |
| Input Voltage | 100-240V AC (wide range) |
| Output Voltage | 24V DC |
| Output Power | 50W |
| Dimensions | 92 x 120 x 130 mm |
| Weight | 1.2 kg |
| Operating Temperature | -10°C to +60°C |
| Cooling Type | Forced air (fan cooled) |
| Efficiency | ≥ 90% |
| Protection Features | Overload, over-voltage, short-circuit protection |
Applications
The Yokogawa PW442-50 Power Supply Module is utilized in a wide range of applications across industries where power reliability and efficiency are paramount. These include:
-
Automation Systems: Powers field instruments, sensors, and controllers in industrial automation.
-
Control Panels: Used in control panels for factory automation and remote control setups.
-
Process Control: Provides stable and reliable power to process control systems.
-
Telecommunications: Used in telecom equipment where stable power is critical for uptime and performance.
-
Measurement and Monitoring Systems: Powers sensors, gauges, and diagnostic tools in continuous monitoring systems.
Advantages
-
High Efficiency: With an efficiency rating of over 90%, this module ensures minimal energy wastage, providing better cost efficiency.
-
Compact Design: The compact size allows it to fit into a wide variety of spaces, even in confined environments.
-
Dual-Redundant System: The dual-redundant configuration increases system reliability, ensuring continuous operation even during power disturbances.
-
Wide Input Voltage Range: The ability to handle a wide input voltage range (100-240V AC) ensures the module can be used globally with different electrical systems.
-
Robust Protection Features: Overload, over-voltage, and short-circuit protection ensure that your systems are safeguarded against power spikes and faults.
FAQ
Q1: What is the maximum output power of the Yokogawa PW442-50 Power Supply Module?
A1: The maximum output power of the Yokogawa PW442-50 is 50W.
Q2: Can this power supply module be used in extreme temperatures?
A2: Yes, the module can operate in temperatures ranging from -10°C to +60°C, making it suitable for both low and high-temperature environments.
Q3: How does the dual-redundant feature work in this power supply module?
A3: The dual-redundant feature ensures that the power supply continues to function even if one of the modules fails. The redundant system automatically takes over the load, reducing the risk of downtime.
Q4: Is there any protection against short circuits in the Yokogawa PW442-50?
A4: Yes, the power supply module has built-in short-circuit protection to safeguard both the module and the connected equipment from damage in case of a short circuit.
Q5: What is the efficiency of the power supply module?
A5: The Yokogawa PW442-50 Power Supply Module boasts an efficiency of ≥ 90%, ensuring high performance with minimal energy loss.
Q6: Can this module be used globally with different power supply systems?
A6: Yes, the module has a wide input voltage range of 100-240V AC, making it suitable for use in various countries with different electrical systems.
Q7: What type of cooling system does the module use?
A7: The Yokogawa PW442-50 uses forced air cooling (fan-cooled) to maintain optimal operating temperatures during continuous use.
Q8: Does the module come with any overload protection?
A8: Yes, it is equipped with overload protection to prevent damage to the module and connected equipment in case of excessive current.
Q9: Is the power supply module compatible with other Yokogawa automation products?
A9: Yes, the Yokogawa PW442-50 is designed to work seamlessly with other Yokogawa automation products, ensuring a reliable power source for all connected devices.
Q10: How does the Yokogawa PW442-50 help reduce energy costs?
A10: With its high efficiency and low energy consumption, the module helps reduce overall energy costs, ensuring that power wastage is minimized.
Recommended Models from the Same Series
| Model | Output Power | Voltage | Dimensions (mm) | Weight | Efficiency |
|---|---|---|---|---|---|
| PW442-60 | 60W | 24V DC | 92 x 120 x 130 | 1.3 kg | ≥ 90% |
| PW442-75 | 75W | 24V DC | 92 x 120 x 130 | 1.4 kg | ≥ 90% |
| PW442-100 | 100W | 24V DC | 92 x 120 x 130 | 1.5 kg | ≥ 90% |
| PW443-50 | 50W | 24V DC | 92 x 120 x 130 | 1.2 kg | ≥ 90% |
| PW441-50 | 50W | 12V DC | 92 x 120 x 130 | 1.2 kg | ≥ 90% |
| PW444-50 | 50W | 48V DC | 92 x 120 x 130 | 1.2 kg | ≥ 90% |
